Laboratory Scale PCE-DMS 310

Order no.: PCE-DMS 310
GTIN (EAN): 4250348721235
286,90 €
341,41 €
price ex. (VAT / delivery)
:
4250348721235
PCE-DMS 310
Delivery time: 1-2 working days

Description

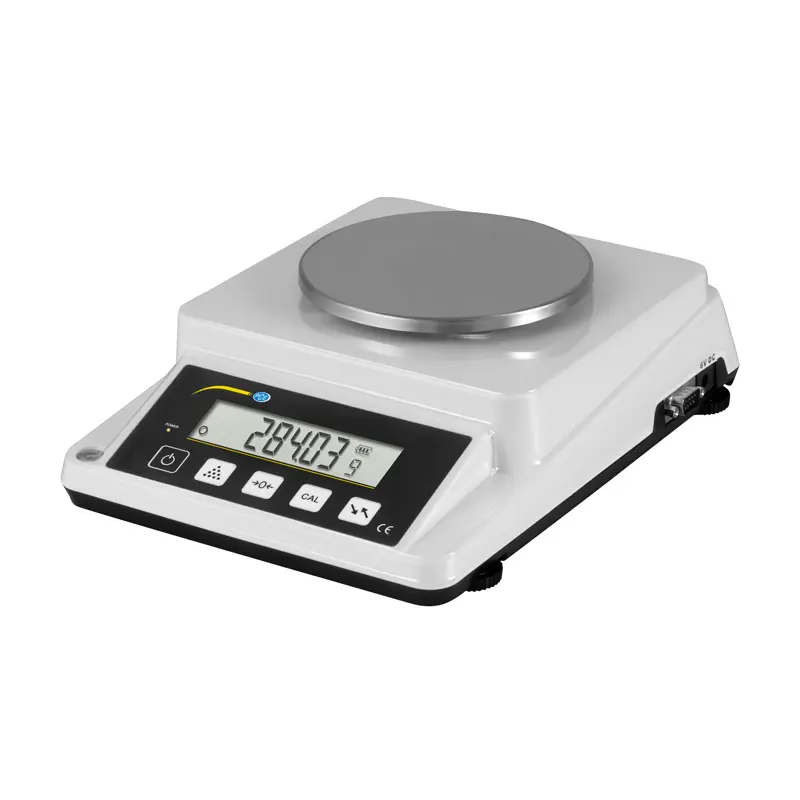

Laboratory scale PCE-DMS 310
Paper scale with direct display in g / m² Paper scale with RS-232 interface / Backlight / Piece counting function Measurement of basis weight / Also suitable for mobile use

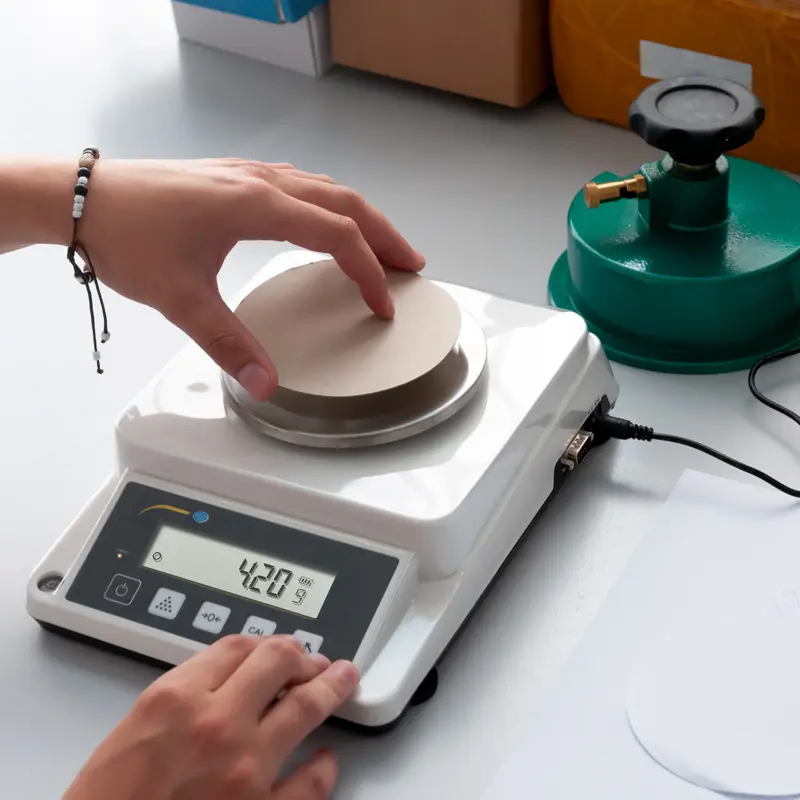

These paper scales were specially designed for the measurement of basis weight. Thanks to this paper scale, basis weight measurements can be carried out and evaluated within a very short time. With this paper scale, you can also determine, for example, the grammage of paper, cardboard or various textiles exactly. Weighing up to 1100 g at a resolution of 0.01 g can be carried out depending on the paper balance.

In addition to the basis weight measurement, the paper scales can also transfer the measured data to a PC. This is possible with the help of the installed RS-232 interface. The included power supply allows stationary use of the paper scales. Alternatively, the paper scale can also be used for mobile use. For this 3 x 1.5V AA batteries can be used. The optionally available paper sample level sampler ensures that the same samples are always used for basis weight determination.

Highlights

- High precision

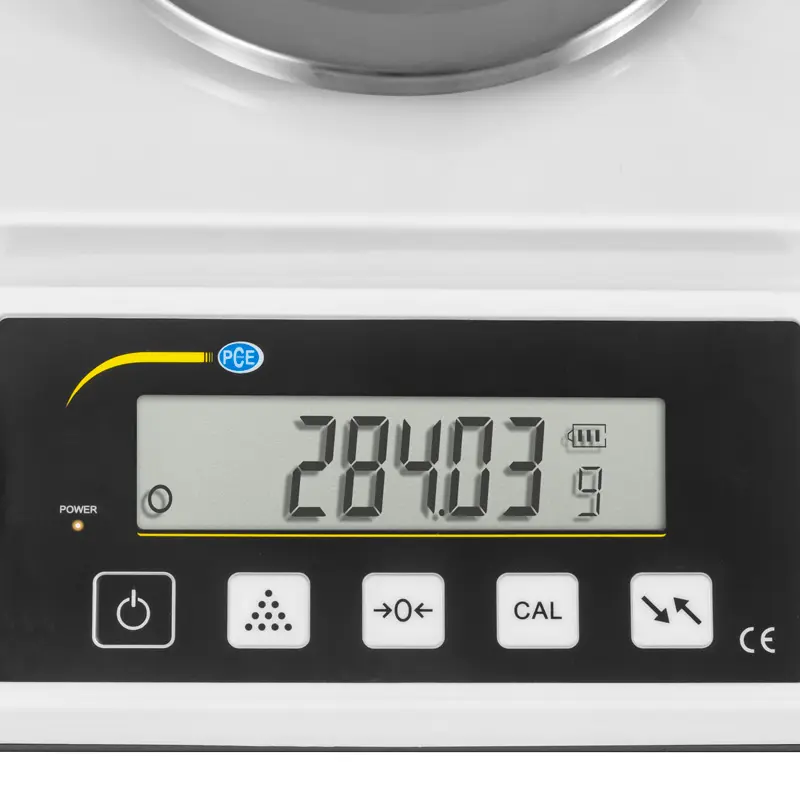

- Display with backlight
- RS-232 interface
- Piece counting function, weight per unit area
- Battery operation for mobile use
- Alignment of the balance with dragonfly

Specification

Measuring range 0 ... 310 g / 0 ... 31,000 g / m²
Resolution 0.01 g / 1 g / m²
Repeatability ± 0.02 g
Linearity ± 0.03 g
Stabilization period <3 s
Operating conditions 17.5 ... 22.5°C / 63.5 ... 72.5°F, 85% rh non-condensing
Interface Serial RS232
Power supply battery 3 x 1.5V AA
Power supply power supply Primary: 100 ... 240V, 50/60 Hz
  Secondary: 6V, 500-mA
Dimensions of the support surface        270 x 200 x 80 mm / 10.6 x 7.9 x 3.1 in
Weight 2 kg / 4.4 lbs

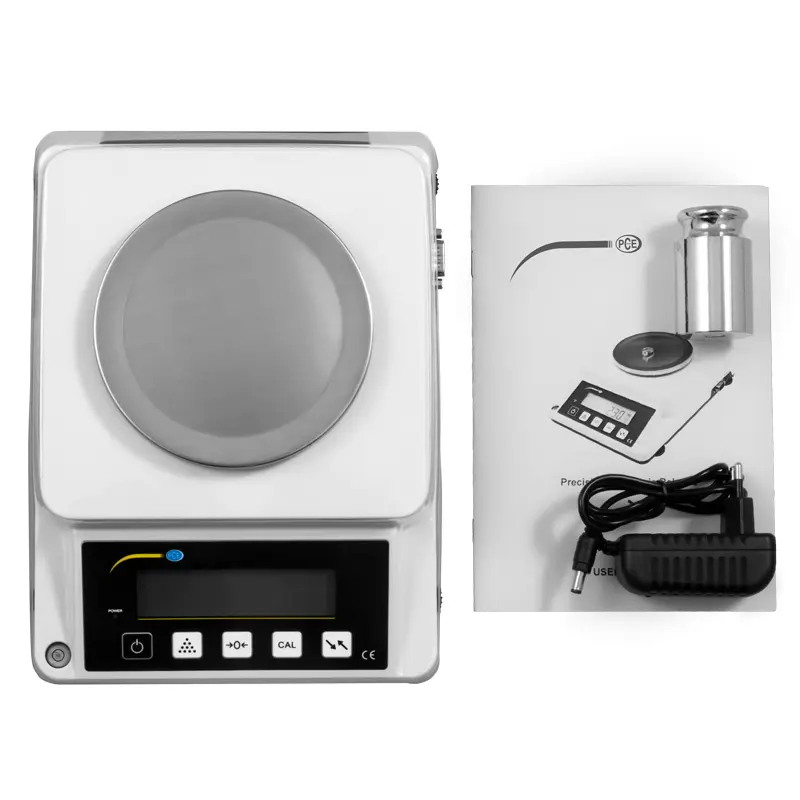

Delivery Scope

1 x Laboratory scale PCE-DMS 310
1 x Test weight
1 x Power supply
1 x User manual

Downloads
