134,90 €

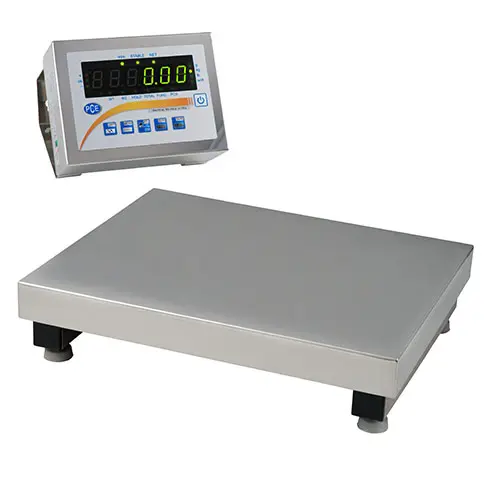

Technical specifications of the Water Resistant Scale PCE-SD SST Series | |||||||||||||||||||||||||
| |||||||||||||||||||||||||
* The minimum load is defined by the load, from which the calibration authority tests the accuracy of the scale. The waterproof steel scale shows even lower weights, but these are not valid for custody transfer. | |||||||||||||||||||||||||
Calibration Class | M III (is delivered calibrated) | ||||||||||||||||||||||||
Unit Counter Function | counting by reference values | ||||||||||||||||||||||||
Tare function | multiple taring covering the whole measurement range | ||||||||||||||||||||||||
Interface | optional
bi-directional RS-232, USB, LAN datasheet on interface as well as analogue output 4-20 mA, 0-10, OC | ||||||||||||||||||||||||
Display | LED with 20 mm digit height | ||||||||||||||||||||||||
Cable Length | from platform to display | ||||||||||||||||||||||||
Power Source | ~230V, 50Hz, 8VA (schuko plug) | ||||||||||||||||||||||||
Protection Class | IP 67 cell / IP65 display | ||||||||||||||||||||||||
Operational Temperature | -10 °C ... +40 °C | ||||||||||||||||||||||||
Weight | platform
400 x 500 x 120 mm / 17 kg platform 600 x 500 x 135 mm / 25 kg |
