Price excl. VAT &. delivery
2 year Warranty

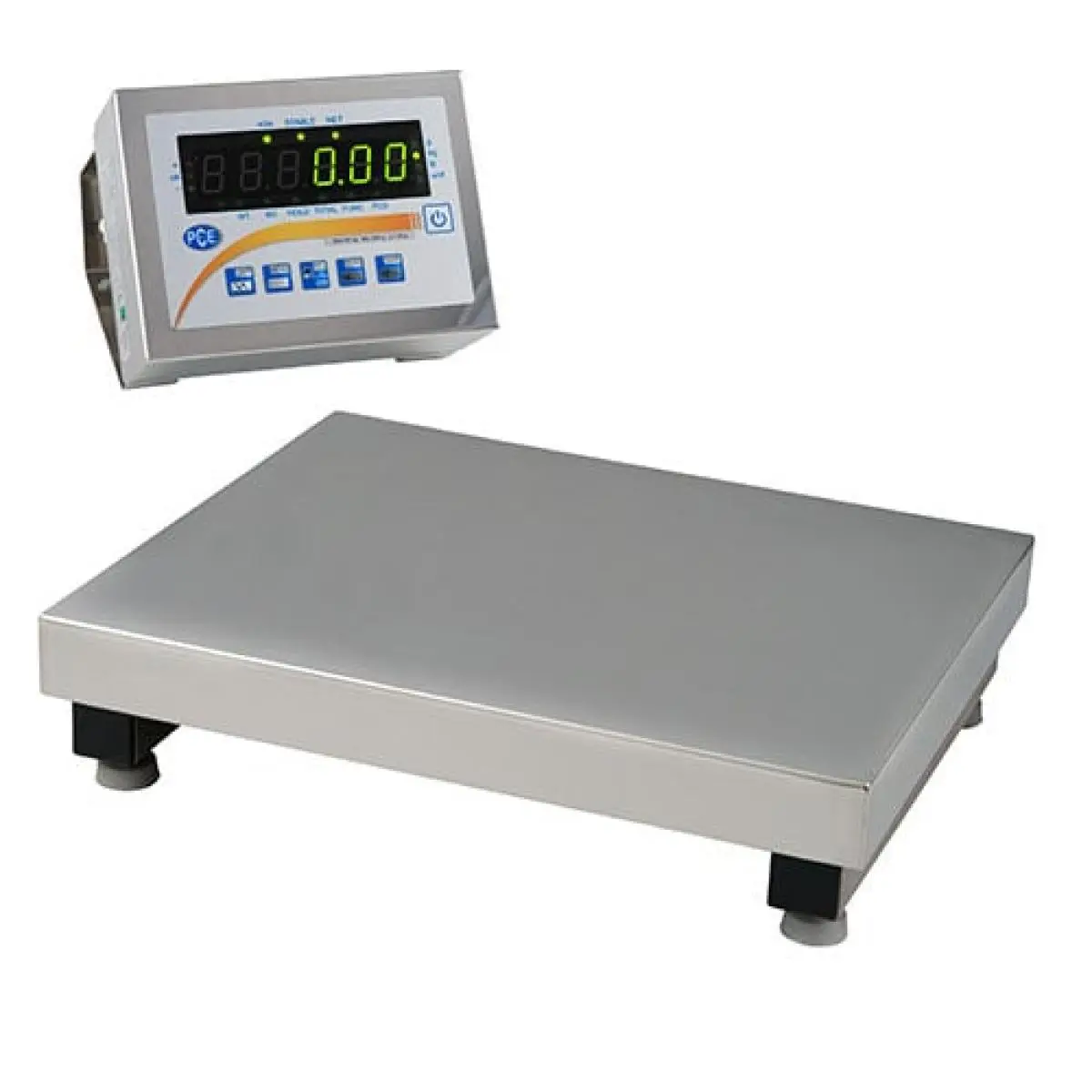

Technical specifications of the Water Resistant Animal Weighing Scale PCE-SD SST Series | |||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
* The minimum load is defined by the load, from which the calibration authority tests the accuracy of the scale. The waterproof steel scale shows even lower weights, but these are not valid for custody transfer. | |||||||||||||||||||||||||||||||
Calibration Class | M III (is delivered calibrated) | ||||||||||||||||||||||||||||||
Unit Counter Function | counting by reference values | ||||||||||||||||||||||||||||||
Tare function | multiple taring covering the whole measurement range | ||||||||||||||||||||||||||||||
Interface | optional
bi-directional RS-232, USB, LAN datasheet on interface as well as analogue output 4-20 mA, 0-10, OC | ||||||||||||||||||||||||||||||
Display | LED with 20 mm digit height | ||||||||||||||||||||||||||||||
Cable Length | from platform to display | ||||||||||||||||||||||||||||||
Power Source | ~230V, 5Hz, 8VA (schuko plug) | ||||||||||||||||||||||||||||||
Protection Class | IP 67 cell / IP65 display | ||||||||||||||||||||||||||||||
Operational Temperature | -10 °C ... +40 °C | ||||||||||||||||||||||||||||||
Weight | platform
400 x 500 x 120 mm / 17 kg platform 600 x 500 x 135 mm / 25 kg |
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Analog output / analog interface 0-10V
Price excl. VAT &. delivery
2 year Warranty
Analog output / analog interface 4-20mA
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Do you want toequipyour scale with abattery?(Retrofittingthe battery is not possible).The scalewill then receivea6V/12Ahbatterywith12Vpower connectorand apower-savingLCDdisplayto be able toworkas long as possiblewith the battery.The working timeof the batteryis approximately50 hours,andcan be rechargeddirectly onthe scale.
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
This function divides the weighing area into two-areas, this allows a higher resolution in the lower weighing range.
Only for scales up to 3 t.
Price excl. VAT &. delivery
2 year Warranty
The serial RS-232 cable is about 2 m long and has the right pinout 2-3 / 3-2 / 5-5 which is necessary for bidirectional communication of the scale with the PC.
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Thermal printer for scales and balances
Requires 112 mm paper rolls
Dimensions: 165x140x50mm (WxDxH)
Includes RS-232 interface cable + power supply
