Price excl. VAT &. delivery
2 year Warranty
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||
* the minimal load is defined here as the load above which the calibration authorities test their accuracy. The calibratable scale shows even lower weights, but these are not allowed to be used for custody transfer. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Calibration Class | M III (is delivered calibrated) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Unit Counter | through counting by reference value | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tare function | Multiple tare function for whole measurement range | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interface | RS-232
bi-directional Description of interface RS-485, LAN and USB optional | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Display | LED with 20 mm digit height | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 12 V / 1.4 A incl. adapter | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP Code | IP 54 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operational temperature | - 10 °C ... + 40 °C | ||||||||||||||||||||||||||||||||||||||||||||||||||||||

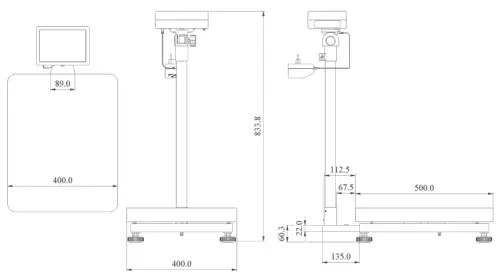

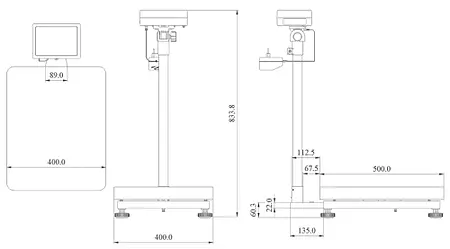

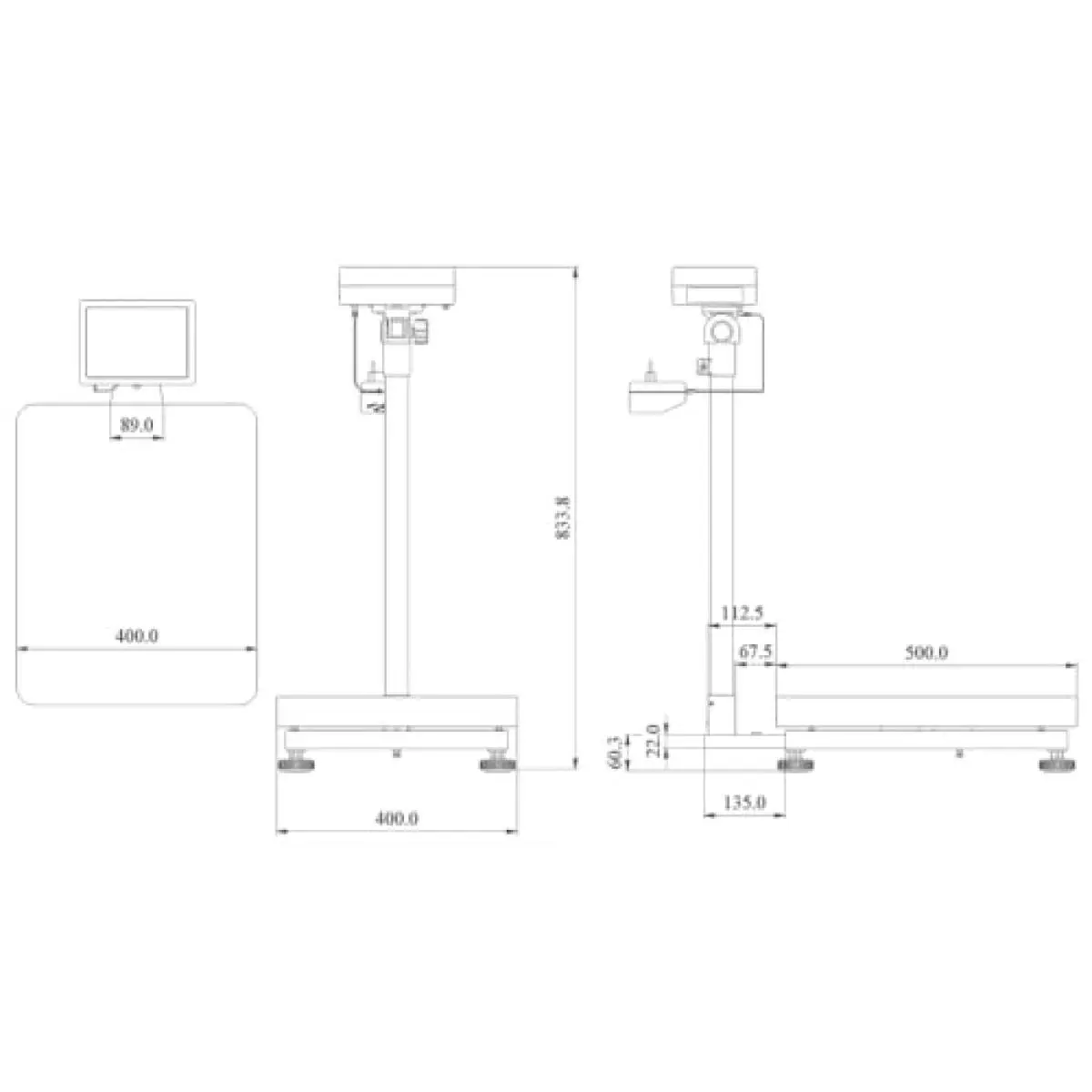

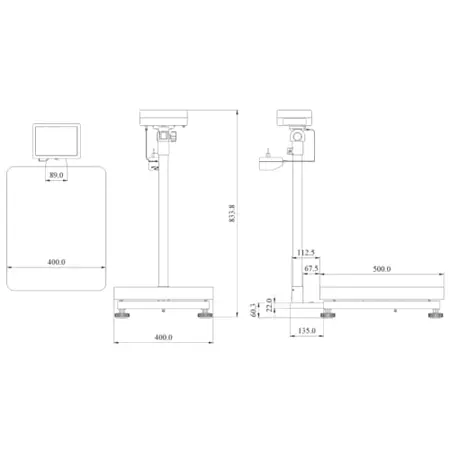

Diameters | 400 x 620 x 850 - 870 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight | approx. 12 kg |
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Analog output / analog interface 0-10V
Price excl. VAT &. delivery
2 year Warranty
Analog output / analog interface 4-20mA
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Do you want toequipyour scale with abattery?(Retrofittingthe battery is not possible).The scalewill then receivea6V/12Ahbatterywith12Vpower connectorand apower-savingLCDdisplayto be able toworkas long as possiblewith the battery.The working timeof the batteryis approximately50 hours,andcan be rechargeddirectly onthe scale.
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
This function divides the weighing area into two-areas, this allows a higher resolution in the lower weighing range.
Only for scales up to 3 t.
Price excl. VAT &. delivery
2 year Warranty
The serial RS-232 cable is about 2 m long and has the right pinout 2-3 / 3-2 / 5-5 which is necessary for bidirectional communication of the scale with the PC.
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Thermal printer for scales and balances
Requires 112 mm paper rolls
Dimensions: 165x140x50mm (WxDxH)
Includes RS-232 interface cable + power supply
