NTEP Certified Scale PCE-SD 3000F

Order no.: PCE-SD 3000F
GTIN (EAN): 4250348712325

3.598,90 €
4.282,69 €
Verification for Trade / conformity assessment
price ex. (VAT / delivery)
:
4250348712325
PCE-SD 3000F
Delivery time: up to 10 working days

Description

NTEP Certified Scale up to 3,000 kg / Resolution 1 kg / Weighing cells IP67 /
Piece counting function / Summing function / RS-232 interface / Scales made of painted steel / Removable weighing plate / Mounting frame optional

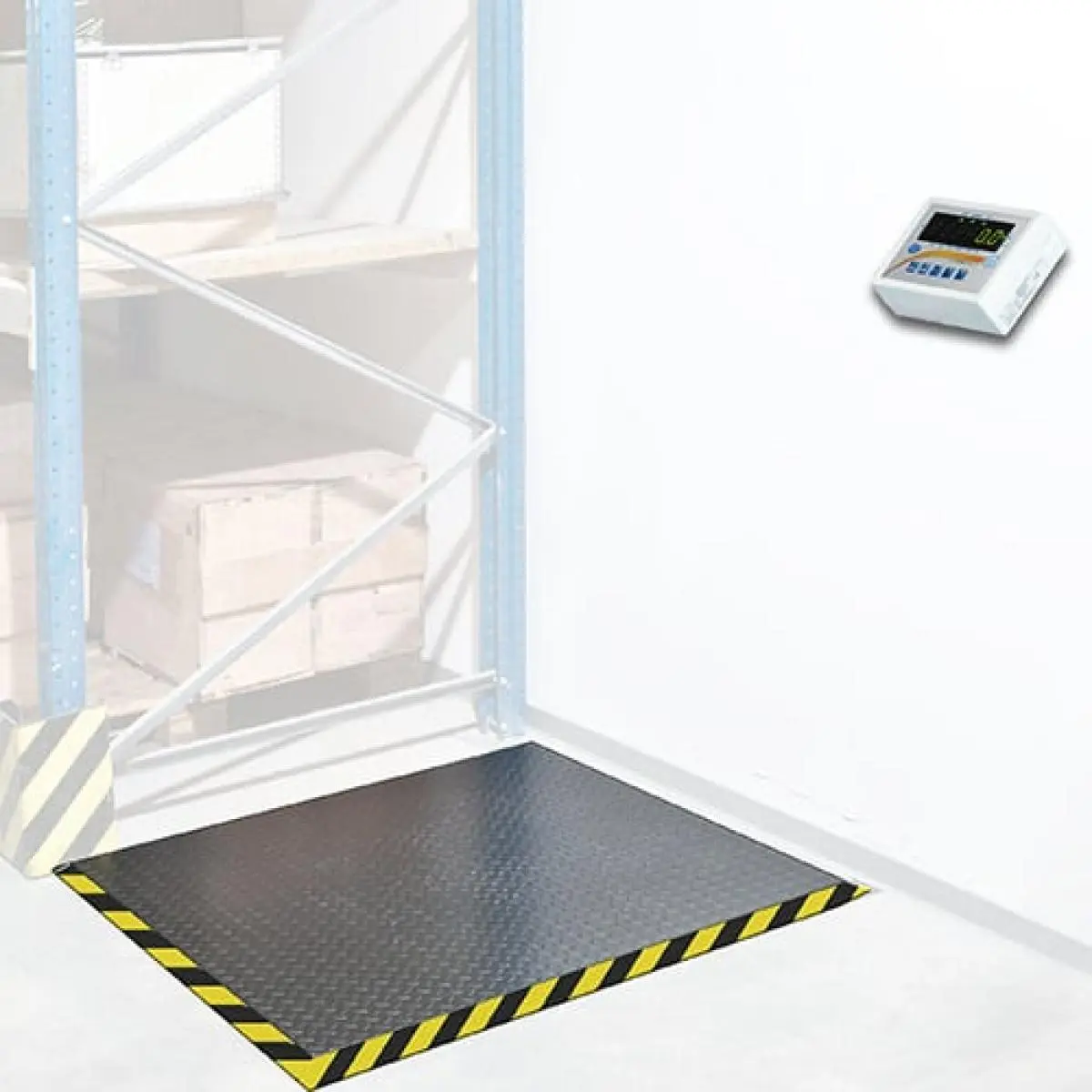

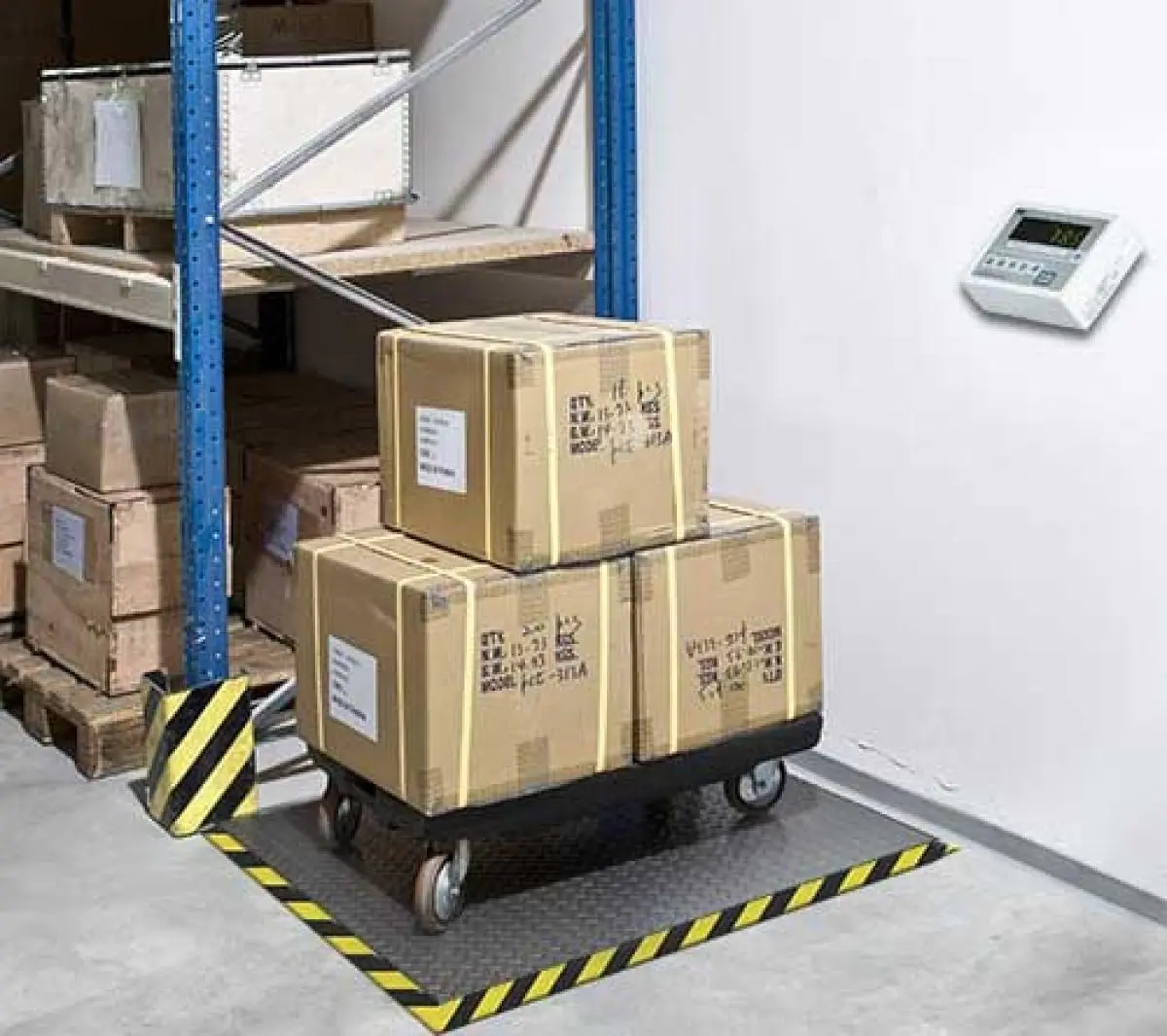

The NTEP certified scale is designed for flush installation and is optionally available with a built-in frame on request. The NTEP certified scale is calibrated according to Calibration Class III and is approved throughout the EU for use for trading of goods for two years. The display cable of the NTEP certified scale has a length of 5 m and is equipped with a plug-in connection, which allows a problem-free laying in the cable duct without having to re-calibrate the NTEP certified scale. The display of the NTEP certified scale is IP 54 protected and has a bracket for a table or wall mounting.

 Optionally, you can also get a tripod suitable for the NTEP certified scale. Various dimensions of the built-in NTEP certified scale are available to you and the functions of the NTEP certified scale make this a multi-talent. The serial bi-directional RS-232 interface of the NTEP certified scale is also a versatile feature. Thus, a programmer can easily implement the NTEP certified scale in the existing IT system. The NTEP certified scale is also available as a stainless steel version. For special industrial applications analog interfaces 4-20 mA or 0-10 V as well as 3 potential-free switching contacts can be offered for the calibrated NTEP certified scale.

Highlights

- Piece counting function
- Percent% comparison weighing
- Filter (reaction time) adjustable
- Animal weighing function
- A tare value storable
- Tolerance determination Weight min / ok / max
- Sum up several weighings
- Average weight determination
- Formulation mixed weighing
- Adjustable bidirectional RS-232 interface
- Statistics function
- Adjustable automatic shutdown
- Gross / net button on the display
- Menu freely adjustable
- Maintenance-free components
- Optional: USB, LAN or 4-20 mA

Specification

Model Weighing range Resolution Min.* Dimensions Weight
PCE-SD 3000 F 3,000 kg 1 kg 20 kg 1500 x 1500 mm 210 kg
* The minimum load is the load from which the calibration authority checks the accuracy. The verifiable floor installation scale also indicates smaller weights, but these may not be used in legal traffic.
Calibration calibratable according to class M III (delivered calibrated)
Tare multiple tare over the full weighing area
Settling time <4 s
Display LED with 20 mm digit height
Cable length plugged in 5 m
Weighing units kg / piece / lb
Interface bi-directional RS-232
optional USB, LAN, 4-20 mA, 0-10V, OC

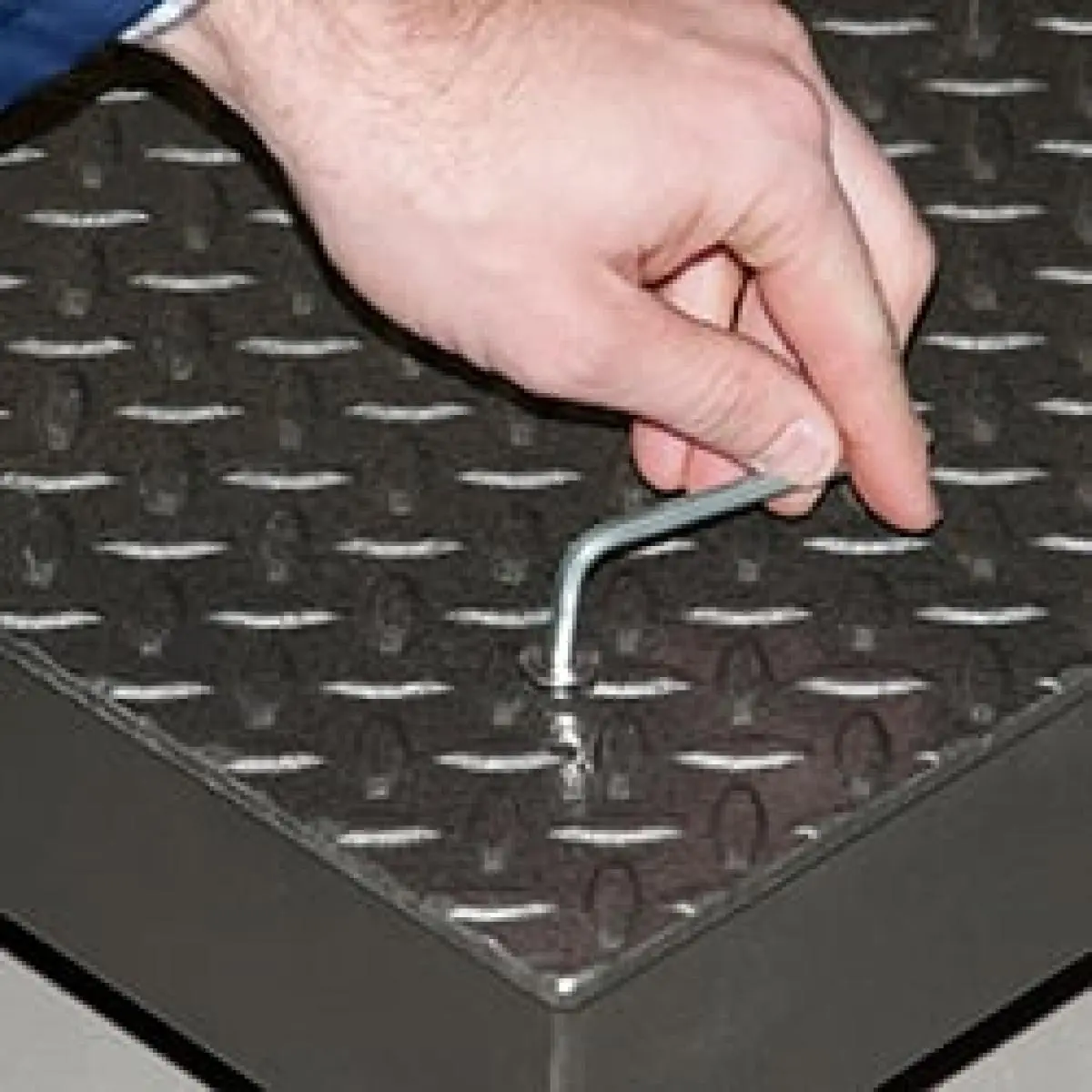

Weighing plate fluted painted steel (unscrewable)
Operating temperature -10 °C ... +40 °C / 14 ... 104 °F
Power supply ~230V 50Hz 8VA  (safety plug)
Protection cell IP 67 / display IP54

Delivery Scope

1 x NTEP Certified Scale PCE-SD 3000F
1 x Display
4 x Floor fixing plates
1 x User manual
