Pallet Beam PCE-MS B1,5T-1-M

Order no.: PCE-MS B1,5T-1-M
GTIN (EAN): 4250348729453
786,90 €
936,41 €
Verification for Trade / conformity assessment
price ex. (VAT / delivery)
:
4250348729453
PCE-MS B1,5T-1-M
Delivery time: 1-2 working days
0.5 kg
Yes

Description

Pallet Beam PCE-MS B1,5T-1-M / Max. capacity 1500 kg / Verification value: 0.5 kg / Incl. verification (conformity assessment)

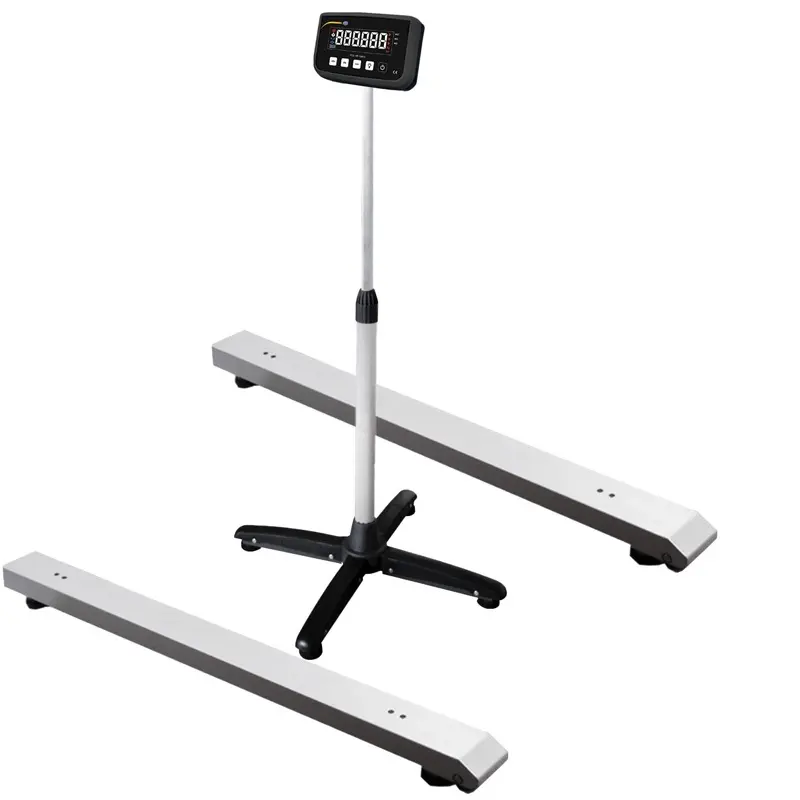

As a beam scale, this verified pallet beam has the great advantage that it can be easily adapted to different weighing items by changing the beam spacing. This makes the pallet beam particularly suitable for weighing long goods.

Each of the two weighing beams can be transported individually. A handle and rollers make it possible to simply pull the pallet beam behind you and place it at the desired location. The cable connections are made using plugs and can be quickly removed for transport. The connection cable between the two weighing beams is 2 m long, the cable to the display unit is 5 m long.

If there is no socket near the place of use, the pallet beam can be operated for up to 25 hours using the battery built into the display. The scope of delivery includes a power pack with which the battery can be charged and the pallet beam can be used in mains operation. The charging of the battery works both in mains operation and when the display is disconnected from the pallet beam and connected to the mains.

Specification

Scale type single-range scale
Weighing range [Max] 1500 kg / 3306 lb
Resolution [d] 0.5 kg / 1.1 lb
Weighing unit kg
Verification value [e] 0.5 kg / 1.1 lb
Verification class [e] M III
Minimum load [Min] 10 kg / 22 lb
Taring range Multiple tare over the entire weighing range, automatic and manual tare deletion possible
Dimensions per beam [WxDxH] 120 x 1200 x 100 mm / 4.7 x 47.2 x 3.9"
Cable length between bars 2 m / 6.56 ft
Interface USB-B bidirectional
Display LCD, white on black
Digit size [WxH] 15 x 28 mm / 0.59 x 1.1"
Power supply internal lead battery 6 V / 4.5 Ah / 101 x 70 x 50 mm / 3.9 x 2.7 x 1.9" / 820 g / 28.9 oz
external power supply 7.8 V / 1.2 A Wechselstrom / 110 V - 230 V
Battery life
 up to 25 hours (continuous operation)
Battery saving mode yes after 30 seconds without use (can be deactivated)
Load cell 4x 750 kg / 1653 lb / IP68
Operating temperature -10 ... +40 °C / 14 ... 104 °F
Weight 50 kg / 110 lb

Delivery Scope

1 x Pallet Beam PCE-MS B1.5T-1-M
1 x Mains power adapter
1 x Instruction Manual
incl. verification (declaration of conformity)

The place of installation of the scales with Postcode (ZIP), Town, Country must be specified
