Price excl. VAT &. delivery
2 year Warranty

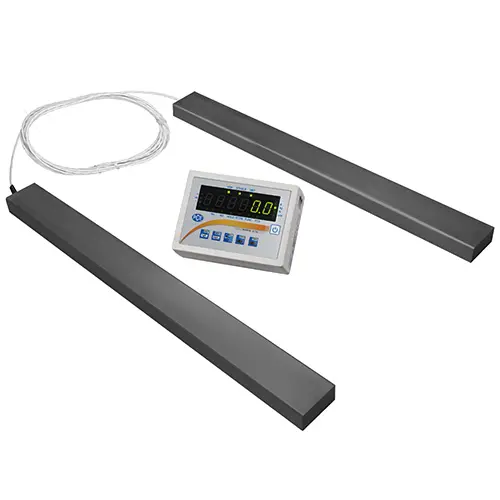

Verifiable load beam up to 1,500 kg / Resolution from 0.1 kg
/ Robust industrial design / Summing function / Counting function / Checkweighing function
/ RS-232 interface /
Optional 4-20 mA analogue output or LAN interface
|
|||||||||||||||
* The minimum load is the load from which the calibration authority checks the accuracy. The calibrated balance bars also indicate smaller weights, but these may not be used in legal calculations. |
|||||||||||||||
Calibration | Calibratable to class M III (to be calibrated) | ||||||||||||||
Tare range | Multiple tare over the entire weighing range | ||||||||||||||
Settling time | <3 s | ||||||||||||||
Display | LED with 20 mm digit height | ||||||||||||||
Weighing units | kg / piece / lb | ||||||||||||||
Interface | bi-directional RS-232 optional USB or LAN interface |
||||||||||||||
Operating temperature | -10 ... +40 °C | ||||||||||||||
Protection | IP 54 | ||||||||||||||
Power supply | ~230V, 50Hz, 8VA | ||||||||||||||
![]() If other dimensions, cable lengths or tapped holes are required, we can also realize these with our calibrated load beam. Please contact us. |
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Analog output / analog interface 0-10V
Price excl. VAT &. delivery
2 year Warranty
Analog output / analog interface 4-20mA
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
The serial RS-232 cable is about 2 m long and has the right pinout 2-3 / 3-2 / 5-5 which is necessary for bidirectional communication of the scale with the PC.
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Thermal printer for scales and balances
Requires 112 mm paper rolls
Dimensions: 165x140x50mm (WxDxH)
Includes RS-232 interface cable + power supply
