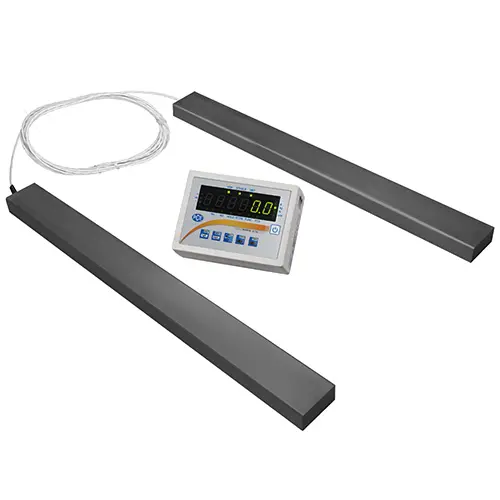

Pallet Scale PCE-SD 300B

Order no.: PCE-SD 300B
GTIN (EAN): 4250348712639
2.025,90 €
2.410,82 €
Verification for Trade / conformity assessment
price ex. (VAT / delivery)
:
4250348712639
PCE-SD 300B
Delivery time: up to 10 working days

Description

Verifiable load scale up to 300 kg / Resolution from 0.1 kg / Robust industrial design / Summing function / Counting function / Checkweighing function / RS-232 interface /
Optional 4-20 mA analogue output or LAN interface

The calibrated pallet scale are calibratable and intended for mobile use. Due to the flexibly movable load scale and cable length between the two load bars of 4 m, the industrial scales are well suited for weighing large or long objects. Similarly, non-standard pallet sizes can be weighed quickly and conveniently. These calibrated weighing scales are made of painted steel. The weighing data can be read very clearly on the external display (on 3.0 m cable). The indicator of the calibrated balance scale can be placed on a table or mounted on the wall. Further functions of the calibrated weighing scales are: piece counting function, summing function, min. / max. display, filter function, tare function, % comparison skew, tolerance determination, gross / net key on the display and much more. The integrated RS-232 interface allows the data transfer to a PC (the software package for the calibrated load beam is optional).

Highlights

- Calibrated to M III
- Several weighings summed up
- Percent % comparison weighing
- Filter (reaction time) adjustable
- Animal weighing function
- Piece counting function
- A tare value storable
- Length of the cable to the display: 3 m
- Cable length between the weighing beams: 4 m
- Formulation mixed weighing
- Tolerance determination weight min / ok / max
- Adjustable automatic shutdown
- Gross / net button on the display
- Menu freely adjustable
- Maintenance-free components
- Optional: USB, LAN, 4-20 mA, 0-10 V

Specification

Model Weighing range Resolution Calibration value Minimum load* Dimensions Weight
PCE-SD 300B 300 kg 0.1 kg 0.1 kg 2 kg Mod. 1 40 kg

* The minimum load is the load from which the calibration authority checks the accuracy. The calibrated balance bars also indicate smaller weights, but these may not be used in legal calculations.
Calibration Calibratable to class M III (to be calibrated)
Tare range Multiple tare over the entire weighing range
Settling time <3 s
Display LED with 20 mm digit height
Weighing units kg / piece / lb
Interface bi-directional RS-232
optional USB or LAN interface
Operating temperature -10 ... +40 °C
Protection IP 54
Power supply ~230V, 50Hz, 8VA
Abmessungen der eichfähigen, geeichte Wägebalken
If other dimensions, cable lengths or tapped holes are required, we can also realize these with our calibrated load beam. Please contact us.

Delivery Scope

1 x Calibrated Pallet Scale PCE-SD 300B
1 x Display (on 3.0 m cable)
1 x User manaul
