134,90 €

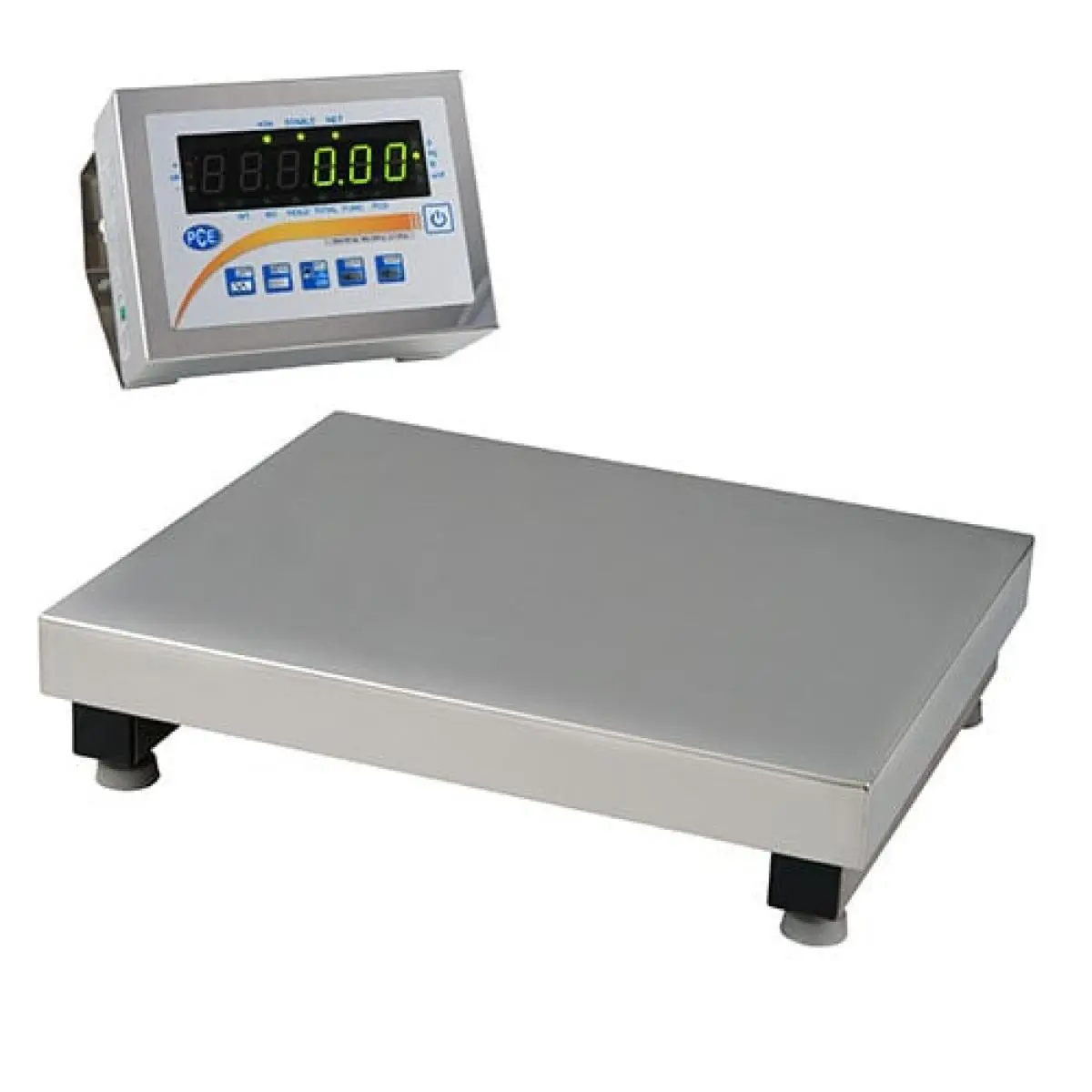

The water resistant parcel scale featuring a separate display can be MIII calibrated and will be delivered calibrated. The load cells of the water resistant parcel scale are IP67 protected, while the display device is made of an IP65 protected enclosure. Thus the water resistant parcel scale proves to be ideal for high-moisture locations or such locations that require a high hygienic standard. With the appropriate equipment that is optionally purchasable, you can also use the water resistant parcel scale on ships at sea.
Standard functions of the water resistant parcel scale are: summation function, counting function, statistics function, mixing on formula, percentage weighing function, animal weighing function, alarm on trespassing thresholds etc. Due to its high IP protection the water resistant parcel scale does not feature any interface. But optionally interfaces can be purchased for the water resistant parcel scale, e.g. RS-232, RS-485, USB, LAN, OC contactors, analogue interfaces 4-20 mA or 0-10 V.
| |||||||||||||||||||||||||||||||
| * The minimum load is defined by the load, from which the calibration authority tests the accuracy of the scale. The waterproof steel scale shows even lower weights, but these are not valid for custody transfer. | |||||||||||||||||||||||||||||||
| Calibration Class | M III (is delivered calibrated) | ||||||||||||||||||||||||||||||
| Unit Counter Function | counting by reference values | ||||||||||||||||||||||||||||||
| Tare function | multiple taring covering the whole measurement range | ||||||||||||||||||||||||||||||
| Interface | optional
bi-directional RS-232, USB, LAN datasheet on interface as well as analogue output 4-20 mA, 0-10, OC | ||||||||||||||||||||||||||||||
| Display | LED with 20 mm digit height | ||||||||||||||||||||||||||||||
| Cable Length | from platform to display | ||||||||||||||||||||||||||||||
| Power Source | ~230V, 50Hz, 8VA (schuko plug) | ||||||||||||||||||||||||||||||
| Protection Class | IP 67 cell / IP65 display | ||||||||||||||||||||||||||||||
| Operational Temperature | -10 °C ... +40 °C | ||||||||||||||||||||||||||||||
| Weight | platform
400 x 500 x 120 mm / 17 kg platform 600 x 500 x 135 mm / 25 kg | ||||||||||||||||||||||||||||||
