Parcel Scale PCE-SD 600E

Order no.: PCE-SD 600E
GTIN (EAN): 4250348712745

2.497,90 €
2.972,50 €
Verification for Trade / conformity assessment
price ex. (VAT / delivery)
:
4250348712745
PCE-SD 600E
Delivery time: up to 10 working days

Description

Approved - calibrated parcel scales up to 6,000 kg / Resolution from 0.1 kg /
Bidirectional RS-232 interface / Tare weight storable / Piece counting function /
Optional: analog output 4-20 mA, 0-10 V, OC switch contacts, etc.

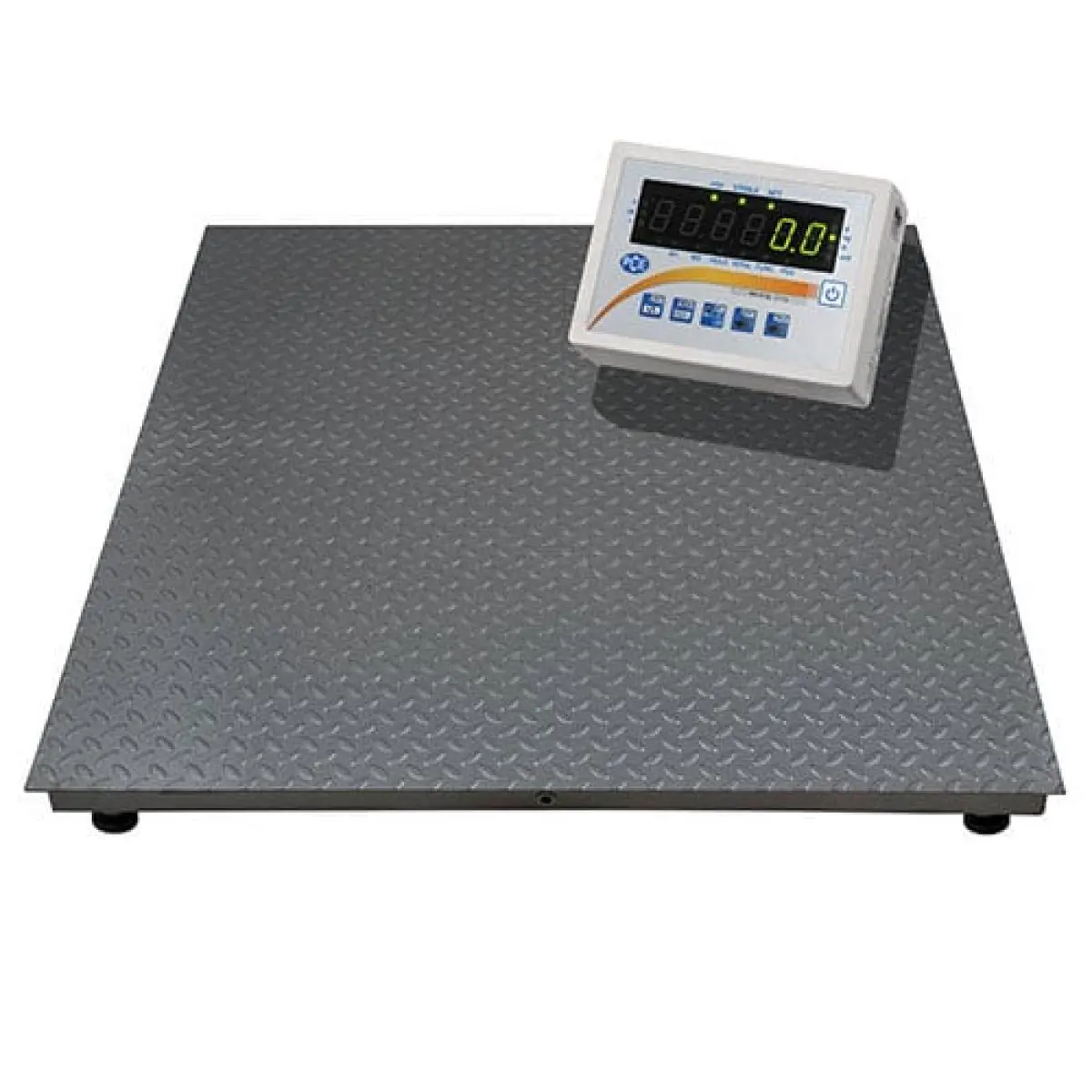

The floor scale is supplied calibrated and is intended for stationary use with its solid
construction. Due to the robust design and the large platform, this calibrated weighing platform is
particularly suitable for weighing large objects. The verifiable / calibrated floor scale is made of painted steel and available in different platform sizes depending on the weighing capacity. As an option, ramp-on ramps are available for the legal-for-trade / calibrated floor scales, allowing for driving on or passing through. The display unit can be placed on a table or fixed to the wall, optionally a stainless steel tripod can be ordered. The integrated RS-232 interface allows bi-directional data transport from the calibratable / calibrated floor scale to the PC and provides programmers with a versatile system integration. With an optional adapter, the weighing data can also be stored on a USB stick. Further system integration is possible with the optionally available 4-20 mA analogue output or the limit value function with OC switching contacts. Direct printer connection is also possible via the RS-232 interface. Functions such as auto-tare, piece counting function, the storage of a fixed tare weight makes the workload a great deal easier.

Highlights

- Tolerance determination weight min / max
- Average weight determination
- Sum up several weighings
- Percent % comparison weighing
- Filter (reaction time) adjustable
- Animal weighing function
- Piece counting function
- A tare value storable
- Formulation mixed weighing
- Adjustable bidirectional RS-232 interface
- Printer languages Line Mode and EPL2
- Adjustable automatic shutdown
- Gross / net button on the display
- Menu freely adjustable
- Maintenance-free components
- Optional: USB, LAN or 4-20 mA

Specification

Model Weighing range Resolution Min.* Dimensions Weight
PCE-SD 600E 600 kg 0.2 kg 4 kg 1250 x 1250 x 85 mm 140 kg
* The minimum load is the load from which the calibration authority checks the accuracy. The verifiable floor scale also indicates smaller weights, but these may not be used in legal traffic.
Calibration calibratable according to class M III (calibrated)
Tare range multiple tare over the full range
Settling time <4 s
Display LED with 20 mm digit height (on the 3 m cable)
Weighing units kg / piece / lb
Interface bidirectional RS-232
optional USB, LAN, 4-20 mA, 0-10V, OC
Ramp optional, see accessories
Operating temperature -10 °C ... +40 °C
Power supply ~230V 50Hz 8VA  (safety plug)
Protection IP68 cells / IP65 display

Delivery Scope

1x calibratable parcel scale (calibrated)
1 x display with wall / table mount
1 x manual
