Platform Scale PCE-MS AC1,5T-1-100x200-M

Order no.: PCE-MS AC1,5T-1-100x200-M
GTIN (EAN): 4250348729330
1.356,90 €
1.614,71 €
Verification for Trade / conformity assessment
price ex. (VAT / delivery)
:
4250348729330
PCE-MS AC1,5T-1-100x200-M
Delivery time: 10 - 14 days
0.5 kg
Yes

Description

Platform Scale PCE-MS AC1,T-1-100x200-M / Max. capacity 1500 kg / Verification value: 0.5 kg / Incl. verification (conformity assessment)

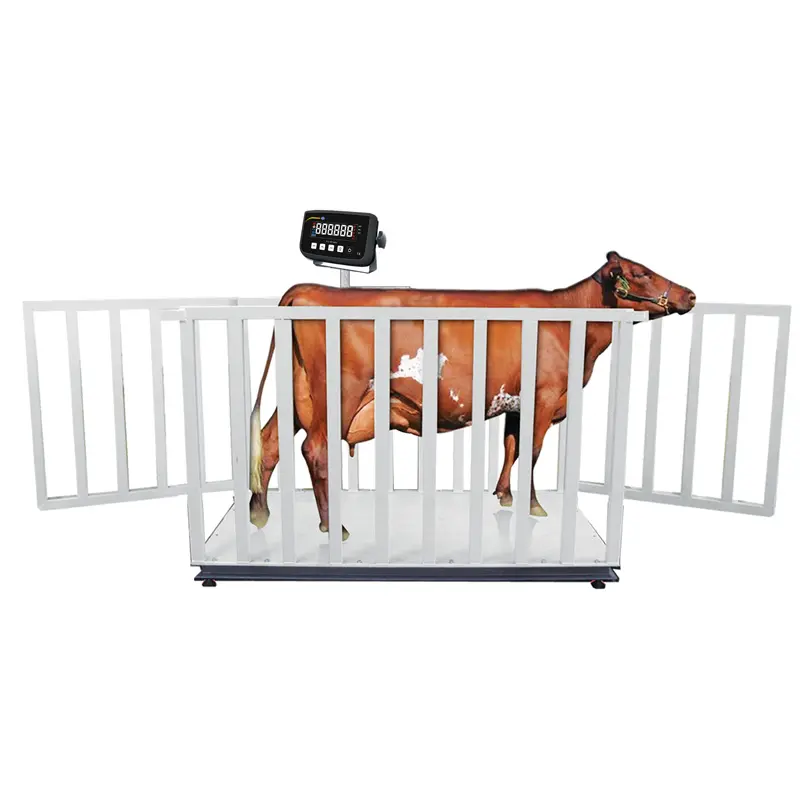

The platform scale with the dimensions 1 x 2 m are provided with an additional cage structure for animal weighing. Because the cage can be opened on both sides, the platform scale can also be used as a passage scale.

A bracket frame connects the two side parts of the cage in such a way that a headroom of 1.8 m is achieved. The platform scale is made of powder-coated steel and is equipped with four IP68-protected stainless steel weighing cells. The step height on the non-slip, ribbed weighing surface is only 10 cm.

The platform scale is operated via an internally installed rechargeable battery, which allows an operating time of up to 25 hours. In battery operation, thanks to the direct mounting of the display unit on the cage of the scale, there are no tripping hazards caused by cables. With a digit height of 28 mm, the displayed weighing values ​​can also be read well from a distance. In the case of restless animals, the platform scale can use the animal weighing function to filter out the movements of the animal. The USB interface enables the weighing values ​​to be transferred directly to a PC.

Specification

Scale type single-range scale
Weighing range [Max] 1500 kg / 3306 lb
Resolution [d] 0.5 kg / 1.1 lb
Weighing unit kg
Verification value [e] 0.5 kg / 1.1 lb
Verification class [e] M III
Minimum load [Min] 10 kg / 22 lb
Taring range multiple tare over the entire weighing range, automatic and manual tare deletion possible
Dimensions weighing plate [WxD]   1000 x 2000 mm / 39.3 x 78.7"
Cage internal dimensions [WxD] 900 x 2000 mm / 35.4 x 78.7"
Cage height 1000 mm / 39.3"
Step height 100 mm / 3.9"
Interface USB-B bidirectional
Display LCD, white on black
Digit size [WxH] 15 x 28 mm / 0.59 x 1.1"
Power supply internal lead battery 6 V / 4.5 Ah / 101 x 70 x 50 mm / 3.9 x 2.7 x 1.9"  / 820 g / 29 oz
external power supply 7.8 V / 1.2 A AC / 110 V - 230 V
Battery life up to 25 hours (continuous operation)
Battery saving mode yes after 30 seconds without use (can be deactivated)
Load cell 4x 750 kg / 1653 lb / IP68
Operating temperature -10 ... +40 °C / 14 ... 104 °F
Weight 225 kg / 496 lb

Delivery Scope

1 x Platform Scale PCE-MS AC1,5T-1-100x200-M
1 x Cage assembly
1 x Mains power adapter
1 x Instruction manual
incl. verification (declaration of conformity)

The place of installation of the scales with ZIP / LOCATION / country must be specified
