Platform Scale PCE-MS PP60-1-30x40-M

Order no.: PCE-MS PP60-1-30x40-M
GTIN (EAN): 4250348728913

325,90 €
387,82 €
Verification for Trade / conformity assessment
price ex. (VAT / delivery)
:
4250348728913
PCE-MS PP60-1-30x40-M
Delivery time: 10 - 14 days
0.02 kg
Yes

Description

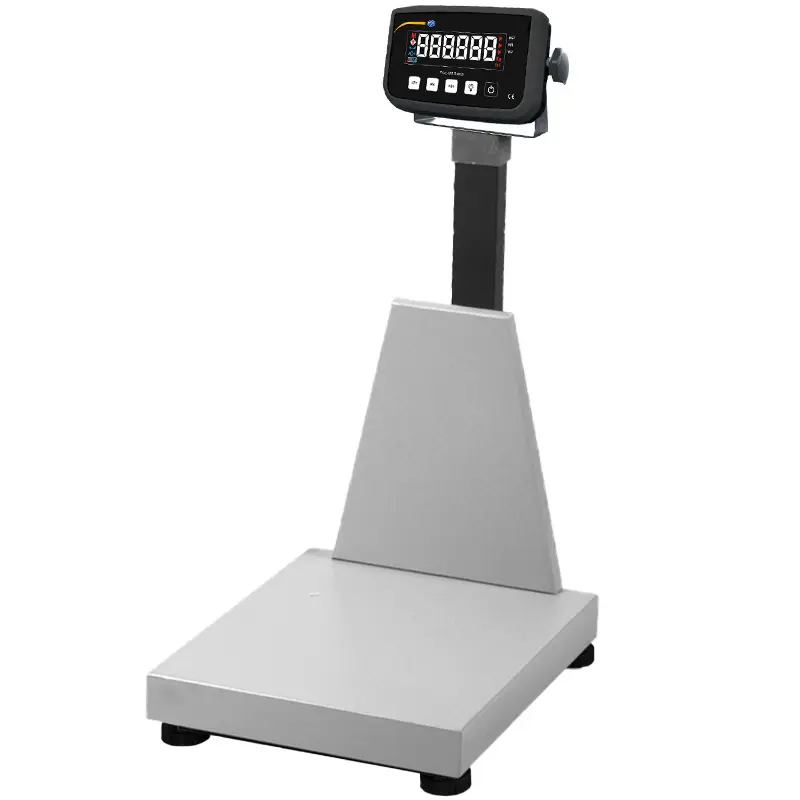

Platform scales / Max. capacity 60 kg (132 lb) / Calibration value: 20 g / Incl. verification (conformity assessment)

The platform scale is assessed for compliance for the largest possible geographic area around the intended location of the scale. This conformity assessment for accuracy class M III replaces the first calibration. It is carried out for the location specified by the customer. The compact, calibrated platform scale is powder-coated and therefore well suited for use under harsh conditions. A special feature is the removable, 36 cm / 14.1" high backrest made of 2 mm / 0.07" thick sheet steel, which makes it easier to weigh or fill sacks and other tipping goods. With the backrest mounted, the platform scale has a usable platform area of ​​30 x 36 cm / 11.8 x 14.1". Without the backrest, the usable area increases to 30 x 40 cm / 11.8 x 15.7".

Thanks to the tripod, the platform scale can be conveniently operated both when used on the floor and on the table. However, this tripod can be removed thanks to screw and plug connections, so that the platform scale can also be used without a tripod. The cable length between the display and the weighing plate is about 1.5 meters / 4.9 ft. The angle of inclination of the display can be adjusted via the display bracket, so that it can be easily adapted to different working positions and viewing angles. The high-contrast inverted display has a digit height of 28 mm / 1.1", which means that the platform scale can also be read from a distance. A transparent protective cover protects the plastic display from dirt.

The platform scale is equipped with an internally installed lead-acid battery, but can also be operated via the external 7.8 volt mains power adapter. In battery mode, an operating time of up to 25 hours can be achieved, which can be significantly extended by using the battery saver function. The platform scale has a bidirectional / USB-B interface with which weighing values ​​can be passed directly to a computer.

Specification

Scale type
Single-range scale
Weighing range [Max] 60 kg / 132 lb
Resolution [d] 20 g / 0.07 oz
Weighing unit kg
Calibration value [e]
20 g / 0.07 oz
Verification class [e]
M III
Minimum load [min] 400 g / 14.1 oz
Taring range multiple tare over the entire weighing range, automatic and manual tare deletion possible
Weighing plate [WxD] 300 x 400 mm / 11.8 x 15.7" / usable area with backrest 300 x 360 mm/ 11.8 x 14.1"
Interface USB-B bidirectional
Display LCD, white on black
Digit size [WxH] 15 x 28 mm / 0.59 x 1.1"
Power supply internal lead battery 6 V / 4.5 Ah / 101 x 70 x 50 mm / 3.9 x 2.7 x 1.9" / 820 g / 28.9 oz
external power supply 7.8 V / 1.2 A AC / 110 V - 230 V
Battery life
up to 25 hours (continuous operation)
Battery saving mode yes after 30 seconds without use (can be deactivated)
Load cell 100 kg / 220 lb / IP 65
Operating temperature   -10 ... + 40 °C / 14 ... 104 °F
Weight 12.5kg / 27.5 lb

Delivery Scope

1 x Platform scale PCE-MS PP60-1-30x40-M
1 x Mains power adapter
1 x Instruction manual
incl. verification (declaration of conformity)

The place of installation of the scales with Postcode (ZIP) / Town / Country must be specified
