32,90 €
Calibrated Stainless Steel built-in scale up to 3,000 kg /
Resolution 1 kg / Weighing cells IP67 /
Piece counting function / Summing function / RS-232 interface / Scales made of painted steel

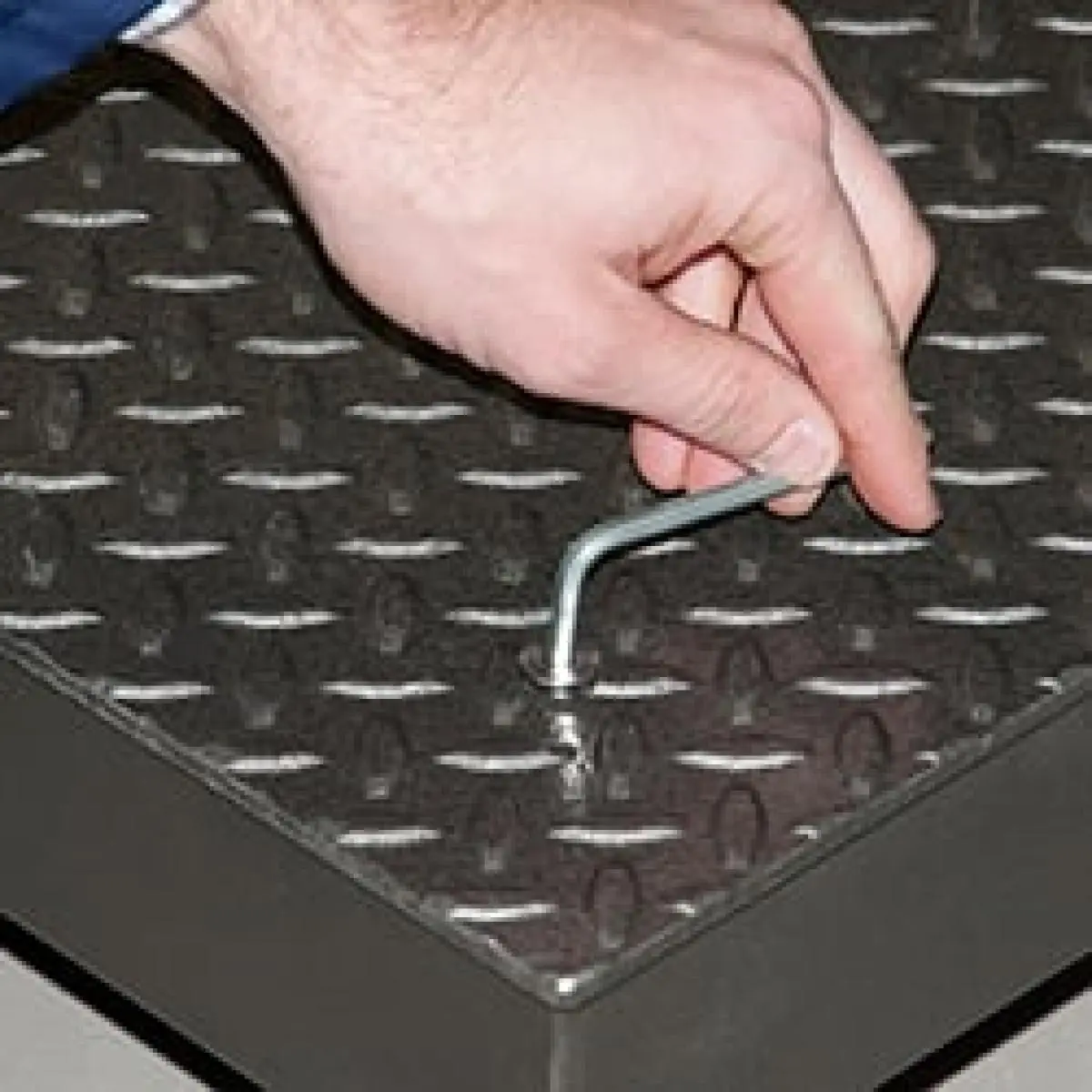

/ Removable weighing plate / Mounting frame optional

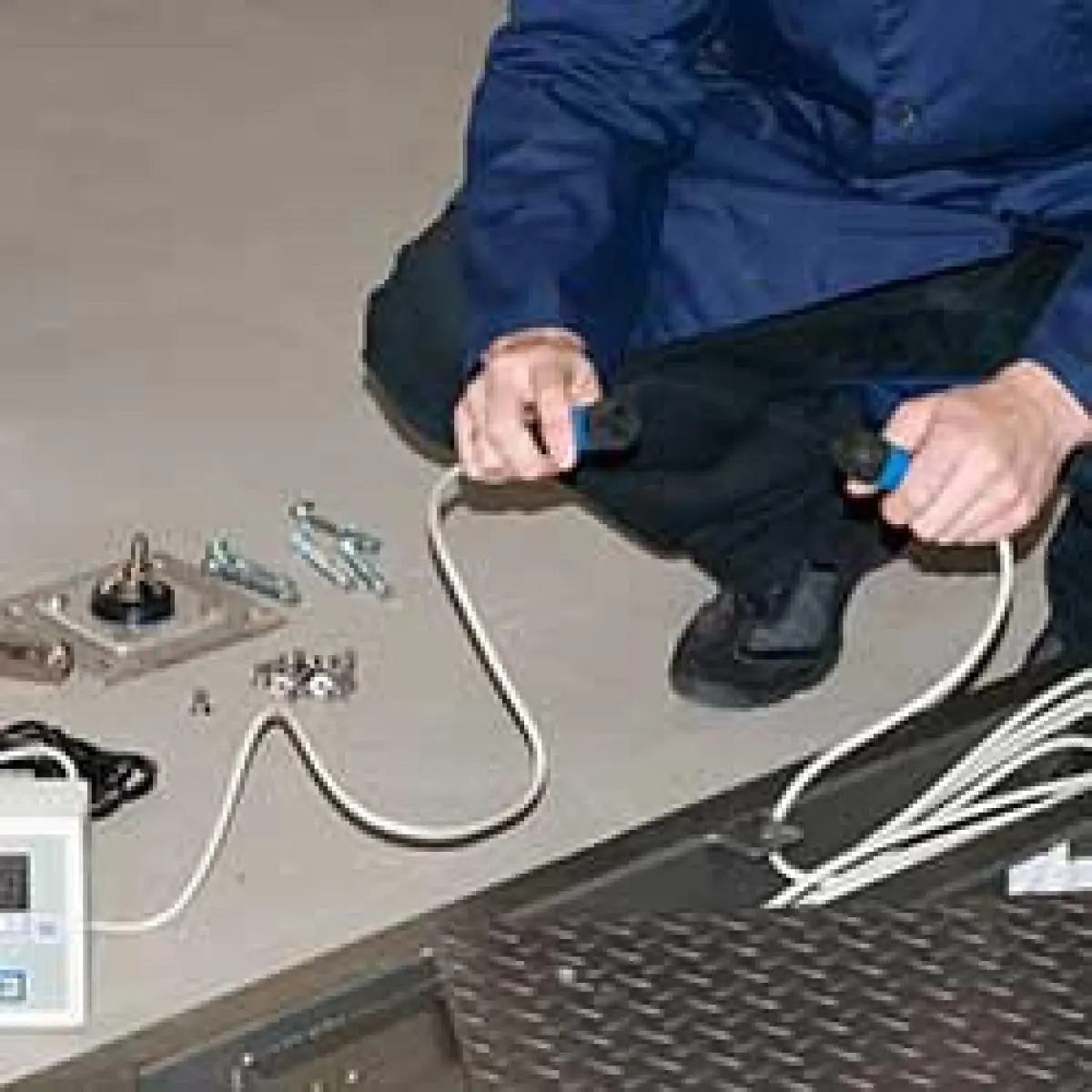

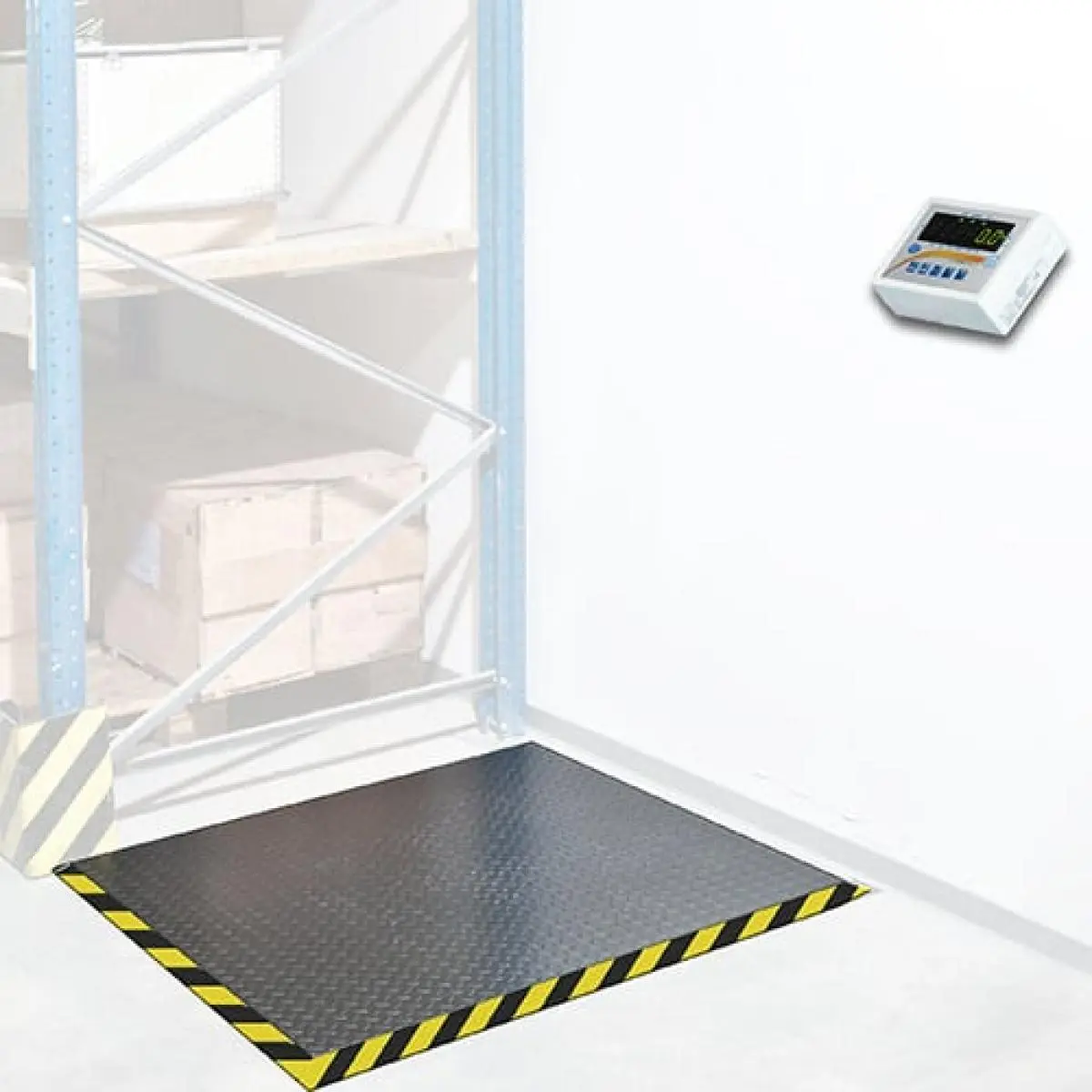

The stainless steel scale is designed for flush installation and is optionally available with a built-in frame on request. The stainless steel built-in scale is calibrated according to Calibration Class III and is approved throughout the EU for use for trading of goods for two years. The display cable of the stainless steel scale has a length of 5 m and is equipped with a plug-in connection, which allows a problem-free laying in the cable duct without having to re-calibrate the stainless steel scale. The display of the stainless steel scale is IP 54 protected and has a bracket for a table or wall mounting.Optionally, you can also get a tripod suitable for the stainless steel scale.
Various dimensions of the stainless steel scale are available to you and the functions of the stainless steel scale make this a multi-talent. The serial bi-directional RS-232 interface of the stainless steel scale is also a versatile feature. Thus, a programmer can easily implement the stainless steel scale in the existing IT system. The stainless steel scale is also available as a stainless steel version. For special industrial applications analog interfaces 4-20 mA or 0-10 V as well as 3 potential-free switching contacts can be offered for the calibrated floor scale.
|
||||||||||||||
| * The minimum load is the load from which the calibration authority checks the accuracy. The verifiable floor installation scale also indicates smaller weights, but these may not be used in legal traffic. | ||||||||||||||
| Calibration | calibratable according to class M III (delivered calibrated) | |||||||||||||
| Tare | multiple tare over the full weighing area | |||||||||||||
| Settling time | <4 s | |||||||||||||
| Display | LED with 20 mm digit height | |||||||||||||
| Cable length | plugged in 5 m | |||||||||||||
| Weighing units | kg / piece / lb | |||||||||||||
| Interface | bi-directional RS-232 optional USB, LAN, 4-20 mA, 0-10V, OC |
|||||||||||||
| Weighing plate | fluted painted steel (unscrewable) | |||||||||||||
| Operating temperature | -10 °C ... +40 °C / 14 ... 104 °F | |||||||||||||
| Power supply | ~230V 50Hz 8VA (safety plug) | |||||||||||||
| Protection | cell IP 67 / display IP54 | |||||||||||||
