Calibrated
U-shaped stainless steel scale / incl. transport rollers /
IP68-IP65 /
Unit Counter / Summation function / analogue outputs 4 ... 20 mA, 0 ...
10 V optional
The

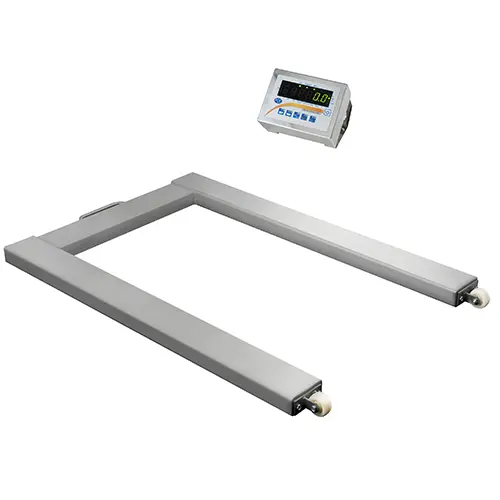

U-shaped stainless steel scale is a calibratable scale that will be already calibrated

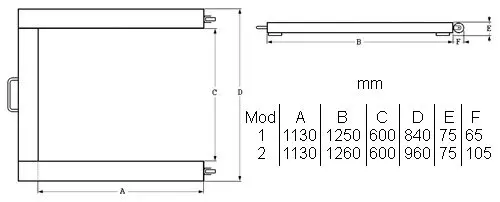

before delivery. The measurements of the U-shaped stainless steel scale are exactly
accordant to serial EU palettes. The U-shape of the stainless steel scale
allows quick and easy loading of the scale even by means of forklift
scales. The four load cells of the U-shaped stainless steel scale are IP68 protected and
are embedded at the corners of the U-shaped stainless steel scale. The weighing frame is
made of massive stainless steel that is resistant to acids. The display
of the U-shaped stainless steel scale is IP65 protected and can be mounted either on a
wall or placed on a table. There is also an option to extend the U-shaped
stainless steel scale with interfaces, e.g. RS-232, USB, LAN, 4-20 mA etc., although it
should be considered that this would affect the IP protection. For more
comfortable transport and moving from one location to another, the
U-shaped stainless steel scale also features rollers at its pillars. Functions of the
U-shaped stainless steel scale are automatic tare, unit counter, tare memory, gross /
net weighing, percentage calculation, threshold measurement etc.
