Suspended Scale PCE-CS 1000N

Order no.: PCE-CS 1000N
GTIN (EAN): 4250348712097
206,90 €
246,21 €
:
4250348712097
PCE-CS 1000N
Delivery time: 1-2 working days

Description

Suspended Scale
Zero, tare, sum, hold and gross-net weighing functions / Metric, imperial and freely adjustable units / 1000 kg or 2200 lbs ≈ 1 Ton weighing capacity

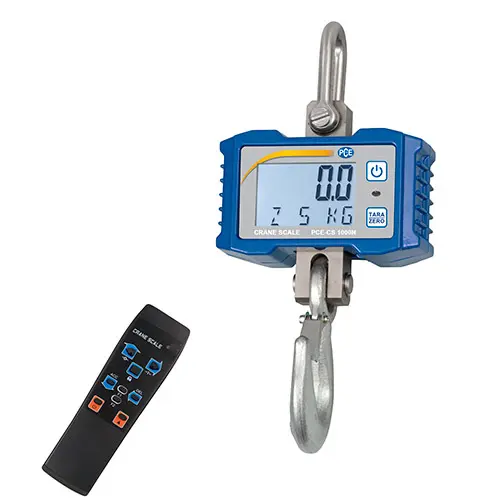

PCE-CS 1000N is a digital, electronic, battery-powered Suspended Scale that displays measurement values in kilograms (kg), pounds (lbs) and freely adjustable units. The scale comes factory calibrated and includes a hook, shackle and remote control. For an additional fee, the scale can be calibrated according to ISO standards.

The robust aluminum housing of this Suspended Scale allows weighing in even the harshest indoor industrial environments. The Suspended Scale is operated with three commercially available 1.5 V AA batteries, allowing for a continuous operating time of approx. 65 hours. The display of the Suspended Scale is a backlit LCD screen featuring large, easy-to-read digits. The timing of the backlight of the Suspended Scale's display can be adjusted to extend the operating time.

Other functions of the Suspended Scale are: gross / net weighing, sum function, data hold function, zero function, power-saving automatic shutdown and the possibility to display a measuring unit that is freely adjustable by the user. This means that the user can store a conversion factor in the Suspended Scale, so that the weighed product is not in kg or lbs, but in another measurement such as meters (e.g., 1 kg = 1.25 m). In addition, the Suspended Scale features a linear calibration to ensure high accuracy.


Highlights

- Weighing capacity up to 1000 kg / 2200 lbs ≈ 1 Ton
- Measuring deviation of max. 1% possible
- Zero, sum and hold functions
- Gross/net weighing
- Full scale tare
- Displays measurements in kilograms (kg), pounds (lbs) and freely adjustable units
- LCD display with large, easy-to-read digits
- Battery operation up to 65 hours
- Compact dimensions
- Linear calibration possible
- Includes hook / shackle and remote control

Specification


Maximum weighing 1000 kg / 2200 lbs ≈ 1 Ton
Resolution 0.2 kg / 0.4 l
Tare range 100% full scale
Accuracy ± 1% of the measuring range
Minimum load 10 kg / 23 lbs
Measuring units kg / lb
Response time Less than 1 second
Safety load 150% (do not exceed)
Functions Zero, tare, data hold, power-saving
  automatic shutdown and timed backlighting
Display LCD with backlight, 20 mm /
  0.79 in. digit height
Power supply 3 x 1.5 V AA batteries (operating time up to 65 hours),
  2 x AA batteries (remote)
Operating conditions     -10° C ... +40° C / +14° F ... +104° F

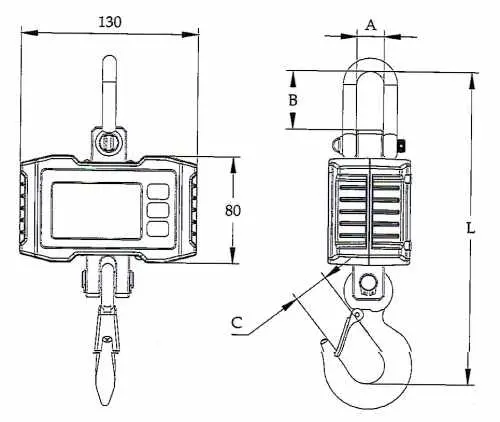

Overall dimensions See table above

L 230 mm / 9.1 in
A 20 mm / 0.8 in
B 43 mm / 1.7 in
C 27 mm / 1.1 in
Approx. weight 1.4 kg / 3.1 lbs


Delivery Scope

1 x PCE-CS 1000N Suspended Scale
1 x hook
1 x shackle
1 x remote control with batteries
3 x 1.5 V AA batteries for scale
1 x user manual
