Suspended Scale PCE-CS 1000N-ICA incl. ISO Calibration Certificate

Order no.: PCE-CS 1000N-ICA
GTIN (EAN): 4250348727923
446,90 €
531,81 €
ISO Calibration
price ex. (VAT / delivery)
:
4250348727923
PCE-CS 1000N-ICA
Delivery time: 10 - 14 days

Description

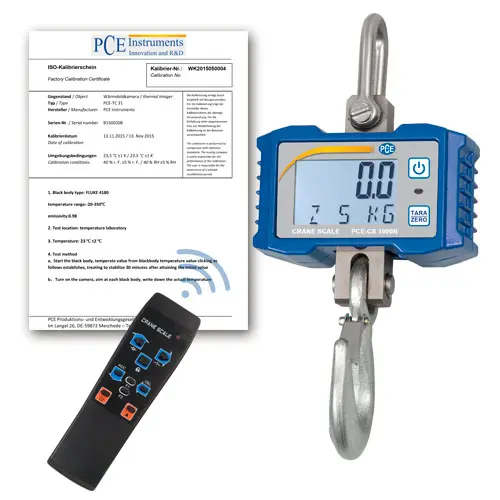

PCE-CS 1000N-ICA Suspended Scale incl. ISO Calibration Certificate
Zero, tare, sum, hold and gross-net weighing functions / Metric, imperial and freely adjustable units / 1000 kg or 2200 lbs ≈ 1 Ton weighing capacity

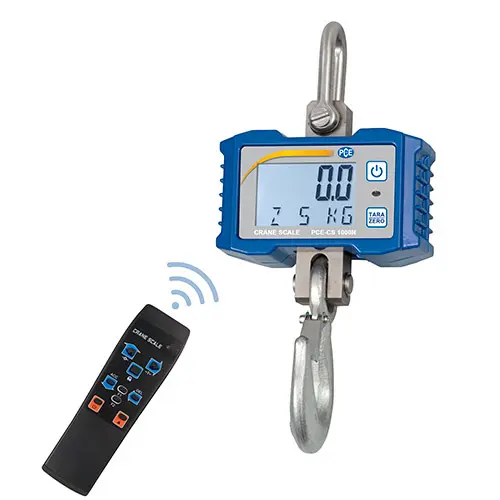

PCE-CS 1000N-ICA is a digital, electronic, battery-powered Suspended Scale that displays measurement values in kilograms (kg), pounds (lbs) and freely adjustable units. The scale includes a hook / shackle, remote control and ISO calibration certificate.

The robust aluminum housing of this Suspended Scale allows weighing in even the harshest indoor industrial environments. The Suspended Scale is operated with three commercially available 1.5 V AA batteries, allowing for a continuous operating time of approx. 65 hours. The display of the Suspended Scale is a backlit LCD screen featuring large, easy-to-read digits. The timing of the backlight of the Suspended Scale's display can be adjusted to extend the operating time.

Other functions of the Suspended Scale are: gross / net weighing, sum function, data hold function, zero function, power-saving automatic shutdown and the possibility to display a measuring unit that is freely adjustable by the user. This means that the user can store a conversion factor in the Suspended Scale, so that the weighed product is not in kg or lbs, but in another measurement such as meters (e.g., 1 kg = 1.25 m). In addition, the Suspended Scale features a linear calibration to ensure high accuracy.


Highlights

- Weighing capacity up to 1000 kg / 2200 lbs ≈ 1 Ton
- Measuring deviation of max. 1% possible
- Zero, sum and hold functions
- Gross/net weighing
- Full scale tare
- Displays measurements in kilograms (kg), pounds (lbs) and freely adjustable units
- LCD display with large, easy-to-read digits
- Battery operation up to 65 hours
- Compact dimensions
- Linear calibration possible
- Includes hook / shackle, remote control and ISO calibration certificate

Specification


Maximum weighing1000 kg / 2200 lbs ≈ 1 Ton
Resolution0.2 kg / 0.4 l
Tare range100% full scale
Accuracy± 1% of the measuring range
Minimum load10 kg / 23 lbs
Measuring unitskg / lb
Response timeLess than 1 second
Safety load150% (do not exceed)
FunctionsZero, tare, data hold, power-saving
 automatic shutdown and timed backlighting
DisplayLCD with backlight, 20 mm /
 0.79 in. digit height
Power supply3 x 1.5 V AA batteries (operating time up to 65 hours),
 2 x AA batteries (remote)
Operating conditions    -10° C ... +40° C / +14° F ... +104° F

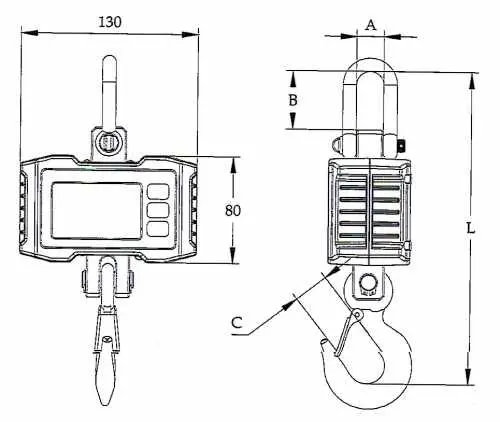

Overall dimensionsSee table above

L230 mm / 9.1 in
A20 mm / 0.8 in
B43 mm / 1.7 in
C27 mm / 1.1 in
Approx. weight1.4 kg / 3.1 lbs


Delivery Scope

1 x PCE-CS 1000N-ICA Suspended Scale
1 x hook
1 x shackle
1 x remote control with batteries
3 x 1.5 V AA batteries for scale
1 x ISO calibration certificate
1 x user manual

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
