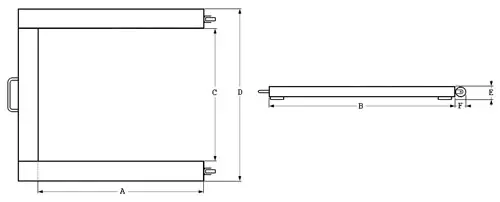

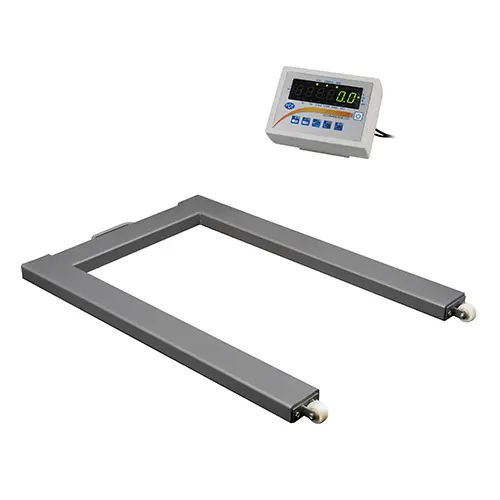

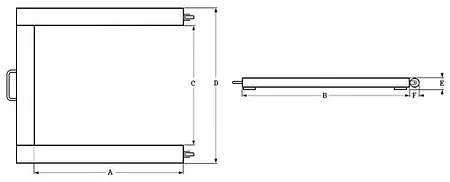

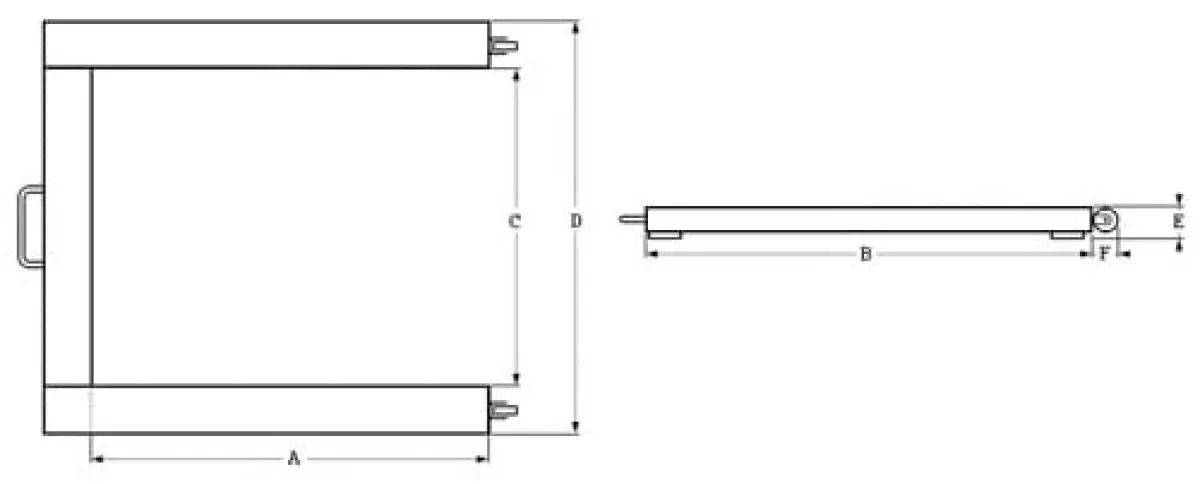

The trade approved scale is calibratable, and also initially calibrated, designed for mobile applications and having a U-shaped design. The size and measurements of the calibrated trade approved scale is accordant to European standard pallet scales (1200 x 800 mm). The U-shape of the trade approved scale allows easy positioning of EU standard pallets on the scale, preferably with a forklift. This trade approved scale is lacquered with steel. In order to maintain flexible application of the trade approved scale, it features two rollers and a handle, thus the trade approved scale can be mounted and dismounted easily and quickly at different locations.
The measured data can be easily read from the separate display (connected to a 3.0 m cable). The separate pallet display features a 3.0 m long cable, so that it can be placed on a table or mounted to a wall or placed on a stand. Functions that the trade approved scale support are: unit counter, max./min. weighing, composition weighing, percentage weighing, average weight determination, summation function, tare weighing data storage, adjustable RS-232 interface. The bi-directional RS-232 interface can be used to transfer the weighing data to a computer or printer.
| |||||||||||||
*The minimum load is defined by the load from which the calibration authority tests the accuracy of the scale. The waterproof steel scale shows even lower weights, but these are not valid for custody transfer. | |||||||||||||
Calibration | calibratable according to M III (calibrated before delivery) | ||||||||||||
Tare range | for the whole measurement range | ||||||||||||
Settling time | < 4 sec. | ||||||||||||
Display | high-contrast LED / 20 mm digit height | ||||||||||||
Weighing units | kg / units / lb | ||||||||||||
Interfaces | Serial
interfaces RS-232 (bi-directional) description of interfaces | ||||||||||||
Operation Temperature | -10 °C ... +40 °C | ||||||||||||
Power Source | ~230V 50Hz 8VA | ||||||||||||
Protection Type | load cell IP 67 / display IP 54 | ||||||||||||
Weight | approx. 70 kg |
