Vehicle Weighing Pads PCE-WWSC15TRF-S4

Order no.: PCE-WWSC15TRF-S4

GTIN (EAN): 4250348715531

Description

Mobile Radio SOLAS Scale / Vehicle Weighing Pads , Maximum load up to 50 t, 4 platforms, Single load determination, Total weight calculation, Center of gravity calculation, Display with printer, Including calibration

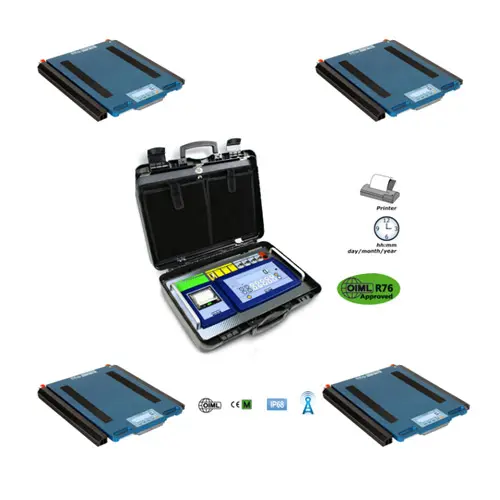

This SOLAS scale / vehicle weighing pads is preferably used in vehicle weighing, but it is designed for every type of static weighing. The SOLAS scale consists of 4 platforms and a display. The display is built into a mobile carrying case including a printer and enables very flexible use. The platforms of the SOLAS scales are made of robust aluminum and weigh approx. 18 kg per plate.

These platforms are to be placed under four support points and connected to the display. The platforms and the display are connected via radio. Then the SOLAS balance can start weighing. The SOLAS scale is able to calculate the weight of the individual platforms, the total weight and, after entering relevant data, the center of gravity calculation. An additional display is attached to each platform.

This information can then be printed out or transferred to a PC via the RS232 interface. There is also the option of saving the weighing data on a USB stick. Other interesting functions of the SOLAS scale are: gross / net weighing, manual TARE entries and a totalizing function e.g. vehicle with trailer.

Highlights

- SOLAS scales for mobile use
- 4 platforms for 4 support points
- Platform size 564 x 400 x 58 mm / 22.2 x 15.7 x 2.3"
- Display in the carrying case
- Battery operation
- Digit height 25 mm / 1"
- Display including printer
- Date / time adjustable
- Summing function for trailers
- Calculation of the center of gravity possible
- TARE input possible
- Gross / net weighing

Specification

Technical data of the Vehicle Weighing Pads
Platform of the SOLAS scale
Weighing range per platform	12,000 kg / 12.5 t / 26,455 lb per plate
Weighing range weighing system	50,000 kg / 50 t / 110,231 lb (calibrated)
Readability	20 kg / 44 lb
Calibration value	20 kg / 44 lb
Dimensions per platform	565 x 400 x 58 mm / 22.2 x 15.7 x 2.3"
Protection class of the load cells	IP68
Housing	robust aluminum housing
Connection to the radio display	up to 50 m / 164 ft
Display	25 mm / 1" LCD
Power supply	internal battery for up to 40 hours
Weight per platform	ca. 19 kg / 41.9 lb
Overall dimensions	565 x 511 x 58 mm / 22.2 x 20.1 x 2.3"
Display of the SOLAS scale
Display	LCD display with backlight
Digit height	25 mm / 1"
Power supply	internal battery for up to 10 hrs.
Charging time	ca. 8 hrs.
Connection option	RS-232 interface radio receiver for the platforms
Internal printer	all weight values including time and date
Weight	ca. 5 kg / 11 lb
Dimensions	325 x 460 x 170 mm / 12.8 x 18.1 x 6.7"

Delivery Scope

Delivery of the SOLAS scale
4 x Weighing platforms
1 x Display in case including printer
1 x Calibration
1 x Instruction manual
