Calibrated weighing beam up to 1500 or 3000 kg / resolution above 0.5 or 1 kg / analogue outputs
optional / mobile due to transportation rollers / bi-directional RS-232
interface

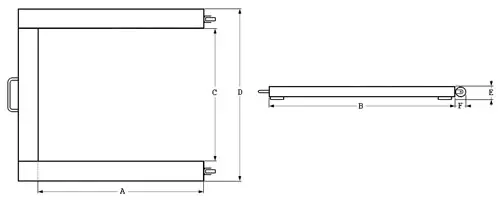

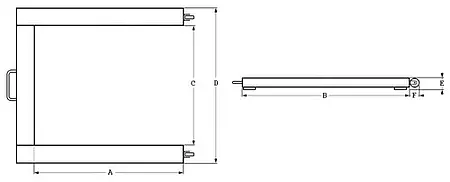

The weighing beam is calibratable, and also initially calibrated, designed
for mobile applications and having a U-shaped design. The size and
measurements of the calibrated weighing beam PCE-SD U series is accordant
to European standard pallet scales (1200
x 800 mm). The U-shape of the calibrated weighing beam
allows easy positioning of EU standard pallets on
the scale, preferably with a forklift. This calibrated weighing beam
is lacquered with steel. In order to maintain flexible application of
the calibrated weighing beam,
it features two rollers and a handle, thus the calibrated weighing beam
can be mounted and dismounted easily and quickly at different locations.

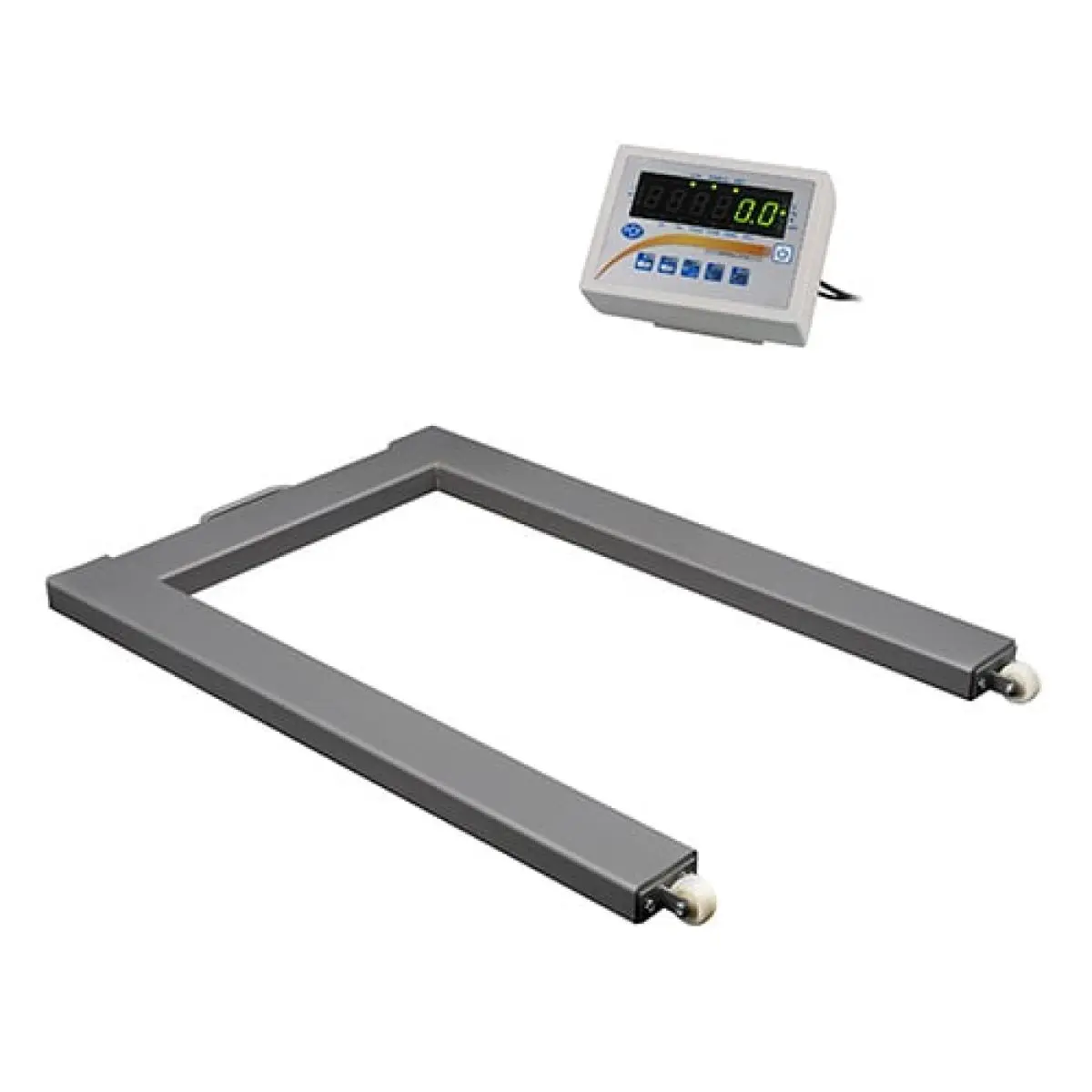

The measured data can be easily read from the separate display
(connected to a 3.0 m cable). The separate pallet display
features a 3.0 m long cable, so that it can be placed on a table or
mounted to a wall or placed on a stand. Functions that the calibrated weighing beam support are: unit
counter, max./min. weighing, composition weighing, percentage weighing,
average weight determination, summation function, tare weighing data
storage, adjustable RS-232 interface. The bi-directional RS-232
interface can be used to transfer the weighing data to a computer or
printer.
