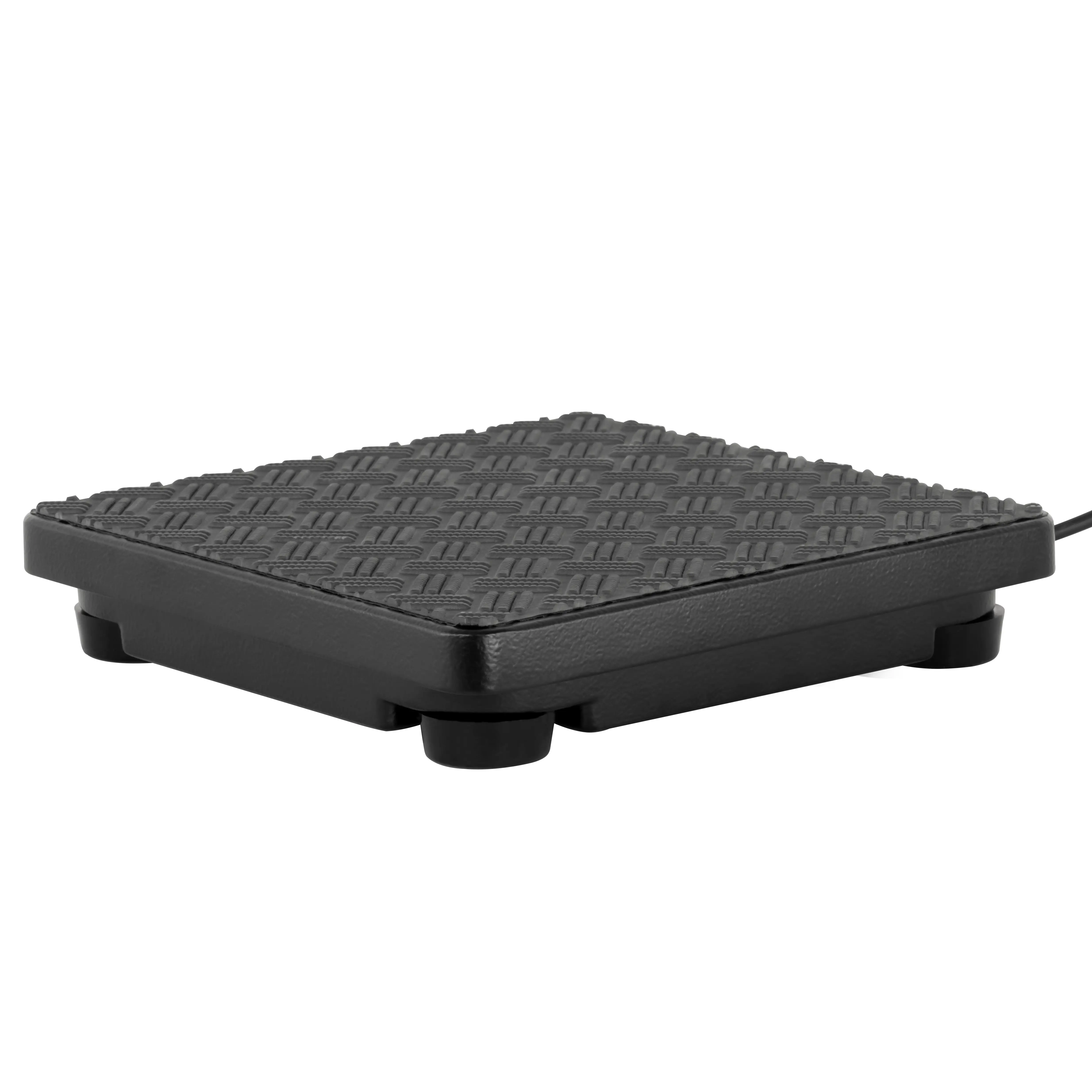

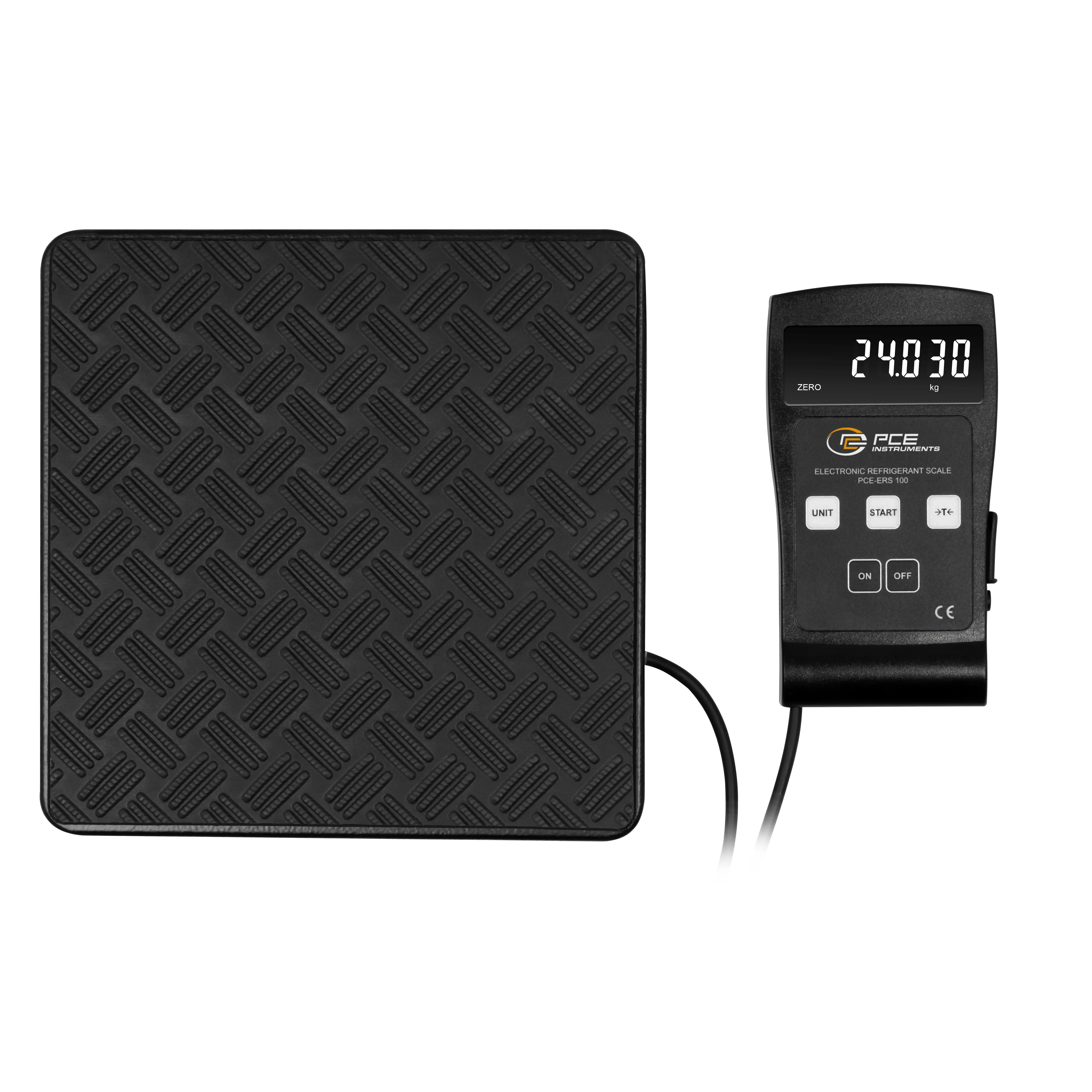

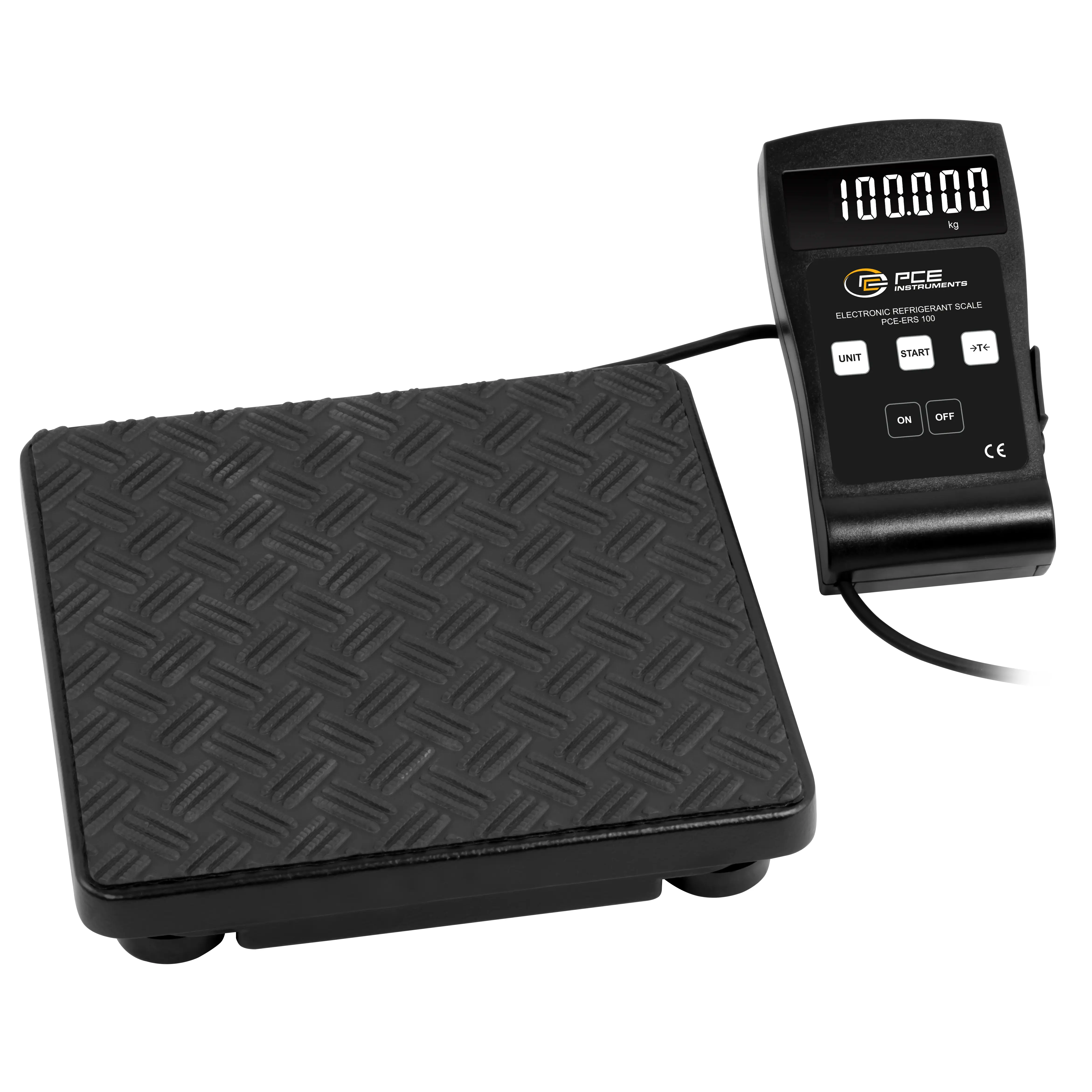

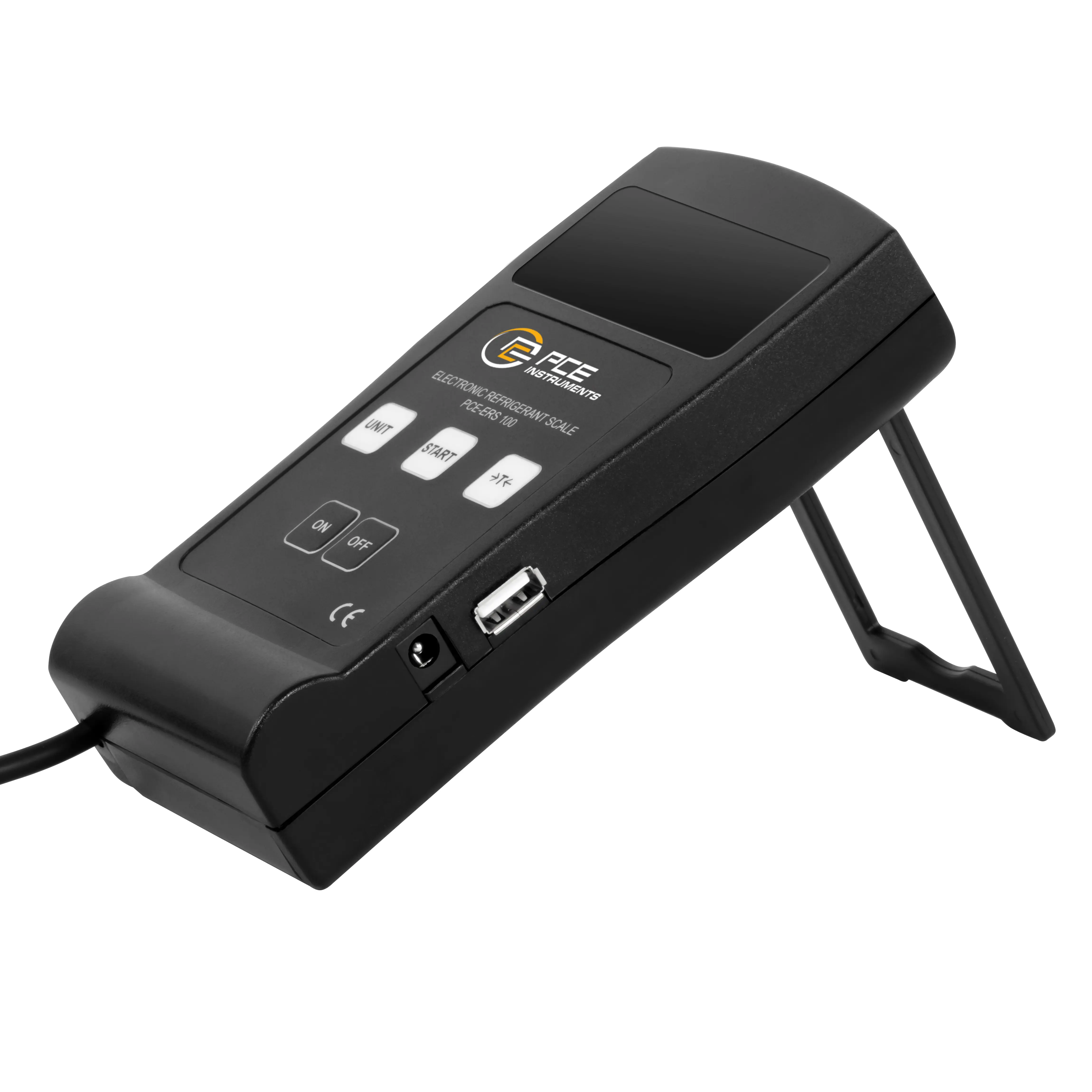

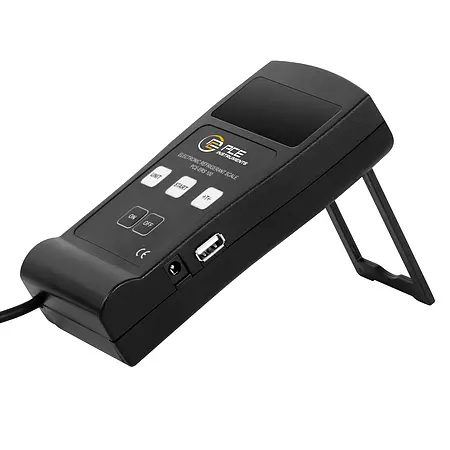

Our Weighing Platform are the ideal solution for precisely filling and emptying refrigerant cylinders. The Weighing Platform offer a measurement range of 0.01 ... 100 kg with a resolution of 0.01 kg, enabling precise measurements. The 230 x 230 mm platform of the Weighing Platform is equipped with a non-slip rubber coating, which ensures that the bottles can be placed safely. The external control unit makes the Weighing Platform ideal for flexible, mobile use. The control function makes it possible to set a weight at which the scales emit an audible alarm.

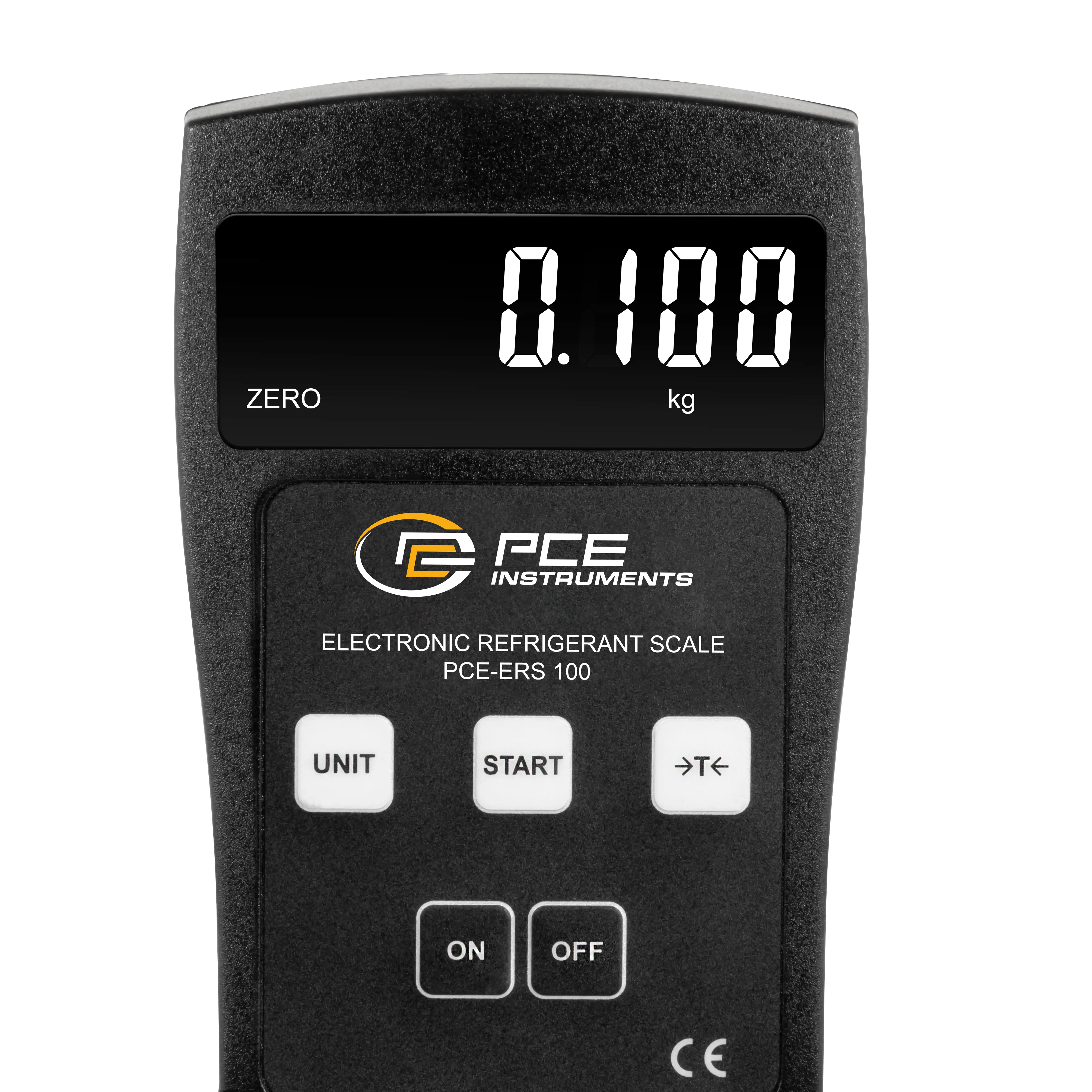

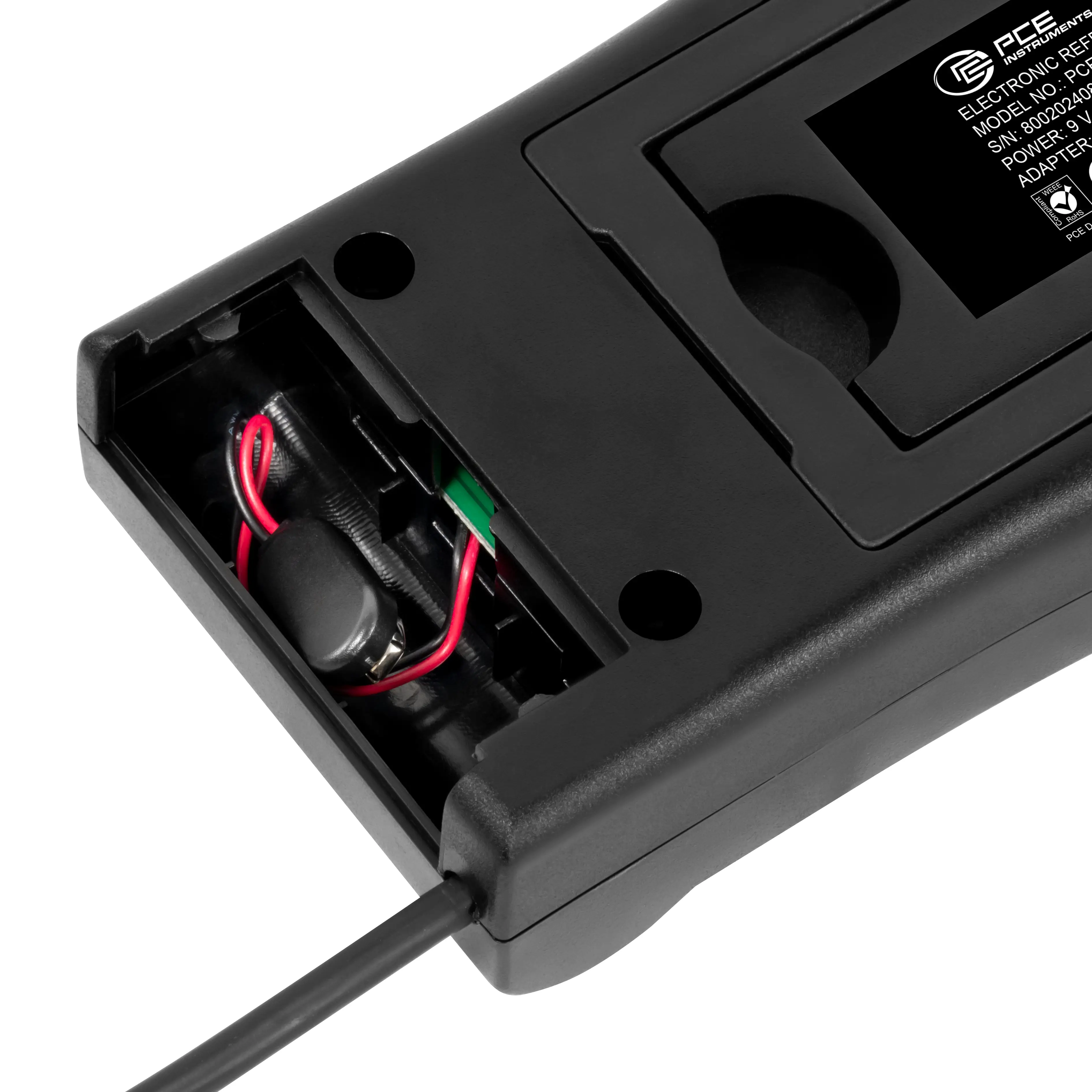

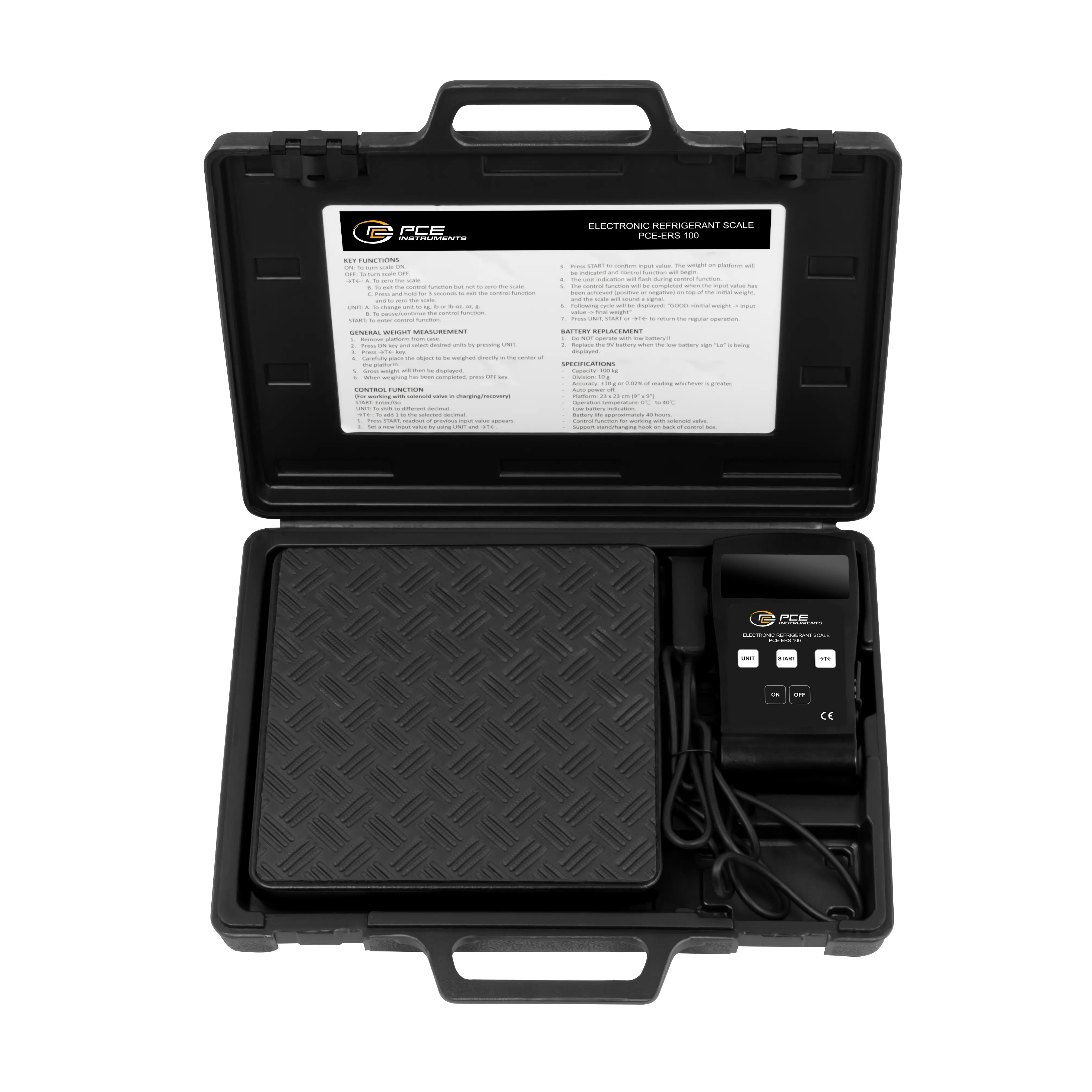

Measurements can be carried out in various units such as kg, g, lb, oz and lb/oz. The practical tare function allows the tare weight to be hidden so that only the actual change in weight is measured. A backlit display makes them easy to use even in poor lighting conditions. The scales can be operated either with a 9 V block battery or via the mains and have an automatic power off function to extend the battery life. The Weighing Platform are supplied in a practical carrying case.
Weighing range | |
Measurement range up to [Max] | 100 kg |
Resolution [d] | 0,01 kg |
Accuracy | ±0.01 kg |
General technical data | |
Units | Ib/oz, kg, g, lb, oz |
Display type | LCD |
Display size | 2,8 Inch |

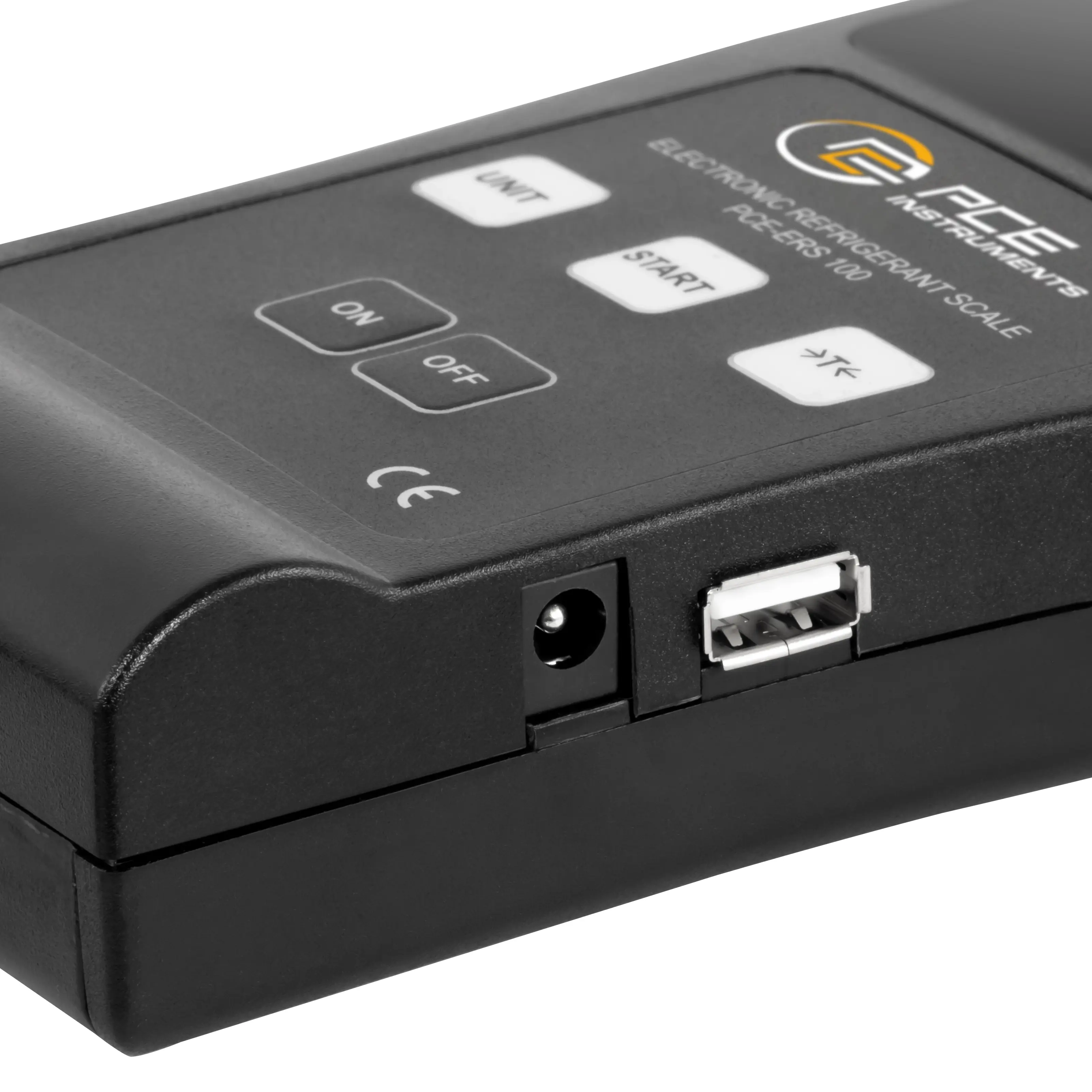

Interface | USB |
Operating time | 60 h |
Automatic power-off | 15 min |
Cable length | 1,3 m |
Alarm | Acoustic |
Scale type | Single-range scales |
Minimum load [min] | 0,01 kg |
Menu language | English, English (GB) |
Protection class (device) | IP40 |
Power supply | 6 V DC, 200 mA |
Weight | 2061 g |
Other dimensions | Display: 160 x 85 x 38 |
Operating conditions | 0 ... 40 °C , 0 ... 90 % RH |
Storage conditions | 0 ... 40 °C , 0 ... 90 % RH |
(Rechargeable) battery | 1 x 9 V 9V block , Alkali-manganese |
Capacity | 640 mAh |
Dimensions ( L x W x H ) | 230 x 230 x 45 mm |
