₹10,401.00
The frequency indicator is used for processing standardised signals. Depending on your specific needs, the frequency indicator can be ordered with different inputs, such as 0...20 mA, 4...20 mA, 0...60 mV, 0...10 V, ±60 mV or ±10 V. The input signal of the frequency indicator is freely scalable, which increases its application possibilities.
The measured values are shown on the large 5-digit LED display. As an option, an integrated 24 V sensor power supply system is available for connecting 2-wire sensors or transducers. The power supply of the frequency indicator itself can also be selected, depending on your needs. To set up the frequency indicator, you can use the optional programming adaptor PCE-PD14 to connect it to a PC. There you can use the free PC software LPCon to adjust the settings.
| Technical specifications | |
| Input (selectable) | 0 ... 20 mA 4 ... 20 mA 0 ... 60 mV 0 ... 10 V ± 60 mV ± 10 V |
| Accuracy | ± (0,2 % FS + 1 digit) |
| Internal resistance | 10 Ohm ± 1 % |
| Scaling | 2 points |
| Display | 5-digits, 7 segments, LED, height: 14 mm |
| Display range | -19999 ... 99999 |
| Environmental conditions | During operation: -10 ... +55 °C During storage: -25 ... +85 °C |
| Power supply | 230 V AC 110 V AC 24 V AC 85...235 V AC/DC 20...40 V AC/DC |
| Dimensions | 96 x 48 x 64 mm |
| Panel cutout | 92 x 45 mm (according to DIN standard) |
| Protection class | Front: IP 65 |
| Weight | < 200 g |
| Mounting |

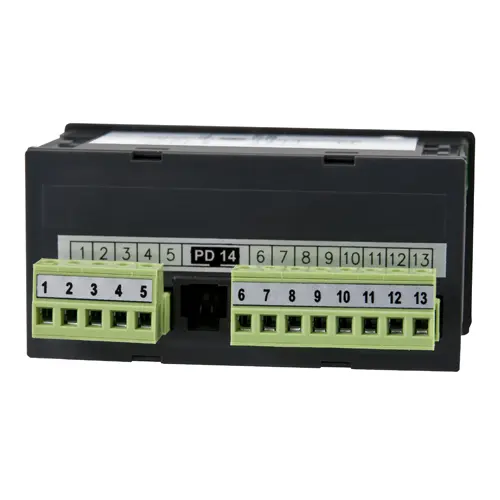

Mounting clips with screws, Connection via screw terminals |
| Housing | robust plastic housing |
