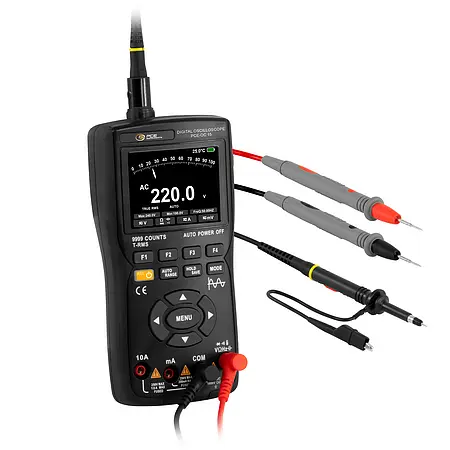

Frequency Indicator PCE-OC 15

Order no.: PCE-OC 15
GTIN (EAN): 4250348736116
₹14,121.00
₹16,662.78
price ex. (VAT / delivery)
:
4250348736116
PCE-OC 15
Delivery time: 1-2 working days

Description

Frequency Indicator / integrated multimeter / voltage / current / frequency / resistance / temperature / capacitance / diode test / continuity test

The Frequency Indicator was developed for practical and mobile use and can be used universally thanks to its diverse measurement functions. Our Frequency Indicator reliably measures voltage, current, frequency, resistance, temperature, capacitance and offers a diode and continuity test. The MODE key makes it easy to switch between digital multimeter and Frequency Indicator mode. With a bandwidth of 10 MHz and a fast sampling rate of 48 MSa/s, it ensures precise and quick data acquisition.

The device supports the storage of waveform data which can be exported as images and transferred to a PC. An LED backlight with adjustable brightness and power-off time as well as multifunctional keys make operation easier for the user. With a rechargeable battery via the C-type interface and a long standby time, the Frequency Indicator multimeter is ideal for long working hours, while the measured values are updated three times per second to always provide up-to-date data. The hand-held Frequency Indicator multimeter is an ideal companion for service technicians on site or in any electrical workshop.


Highlights

- multimeter with oscilloscope functions
- bandwidth 10 MHz
- sampling rate up to 48 MSa/s
- LC display with 4 brightness levels
- auto measurement range selection
- USB-C interface

Specification

Direct voltage DC
Measurement range up to  0 ... 9,999 mV
Resolution  0,001 mV
Accuracy  ±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to  10 ... 99,99 mV
Resolution  0,01 mV
Accuracy  ±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to  100 ... 999,9 mV
Resolution  0,1 mV
Accuracy  ±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to  1 ... 9,999 V
Resolution  0,001 V
Accuracy  ±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to  10 ... 99,99 V
Resolution  0,01 V
Accuracy  ±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to  100 ... 999,9 V
Resolution  0,1 V
Accuracy  ±(0.5 % of Rd +3 digits)

Direct current DC
Measurement range up to  0 ... 9999 µA
Resolution  1 µA
Accuracy  ±(0.8 % of Rd +3 digits)

Direct current DC
Measurement range up to  10 ... 99,99 mA
Resolution  0,01 mA
Accuracy  ±(0.8 % of Rd +3 digits)

Direct current DC
Measurement range up to  100 ... 999,9 mA
Resolution  0,1 mA
Accuracy  ±(1 % of Rd +3 digits)

Direct current DC
Measurement range up to  1 ... 9,999 A
Resolution  0,001 A
Accuracy  ±(1 % of Rd +3 digits)

Capacity
Measurement range up to  0 ... 9,999 nF
Resolution  0,001 nF
Accuracy  ±(5 % of Rd +20 digits)

Capacity
Measurement range up to  10 ... 99,99 nF
Resolution  0,01 nF
Accuracy  ±(2 % of Rd +5 digits)

Capacity
Measurement range up to  100 ... 999,9 nF
Resolution  0,1 nF
Accuracy  ±(2 % of Rd +5 digits)

Capacity
Measurement range up to  1 ... 9,999 µF
Resolution  0,001 µF
Accuracy  ±(2 % of Rd +5 digits)

Capacity
Measurement range up to  10 ... 99,99 µF
Resolution  0,01 µF
Accuracy  ±(2 % of Rd +5 digits)

Capacity
Measurement range up to  100 ... 999,9 µF
Resolution  0,1 µF
Accuracy  ±(5 % of Rd +5 digits)

Capacity
Measurement range up to  1 ... 9,999 mF
Resolution  0,001 mF
Accuracy  ±(5 % of Rd +5 digits)

Capacity
Measurement range up to  10 ... 99,99 mF
Resolution  0,01 mF
Accuracy  ±(5 % of Rd +5 digits)

AC voltage
Measurement range up to  0 ... 9,999 mV
Resolution  0,001 mV
Accuracy  ±(1 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

AC voltage
Measurement range up to  10 ... 99,99 mV
Resolution  0,01 mV
Accuracy  ±(1 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

AC voltage
Measurement range up to  100 ... 999,9 mV
Resolution  0,1 mV
Accuracy  ±(1 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

AC voltage
Measurement range up to  1 ... 9,999 V
Resolution  0,001 V
Accuracy  ±(1 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

AC voltage
Measurement range up to  10 ... 99,99 V
Resolution  0,01 V
Accuracy  ±(1 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

AC voltage
Measurement range up to  100 ... 750 V
Resolution  0,1 V
Accuracy  ±(1 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

Alternating current AC
Measurement range up to  0 ... 9999 µA
Resolution  1 µA
Accuracy  ±(1 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

Alternating current AC
Measurement range up to  10 ... 99,99 mA
Resolution  0,01 mA
Accuracy  ±(1 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

Alternating current AC
Measurement range up to  100 ... 999,9 mA
Resolution  0,1 mA
Accuracy  ±(1.2 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

Alternating current AC
Measurement range up to  1 ... 9,999 A
Resolution  0,001 A
Accuracy  ±(1.2 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

Resistance
Measurement range up to  0 ... 99,99 Ω
Resolution  0,01 Ω
Accuracy  ±(1 % of Rd +3 digits)

Resistance
Measurement range up to  100 ... 999,9 Ω
Resolution  0,1 Ω
Accuracy  ±(0.5 % of Rd +3 digits)

Resistance
Measurement range up to  1000 Ω ... 9,999 kΩ
Resolution  0,001 kΩ
Accuracy  ±(0.5 % of Rd +3 digits)

Resistance
Measurement range up to  10 ... 99,99 kΩ
Resolution  0,01 kΩ
Accuracy  ±(0.5 % of Rd +3 digits)

Resistance
Measurement range up to  100 ... 999,9 kΩ
Resolution  0,1 kΩ
Accuracy  ±(0.5 % of Rd +3 digits)

Resistance
Measurement range up to  1000 kΩ ... 9,999 M Ω
Resolution  0,001 mΩ
Accuracy  ±(1.5 % of Rd +3 digits)

Resistance
Measurement range up to  10 ... 99,99 M Ω
Resolution  0,01 mΩ
Accuracy  ±(3 % of Rd +5 digits)

Frequency
Measurement range up to  0 ... 99,99 Hz
Resolution  0,01 Hz
Accuracy  ±(0.1 % of Rd +2 digits)

Frequency
Measurement range up to  100 ... 999,9 Hz
Resolution  0,1 Hz
Accuracy  ±(0.1 % of Rd +2 digits)

Frequency
Measurement range up to  1000 Hz ... 9,999 kHz
Resolution  0,001 kHz
Accuracy  ±(0.1 % of Rd +2 digits)

Frequency
Measurement range up to  10 ... 99,99 kHz
Resolution  0,01 kHz
Accuracy  ±(0.1 % of Rd +2 digits)

Frequency
Measurement range up to  100 ... 999,9 kHz
Resolution  0,1 kHz
Accuracy  ±(0.1 % of Rd +2 digits)

Temperature
Measurement range up to  -20 ... +1000 °C
Resolution  1 °C
Accuracy  ±(2.5 % of Rd +5 digits)

Temperature
Measurement range up to  -4 ... +1832 °F
Resolution  1 °F
Accuracy  ±(2.5 % of Rd +5 digits)

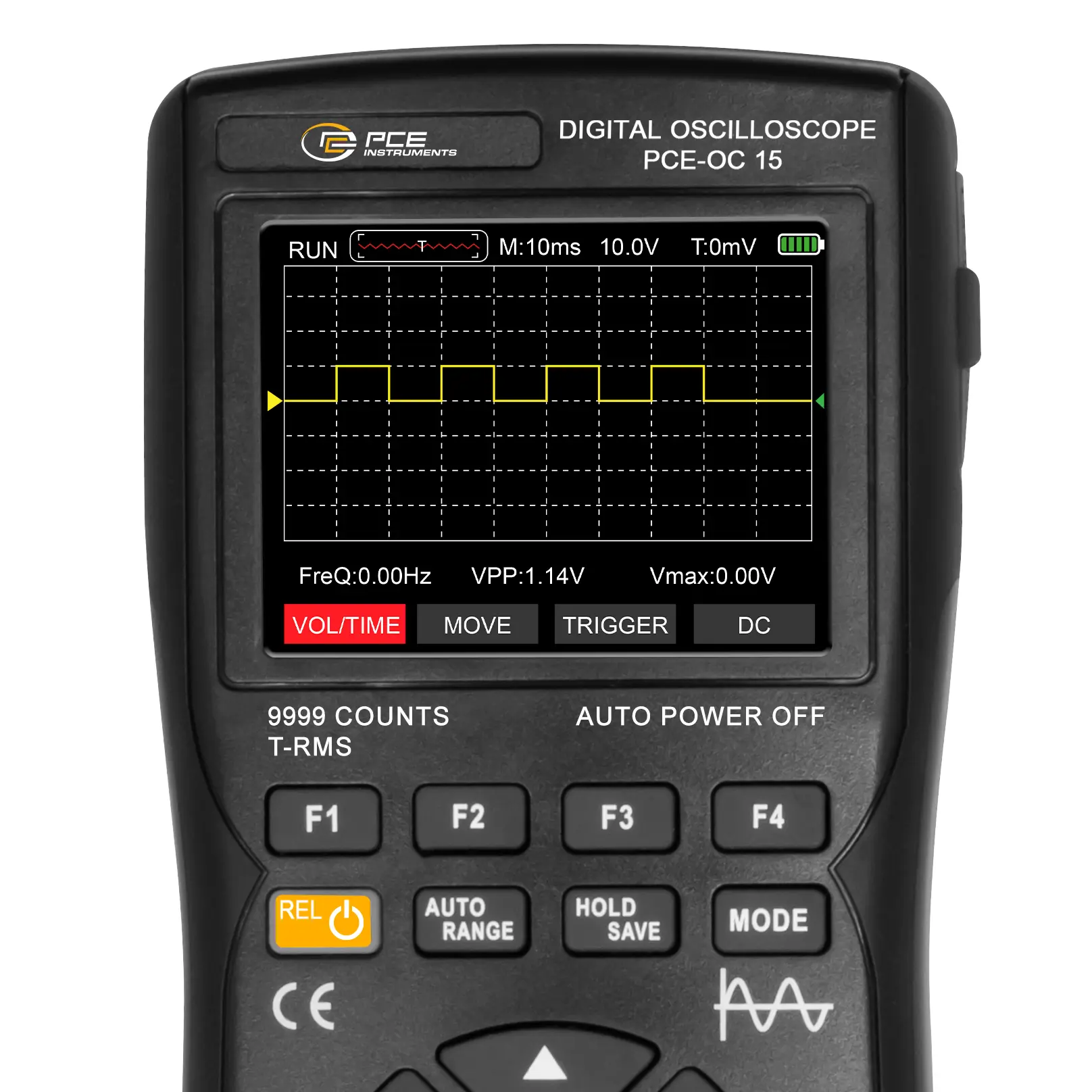

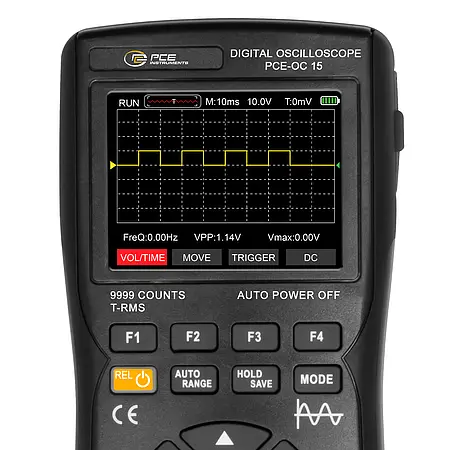

Oscilloscope specifications
Number of channels  1
Measuring functions  Period, Frequency, Peak-peak, MAX, MIN, RMS value
Sampling rate  48 MSa/s
Input impedance  1 M Ω
Probe factors  X1, X10
Max. input voltage  150 V
Adjustable sampling rate  1.5 Sa/s ... 48 MSa/s
Time base  100 ns/div ... 20 s/div
Accuracy  20 ppm
Vertical sensitivity  20 mV/div ... 10 V/div
Rise time  10 ns
DC gain accuracy  ±3 %

General technical data
Display type  LCD
Display size  2,76 Inch
Measuring rate  3 Hz
Storage medium  Internal memory
Storage capacity  15 MB
Memory information  Screenshot on keystroke

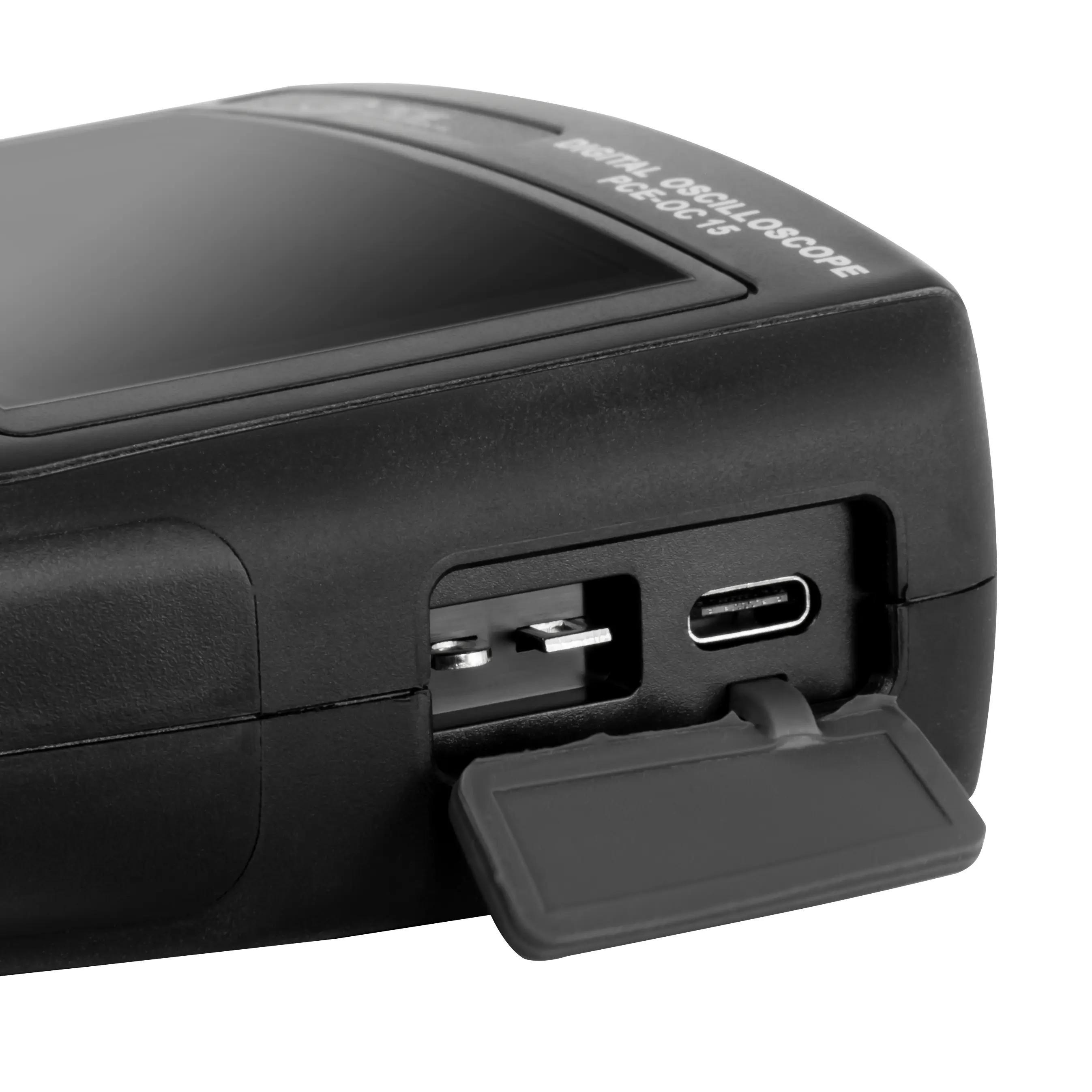

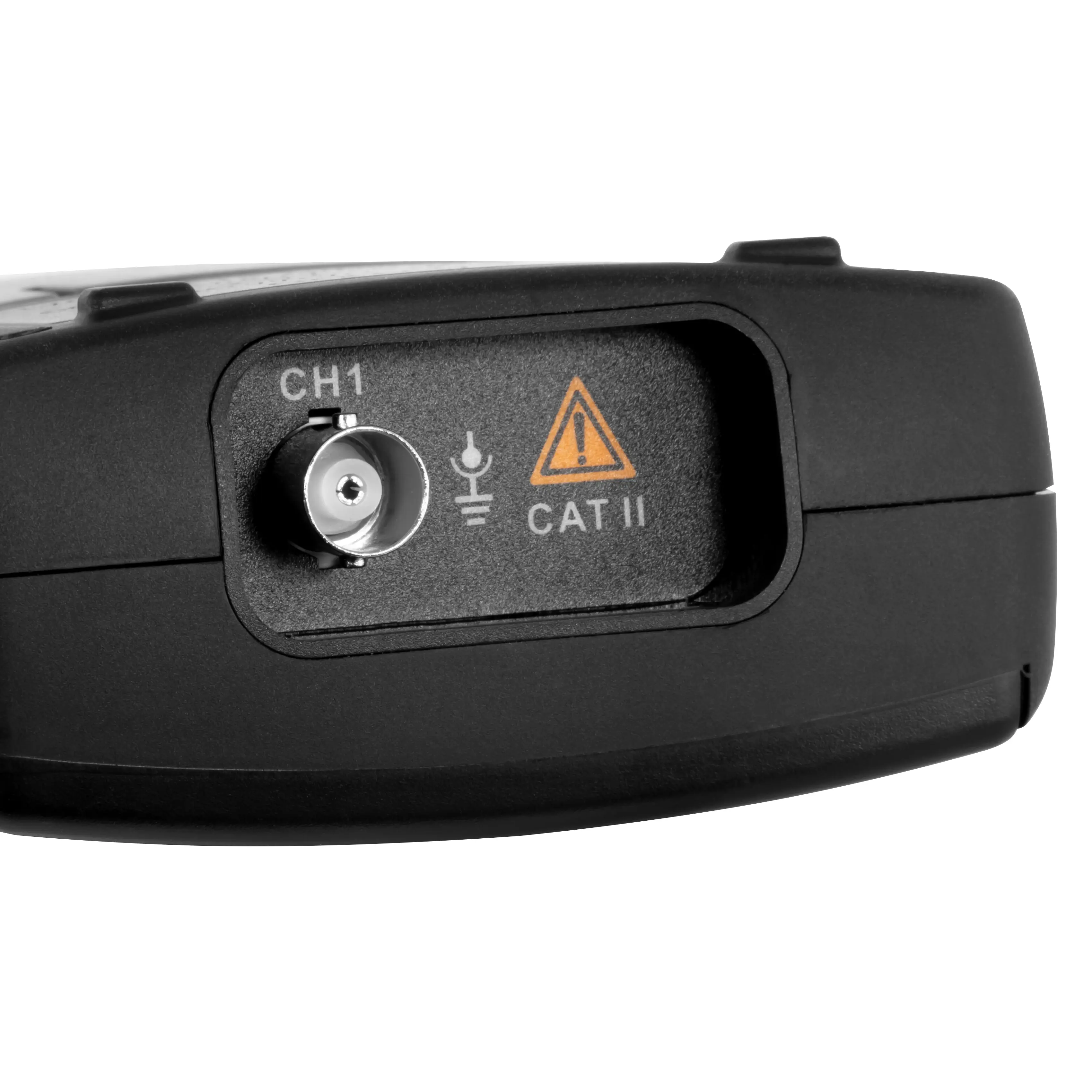

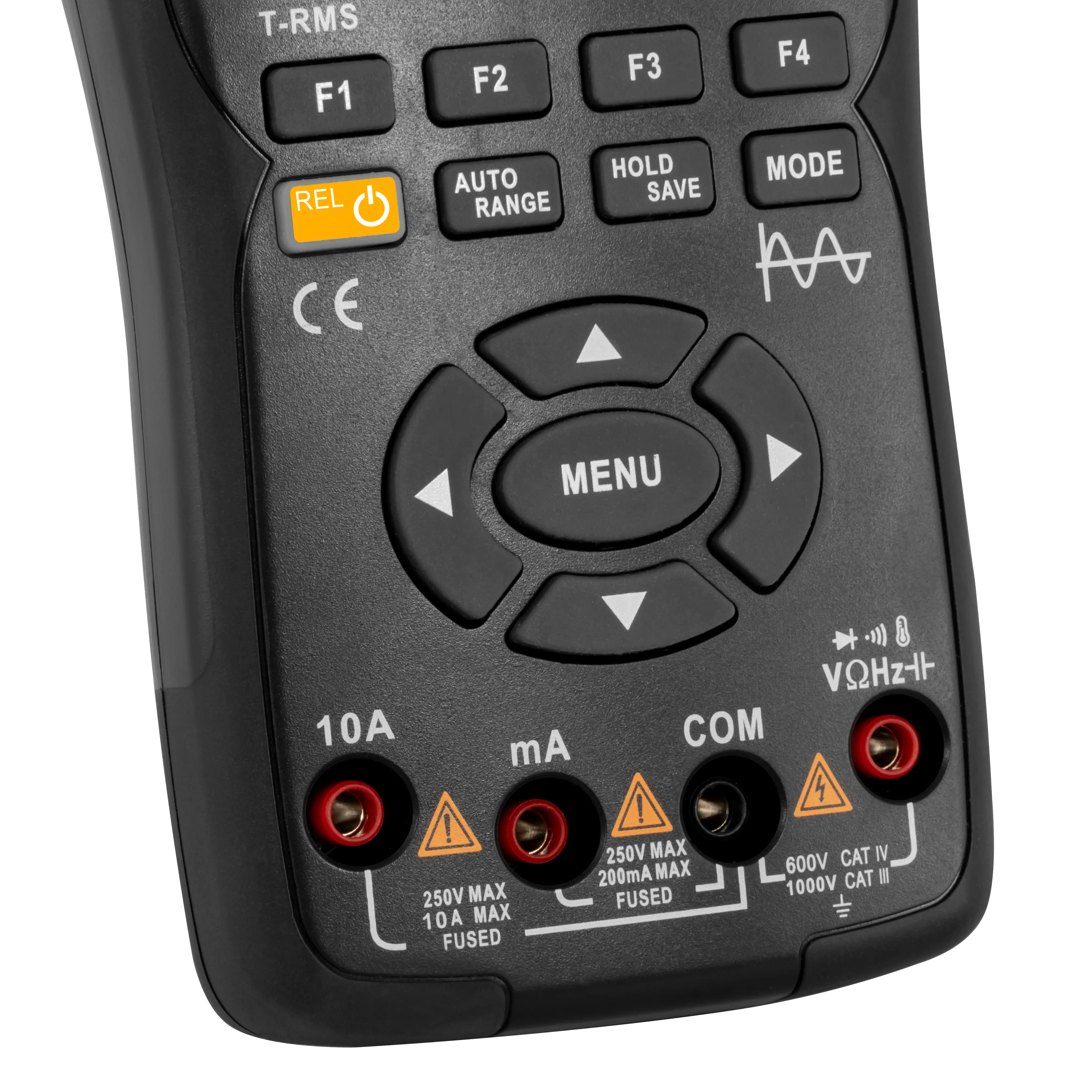

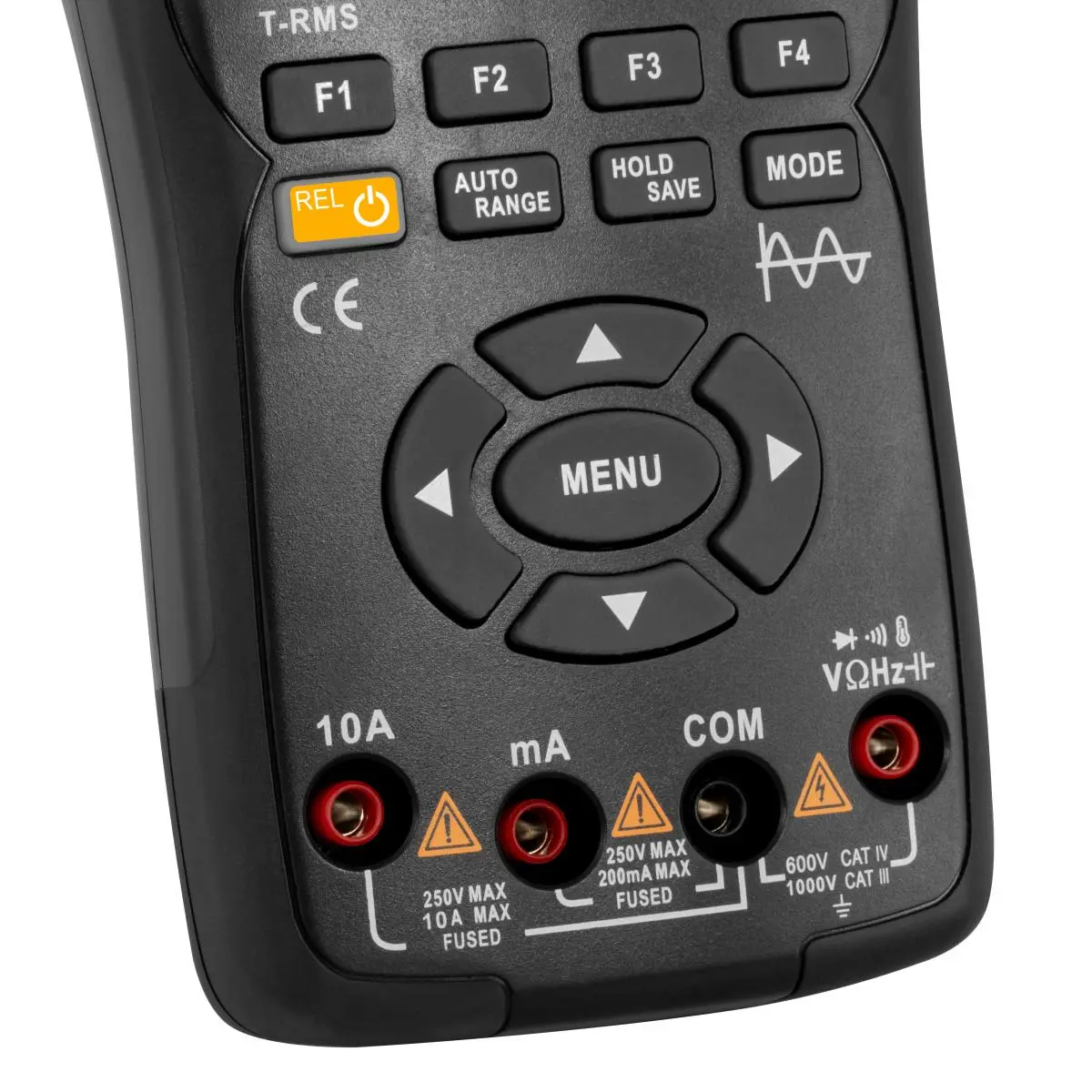

Interface  USB-C, BNC
Automatic power-off from...to  15 ... 120 min.
Automatic power-off can be deactivated  Yes
Safety standard  CAT III 600 V, CAT II 1000 V
Fuse(s)  Microfuse 10 A
Trigger input  Mode: auto, normal, single
Edge: rising, falling
Menu language  English, Chinese, English (GB)
Protection class (device)  IP20
Power supply  100 ... 240 V AC | 50/60 Hz
Weight  352 g
Operating conditions  0 ... 40 °C , 0 ... 75 % RH
Storage conditions  -20 ... 60 °C , 0 ... 80 % RH
(Rechargeable) battery  1 x 3,7 V 18650 , lithium
Capacity  2000 mAh
Dimensions ( L x W x H )  175 x 90 x 40 mm

Delivery Scope

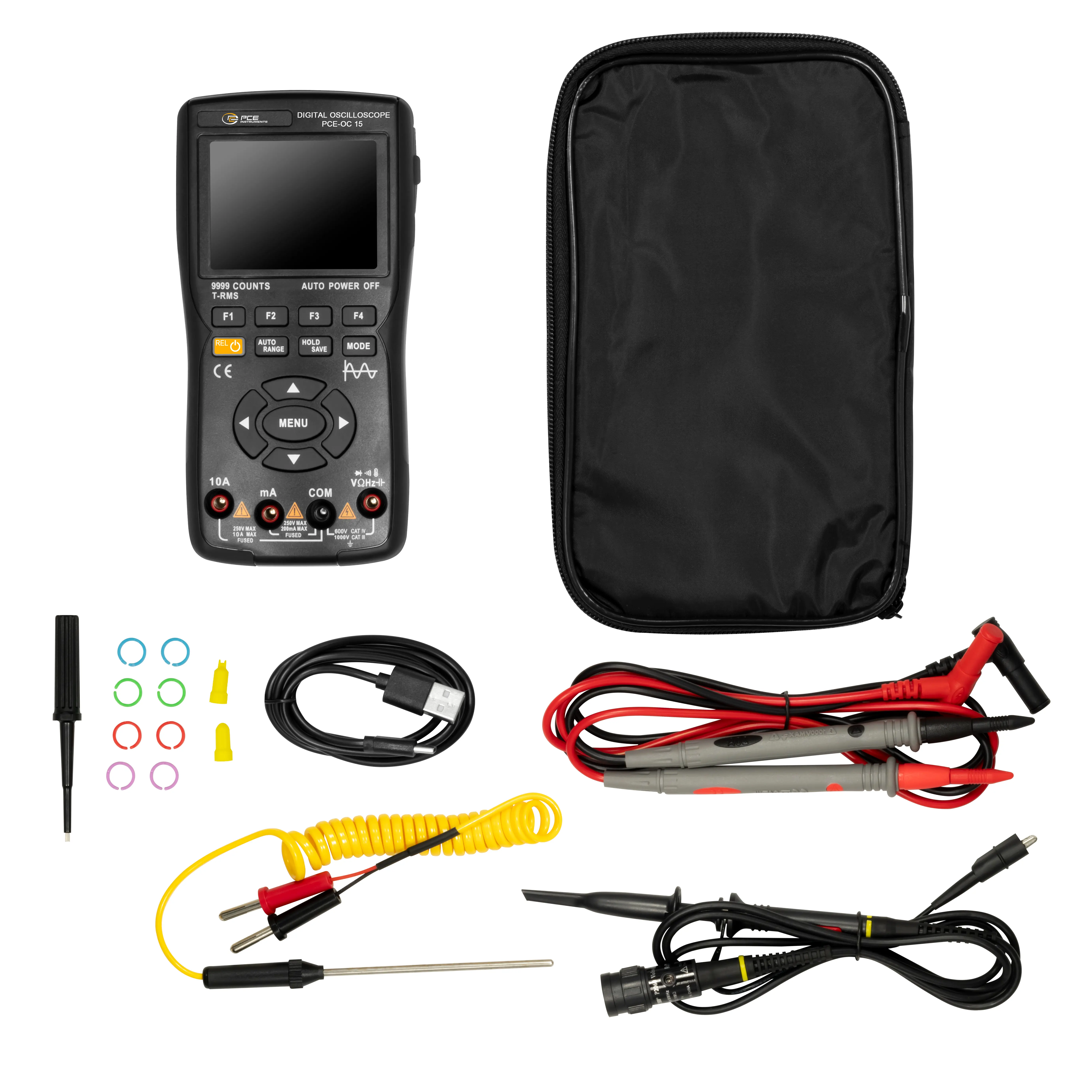

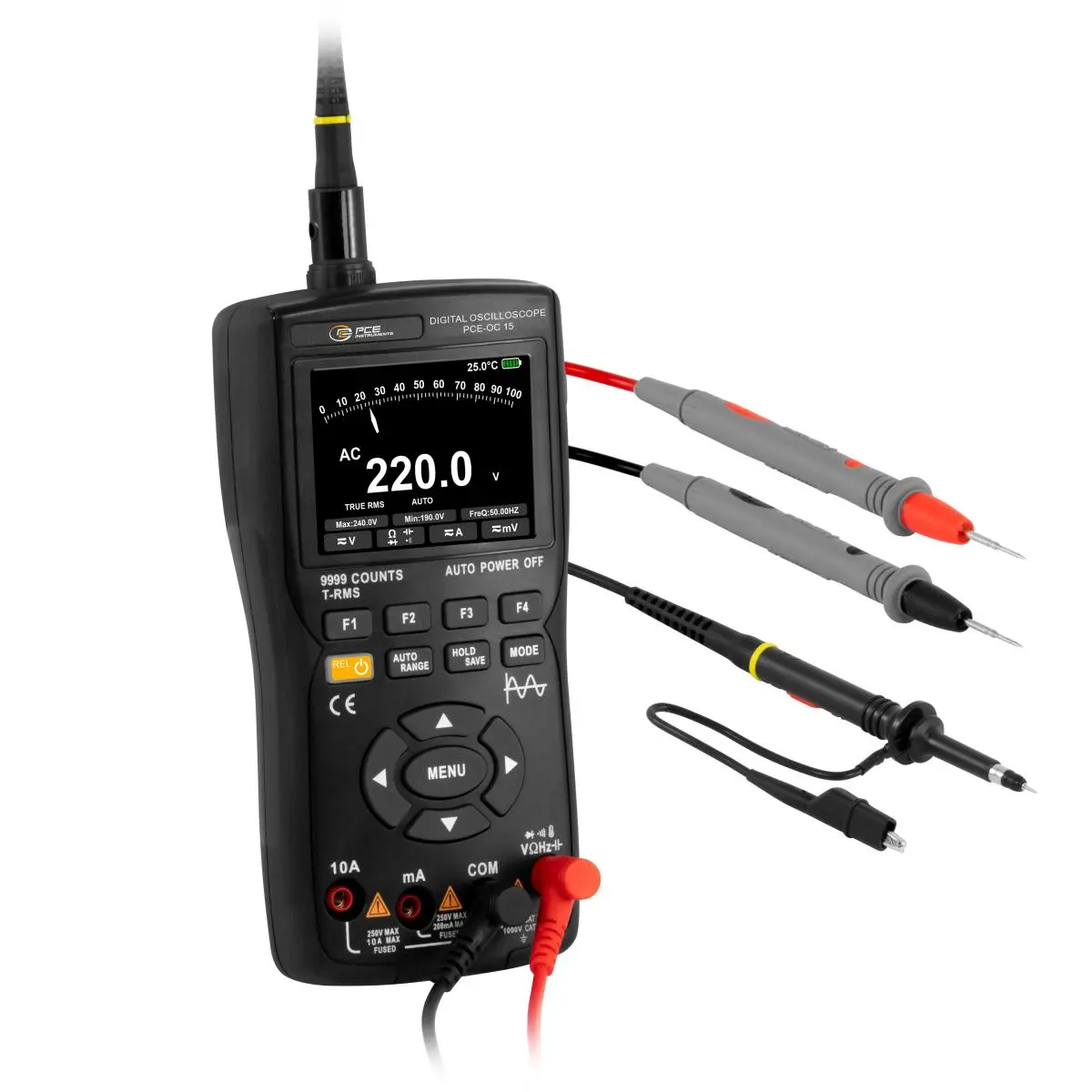

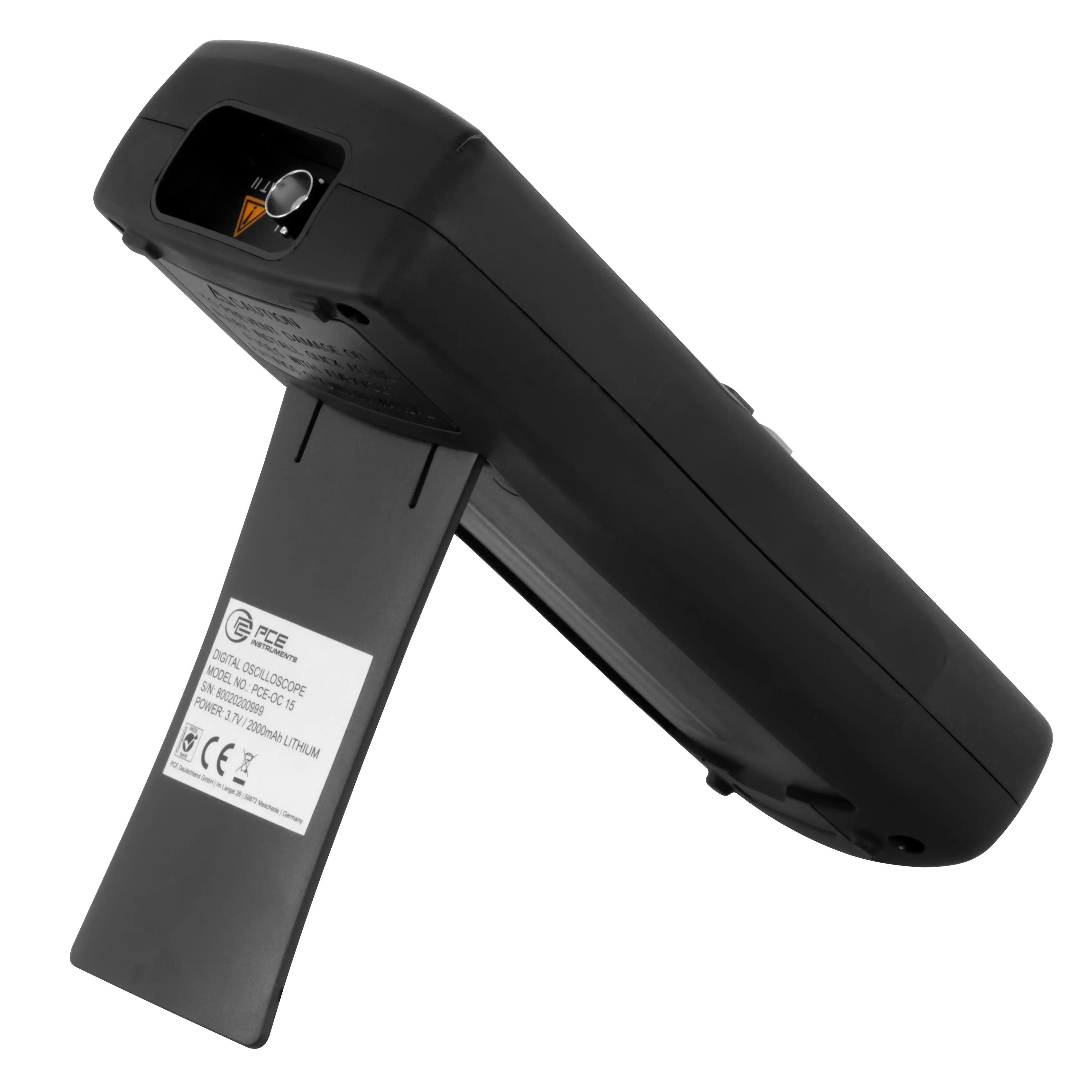

1 x Frequency Indicator PCE-OC 15

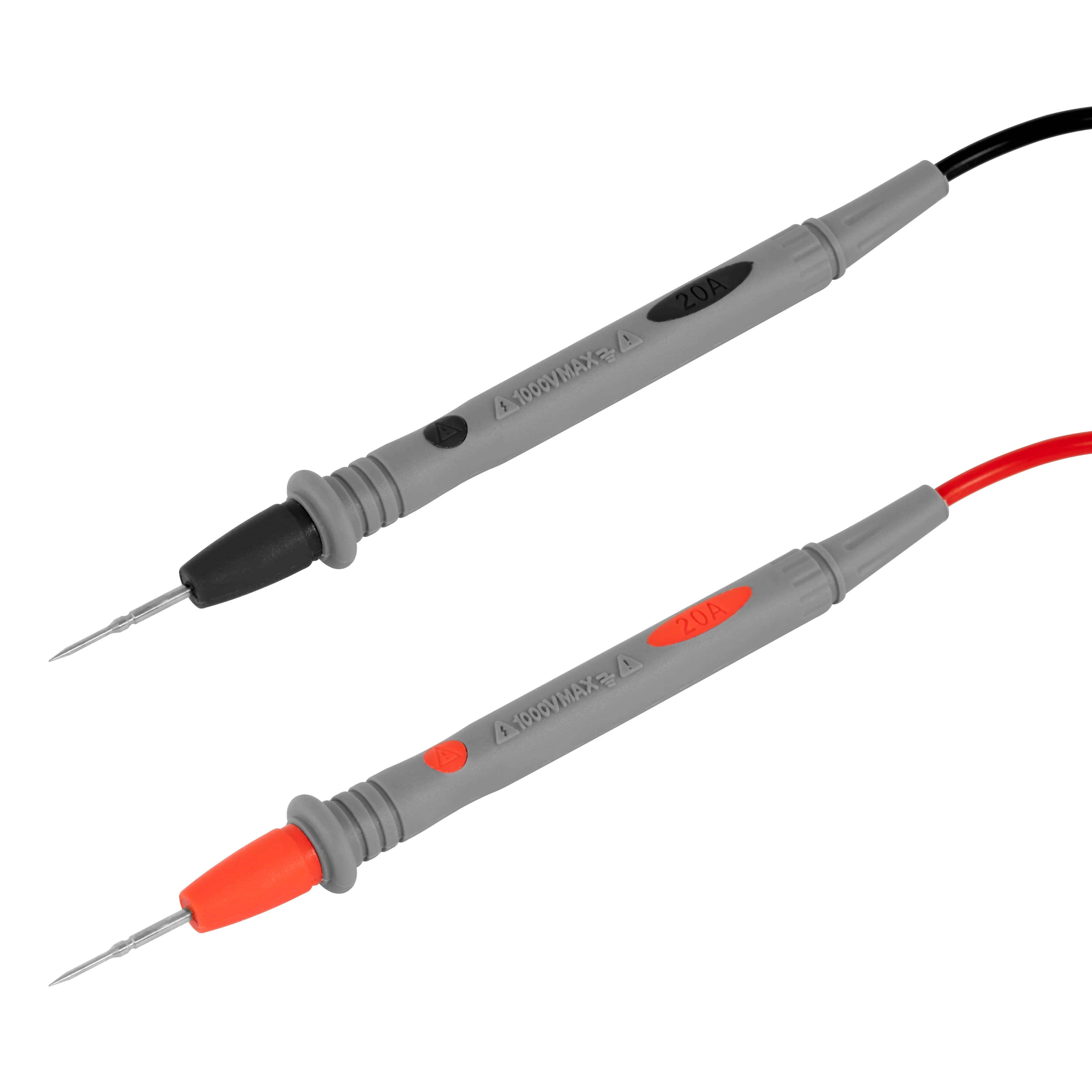

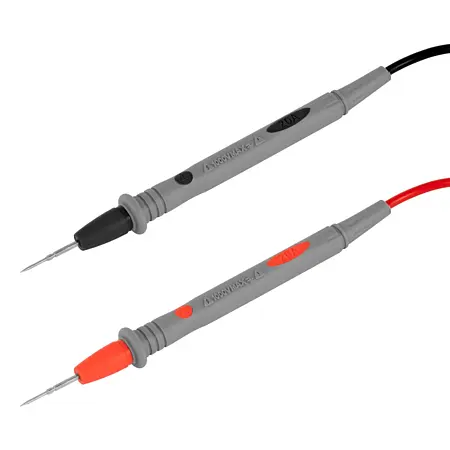

1 x set of test leads

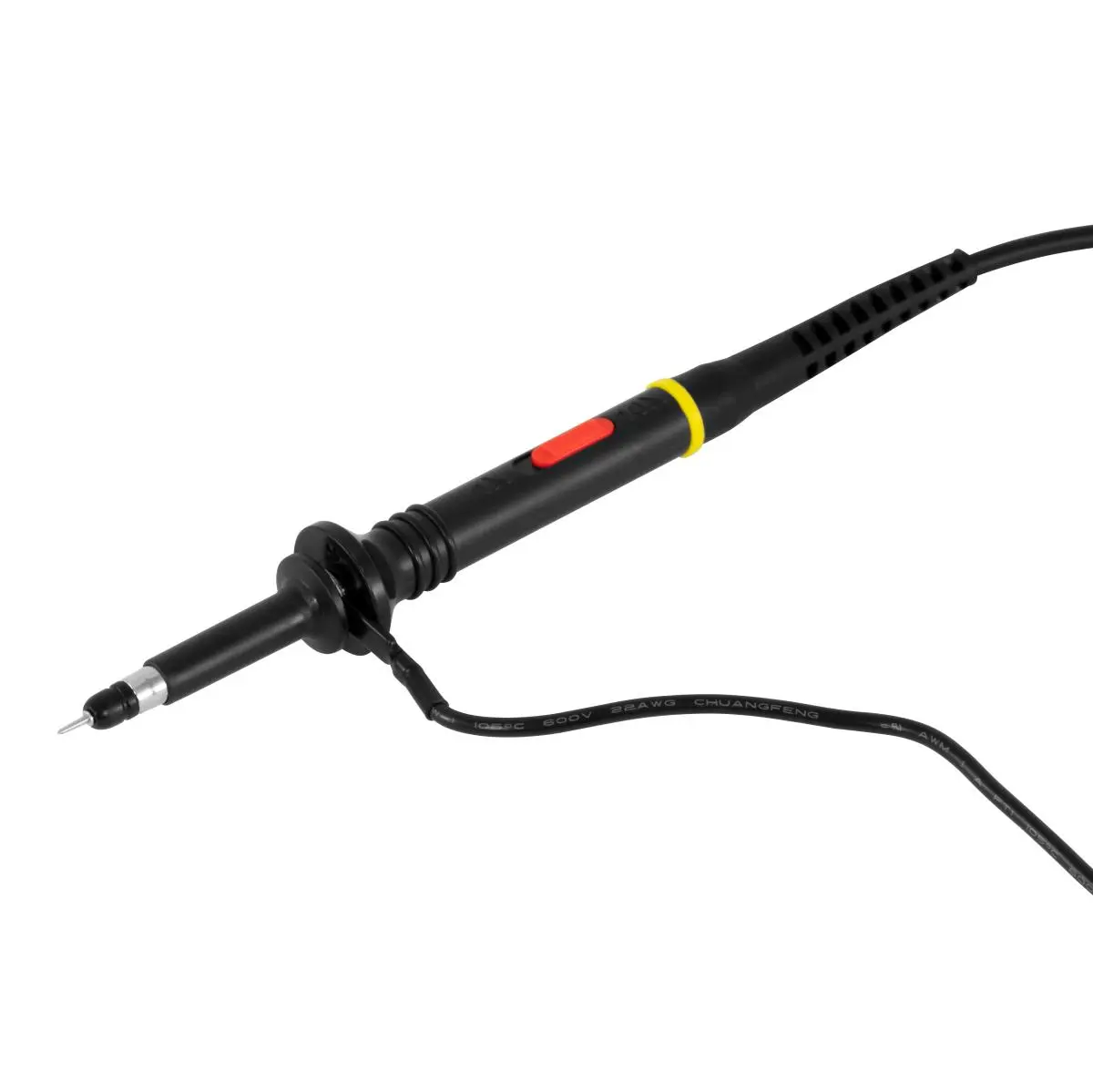

1 x Frequency Indicator probe

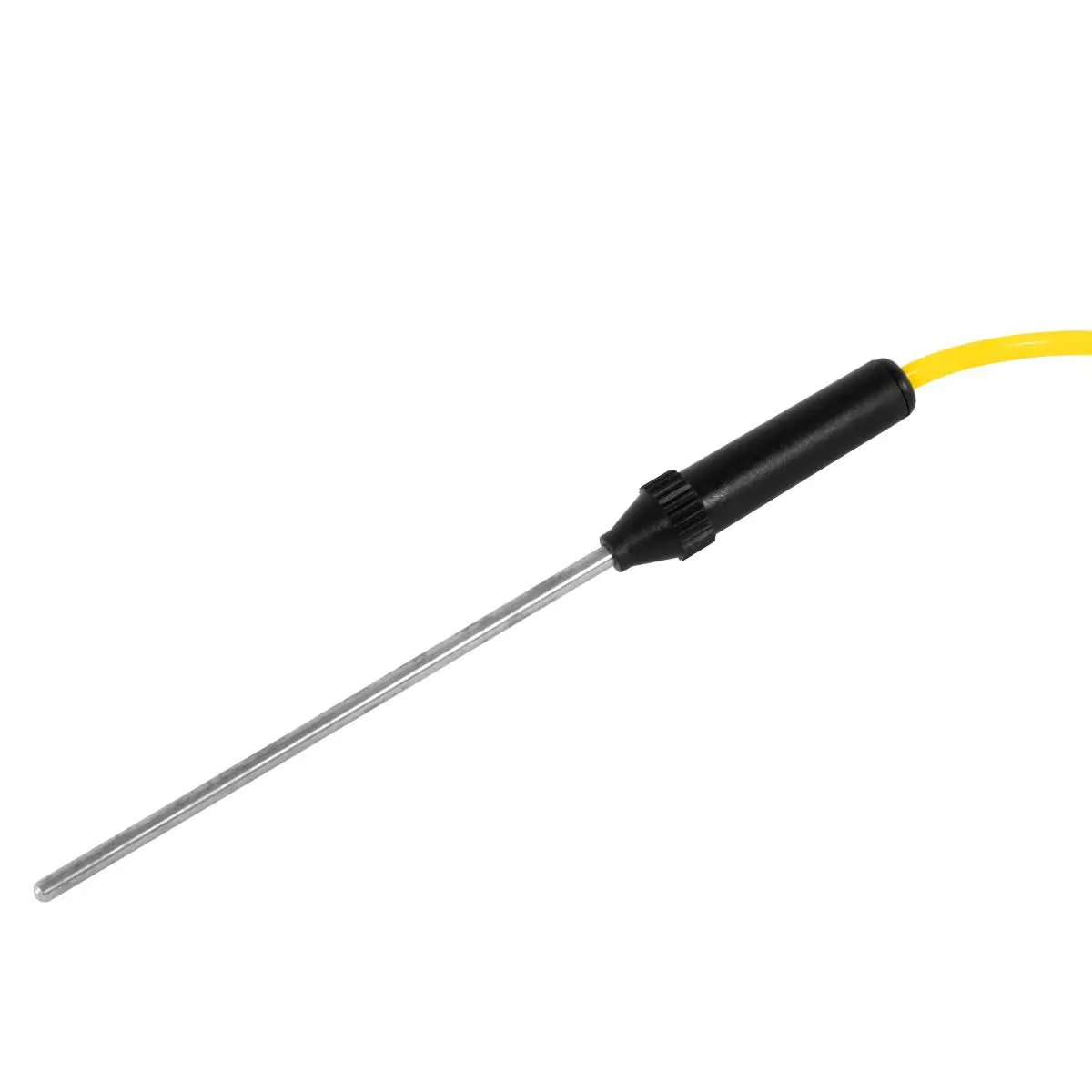

1 x temperature sensor
1 x USB-C cable
1 x user manual
1 x probe accessories
