Panel Indicator PCE-DPD-Cx Series

Order no.: PCE-DPD-C

GTIN (EAN):

Accessory

Table Housing PCE-TGH450

₹19,627.00

Transistor Module for PCE-DPD Series

₹7,872.00

SSR-Module for PCE-DPD Series

₹7,872.00

Relay Module for PCE-DPD Series

₹7,872.00

Modbus RTU Module for PCE-DPD Series

₹14,865.00

Analog Output Module for PCE-DPD Series

₹14,865.00

RS485 Module for PCE-DPD Series

₹14,865.00

RS232 Module for PCE-DPD Series

₹14,865.00

Description

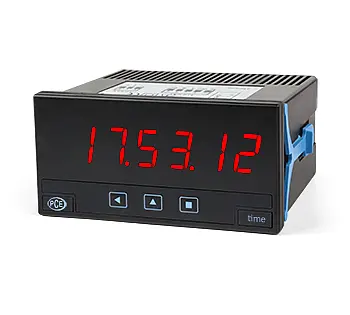

Panel indicator PCE-DPC-Cx Series

Stopwatch function with Start, Stop and Reset control / 6 mm red LED display of 14 mm

This digital panel indicator with stopwatch with start, stop and reset input functions. The digital panel indicator has a size of 96 x 48 mm and displays the values on a 6-digit red LED display of 14 mm. It has different reading formats available in both decimal and sexagesimal format, with a configurable preset value and different counting functions. It also provides excitation voltage for sensors. The digital panel indicator has universal high or low AC / DC power. It also has options for relay, transistor, SSR control, analog output and Modbus RTU communications.

Highlights

- Digital panel indicator with stopwatch function
- LED display 6 digits red 14 mm
- Dimensions 96 x 48 mm
- Functions: Start / Stop / Reset inputs, On power-up, Trigger sense, ...
- Two Power versions 85/265V AC / DC / 11/60V AC / DC

Specification

Sexagesimal indication	mm.ss.cc / hh.mm.ss / dd.hh.mm mmmm.ss / hhhh.mm / dddd.hh
Decimal indication	ssssss /sssss.s / ssss.ss / mmmmmm / mmmmm.m / mmmm.mm / hhhhhh / hhhhh.h / hhhh.hh
Screen	6-digit 7-segment LED
Colour	Red or green (check availability)
Digits height	14 mm
Function	Ascending or descending stopwatch
Controls	Start, stop, reset
Default Controls*	Potential free contact
*Configurable for push-pull, NPN, PNP, inductive, ...
Excitation voltage	+5V DC, +9V DC, +15V DC, +18V DC (max. 70-mA)
Vdc maximum at the input	± 30V DC
Precision	100 ppm
Display refresh	12 times / second
Reset	front, rear and alarm activation
Counting memory	maintained in case of loss of power
Power '1'	85 to 265V AC / DC (isolated 2500 Veff)
Power '2'	11 to 60V DC and 24/48V AC (isolated 1500 Veff)
Output and control options	relays, analog outputs, serial communications, ...
Consumption	< 1.5W (indicator only) < 4.0W (indicator with options)
Electric connections	Screw plug-in terminal
Protection	Front: IP65
Mounting	Panel
Panel cut	92 x 44 mm / 3.6 x 1.7 in
Dimensions	96 x 48 x 91 mm / 3.8 x 1.9 x 3.6 in
Weight	Approx. 150 g / < 1 lb
Operating temperature	0 ... 50°C / 32 ... 122°F
Storage temperature	-20 ... 70°C / -4 ... 158°F

Delivery Scope

1 x Panel indicator PCE-DPC-C
1 x Power terminal
1 x Signal terminal
1 x Unit board
1 x Instruction manual
