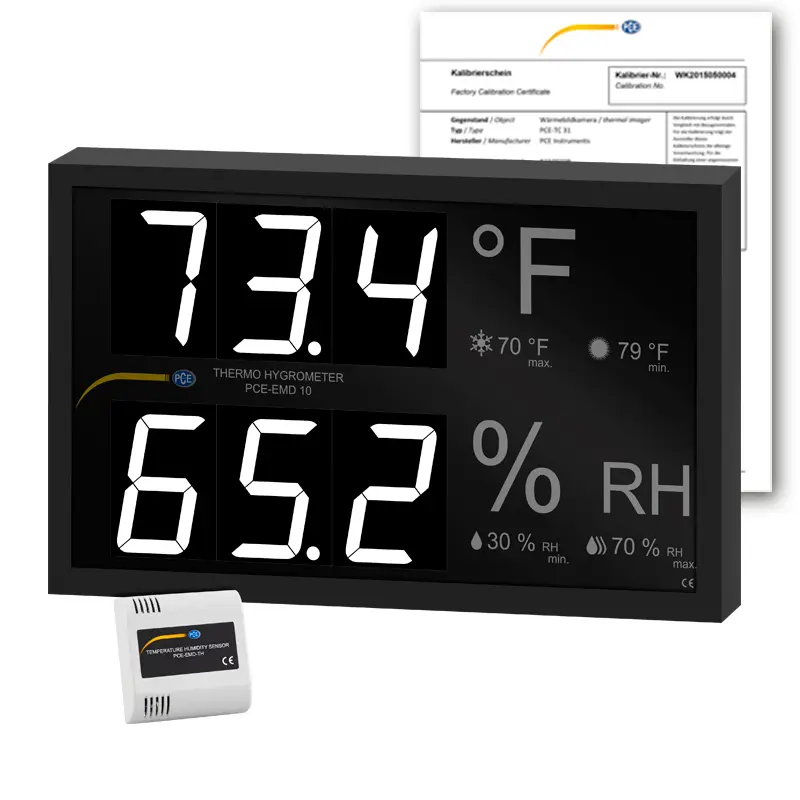

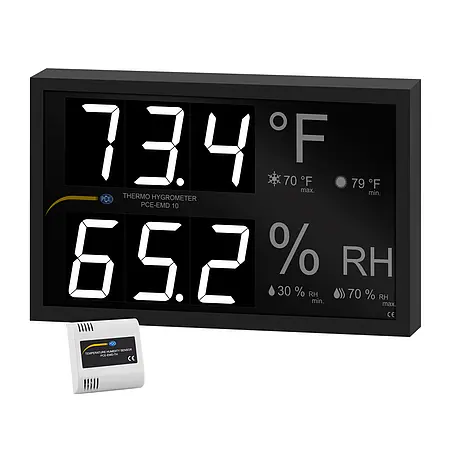

Temperature Indicator PCE-EMD 10-ICA Incl. ISO Calibration Certificate

Order no.: PCE-EMD 10-ICA
GTIN (EAN): 4250348728456
₹148,785.00
₹175,566.30
ISO Calibration
price ex. (VAT / delivery)
:
4250348728456
PCE-EMD 10-ICA
Delivery time: 10 - 14 days

Accessory

Replacement Temperature and Humidity Transmitter PCE-EMD-TH
Replacement Temperature and Humidity Transmitter PCE-EMD-TH
₹24,835.00
ISO Calibration Certificate for Temperature and Humidity
ISO Calibration Certificate for Temperature and Humidity
₹23,793.00

Description

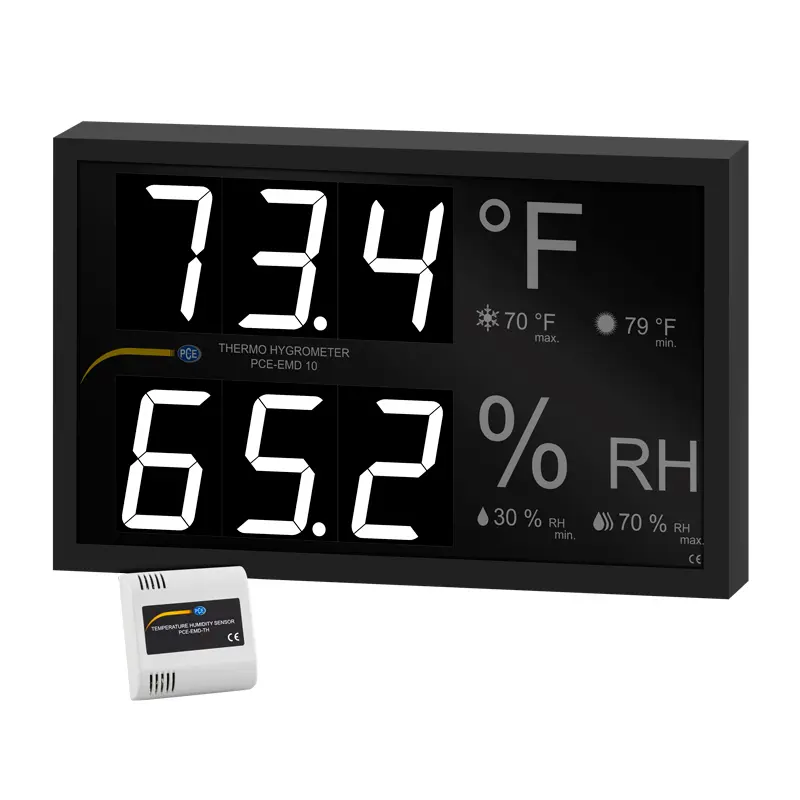

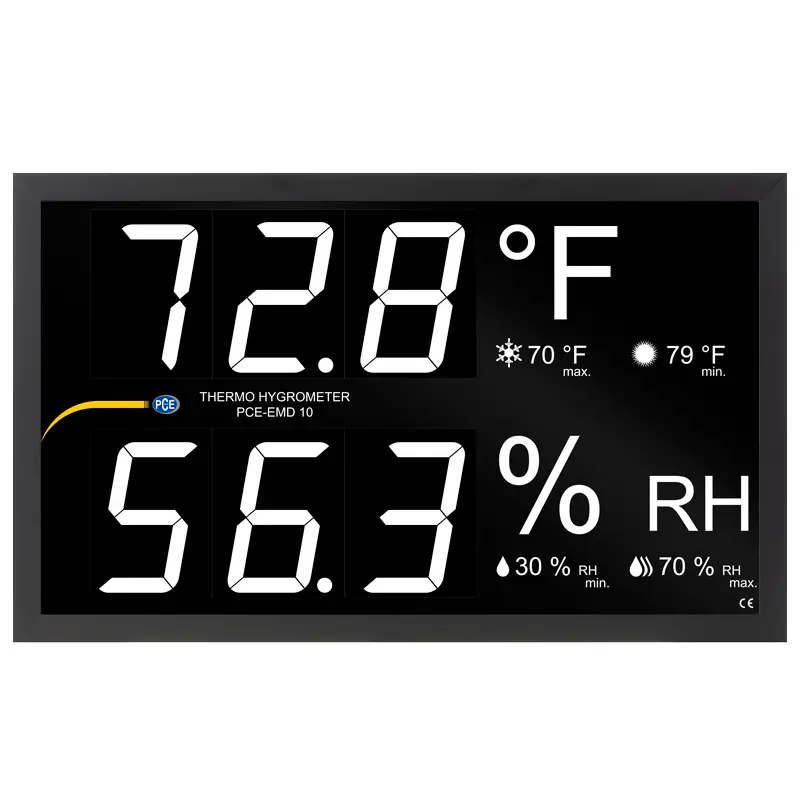

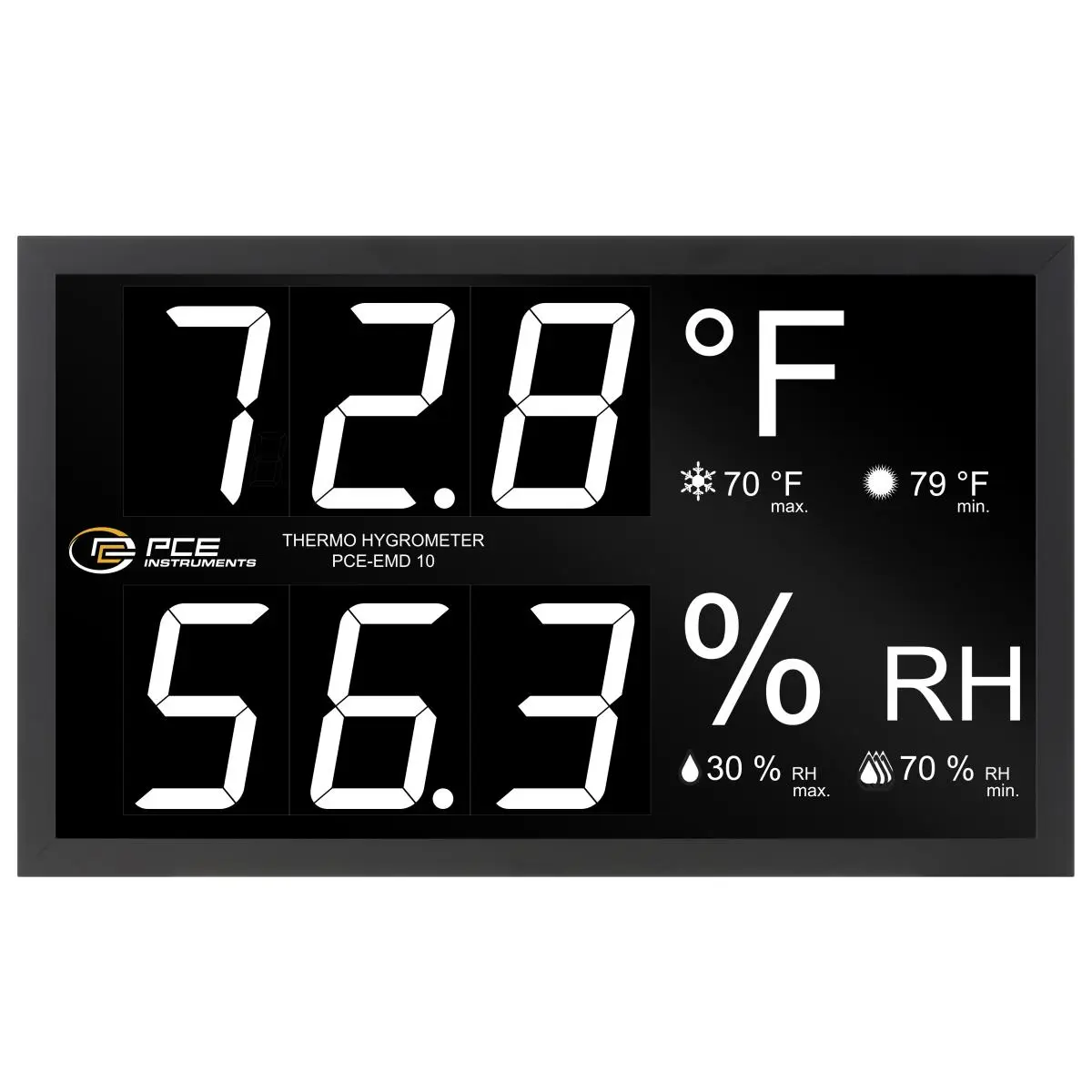

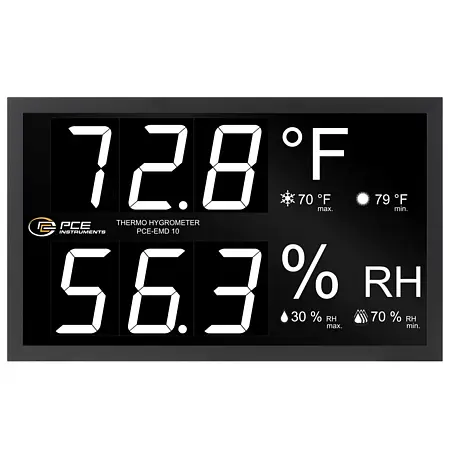

Temperature indicator with robust aluminum frame / Digit height 100 mm (3.9") / Temperature measuring range 32.0 ... 122.0 °F / Humidity measuring range 0.0 ... 99.9% RH / Connection of up to four sensors at the same time

The temperature indicator can be connected to up to four external temperature and humidity modules. The temperature measurement range at the sensors by the thermo hygrometer is 32.0 ... 122.0 °F and the humidity measuring range is 0.0 ... 99.9% RH. The power supply itself is effected in the thermo hygrometer via a power supply of 110 ... 220V AC. The integrated sensor can supply the connected sensors in the thermo hygrometer 12 or 24V DC supply.

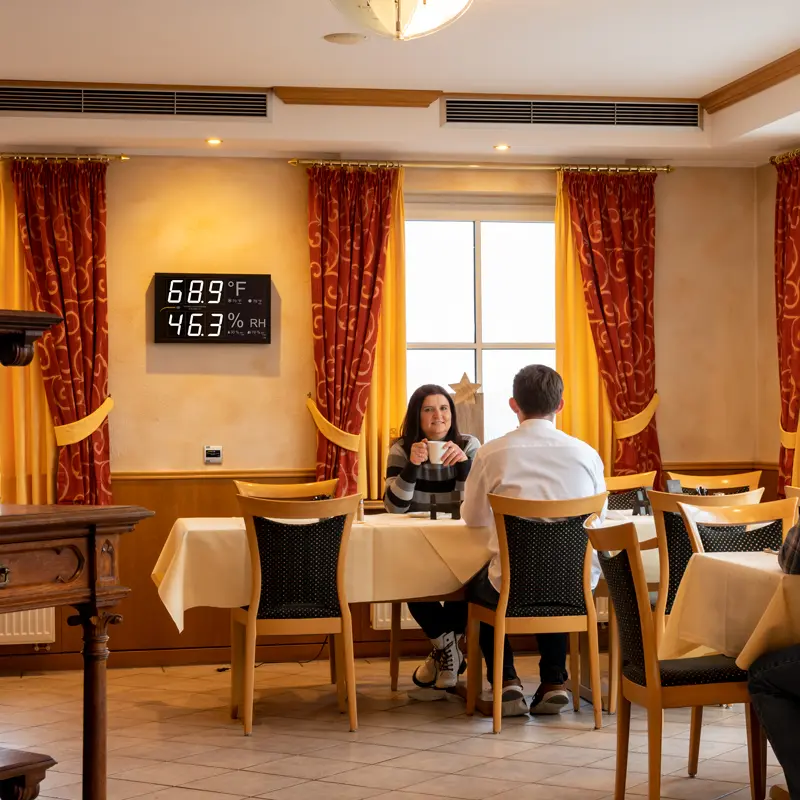

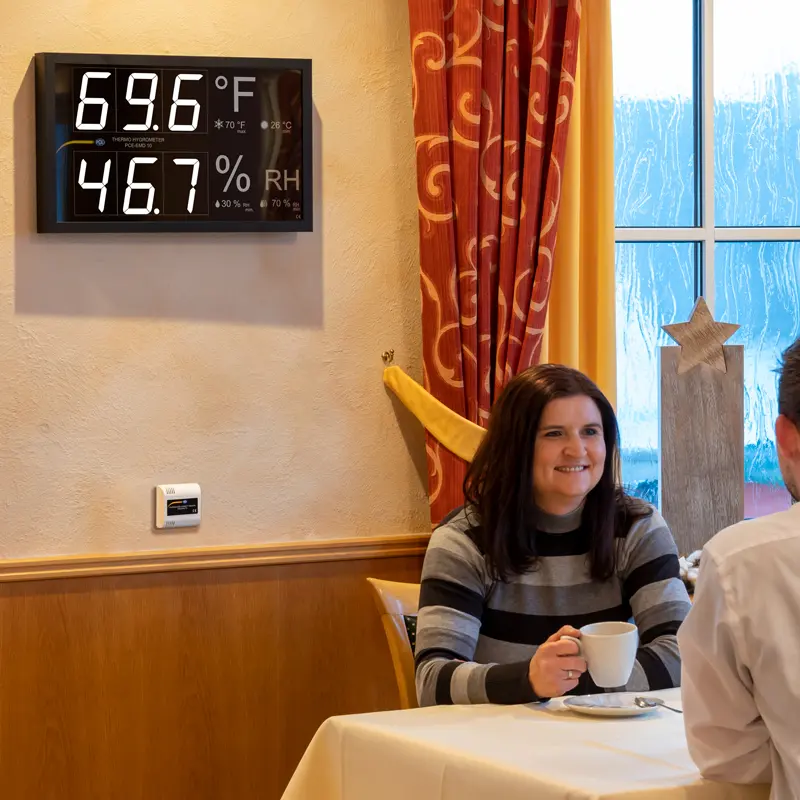

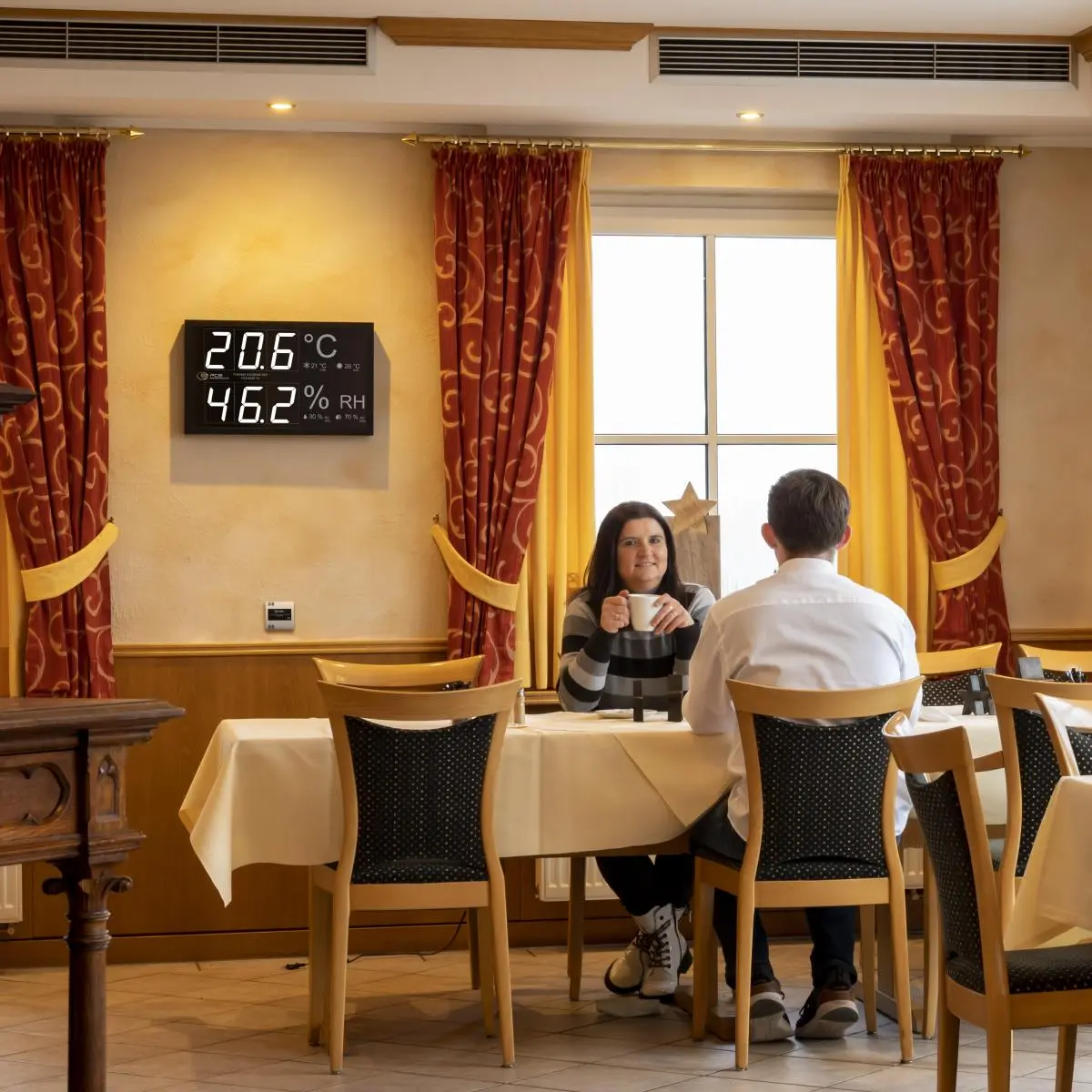

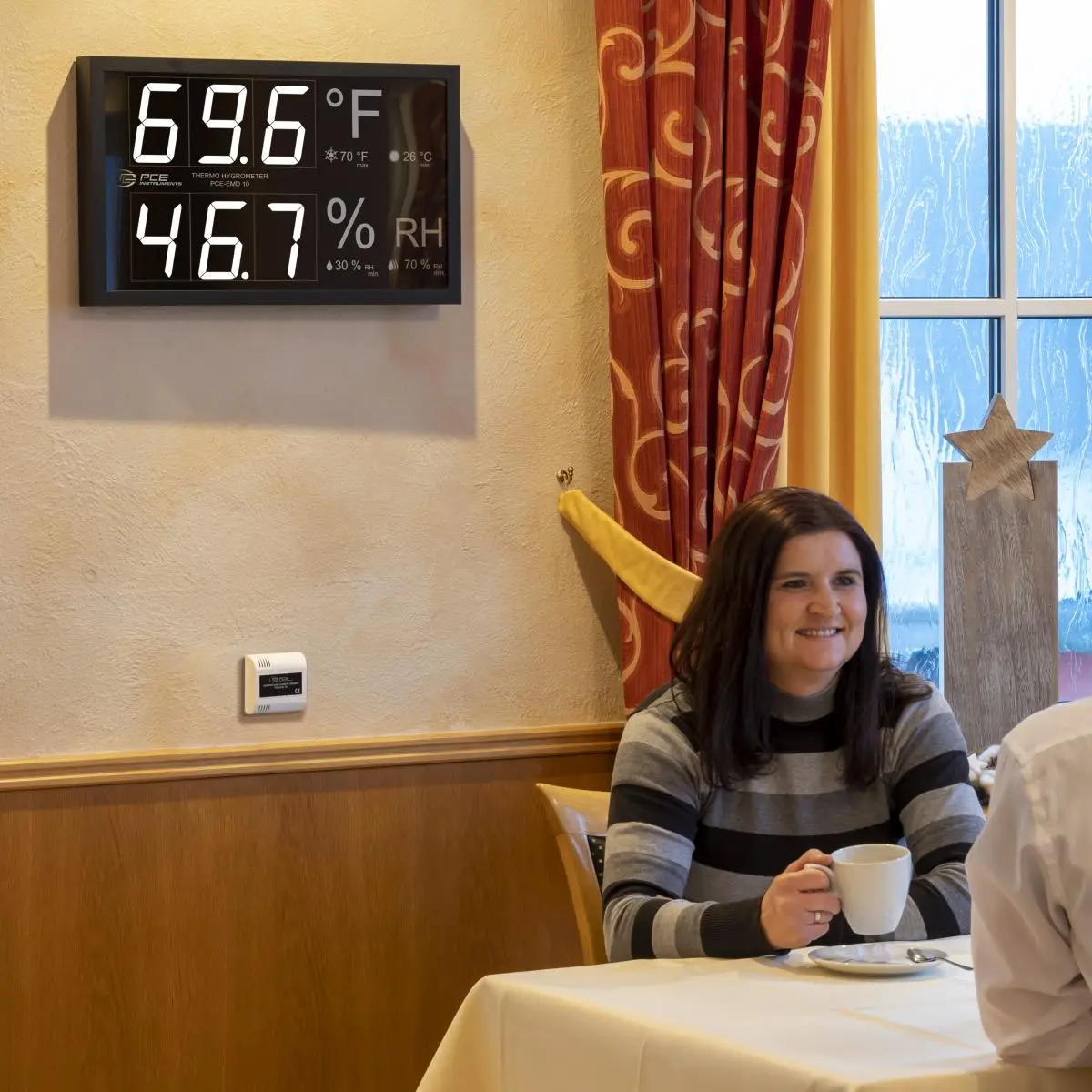

As soon as the sensors are connected, they are automatically recognized by the temperature indicator. The communication between the sensor modules and the thermo hygrometer takes place via an analog 4… 20-mA signal. If several sensors are connected, the average reading of all sensors is displayed on the thermo hygrometer. The thermo hygrometer is used, for example, in event halls, restaurants or in public buildings to monitor ambient conditions.

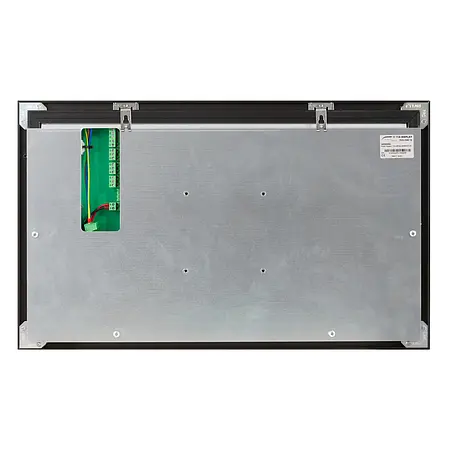

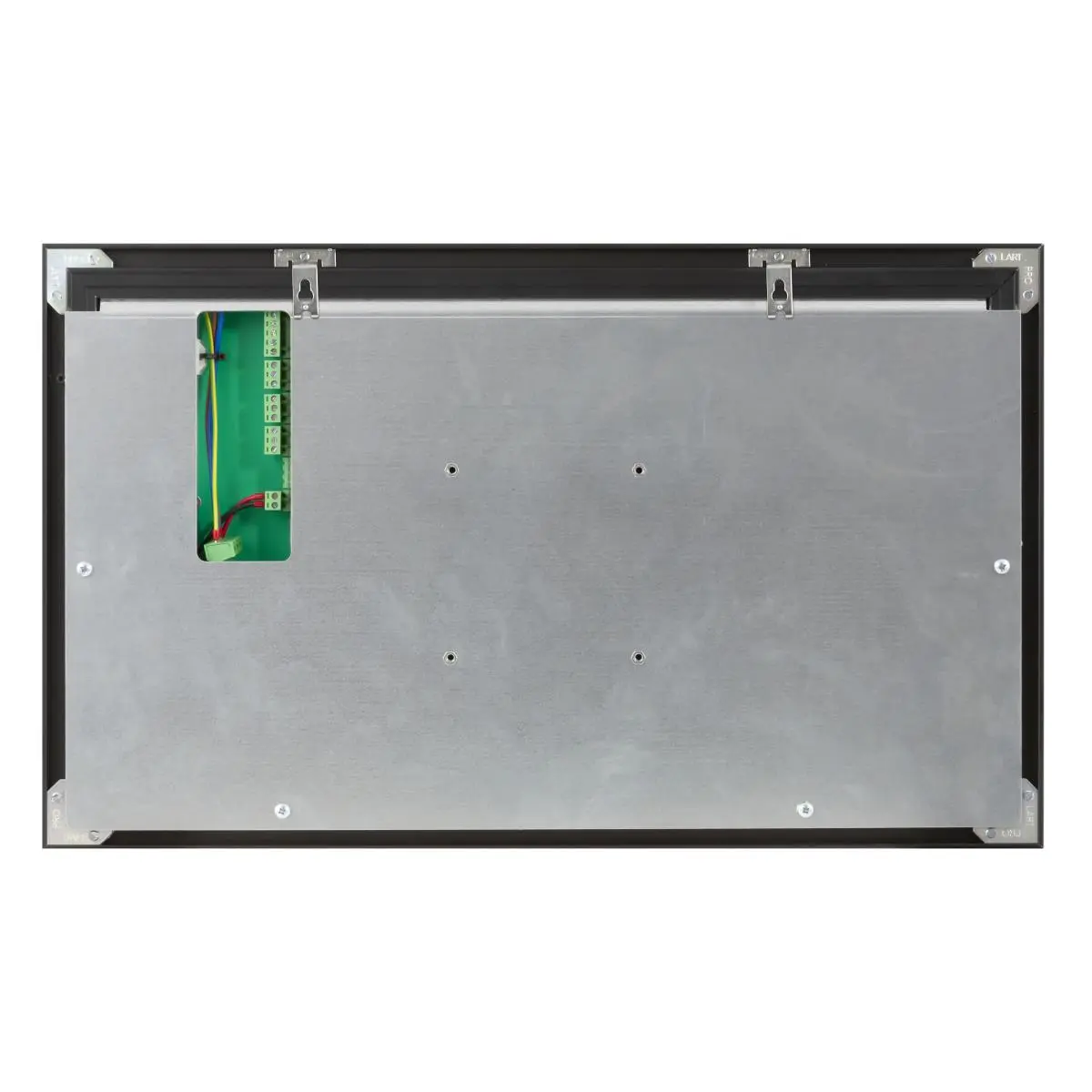

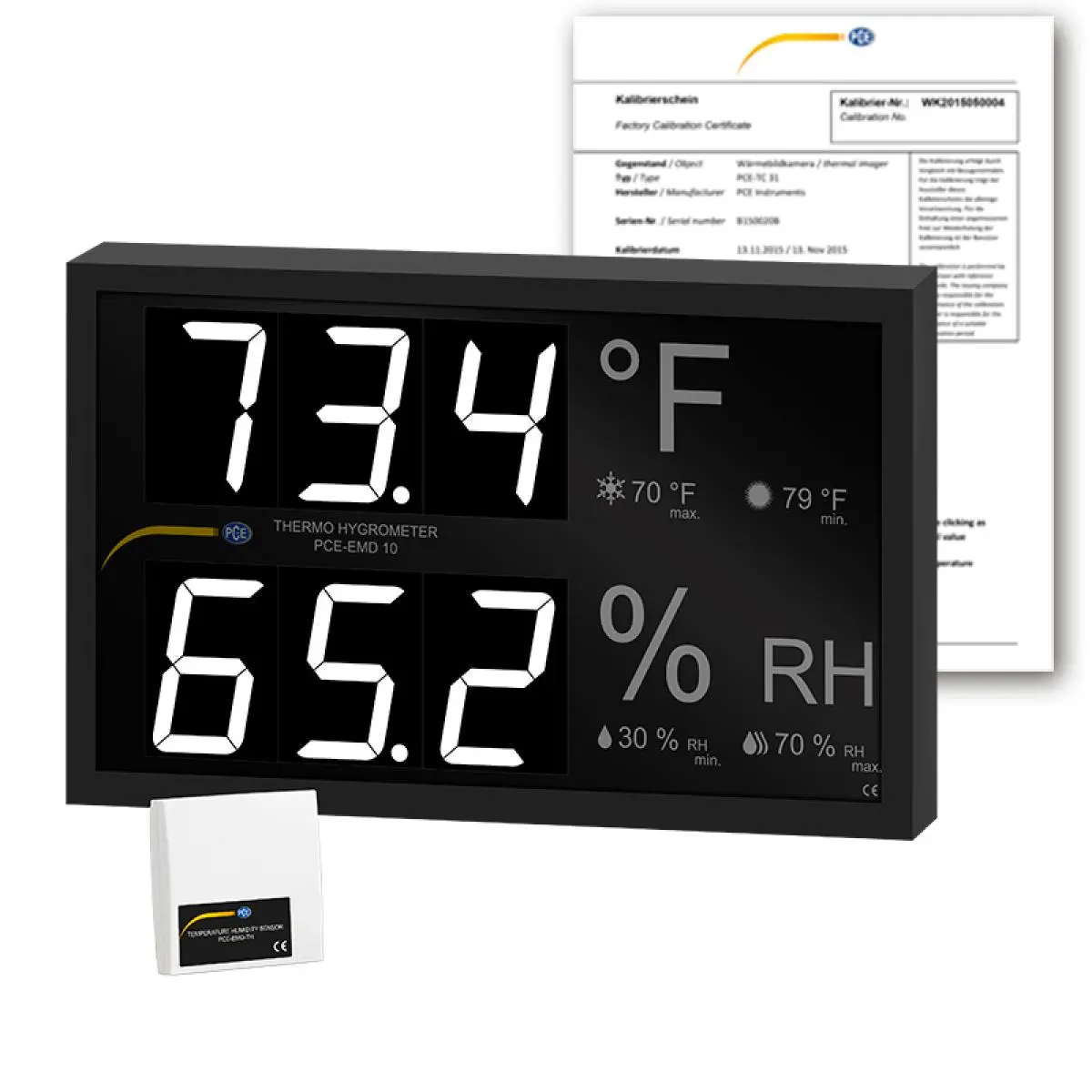

Both the temperature indicator and the sensor module are mounted on a wall. If necessary, the thermo hygrometer can be mounted on a monitor bracket with the mounting dimensions 75 x 75 mm. This allows the thermo hygrometer to be ideally aligned. The thermo hygrometer can optionally be equipped with an ISO calibration certificate.

Highlights

- Digit height of 100 mm (3.9")
- Measuring ranges: 32.0 ... 122.0 °F
- Wall mounting
- Connection of up to four external sensors
- Analog 4 ... 20-mA input signal
- Incl. ISO calibration certificate

Specification

Measuring range temperature 32.0 … 122.0 °F
Resolution 0.1 °F
Accuracy ±0.9 °F

Measuring range humidity 0.0 … 99.9 % RH
Resolution 0.1 % RH
Accuracy ±3 % RH

Further specifications
Response time <15 seconds at a wind speed of <1 m/s
Display interval 1 Hz
Number of usable sensors 4
Digit height 100 mm / 3.9"
Digit colour white
Sensor supply voltage 12 and 24 V DC
Maximum sensor supply current 100 mA
Impedance current input <200 Ω
Housing material black painted aluminium housing
Screen protection anti-reflective methacrylate
Housing material sensor ABS
Protection class display IP20
Protection class sensor IP30
Power supply display 110 ... 220 V AC 50 / 60 Hz
Maximum power consumption 18 W
Mounting display wall mounting, monitor stand (75 x 75 mm / 2.95 x 2.95")
Mounting sensor wall mounting

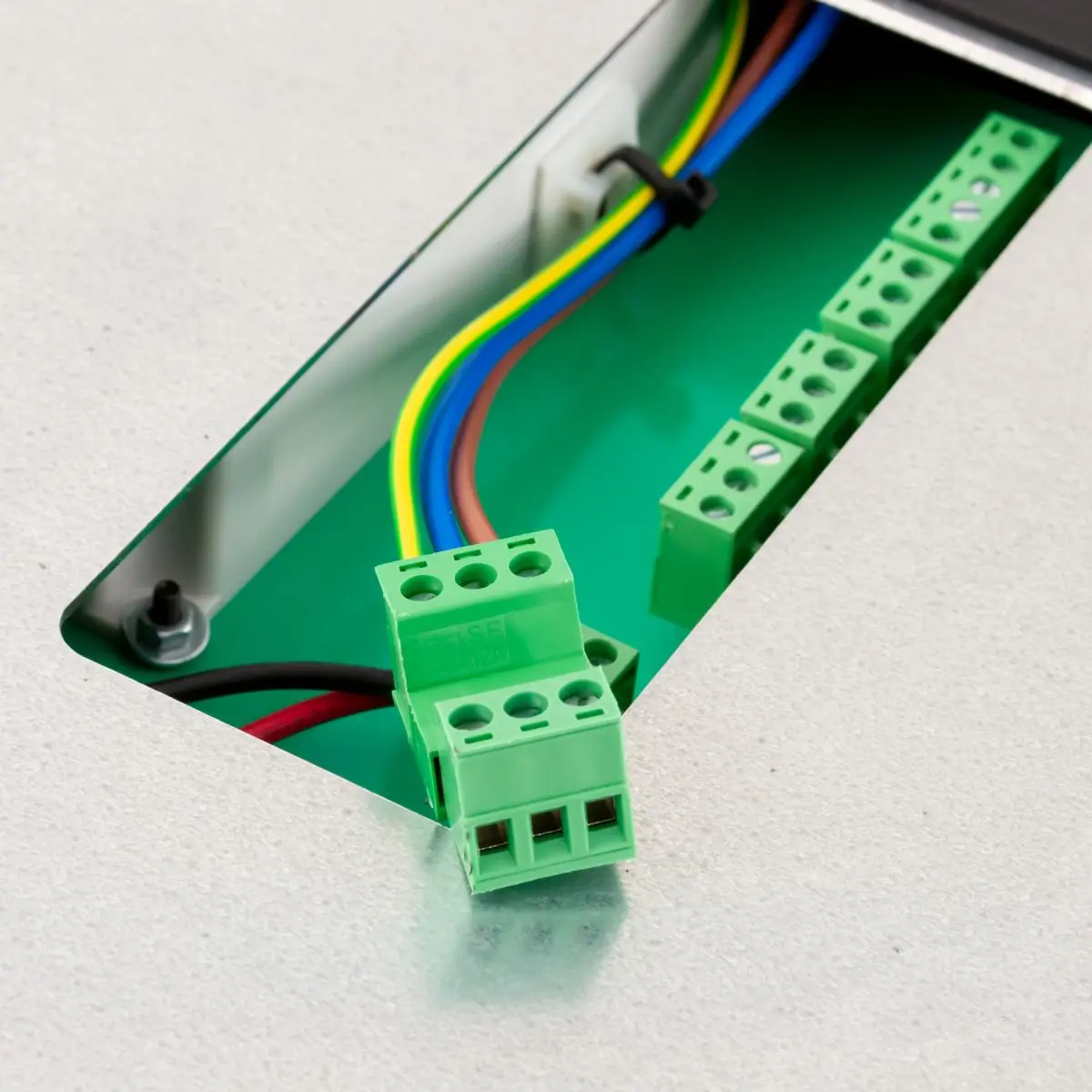

Terminal strip power supply cable cross-section 0.5 … 2.5 mm² (AWG 14) rigid cable
0.5 … 1.5 mm² (AWG 15) flexible cable
Terminal strip sensor connection cable cross-section   0.14 … 0.15 mm² (AWG 18) rigid cable
0.15 … 1 mm² (AWG16) flexible cable
Terminal strip torque 1.2 Nm
Terminal strip screw length <12 mm / 0.47"
Dimensions display 535 x 327 x 53 mm / 21.0 x 12.8 x 2.0"
Dimensions sensor 80 x 80 x 35 mm / 3.1 x 3.1 x 1.3"
Operating conditions -10 … 60 ºC, 5 … 95 % RH, non-condensing
Storage conditions -20 … 70 ºC, 5 … 95 % RH, non-condensing
Weight display 4579 g / 161.5 oz
Weight sensor 66 g / 2.3 oz

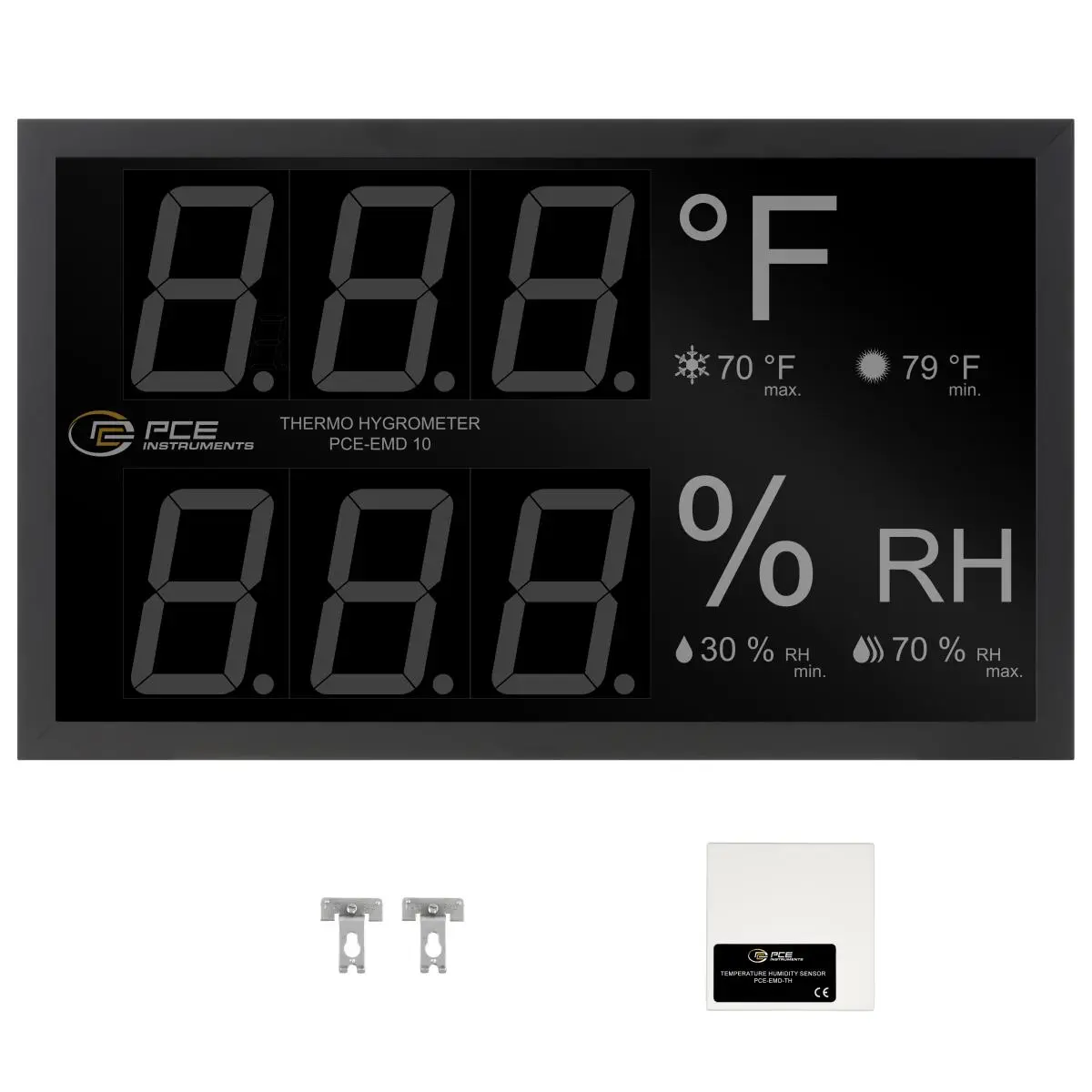

Delivery Scope

1 x Temperature Indicator PCE-EMD 10
2 x Wall mounting brackets
1 x Sensor module PCE-EMD-TH
1 x Instruction manual
1 x ISO calibration certificate
