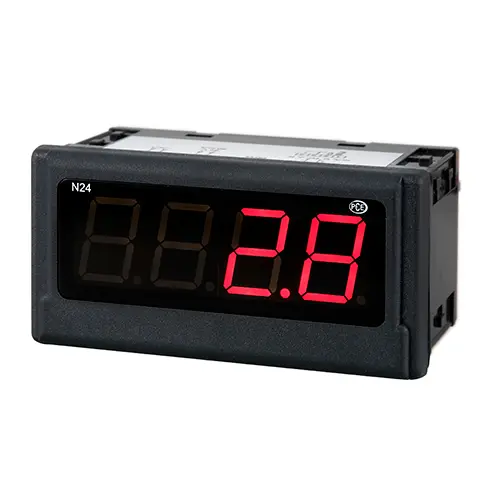

The temeprature indicator is used for the signal processing of 4...20 mA. The temeprature indicator offers a wide field of application due to the fact that its signal can be freely scaled. The temeprature indicator has a 5-digit LED display to allow the user to directly read current measured values. The power supply of the optional sensor of 24 V enables a direct connection to two-thread sensors or transducers to simplify the use of the temeprature indicator.

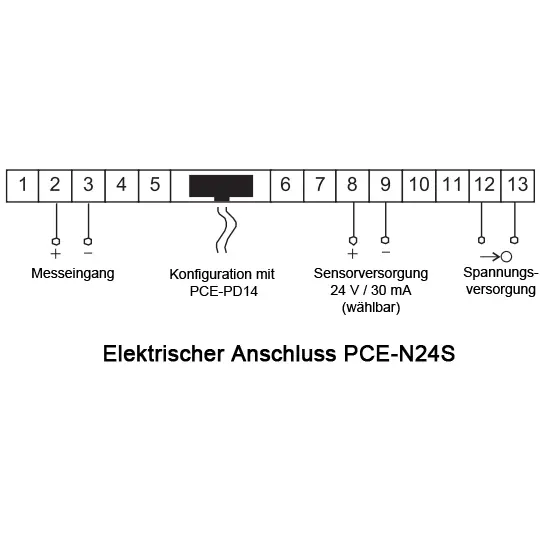

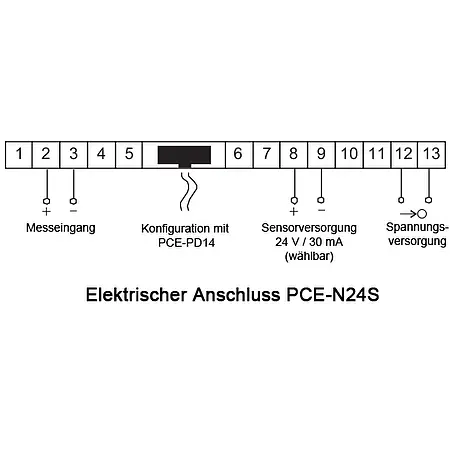

The three temeprature indicator models have different power supply. The temeprature indicator can be powered by 230 V, 85 ... 253 V or 20 ... 40 V. The setting is carried out by the license free LPCon software. By means of the PCE-PD14 programming adapter both settings can be performed and measured values can be read on the temeprature indicator. Settings can be recorded and recalled.
| Technical specifications | |
| Input | 3.6 mA ... 4 mA ... 20 mA ... 22 mA |
| Accuracy | ± (0.2 % FS + 1 digits) |
| Internal impedance | 10 Ω ± 1 % |
| Scale | 2 points |
| Display | 4 digits and 7 segments LED display, height: 20 mm |
| Range | -19,999 ... 99,999 |
| Sensor
power supply (only PCE-N24S-2 and -3) | 24 V DC, max. 30 mA |
| Environmental temperature |
Operation: -10 ... 55 ºC
Storage: -25 ... +85 ºC
|
| Dimensions | 96 x 48 x 64 mm |
| Dimensions for panel installation | 92 x 45 mm (to meet the DIN standard) |
| Power voltage | 230
V AC, 85 ... 253 V AC/DC 20 ... 40 V AC/DC |
| Protection | Front: IP 65 |
| Weight | approx. 200 g |
| Mounting | mounting clips with screws, connection by means of a terminal strip. |
| Housing | solid plastic |
