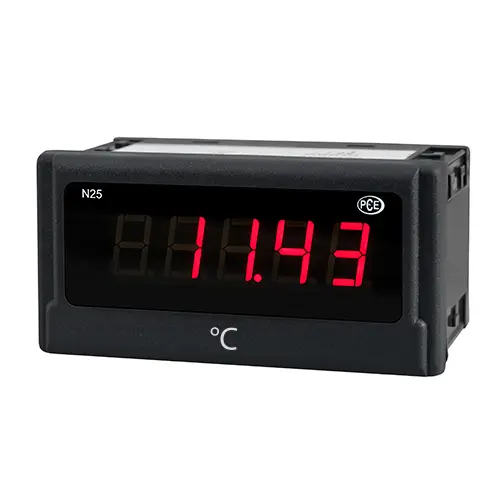

The digital temperature indicator is used for processing signals
coming from temperature sensors. Depending on your specific needs, the temperature indicator can be
ordered with different inputs for thermocouples (type J, K) or resistance thermometers (Pt100).
The input signal of the temperature indicator is freely scalable, which increases its application
possibilities.
The measured values are shown on the large 5-digit LED display. As an option, an integrated 24 V sensor power supply system is available for connecting 2-wire sensors or transducers. The power supply of the temperature indicator itself can also be selected, depending on your needs. To set up the temperature indicator, you can use the optional programming adaptor PCE-PD14 to connect it to a PC. There you can use the free PC software LPCon to adjust the settings.
| Input (selectable) | thermocouple type J: -50 ... +1200 °C thermocouple type K: -50 ... +1370 °C Pt100: -50 ... +150 °C Pt100: -50 ... +400 °C |
| Accuracy | ± (0,2 % FS + 1 digit) |
| Internal resistance | 10 Ohm ± 1 % |
| Scaling | 2 points |
| Display | 5-digits, 7 segments, LED, height: 14 mm |
| Display range | -19999 ... 99999 |
| Environmental conditions | During operation: -10 ... +55 °C During storage: -25 ... +85 °C |
| Power supply | 230 V AC 110 V AC 24 V AC 85...235 V AC/DC 20...40 V AC/DC |
| Dimensions | 96 x 48 x 64 mm |
| Panel cutout | 92 x 45 mm (according to DIN standard) |
| Protection class | Front: IP 65 |
| Weight | < 200 g |
| Mounting |
Mounting clips with screws, Connection via screw terminals |
| Housing | robust plastic housing |
