₹53,851.00

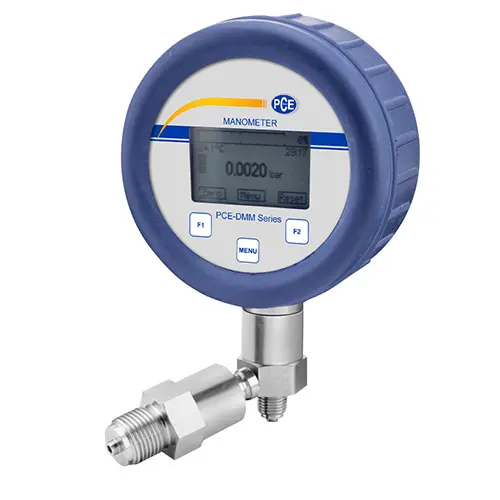

The panel meter is a precision instrument of the highest standards. The panel meter is specifically designed for process monitoring and calibration. This panel meter is distinguished by its modular concept. This means that the actual sensor and the display can be separated. The pressure transmitter can be selected on site for different measuring ranges and connected to the display without tools. This has the advantage that several gauges can be operated with only one display without the need for recalibration of the panel meter.
Outstanding measuring characteristics, intuitive operation, and its innovative modular sensor concept distinguish this panel meter. The battery-powered digital panel meter can be used not only for measuring the smallest pressures but also to calibrate transmitters. The integrated data logger can store location, pressure and temperature values in a linear and cyclic way. With the integrated interface and using the optional software, the data can be further processed.
| Nominal pressure relative inBar | 0.1 | 0.16 | 0.25 | 0.40 | 0.60 | 1 | 1.6 | 2.5 | 4 | 6 | |
| Nominal pressure absolute inbar | 0.40 | 0.60 | 1 | 1.6 | 2.5 | 4 | 6 | ||||
| Overpressure in bar | 0.5 | 1 | 1 | 2 | 5 | 5 | 10 | 10 | 20 | 40 | |
| Burst pressure in bar | 1.5 | 1.5 | 1.5 | 3 | 7.9 | 7.5 | 15 | 15 | 25 | 50 | |
| Nominal pressure relative / absolute in bar | 10 | 16 | 25 | 40 | 60 | 100 | 160 | 250 | 400 | ||
| Overpressure in bar | 40 | 80 | 80 | 108 | 210 | 210 | 600 | 1050 | 1050 | ||
| Burst pressure in bar | 50 | 120 | 120 | 210 | 420 | 420 | 1000 | 1250 | 1250 | ||
| Negative pressure | -1 ... 0 bar; Overload: 5 bar; Burst pressure: 7.5 bar | ||||||||||
| Vacuum resistance | P ≥ 1 bar: unlimited | ||||||||||
General Specifications | |||||||||||
| Accuracy | ≥ 0.4 Bar: ≤ ± 0.05 % FSO < 0.4 Bar: ≤ ± 0.125 % FSO | ||||||||||
| Measuring rate | 1/s or 2/s (adjustable) | ||||||||||
| Long term stability | < ±0.1 % FSO | ||||||||||
| Media | Gas | ||||||||||
| Temperature ranges | Fluid: -10 ... 55°C / 14 ... 131°F Operating: -10 ... 55°C / 14 ... 131°F Storage: -20 ... 70°C / -4 ... 158°F | ||||||||||
| Pressure port / housing | Stainless steel 1.4404 | ||||||||||
| Seal | FKM | ||||||||||
| Diaphragm | Stainless steel 4.4435 | ||||||||||
| Parts exposed to liquid | Pressure port, seals, diaphragm | ||||||||||
| Display | Graphic LCD Digit height 5.5 mm (gauge) Reading: max. 7 points, depending on the pressure range Temperature display, time, 100-segment bar graph, Adjustable backlighting | ||||||||||
| Memory | Storage of pressure units and sensor temperature (min, hrs., daily for a set time)max. 8,500 values modes: cyclical, linear measurement interval adjustable | ||||||||||
| Power supply | 3 x 1.5V Duracell Plus battery, AA | ||||||||||
| Battery life | 1.5 years standby | ||||||||||
| Protection | IP67 | ||||||||||
| Weight | ca. 680 g / 1.5 lbs | ||||||||||
