Sound Sensor PCE-SLT-TRM

Order no.: PCE-SLT-TRM

GTIN (EAN): 4250348713230

Accessory

ISO Calibration Certificate for Noise Meter CAL-SL

₹18,436.00

Class 2 Acoustic Calibrator PCE-SC 43

₹21,115.00

Description

The sound sensor is a class II (type 2) sound level, sound pressure level (SPL), decibel (dB) or noise meter with audible or visual alarm output capability. The sound sensor is used for long-term, continuous monitoring of occupational noise exposure limits in industrial environments such as foundries, factories and manufacturing production floors. The measuring device consists of a wall-mountable acoustic sensor on a 1.5 m / 4.92' long cable and a transmitter.

Highlights

- Measuring range: 30 ... 130 dB in 3 ranges
- Resolution: 0.1 dB
- Accuracy: ± 1.5 dB
- IP 54 ingress protection rating on transmitter offers limited protection against dust ingress (no harmful deposit) and protection against splashed water from any direction

Specification

Sensor
Measuring range	30 ... 130 dB in 3 ranges: I. 30 ... 80 dB(A) II. 50 ... 100 dB(A) III. 80 ... 130 dB(A)
Resolution	0.1 dB
Accuracy	±1.5 dB
Frequency weighting	A
Power supply	Via transmitter
Cable length (sensor to transmitter)	1.5 m / 4.92'
Operating conditions	0 ... +50 °C / +32 ... +122 °F, max. 85 % RH
Microphone	1/2" precision electret
Standard	IEC 61 672 (Class II)

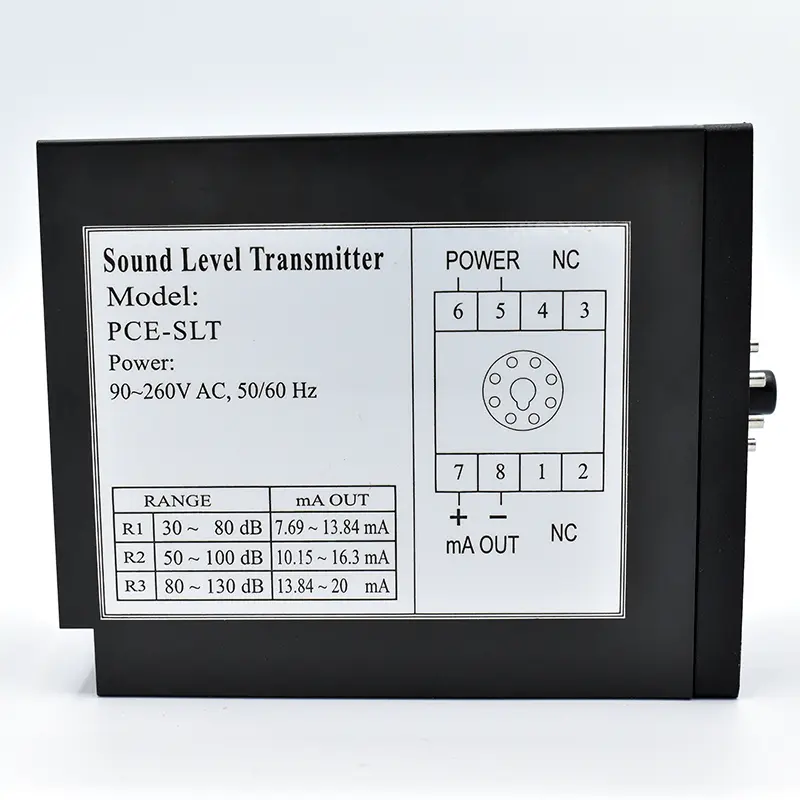

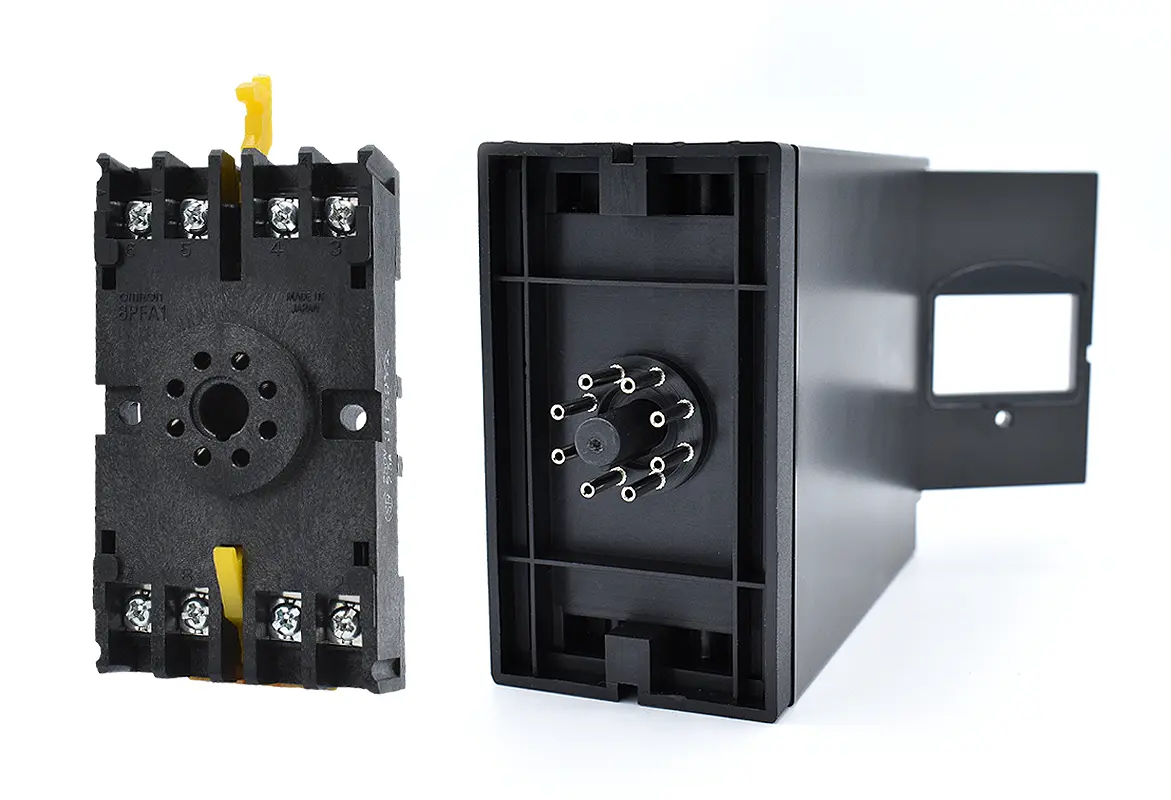

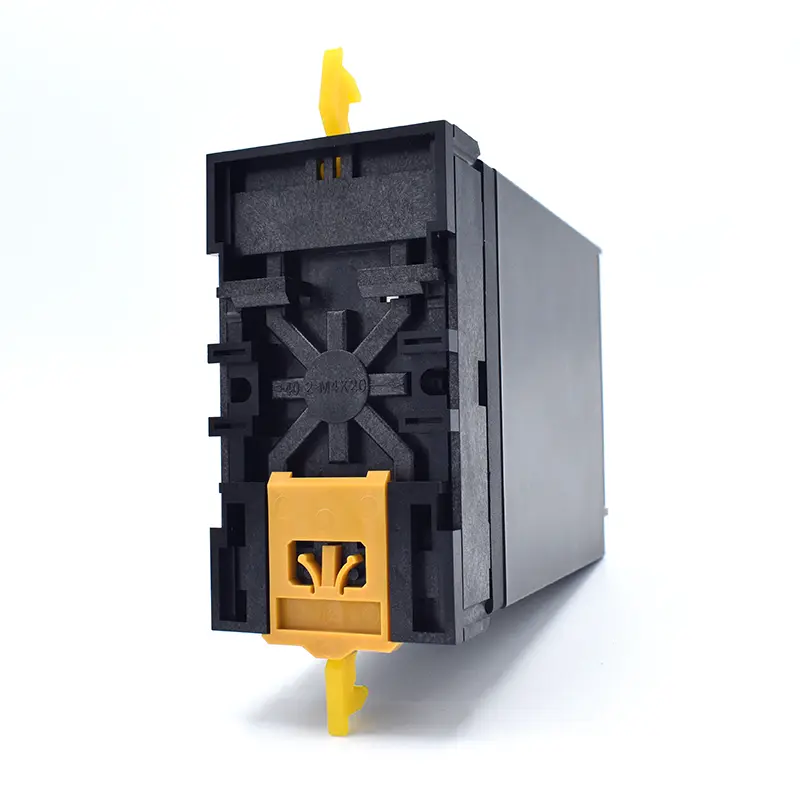

Transmitter
Housing	ABS plastic
Power supply	90 ... 260 AC V / 50 or 60 Hz

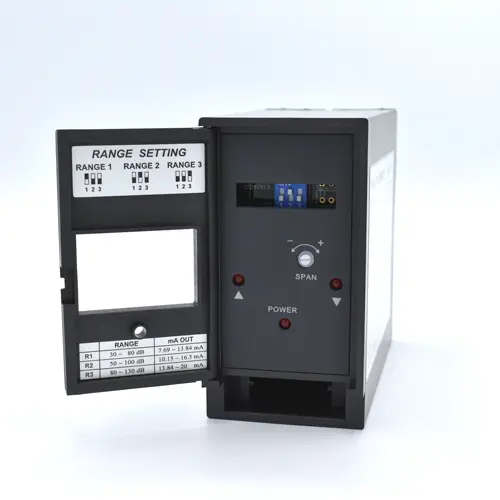

Calibration	Adjustable by set screw
Output	4 ... 20 mA
Protection class	IP 54 ingress protection rating
Operating conditions	0 ... +50 °C / +32 ... +122 °F, max. 85 % RH

Delivery Scope

1 x Sound sensor PCE-SLT-TRM SPL (consisting of 1 x acoustic sensor on a 1.5 m / 4.92' long cable and a transmitter)
1 x wall-mounting bracket for sensor
1 x user manual

Downloads

Manual

Datasheet
