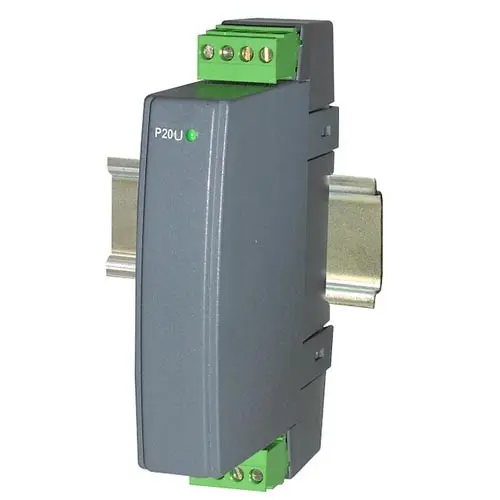

Transmitter PCE-P20H Direct Current

Order no.: PCE-P20H

GTIN (EAN):

Accessory

Programming adaptor PCE-PD14

₹10,401.00

Description

Transmitter PCE-P20H for direct current up to 5 A The PCE-P20H transducer measures DC currents up to ± 5 A DC and converts them into a standard signal. Depending on the version, the PCE-P20H transducer can measure 1 A or 5 A DC and outputs a 4 ... 20 mA or 0 ... 10 V standard signal. Depending on the model, the supply voltage of the transducers is either 85 ... 253 V AC / DC or 20 ... 40 V AC / DC. The installation is simple: the voltage transmitter can be easily attached to a 35 mm DIN rail. The standard signals output by the measuring transducer can then be processed with the aid of controllers or screen recorders.

Highlights

Measurement of direct current up to 5 A DC
Output: 0/4 ... 20 mA Standard signal
Various supply voltages
Compact DIN rail mounting
IP 50
Current transformer can be connected
Easy to operate

Specification

Technical specifications
Inputs (max)	± 1 A DC ± 5 A DC
Accuracy class	0.2% of the measuring range
Output	0/4 ... 20 mA 0 ... 10V
Dimensions	22.5 x 120 x 100 mm / 0.8 x 4.7 x 3.9 in
Assembly	DIN rail mounting 35 mm / 1.3 in
Protection class	IP 50
Supply voltage	85 ... 253 V AC / DC 20 ... 40 V AC / DC
Power consumption	4 VA
Environmental conditions	-20 ... +55 °C / -4 ... 131 °F / <95% rh
Installation category	Standard: II 400 V Type: III
Degree of pollution	2
Maximum cable cross section	1.5 mm²

Delivery Scope

1 x Current transmitter PCE-P20H

Note: The PCE-PD14 is required for setting (optional)
