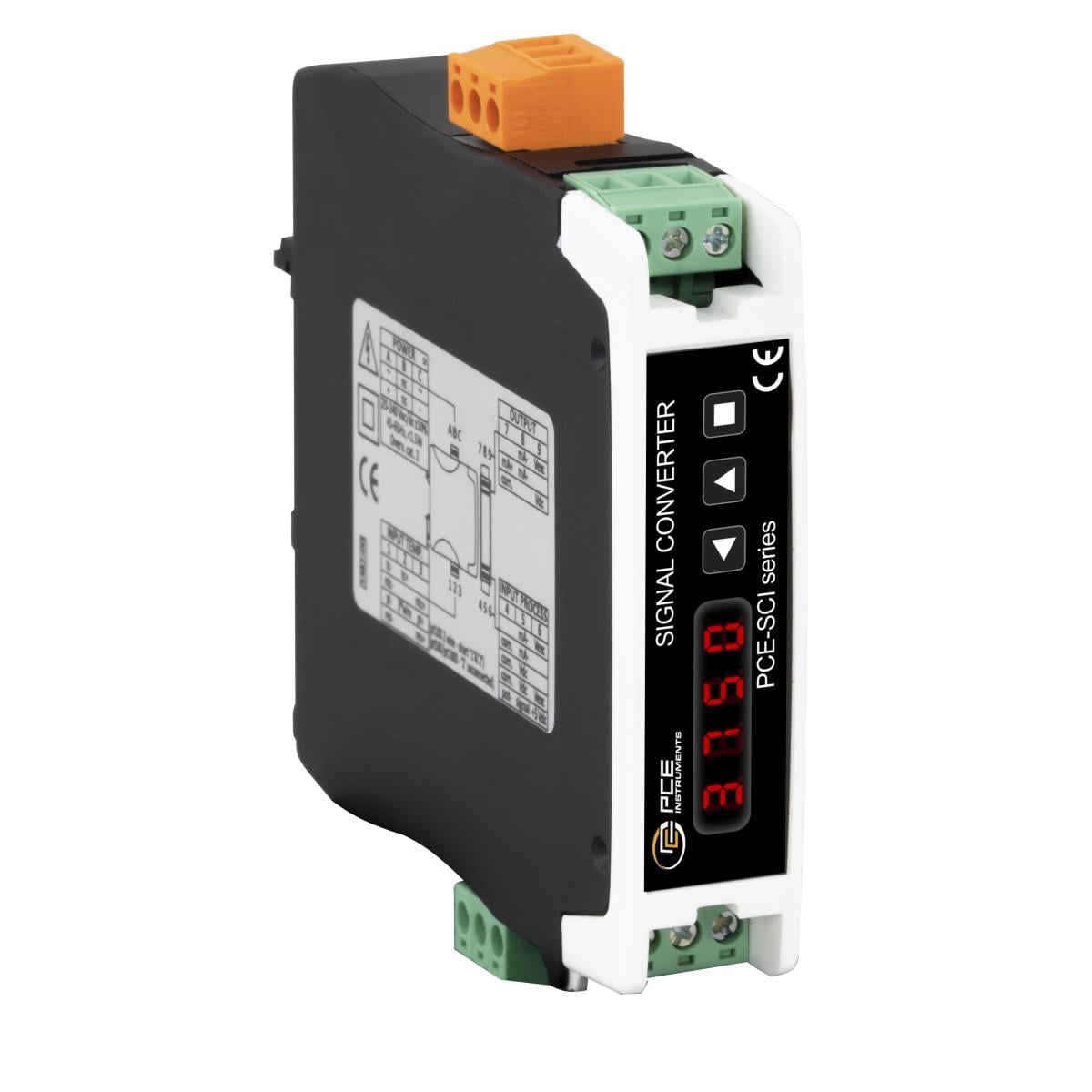

- Current Transducer

₹24,984.00

Price excl. VAT &. delivery

The current signal converter converts an analog input signal into a corresponding analog output signal. The input and output signals from the current signal converter are completely galvanically isolated.

Over 100 combinations pre-selected
Converts analogue input range
Completely galvanic isolation
Power supply 18 … 265V AC / DC

Current Measuring Transducer PCE-SCI-P

₹30,638.00

Price excl. VAT &. delivery

Current Measuring Transducer for process signals, temperatures, resistors and potentiometers. Offers a wide range of configuration options for converting signals. The output signal is selectable between 4 … 20 mA and 0 … 10 VDC is selectable.

31 input options
Process signals, temperature sensors, resistors
Many configuration options
Analogue outputs 4 … 20 mA / 0 … 10 V
Display and keypad for configuration
Hat rail mounting

Current Signal Transducer PCE-SCI-E

₹30,638.00

Price excl. VAT &. delivery

The current signal transducer has an adjustable measuring range of 0… 600 V AC/DC and can therefore measure a wide variety of voltages. For example, it is possible to connect the transmitter to the supply line in order to monitor the applied voltage.

Measuring range 0 … 600 V AC/DC
Active and passive output signal
Display and keypad for configuration
Frequency measurement
DIN rail mounting
Display

Current Measuring Transducer PCE-SCI-D

₹24,984.00

Price excl. VAT &. delivery

The configurable universal measuring transducer for electrical signals is a signal doubler and signal converter for process signals. A 4 … 20-mA and 0 … 10V DC signal can be applied to the input. The universal measuring transducer has 2 outputs, whereby output 1 can be set to 4 … 20-mA and output 2 to 4 … 20-mA or 0 … 10V DC. It also has quadruple isolation between power supply, input signal, output 1 and output 2.

Duplicates analog signals
4 … 20-mA and 0 … 10V
Quick configuration using 2 buttons
DIN rail mounting
Inputs and outputs galvanically isolated
Power supply 24 … 250V AC/DC

Current Measuring Transducer PCE-SCI-L

₹30,638.00

Price excl. VAT &. delivery

The current measuring transducer and millivolt signals offers a wide range of configuration options for converting signals. The output signal can be selected between 4 … 20 mA and 0 … 10 VDC can be selected. The current measuring transducer can be configured to measure load cells in the range 0 … 5 mV to 0 … 80 mV, also with bipolar ranges from ±5 mV to ±80 mV.

Inputs from 0 … 80 mV to ±80 mV
Analog outputs 4 … 20 mA and 0 … 10 V
Simple programming via keypad
Top-hat rail mounting
Power supply 18 … 265 V AC/DC
