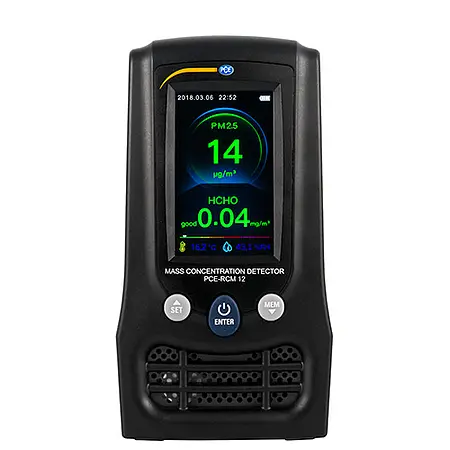

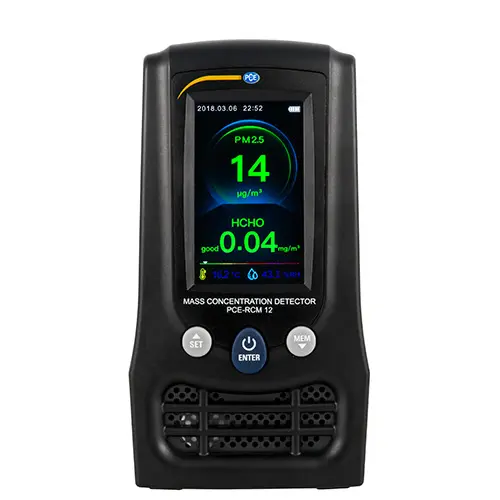

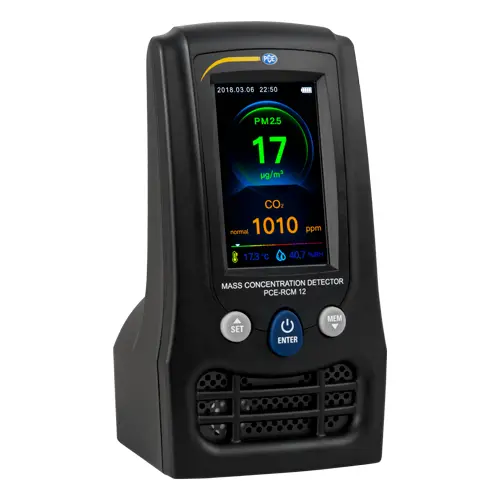

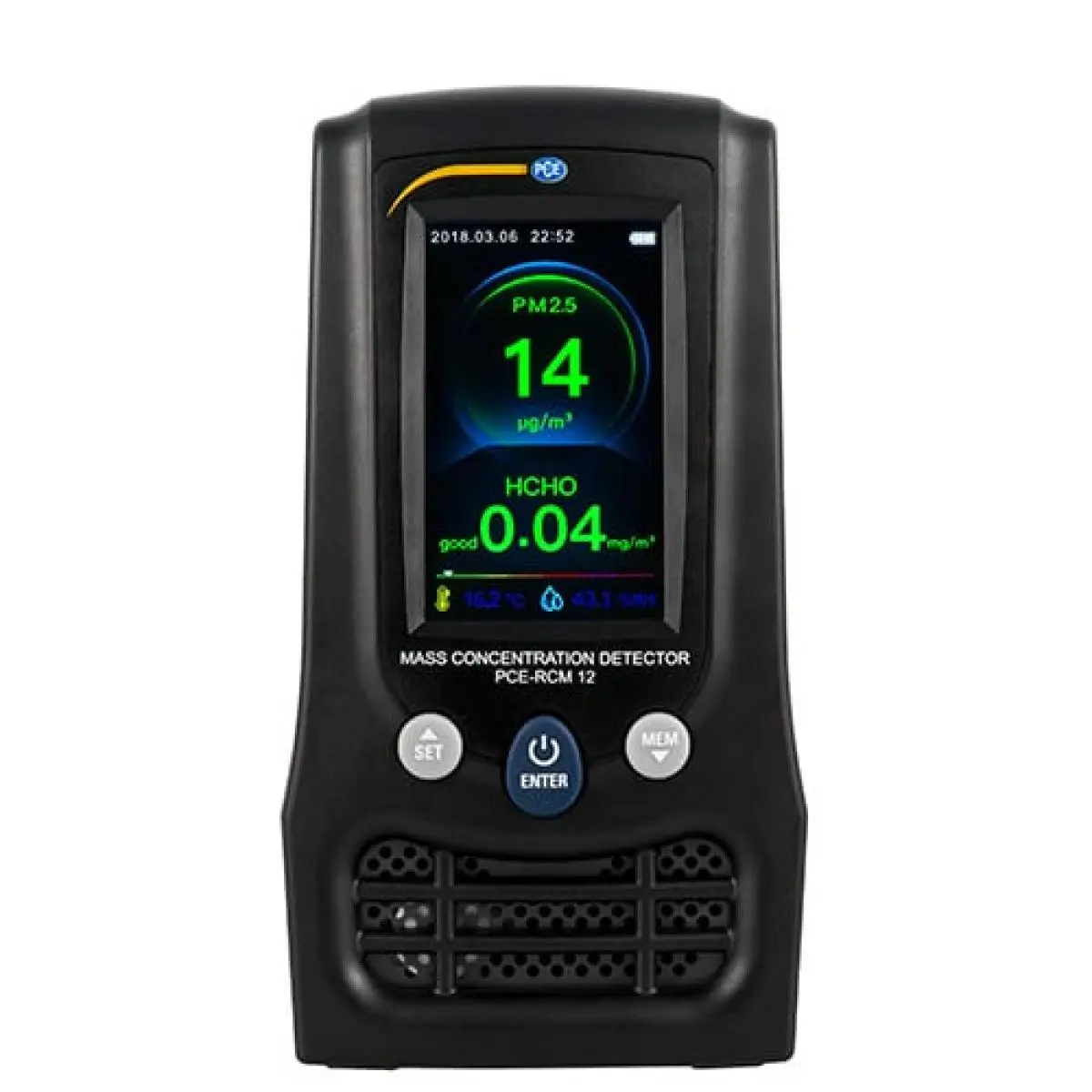

Dust Monitor PCE-RCM 12
Air quality monitor for indicative measurement of environmental conditions
/ Determination of CO2, HCHO, particulate matter (PM2.5 / PM10) / Temperature und relative humidity / 3" TFT LCD Display

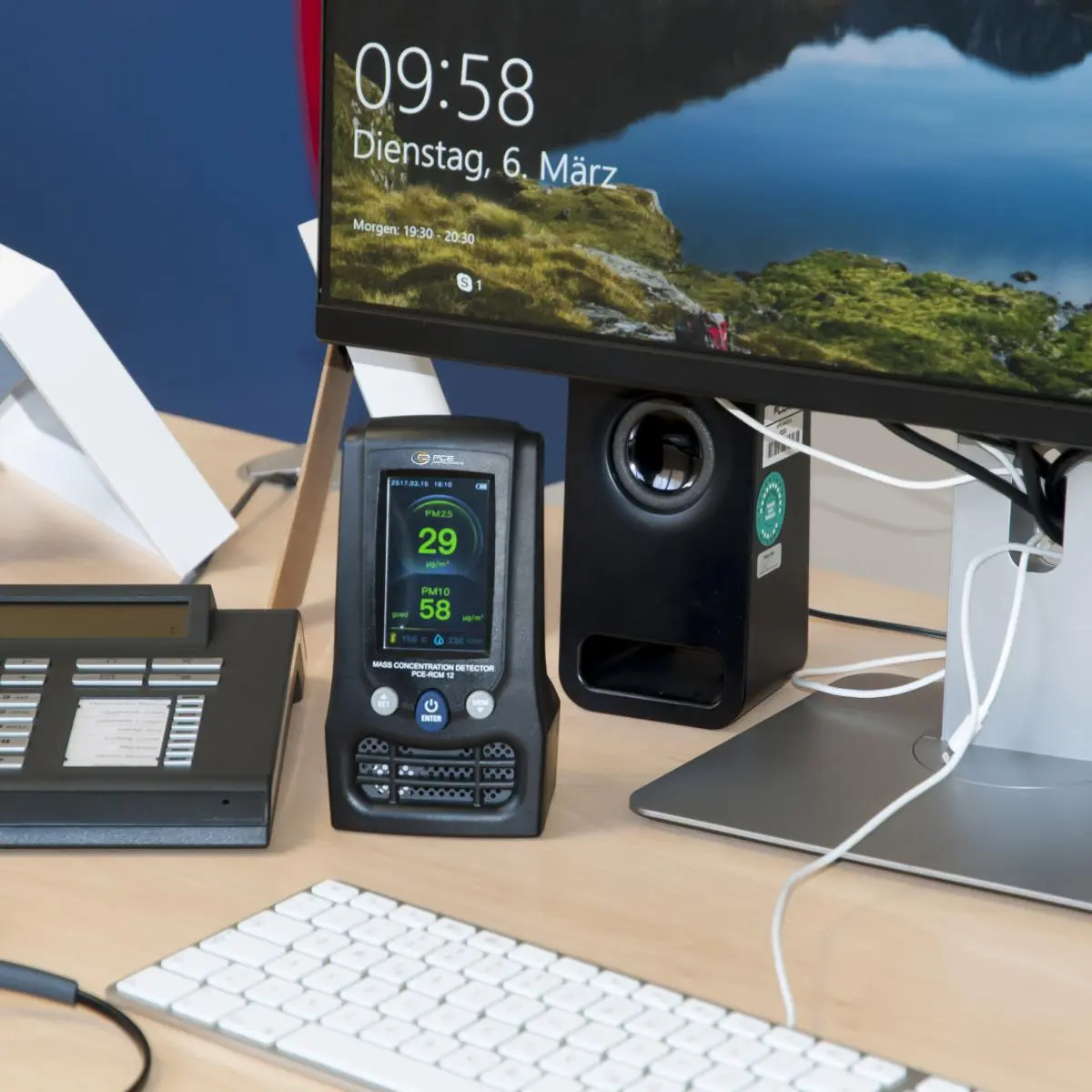

The dust monitor is used for indicative testing of environmental parameters. The dust monitor enables the measurement of CO2, fine dust, temperature and relative humidity. The bright display of the dust monitor provides information about these parameters. Environmental monitoring can be done continuously with the dust monitor for up to five hours without the device being connected to a power source.

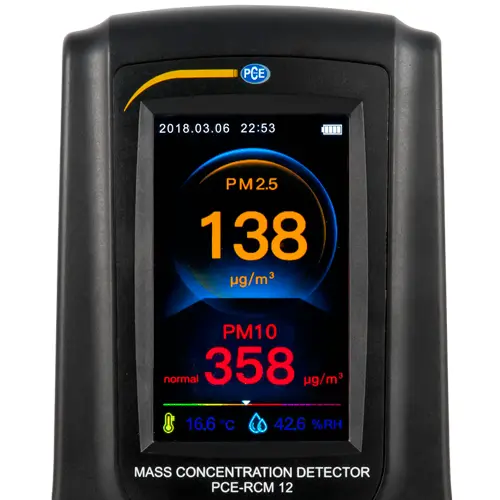

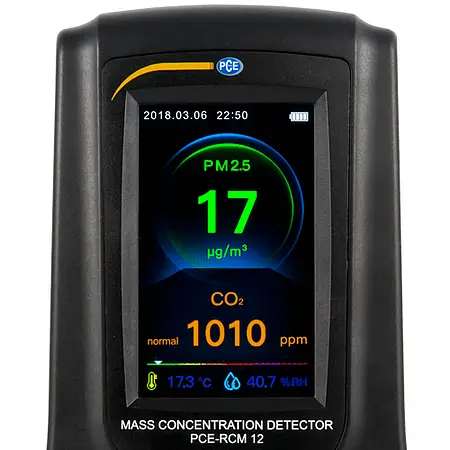

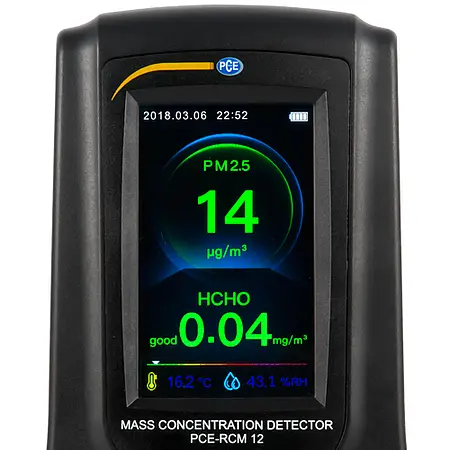

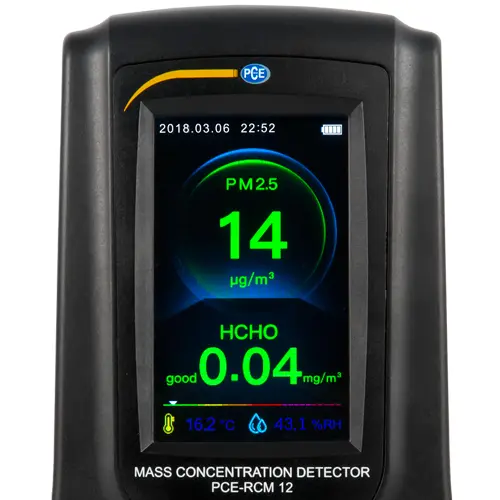

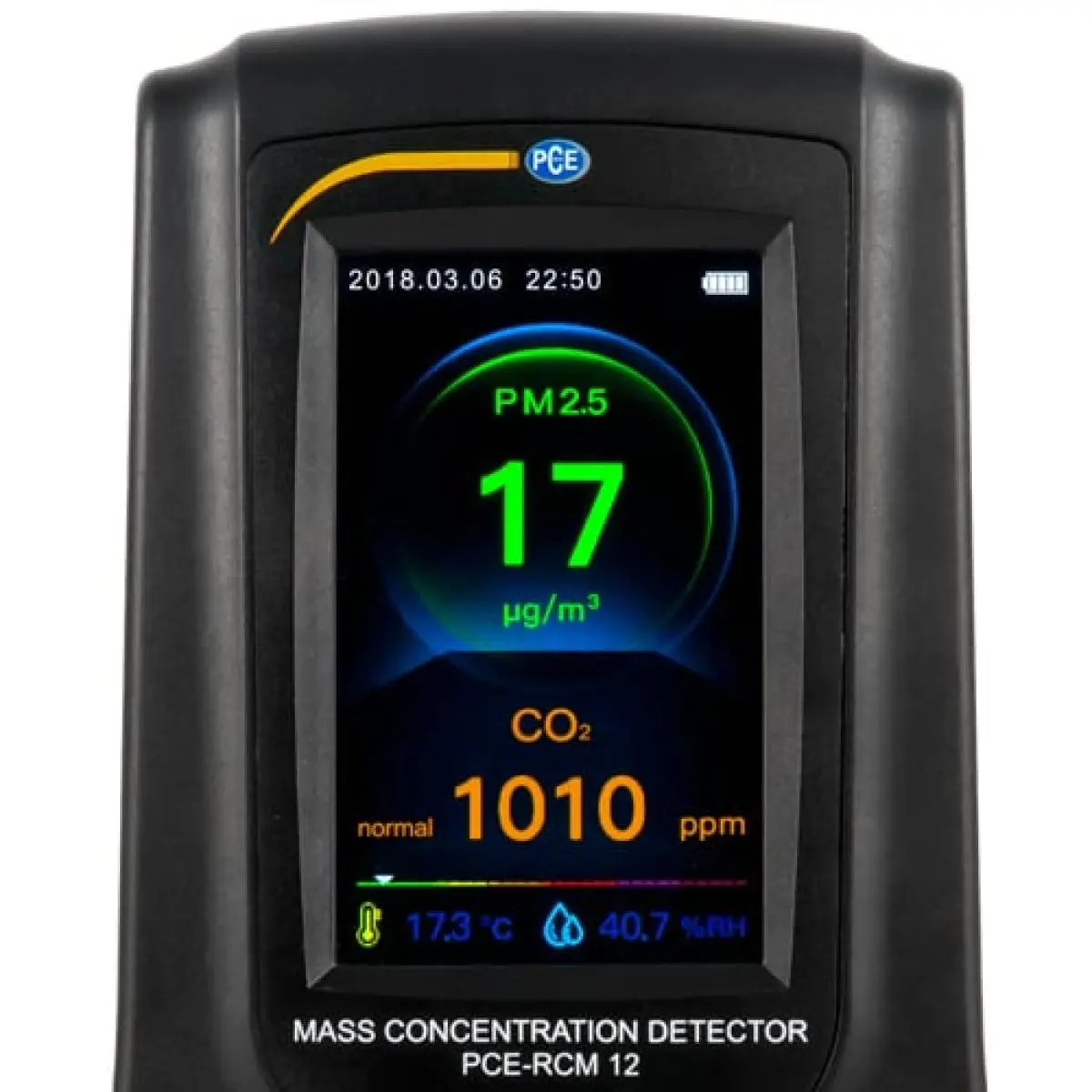

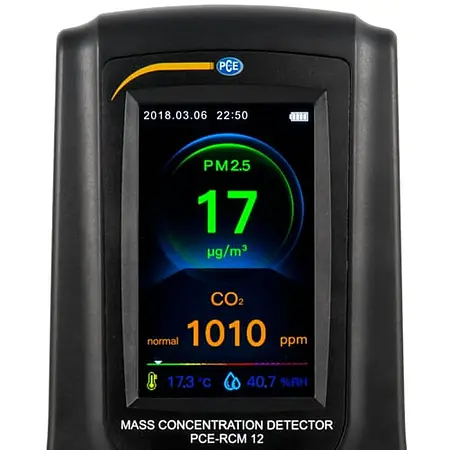

For permanent measurement, the dust monitor can be connected to AC power via a USB interface. The rechargeable battery will be recharged within two hours if the dust monitor is turned off. When measuring carbon dioxide, the meter has a wide measuring range from 0 to 9,999 ppm. The display of the concentrations is further facilitated by the use of a color rating scale, as this provides direct information about the air quality to the user.
| Measuring range fine dust | PM2.5 / PM10 |
| Measuring range particle measurement | 0 ... 2000 µg/m³ |
| Resolution particle measurement | 1 µg/m³ |
| Measuring range CO2 | 0 ... 9999 ppm |
| Accuracy CO2 | ±5% of measured value or ±75 ppm |
| Resolution CO2 | 1 ppm |
| Measuring range formaldehyde | 0.00 ... 5.00 mg/m³ |
| Accuracy formaldehyde | ±5% of measured value |
| Resolution formaldehyde | 0.01 mg/m³ |
| Measuring range humidity | 0 ... 100% r.H. |
| Accuracy humidity | ±3.5% r.H. (at 20 ... 80% r.H.) ± 5% r.H. (at 0 ... 20% r.H. / 80 ... 100% r.H) |
| Resolution humidity | 0.1% r.H.% |
| Measuring range temperature | -20 ... 70°C / -4 ... 158°F |
| Accuracy temperature | ±2°C / 3.6°F |
| Resolution temperature | 0.1°C / 0.18°F |
| Sound sensor | Wake up function to APO |
| Power supply | 2400-mAh, rechargeable battery |
| Battery life | Continuous measurement for up to 5 hours |
| Charging | Via USB 5V / 1 A |
| Charging time | 2 hours (when switched off) |
| Automatic sleep mode | Adjustable if necessary |
| Display | 3" TFT LCD Display, 240 x 400 pixel |
| Data storage | 5000 measurement groups |
| Operating temperature | 0 ... 50°C / 32 ... 122°F |
| Storage temperature | -10 ... 60°C / 14 ... 140°F |
| Dimensions | 85 x 75 x 155 mm / 3.3 x 2.9 x 6.1 in |
| Weight | 360 g / < 1 lb |
