Magnetometer PCE-EMF 30

Order no.: PCE-EMF 30
GTIN (EAN): 4250348732163
₹10,252.00
₹12,097.36
price ex. (VAT / delivery)
:
4250348732163
PCE-EMF 30
Delivery time: 1-2 working days

Description

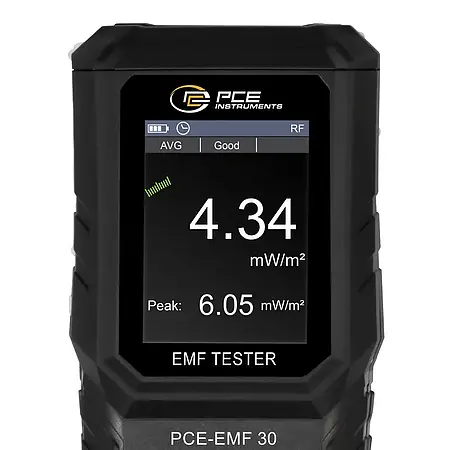

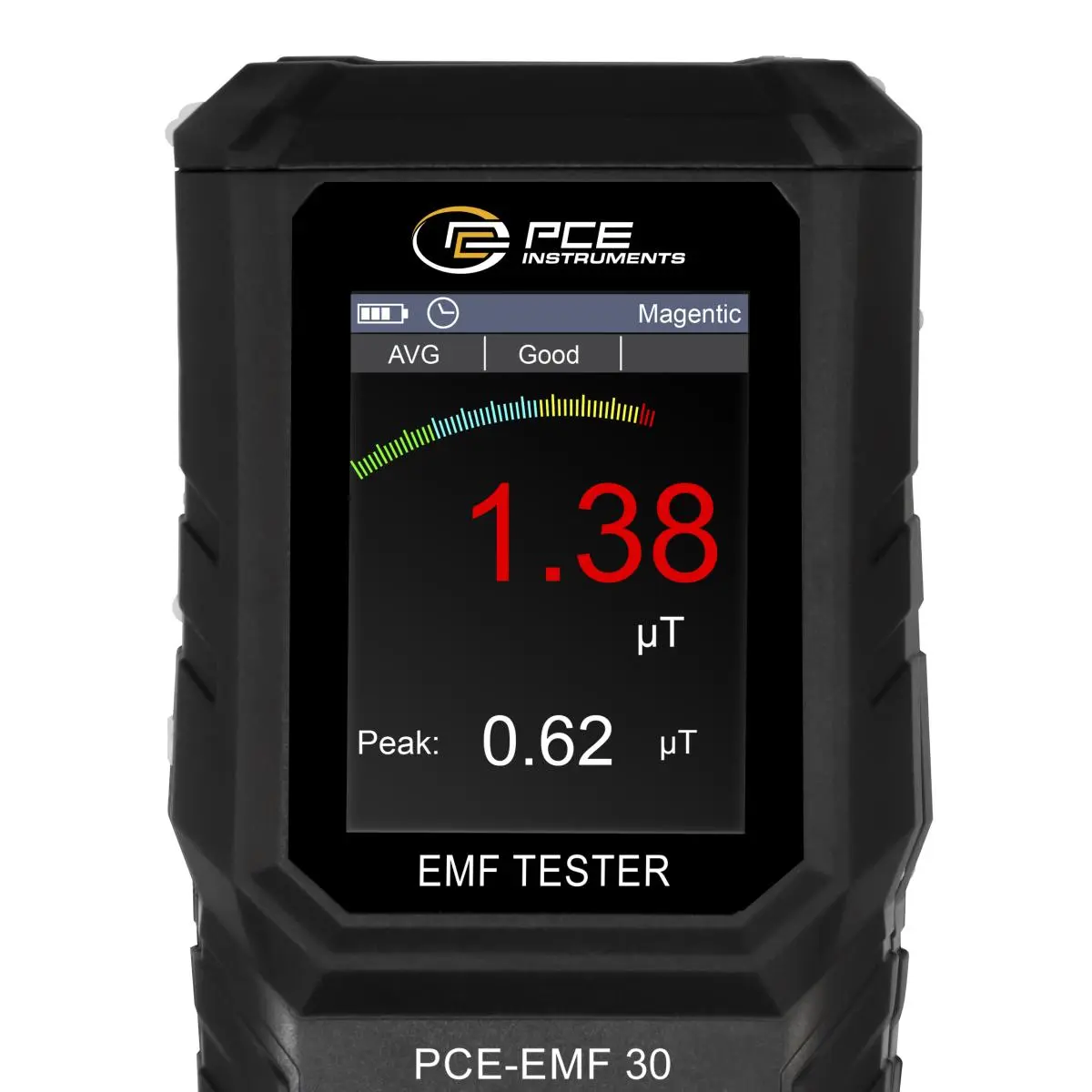

Magnetometer with LCD display
 Measuring range up to 1800 V/m / 3-axis measurement / for mobile and fast use

With this magnetometer it is possible to measure magnetic fields up to 999.9 mG directly. At the same time, the magnetometer displays the strength of the magnetic field numerically using an X, Y and Z axis. The magnetometer is a multifunctional 3-in-1 meter for electric fields (EF), magnetic fields (MF) and radio frequency fields (RF). The default mode is EF mode when the magnetometer is turned on. The measured value can be affected by the influence of the electric field of the environment.

The magnetometer is equipped with a built-in electromagnetic radiation sensor that displays the radiation value on the LCD screen. You can take appropriate precaution or take effective measures against the electromagnetic radiation according to the test result.

Highlights

- LCD screen
- Average/Peak mode
- Auto-Off
- EF/MF/RF test display
- Graphic display

Specification

Radiation mW/m²
Measuring range0,01 ... 1.800 mW/m²
Resolution0,01 mW/m²

Radiation V/m
Measuring range1 ... 1.999 V/m
Resolution1 V/m

Radiation mG
Measuring range0,1 ... 999,9 mG
Resolution0,1 mG

Radiation µT
Measuring range0,01 ... 99,99 µT
Resolution0,01 µT

General technical data
Automatic switch off15 min
Battery capacity 1.000 mAh
Battery voltage3,7 V
Battery typeLithium-ion battery
Menu languageEnglish
Protection classIP20
Weight 150 g
Weight with scope of delivery169 g
Weight of device with scope of
delivery and outer packaging
260 g
Ambient dimensions 147 x 70 x 31 mm (L x W x H)
Ambient dimensions incl. outer packaging    175 x 145 x 40 mm  (L x W x H)
Operating conditions 0 – 50 °C
Operating conditions< 80%
Storage conditions0 – 50 °C
Storage conditions< 80%

Delivery Scope

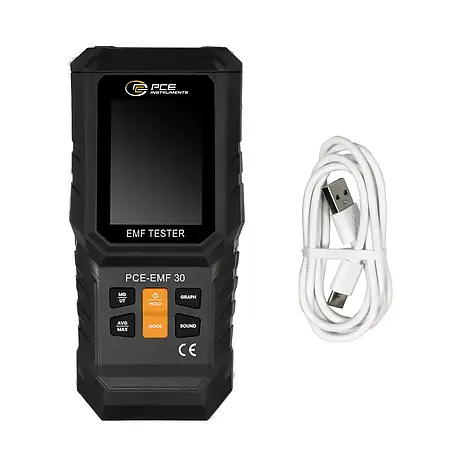

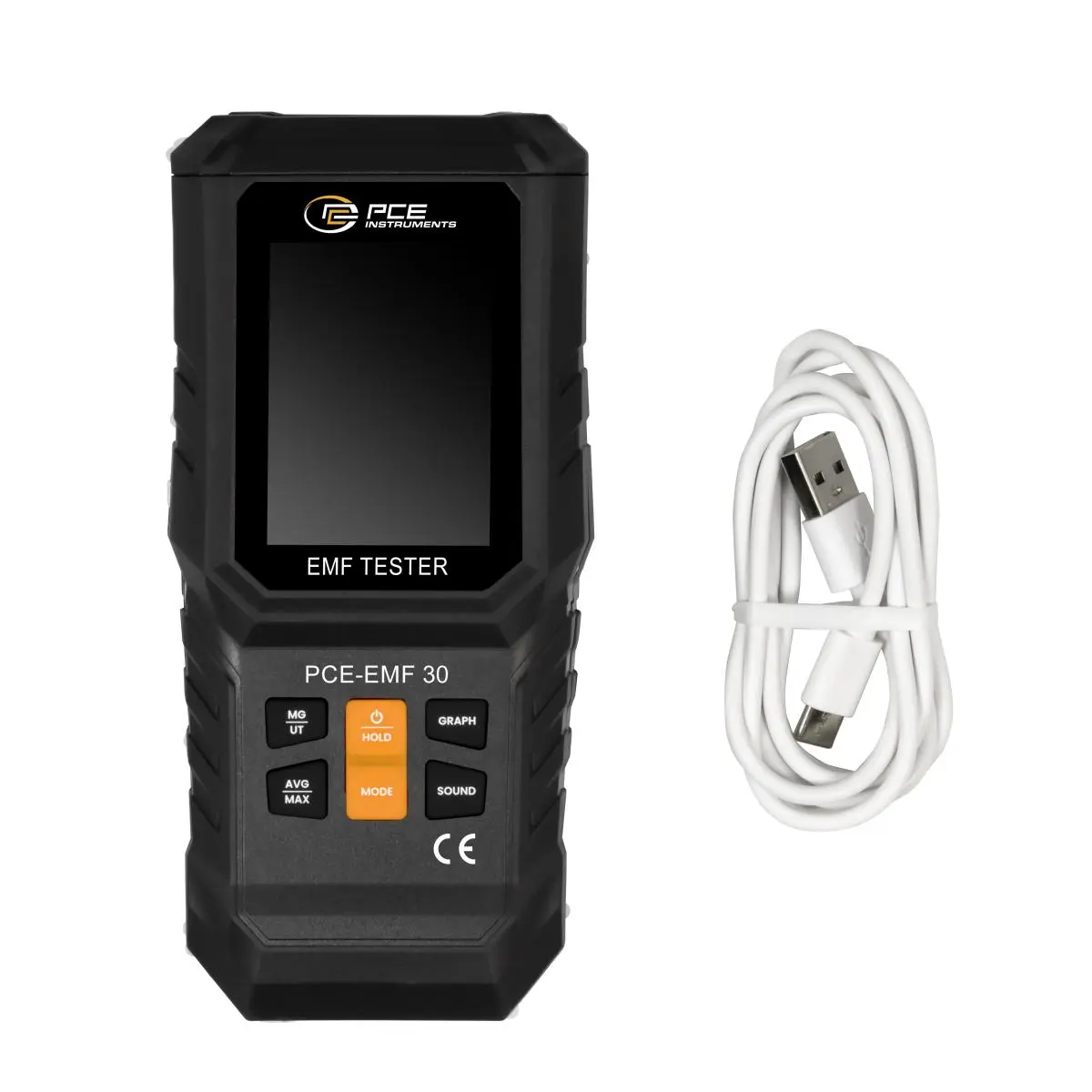

1 x Magnetometer PCE-EMF 30
1 x instruction manual
