₹22,900.00

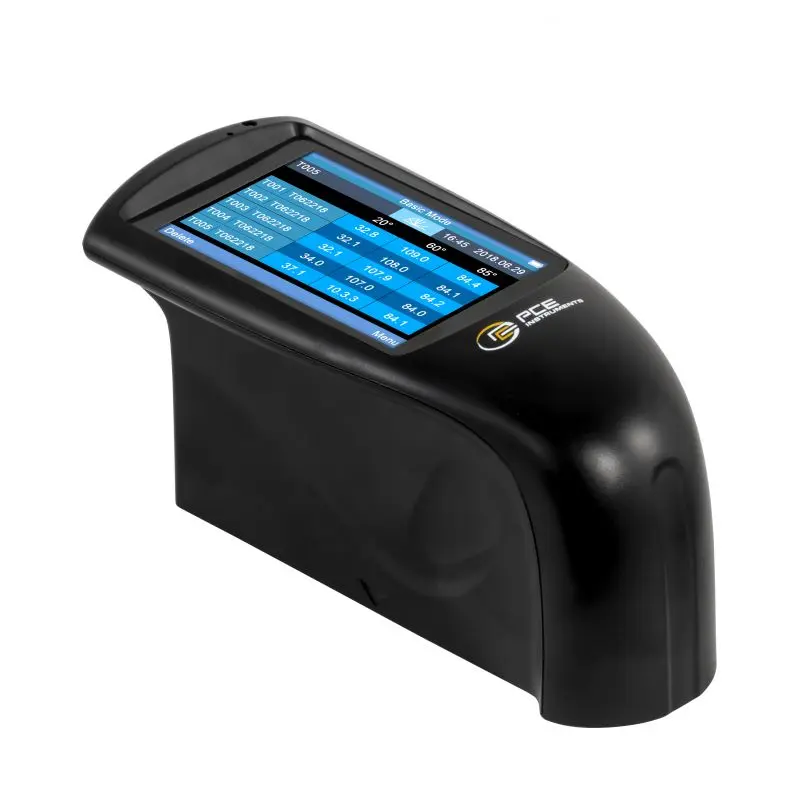

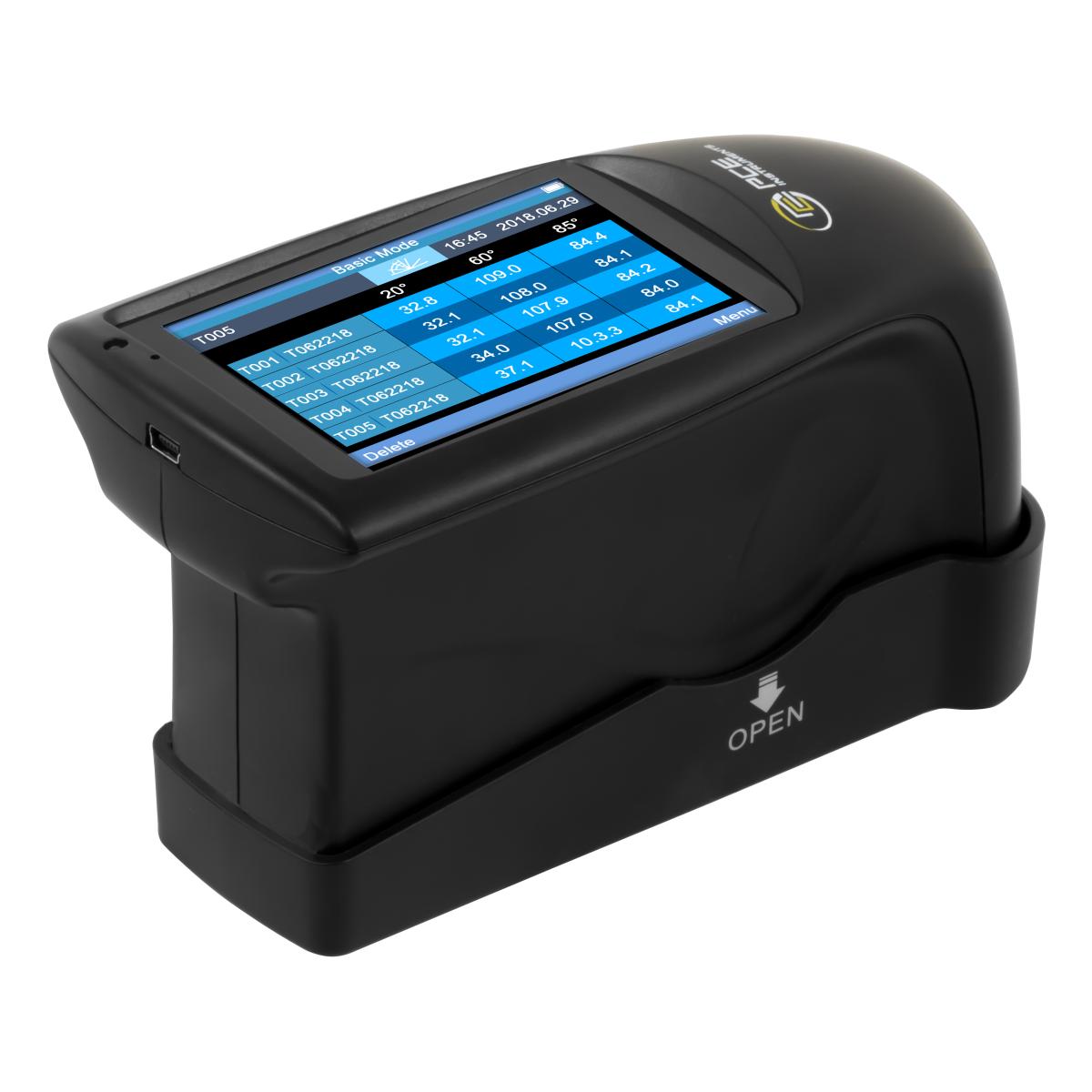

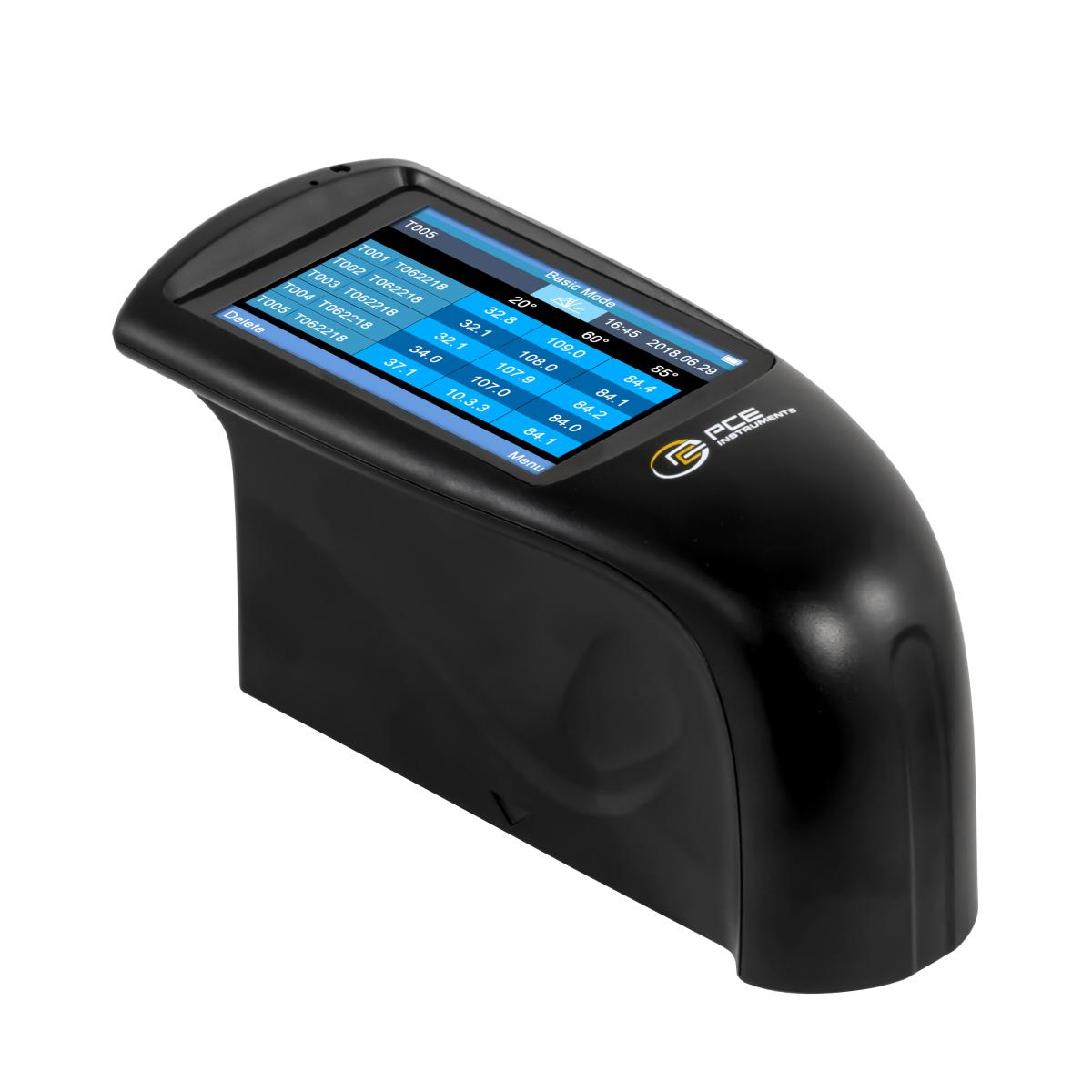

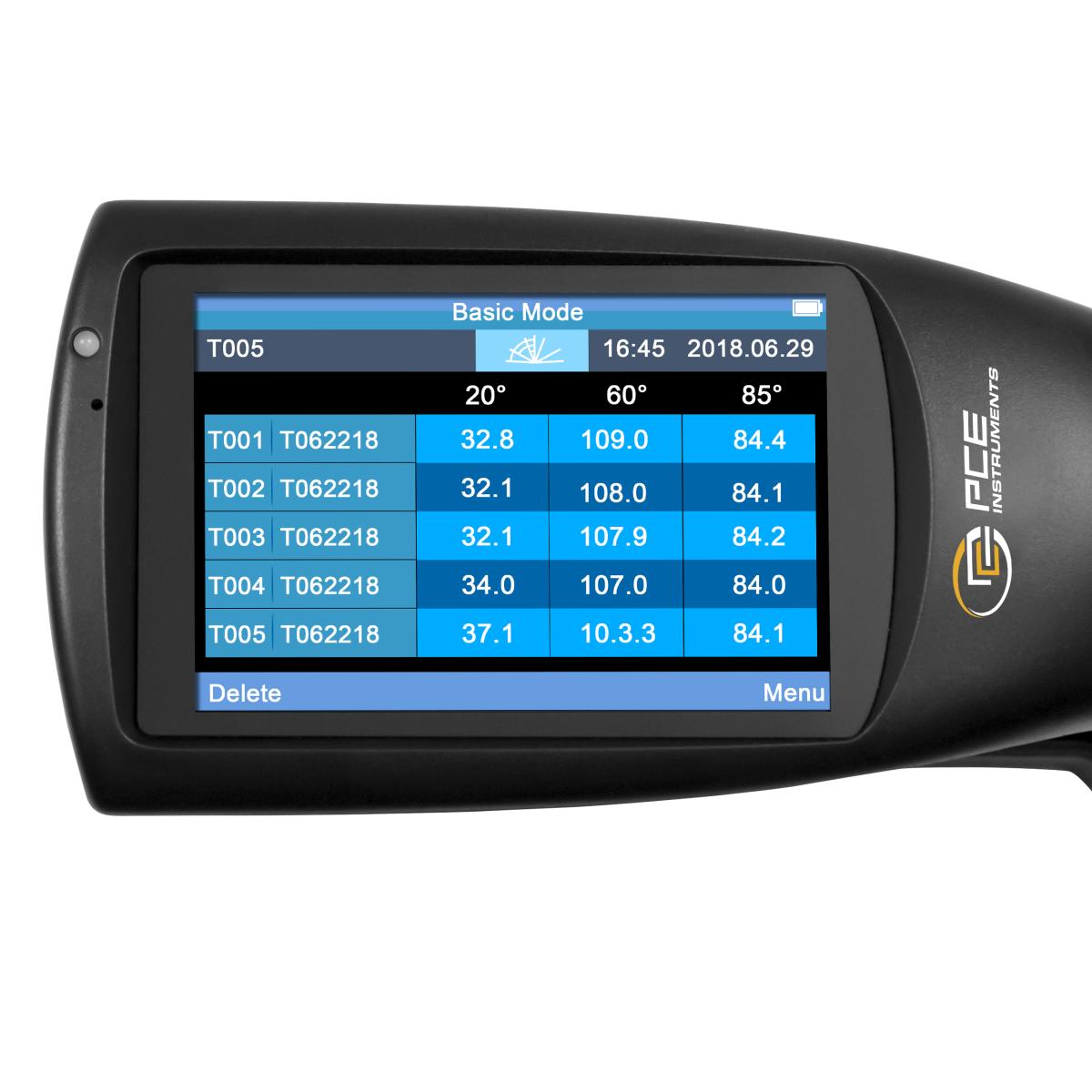

A gloss meter is a tester for determining surface gloss. Thereby, with the gloss meter, spectral reflections of a light beam that hits the surface, are measured. The touch screen allows for easy navigation.
The gloss meter is applied especially in areas where it is important that the surfaces have the same structure, and thus have the same surface characteristics. This often happens in quality control. Thus, the gloss meter is a measuring instrument which can be used in many different companies.

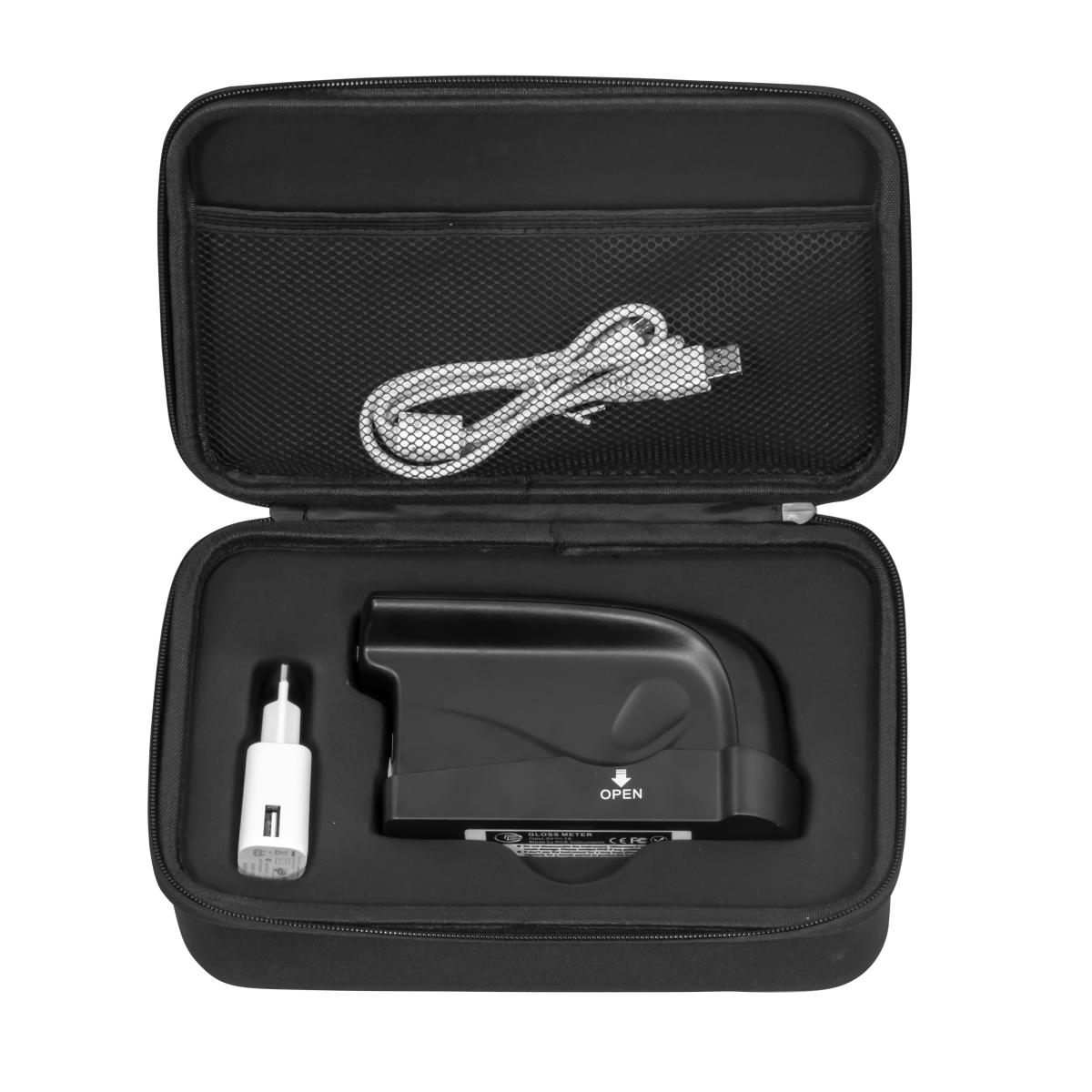

Included with this gloss meter there is also a CD-Rom with special evaluation software. So the measured data can be first stored on the device and later transferred to a computer. The software of the gloss meter also has an analysis function that serves for precise evaluation.
| Technical Data | |
| Measuring geometries | 20° / 60° / 85° |
| Display | 3.5 in TFT touch display (320 x 480 Pixel) |
| Standards | ISO 2813 GB/T 9754 ASTM D 523 ASTM D 2457 |
| Measuring surface | 20° : 10 x 10 mm / .4 x .4 in 60° : 9 x 15 mm / .4 x .6 in 85° : 5 x 36 mm / .2 x 1.4 in |
| Measuring range | 20° : 0 ... 1000 GU 60° : 0 ... 1000 GU 85° :0 ... 160 GU |
| Readability | 0.1 GU |
| Repeatability | Measuring range 0
... 10 GU: ±0.1 GU Measuring range 10 ... 100 GU: ±0.2 GU Measuring range 100 ... 1000 GU: ±0.2 GU (%) |
| Reproducibility | Measuring range 0
... 10 GU: ±0.2 GU Measuring range 10 ... 100 GU: ±0.5 GU Measuring range 100 ... 1000 GU: ±0.5 GU (%) |
| Chromaticity | Meets CIE 1931 (2°) under a CIE C - light source |
| Measurement accuracy | ±1.2 / ±1.2% |
| Measuring time | 1 second |
| Dimensions | 160 x 75 x 90 mm / 6.3 x 3 x 3.5 in |
| Weight | 350 g / < 1 lb |
| Menu language | English, Chinese |
| Power supply | 3200-mAh Li-ion rechargeable battery |
| Interface | USB / RS-232 |
| Measurement memory | Based measurement: 1000 Statistical mode: 5000 Continuous measurement: 5000 |
| Software | Included in delivery |
| Ambient temperature | 0 ... 40°C / 32 ... 104°F |
| Storage temperature | -20 ... 50°C / -4 ... 122°F |
| Relative humidity | < 85 % rel. humidity (not condensing) |
