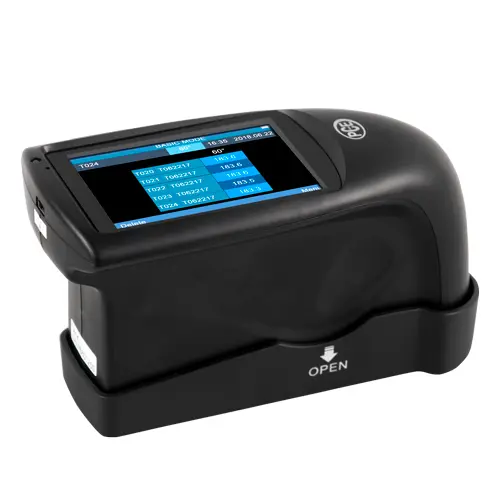

Paint Gloss Tester PCE-SGM 60-ICA incl. ISO calibration certificate

Order no.: PCE-SGM 60-ICA
GTIN (EAN): 4250348728098
₹211,281.00
₹249,311.58
ISO Calibration
price ex. (VAT / delivery)
:
4250348728098
PCE-SGM 60-ICA
Delivery time: 10 - 14 days
Paint Gloss Testing

Accessory

ISO Calibration Certificate for PCE-GM Series
ISO Calibration Certificate for PCE-GM Series
₹22,900.00

Description

Gloss meter for use in quality and incoming goods inspection /
60° Measuring Geometry / 3.5" TFT Display / Low measurement time /
Small measurement area / Measurement to 1000 GU

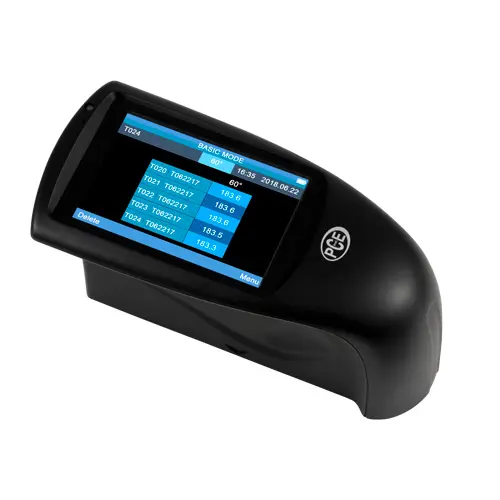

This gloss meter with a small measuring area is used to quantify surfaces that must be measured. The gloss-measuring device operates on the reflection principle by sending light from a known light source onto the surface to be tested and calculates the gloss level of the surface according to the reflection of light particles. The gloss level in gloss units (GU) is then output to the display of the gloss meter.

The measurement geometry of the Gloss Meter PCE-SGM 60 is 60 degrees and is not adjustable. Evaluation software is included with the gloss meter which allows you to read out the measurement data to a computer and analyze and store your results. This gloss meter has data memory installed, which can accommodate up to 5,000 measured values ​​depending on the setting.

Highlights

- Measurement geometry: 60°
- Measurement to 1000 gloss units
- Internal memory up to 5000 readings
- Small measurement area
- Fast measurement time
- Includes evaluation software
- Light source: D65
- Wave length: 400-700 nm

Specification

Measurement Geometry

60°

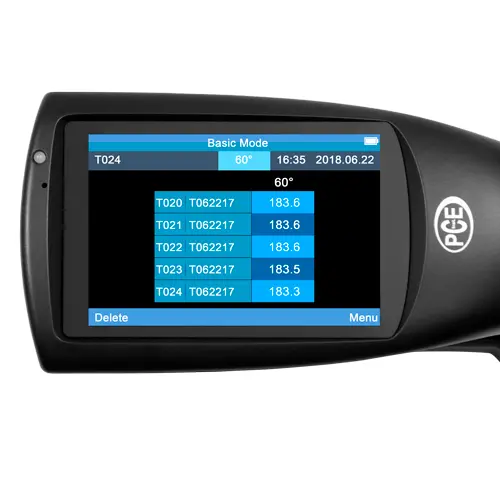

Display

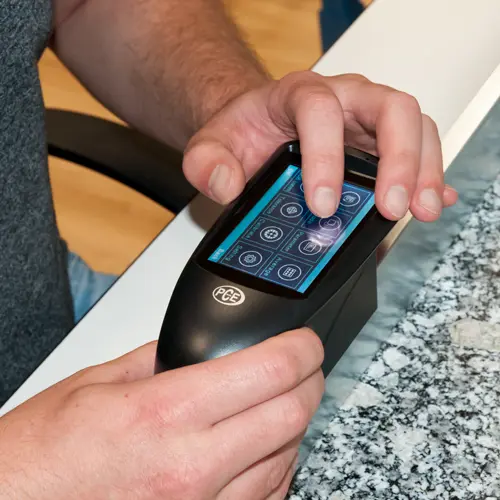

3.5 in TFT touch display

Standards

ISO 2813
GB/T 9754
ASTM D 523
ASTM D 2457

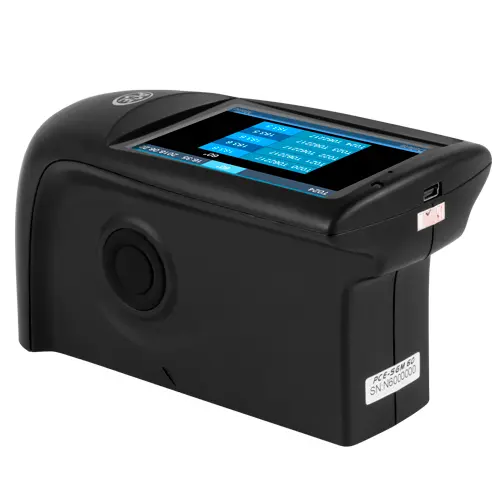

Measuring Area

1.5mm x 2 mm / 0.06in x 0.07 in

Measuring Range

0 ... 1000 GU

Readability

0.1 GU

Repeatability

Measuring range 0 ... 10 GU: ±0.1 GU
Measuring range 10 ... 100 GU: ±0.2 GU
Measuring range 100 ... 1000 GU: ±0.2 GU (%)

Reproducibility

Measuring range 0 ... 10 GU: ±0.2 GU
Measuring range 10 ... 100 GU: ±0.5 GU
Measuring range 10 ... 1000 GU: ±0.5 GU (%)

Chromaticity

Corresponds to CIE 1931 (2 °) under a CIE C - light source

Measurement Accuracy

±1.5 / ±1.5%

Measuring Time

0.5 seconds

Dimensions

160 x 75 x 90 mm / 6.3 x 3 x 3.5 in

Weight

350 g / < 1 lb

Menu Language

English, Chinese

Power Supply

3200-mAh Li-ion battery

Interface

USB / RS-232

Measurement Memory

Basic measurement: 1000
Statistical mode: 5000
Continuous measurement: 5000

Software

included

Ambient Temperature

0 ... 40°C / 32 ... 104°F

Storage Temperature

-20 ... 50°C / -4 ... 122°F

Relative Humidity

< 85% rel. Humidity (non-condensing)

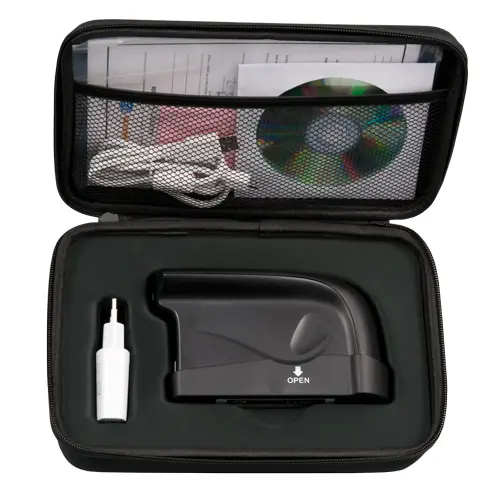

Delivery Scope

1 x Gloss Meter PCE-SGM 60
1 x Charger
1 x USB cable
1 x Analysis software (on CD-ROM)

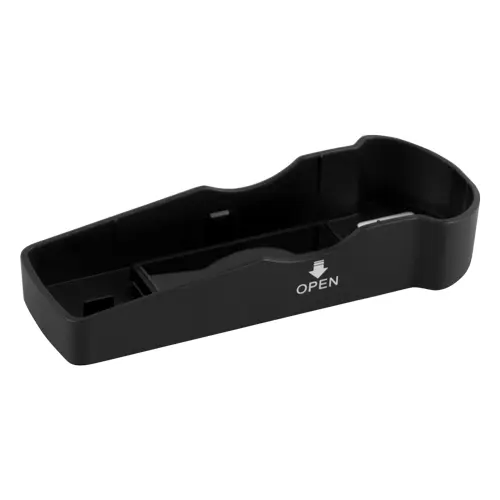

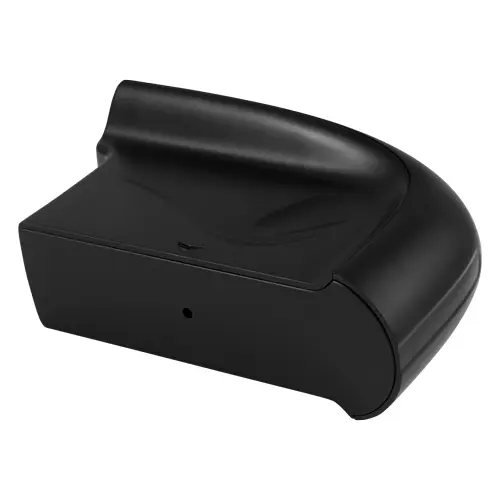

1 x Calibration plate
1 x User Manual

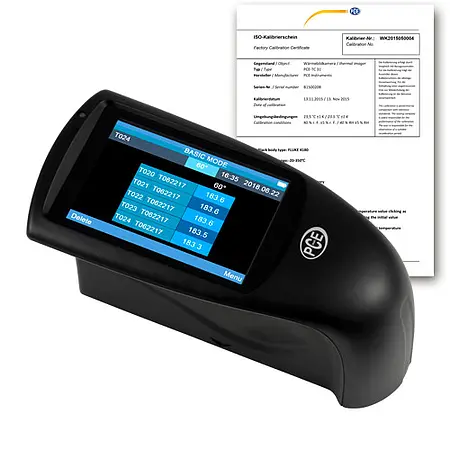

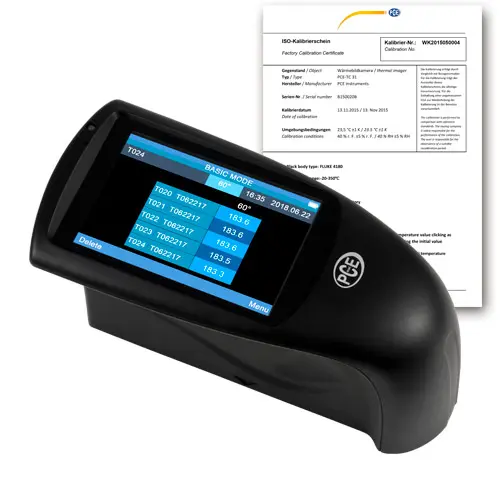

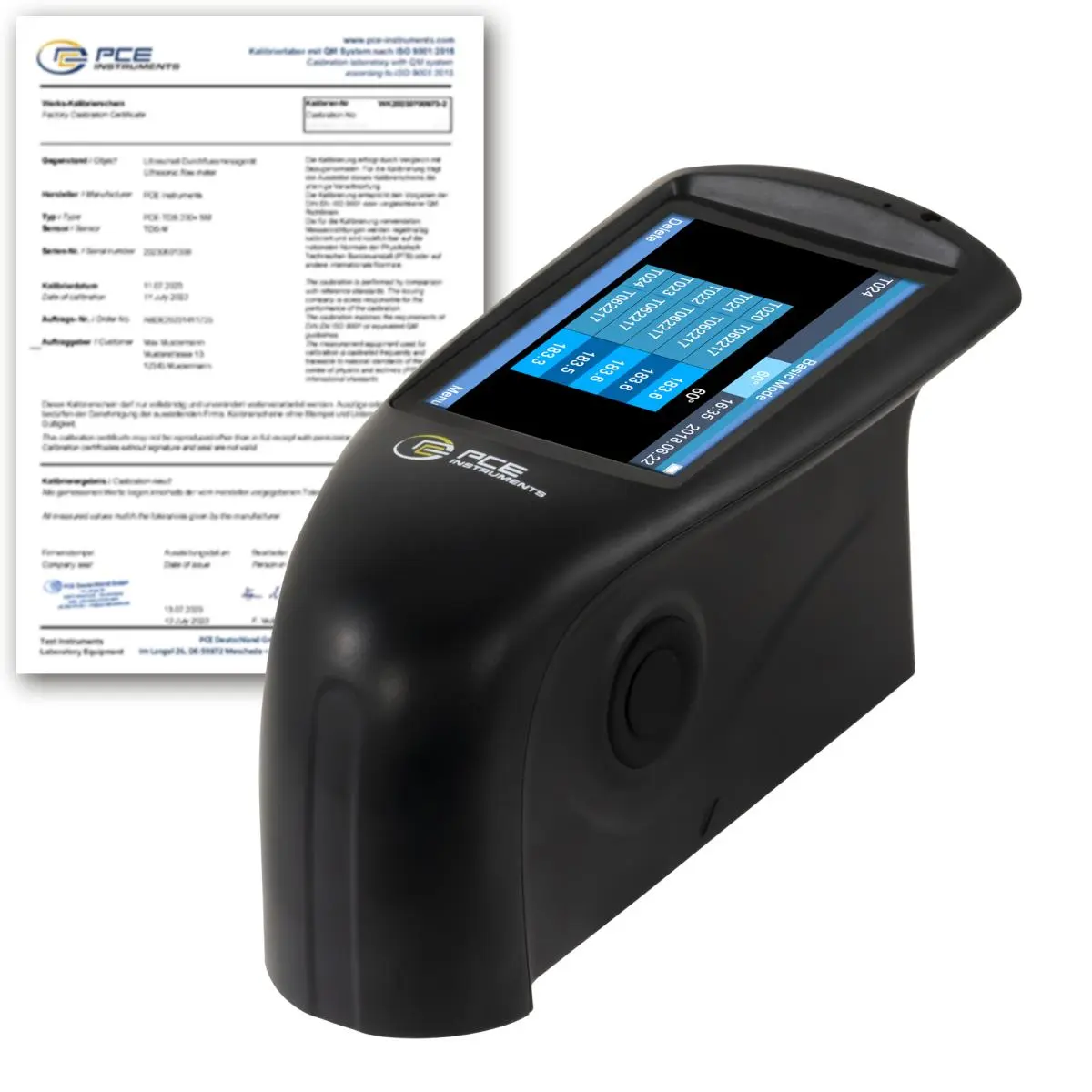

1 x ISO calibration certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
