Aerosol meter / Aerosol measuring device

We offer our aerosol measuring device online in different versions. This aerosol measuring device is being used more and more not only for environmental measurements in clean air, but above all in factories and offices to measure the number of particles in the breathing air of employees. The aerosol measuring device is also used in research and development or in clean room technology. For example, the PCE-PCO series aerosol measuring device draws in a certain amount of air and then counts the number of particles.

An aerosol measuring device is used where fine dust levels can affect the climate and the human body. The aerosol measuring device is available with memory and software for data transfer to a computer. Each aerosol measuring device works according to the current specifications and is delivered calibrated including a calibration certificate. Recalibration, e.g. annually (according to specifications or ISO manual), can be carried out at any time for a calibration fee.

If you have any questions, please contact us at or +91 98 33 45 81 40.

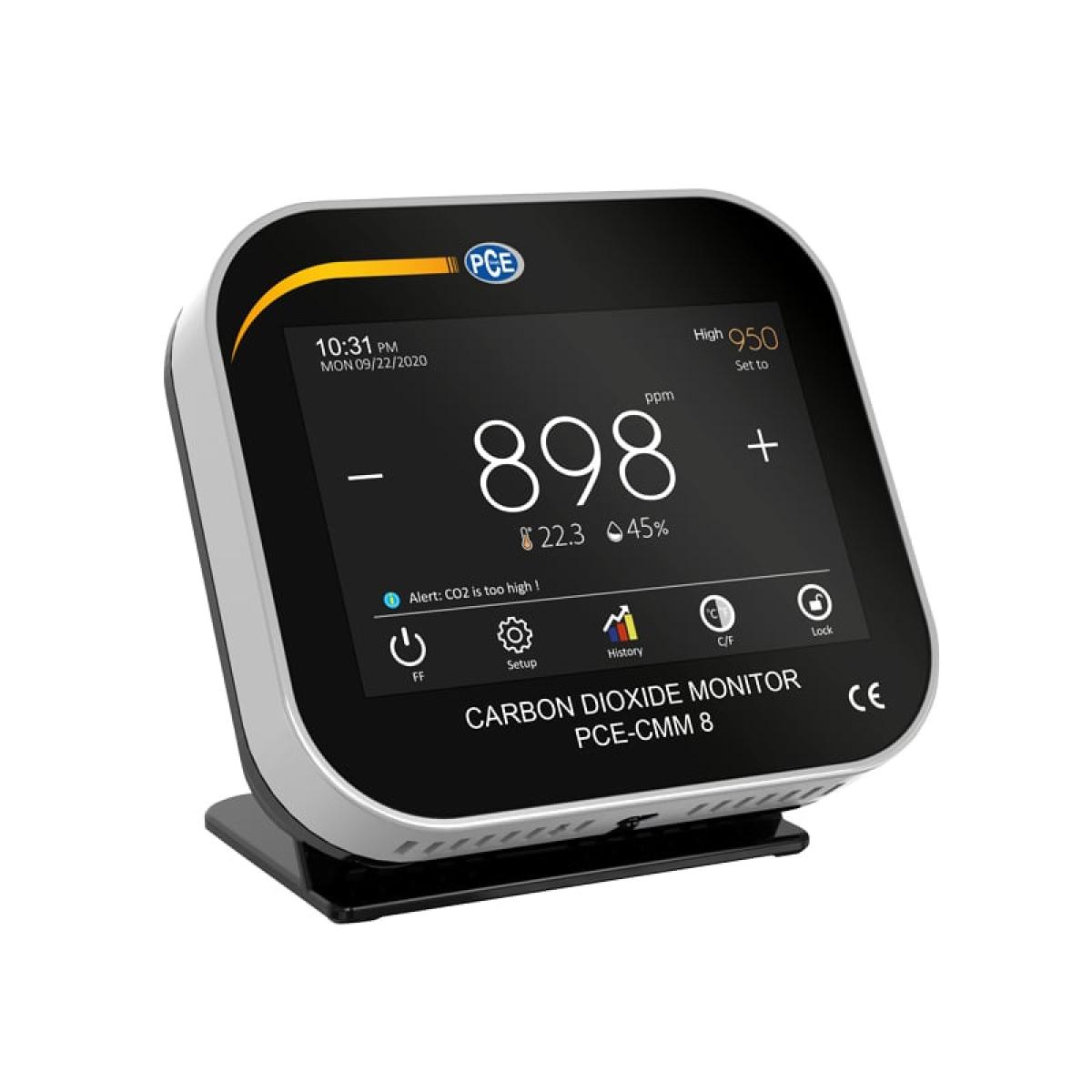

Aerosol measuring device PCE-CMM 8

With the Aerosol measuring device you can ensure the right climate in your office. The Aerosol measuring device measures the CO2 content of the air, the relative humidity and the room temperature. The Aerosol measuring device shows carbon dioxide concentrations up to 9999 ppm, temperatures from -10… 50 °C, and relative humidity values from 20… 95%.

Large CO2 measuring range up to 9999 ppm
Traffic light function for carbon dioxide
Measures temperature and humidity
Network operation
Suitable for classrooms, offices, lecture halls

Aerosol measuring device PCE-RCM 05

The Aerosol measuring device is used to continuously measure the particulate matter content at the workplace. The Aerosol measuring device displays PM2.5 particulate matter as well as temperature and humidity on the display.

Measuring range PM2.5: 0 … 500 μg / m³
Measuring range temperature: -10 … 50°C / 14 … 122°F
Measuring range humidity: 0 … 99% rh
Pictograms indicate air quality
Battery operation
Micro USB for charging

Aerosol measuring device PCE-RCM 10

PCE-RCM 10 is a portable handheld Aerosol measuring device or particle counter used to monitor particulate matter (PM) concentrations in the air. Designed to aid in indoor air quality (IAQ) assessments, this particle counter also measures air temperature and relative humidity (RH).

PM channels: PM 2.5, PM 10
Particle sizes (in micrometers): 2.5 µm, 10 µm
Temp. measuring range: -20 … +70 °C / -4 … +158 °F
Humidity measuring range: 0 … 100 % RH
2.4" full-color LCD with user-friendly graphics
For indicative measurements

Aerosol measuring device PCE-RCM 12

The Aerosol measuring device PCE-RCM 12 is used for indicative testing of environmental parameters. The Aerosol measuring device enables the measurement of CO2, fine dust, temperature and relative humidity. The bright display of the Aerosol measuring device provides information about these parameters.

Fine dust, CO2, formaldehyde, humidity, temperature
Particle size channels: PM 2.5 / PM 10
Temperature measuring range: -20 … 70°C / -4 … 158°F

Humidity measuring range: 0 … 100% r.H.
Formaldehyde measuring range: 0.00 … 5.00 mg/m³
CO2 measuring range: 0 … 9999 ppm

For indicative measurements

Aerosol meter / Aerosol measuring device PCE-CPC 50

The state-of-the-art Aerosol meter / Aerosol measuring deviceenables precise real-time measurement in the range of 0.3 μm to 10 μm to provide a comprehensive picture of air quality. The results are presented in two units, either in number per m³, number per litre or number per 28.3l. Air sampling from the Aerosol meter / Aerosol measuring device is performed by an internal pump.

Particle concentration: 0.3 … 10 μm
Particle measurement channel sizes:
0.3, 0.5, 1.0, 2.5, 5.0, 10 µm

Output in particles/m³,
particles/l or particles/28.3L
Modbus RTU and MQTT via RS485
Analogue output 4 . .. 20 mA

Aerosol meter / Aerosol measuring device PCE-MPC 10

PCE-MPC 10 is a portable handheld Aerosol meter / Aerosol measuring device or particle counter used to monitor particulate matter (PM) concentrations in the air. Designed to aid in indoor air quality (IAQ) assessments, this particle counter also measures air temperature and relative humidity (RH).

PM channels: PM 2.5, PM 10
Particle sizes (in micrometers): 2.5 µm, 10 µm
Temp. measuring range: 0 … +50 °C / +32 … +122 °F
Humidity measuring range: 0 … 100 % RH
2" full-color LCD with user-friendly graphics
Integrated data logger with adjustable sampling time
Internal memory stores up to 5000 date-and-time-stamped data sets

Aerosol meter / Aerosol measuring device PCE-PCO 2

PCE-PCO 2 is a portable handheld Aerosol meter / Aerosol measuring device or particle counter used to monitor particulate matter (PM) concentrations in the air. Designed to aid in indoor air quality (IAQ) assessments, this particle counter also measures air temperature, dew point and relative humidity.

PM channels:PM 2.5, PM 10, including mass concentration mode (µg/m³)
Particle sizes (in micrometers): 0.3 µm, 0.5 µm, 1.0 µm, 2.5 µm, 5.0 µm, 10 µm
Temp. measuring range: 0 … +50 °C / +32 … +122 °F
Humidity measuring range: 0 … 100 % RH
Built-in camera for image and video recording
Free software download on PCE Software web page

Aerosol meter PCE-MPC 25

The Aerosol meter is used in offices, workshops or in laboratories to carry out indicative measurements of the environmental conditions. In addition to the number of particles, the Aerosol meter determines the mass concentration of PM2.5 and PM10 in the measuring range 0 … 1000 µg/m³.

Measurable particle sizes: PM2.5 / PM10
Particle sizes: 0.3 / 0.5 / 1.0 / 2.5 / 5.0 and 10 µm
Mass concentration
Particle counter
Temperature
Humidity (RH)
Flash memory for approx. 12 measurement runs

Aerosol meter PCE-MPC 30

This Aerosol meter has many functions. With the Aerosol meter it is possible to determine the number of particles in the size of 0.3, 2.5 and 10 µm.

Measurable particle sizes: PM 2.5 and PM 10
Measuring range: 0 … 2000 µg / m³
Resolution: 1 µg / m³
Particle counter, HCHO, temperature measurement
Dew point and wet bulb temperature

Aerosol meter PCE-PQC 10EU (ISO 21501-4)

The Aerosol meter detects quickly where eg particles, air particles contaminate the air and can cause diseases such as asthma, bronchitis, skin and lung diseases.

Measuring range: 0.3 … 25 μm
Measuring channel sizes: 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 μm
Counting efficiency: 50% at 0.3 μm 100% at > 0.45 μm according to JIS
ISO 14644-1, EU GMP Annex I, FS 209E
Mass concentration
Ethernet, USB
Incl. temperature and humidity sensor
Incl. calibration certificate traceable to NIST ISO 21501-4 and JIS B9921

Aerosol meter PCE-PQC 20EU Incl. Calibration Certificate

The Aerosol meter PCE-PQC 20EU is very well suited for monitoring and checking of clean rooms, filter systems in operating rooms and filling systems in the pharmaceutical industry. The stored data records from the Aerosol meter can be read out and processed via the supplied software via Ethernet, USB or Wifi.

Measuring range: 0.3 … 25 μm
Measurement channel sizes: 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm
Counting efficiency: 50% at 0.3 μm, 100% at > 0.45 μm according to JIS
Ethernet, USB
Incl. temperature and humidity sensor
Incl. calibration certificate traceable to NIST ISO 21501-4 and JIS B9921

Aerosol meter PCE-PQC 21EU Incl. Calibration Certificate

The Aerosol meter PCE-PQC 21EU is a portable detection system that can count particles of certain sizes in the air. Furthermore, the air temperature and the relative humidity are monitored.

Measuring range: 0.5 … 25 μm
Measurement channel sizes: 0.5, 0.7, 1.0, 3.0, 5.0, 10.0 μm
Counting efficiency: 50% at 0.5 μm, 100% at > 0.75 μm according to JIS
ISO 14644-1, EU GMP Annex I, FS 209E
Incl. temperature and humidity sensor
Incl. calibration certificate traceable to NIST ISO 21501-4 and JIS B9921

Aerosol meter PCE-PQC 22EU Incl. Calibration Certificate

The Aerosol meter PCE-PQC 22EU detects quickly where e.g. particles, air particles contaminate the air and can cause diseases such as asthma, bronchitis, skin and lung diseases.

Measuring range: 0.3 … 25 μm
Measuring channel sizes: 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm
Counting efficiency: 50% at 0.3 μm 100% at > 0.45 μm according to JIS
Ethernet, USB
CO2 sensor
Includes temperature and humidity sensor
Incl. calibration certificate traceable to NIST ISO 21501-4 and JIS B9921

Aerosol meter PCE-PQC 30EU Incl. Calibration Certificate

The Aerosol meter PCE-PQC 30EU is the most advanced particle counter on the market. Integration into a building automation and clean room management system is easily possible via Ethernet or (optionally) Wireless 802.11 b / g, RS485 or RS232.

Measuring range: 0.3 … 25 μm
Measurement channel sizes: 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm
Counting efficiency: 50% at 0.3 μm, 100% at > 0.45 μm according to JIS
Interface: Ethernet, USB
Incl. calibration certificate traceable to NIST ISO 21501-4 and JIS B9921

Aerosol meter PCE-PQC 30EU Incl. Calibration Certificate

Measuring range: 0.3 … 25 μm
Measurement channel sizes: 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm
Counting efficiency: 50% at 0.3 μm, 100% at > 0.45 μm according to JIS
Interface: Ethernet, USB
Incl. calibration certificate traceable to NIST ISO 21501-4 and JIS B9921

Aerosol meter PCE-PQC 31EU Incl. Calibration Certificate

The Aerosol meter PCE-PQC 31EU can be remotely controlled and monitored via a web browser. The Aerosol meter is a mounting device for rod or wall mounting.

Measuring range: 0.5 … 25 μm
Measurement channel sizes: 0.5, 0.7, 1.0, 3.0, 5.0, 10.0 μm
Counting efficiency: 50% at 0.5 μm, 100% at > 0.75 μm according to JIS
Interface: Ethernet, USB
Incl. calibration certificate traceable to NIST ISO 21501-4 and JIS B9921

Aerosol meter PCE-PQC 32EU incl. Calibration Certificate

The PCE-PQC 32EU Aerosol meter measures 6 user-selectable particle size channels. This Aerosol meter stores up to 45,000 measured values with a time stamp.

Measuring range: 0.3 … 25 μm
Measurement channel sizes: 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm
Counting efficiency: 50% at 0.3 μm, 100% at > 0.45 μm according to JIS
Interface: Ethernet, USB
Incl. calibration certificate traceable to NIST ISO 21501-4 and JIS B9921
External suction pump not included

Aerosol meter PCE-PQC 33EU incl. Calibration Certificate

The Aerosol meter PCE-PQC 33EU is the most advanced particle counter on the market. This Aerosol meter stores up to 45,000 measured values with time stamp.

Measuring range: 0.5 … 25 μm
Measurement channel sizes: 0.5, 0.7, 1.0, 3.0, 5.0, 10.0 μm
Counting efficiency: 50% at 0.5 μm, 100% at> 0.75 μm according to JIS
Interface: Ethernet, USB
Incl. calibration certificate traceable to NIST ISO 21501-4 and JIS B9921
External suction pump not included
