Agricultural measuring device PCE-TUM 100

Order no.: PCE-TUM 100
GTIN (EAN): 4250348733078
1 pc. / pc.

Description

Agricultural measuring device, colour display, measuring range up to 500 NTU,  scattered light measuring method 90°, mains operation, USB and printer interface

The precision of the Agricultural measuring device ensures accurate measurements in all relevant applications. With five factory-saved calibration points, the opacimeter offers a ready-to-use solution for different environments. In addition, the opacimeter offers the option of customised opacity calibration. With up to five calibration points, the Agricultural measuring device can be flexibly adapted to specific requirements and measurement conditions.

The Agricultural measuring device's colour display presents the measurement results in a clear and easy-to-understand manner. This user-friendly interface simplifies operation considerably and also enables new users to utilise the Agricultural measuring device quickly and efficiently. The internal memory allows measurement data to be saved for later analysis or reporting.

For seamless data management, the Agricultural measuring device is equipped with a USB interface for external data carriers. This makes it easy to save measurement results from the Agricultural measuring device to a USB stick. In addition, the RS232 printer interface on the Agricultural measuring device offers the option of printing measurement logs directly to ensure quick documentation of the results.

Overall, the Agricultural measuring device impresses with its precise measurements, simple operation and wide range of data storage and transfer options. It is the ideal solution for anyone who places the highest demands on turbidity measurements.

Highlights

- Precise measurement
- 5 stored calibration points
- Individual 5-point turbidity calibration possible

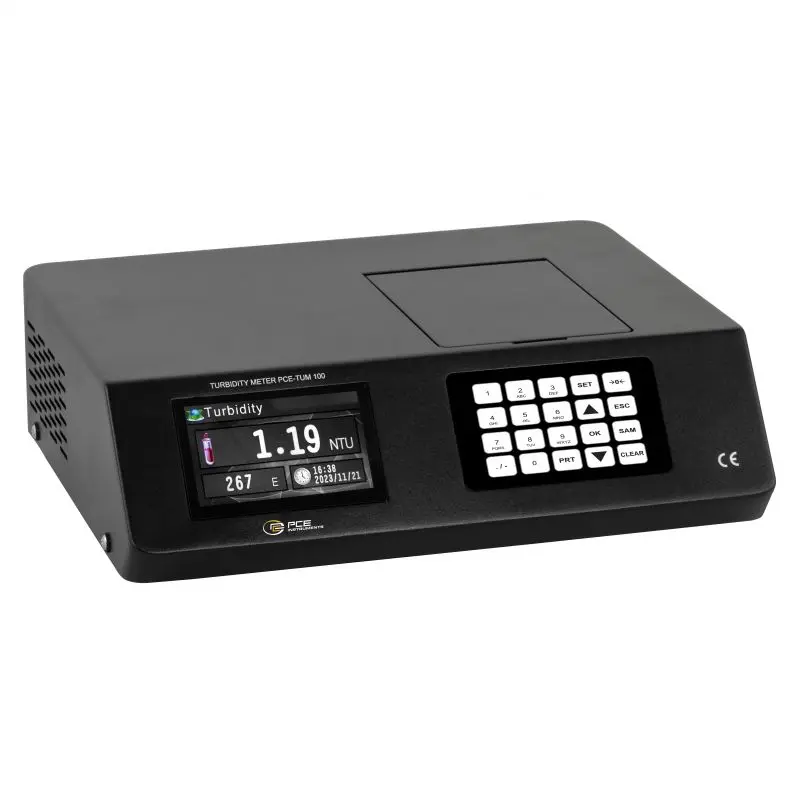

- Colour display
- Simple operation
- Internal memory
- USB-A interface for data carriers
- RS232 printer interface

Specification

Turbidity
Measurement range0 NTU ... +500 NTU
Resolution0.01
Accuracy±5 % FS

General technical data
Display typeLED
Display size4.2 inches

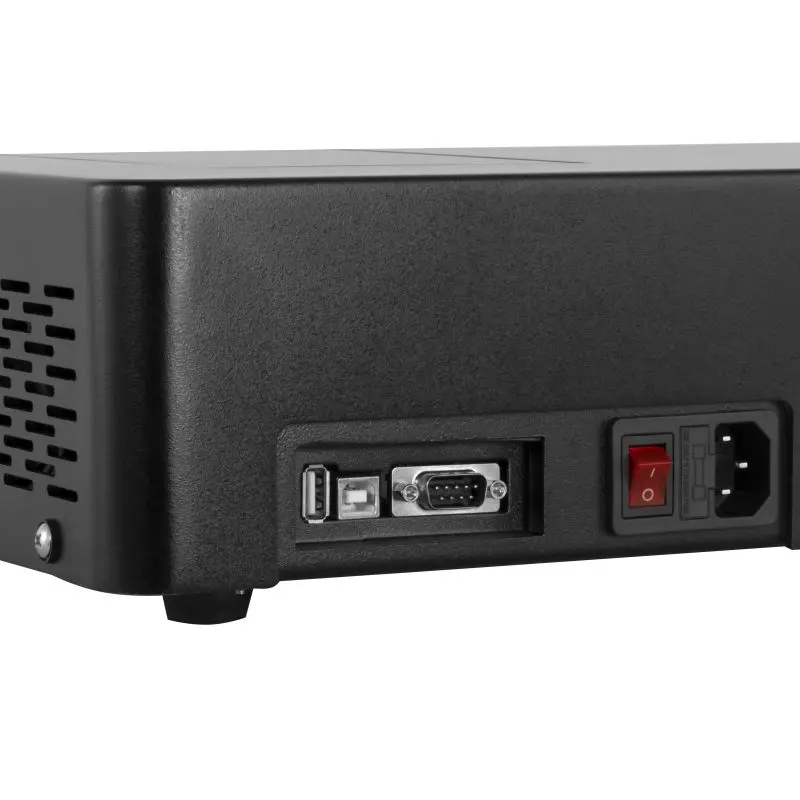

InterfaceRS232, USB A
Light sourceLED @ 850 nm
Number of calibration points5
Measurement method90 °
Menu languageEnglish
Protection class (device)IP20
Power supply110-220V, 50-60Hz
Plug typeCold plug
Weight3.68 kg
Dimensions (L x W x H)37 cm x 31 cm x 11.5 cm mm
Other dimensionsCuvette
Ø x height
25 x 65 mm
Operating conditions16 ... 35 °C , 45 ... 80 % RH
Storage conditions16 ... 35 °C , 45 ... 80 % r.H
Instruction languagesEnglish

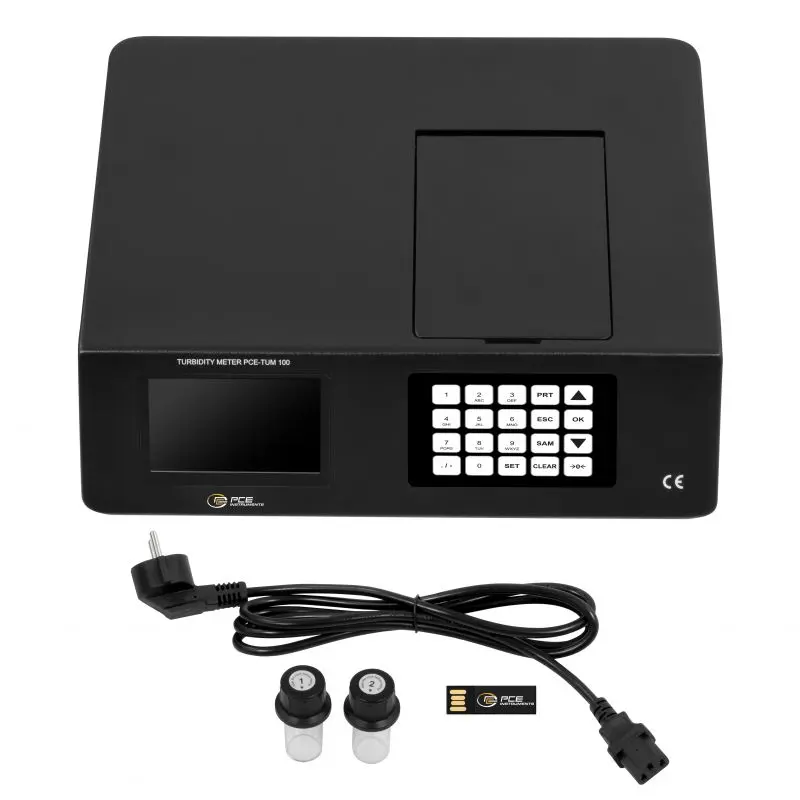

Delivery Scope

1 x Agricultural measuring device PCE-TUM 100

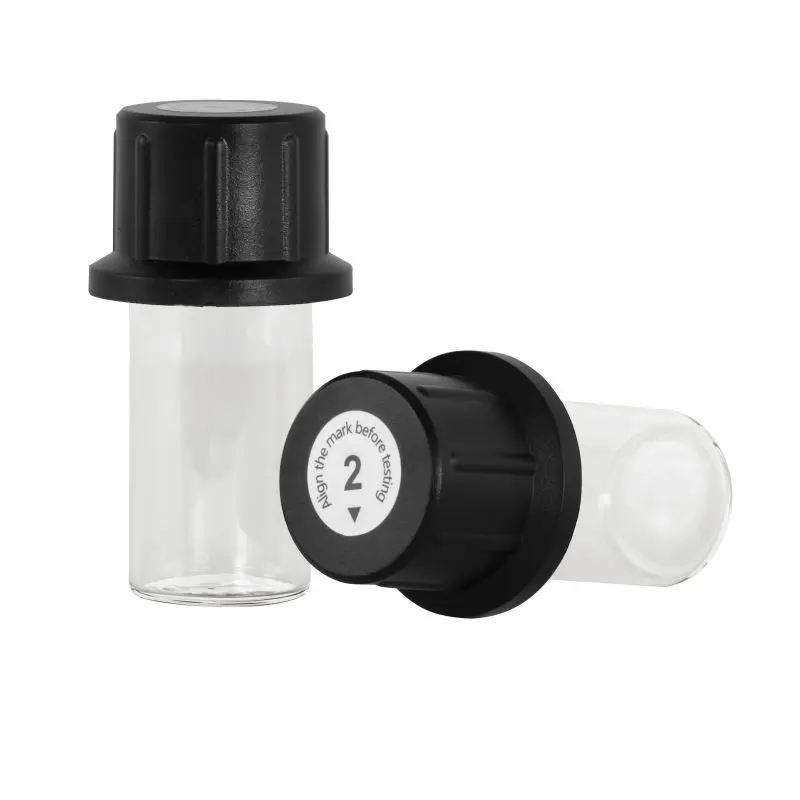

2 x cuvette
1 x power cable
1 x USB stick
1 x operating manual
