Air Humidity Meter PCE-G1A

Order no.: PCE-G1A

GTIN (EAN): 4250348710925

Accessory

ISO Calibration Certificate for PCE-G1

₹25,728.00

Description

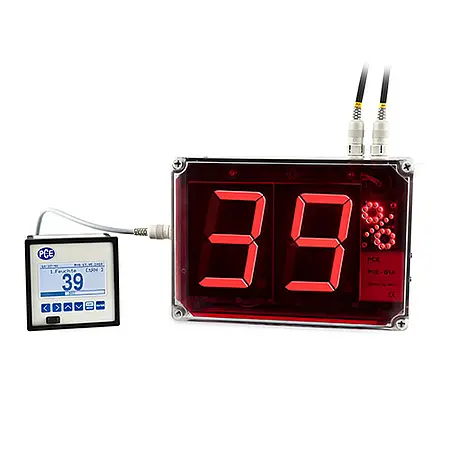

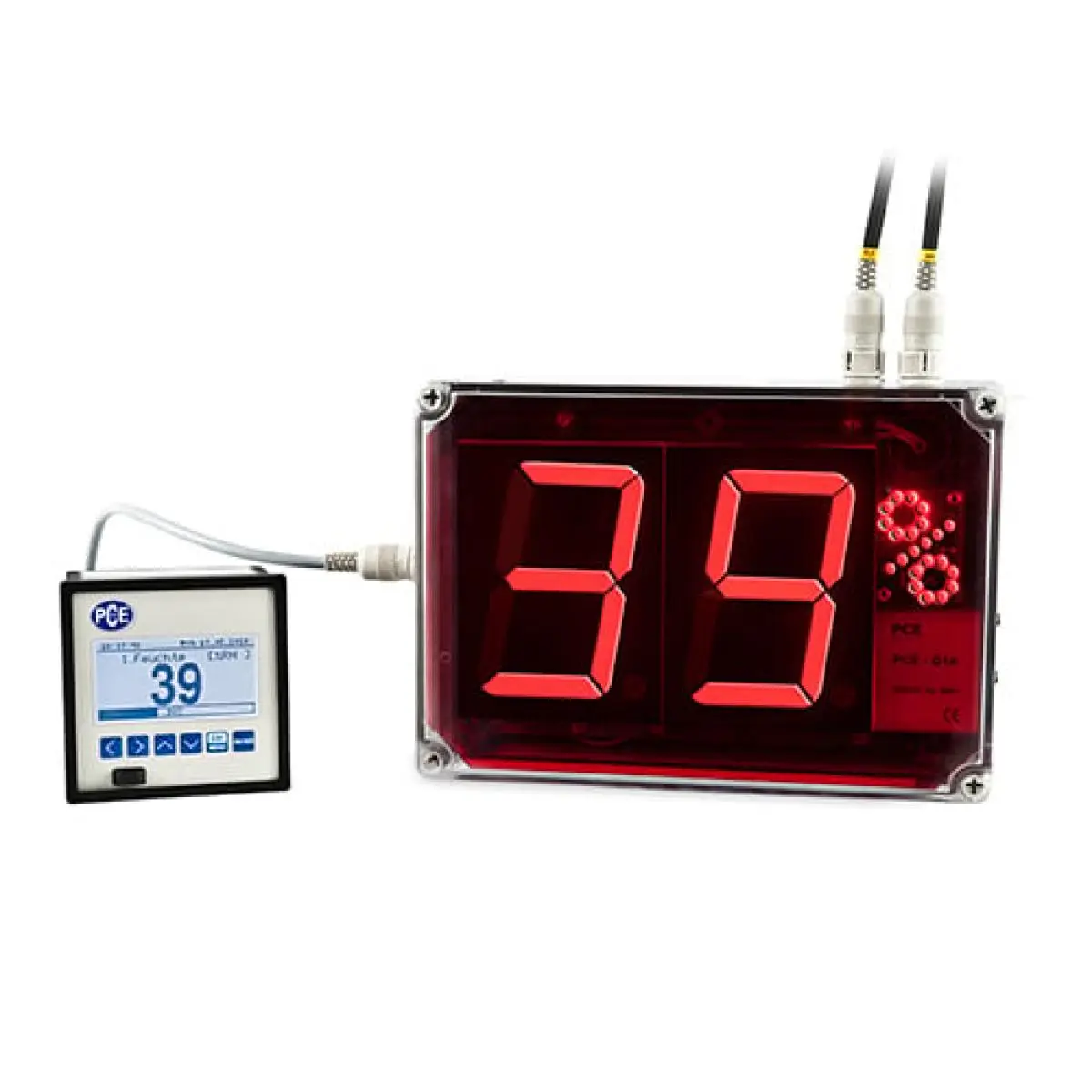

The PCE-G1A is an air humidity meter with a large display. This IP54-rated wall-mountable device measures both relative humidity (%RH) and temperature (°C only). The air humidity meter has a large LED display with a number height of 100 mm / 3.9 in, so measurement values can be seen at a distance of up to 50 m / 164 ft away.

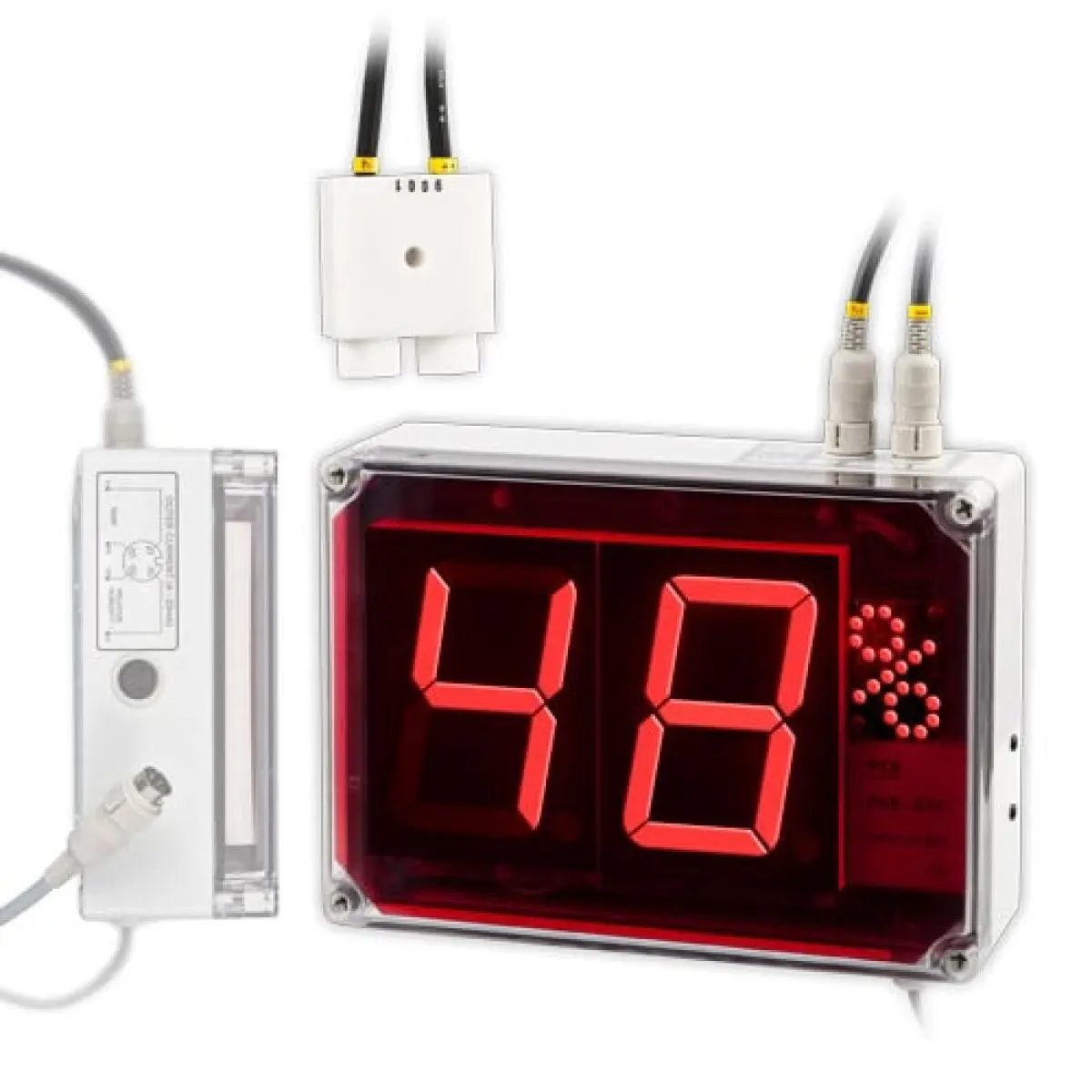

Relative humidity and temperature measurements are displayed every 5 seconds (in 5-second intervals). Sensors are mounted by means of connectors with 1 m / 3.2 ft long cable to measure relative humidity and temperature when sensors and display are in different places.

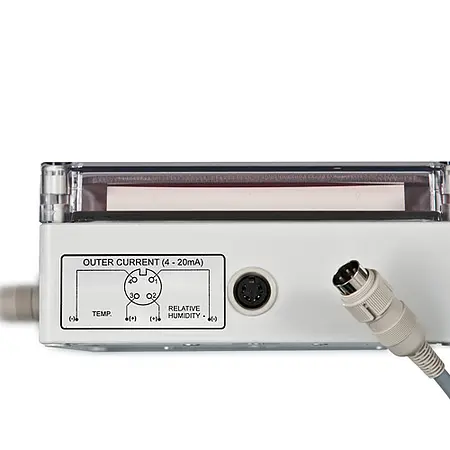

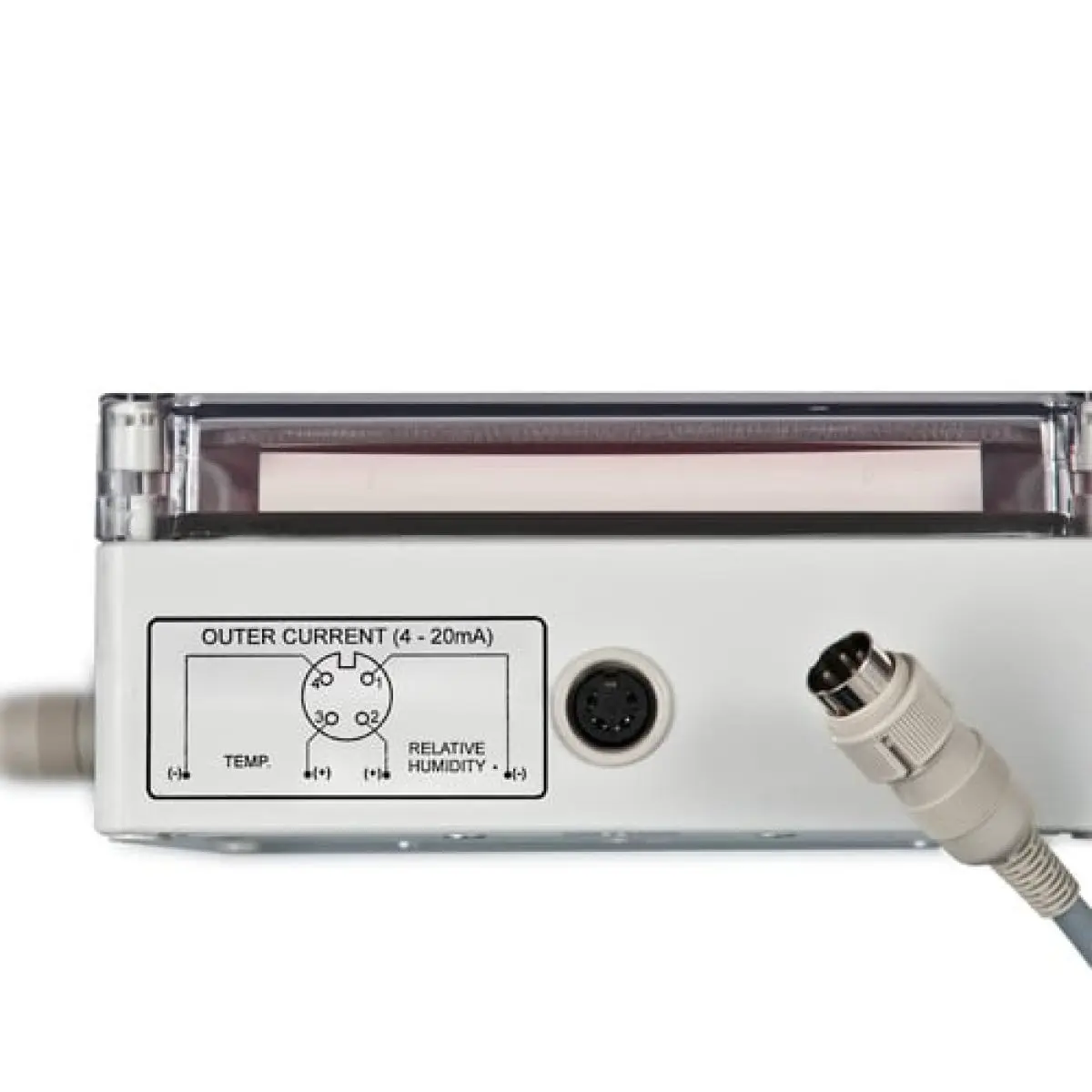

The air humidity meter also has a 2-channel analog output of 4 ... 20-mA. The two channels convert relative humidity and temperature values into 4 ... 20-mA signals before displaying them. This means that measurements can be recorded, controlled and regulated by means of the analog output.

Highlights

- Ingress protection type: IP 54 rating
- Large, easy-to-read 100 mm / 3.9 in tall LED digits
- Analog output: 4 ... 20-mA external sensors
- Temperature and relative humidity values are displayed every 5 seconds (in 5-second intervals)
- Displays temperature in degrees Celsius (°C) only
- Ready for wall mounting
- Long life
- Excellent readability
- High accuracy

Specification

Measuring ranges	10 ... 95 % RH / 0 ... +60 °C
Resolution	1 % RH / 1 °C
Accuracy	±2 % RH / ±1 °C
Visibility	readable at ca. 50 m
Sensor type Relative humidity / Temperature	HC1000 / Pt1000
Response time T90	ca. 4 s
Cable length (between sensor and display)	1 m
Display	100 mm high LED (alternating display)
Analog output	two channel 4-20 mA (passive)
Analog output scaling	temperature: 0 ... 100 °C humidity: 0 ... 100 %
Power supply	230 V / 50 ... 60 Hz
Stromaufnahme	ca. 20 mA
Dimensions	sensor 50 x 70 x 20 mm large display 175 x 175 x 75 mm
Protection	IP 54
Weight	1.3 kg (incl. sensor and cable)

Delivery Scope

1 x Air Humidity Meter PCE-G1A
1 x Sensor for temperature and humidity with connection cable (in selected configuration)
1 x Mains power cable
1 x 4 pin DIN connector
1 x Instruction manual
