₹22,305.00

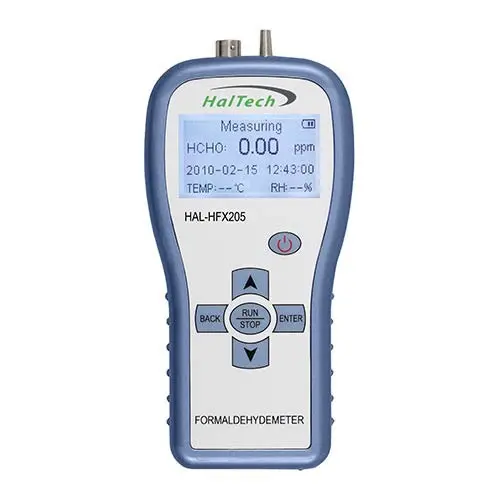

Professional formaldehyde Air Quality Meter to measure air after the evaporation of wooden material, flooring, furniture, textiles… / Alarm signal exceeding of limit / USB-interface
This Air Quality Meter is designed to detect formaldehyde in air. The Air Quality Meter shows the formaldehyde-concentration on site and thereby avoids time-consuming and expensive analysis in laboratories. The formaldehyde Air Quality Meter runs with help of an electro-mechanical sensor and is designed to determine the current permitted limit. A measurement can be accomplished in less than 30 seconds. The concentration is measured in ppm units. Some substances such as ethanol, propanol or methanol can interfere with the measuring data. An optionally purchasable hygrometer-sensor allows for a correction of the measured data in order to achieve accurate measurements. The Air Quality Meter can be connected to a computer or laptop by means of the USB-Interface, thereby allowing an automatic and continuous measuring over a long period of time. Time and battery status are shown continuously on a display. Information on all the gass-measuring devices of PCE Instruments is shown below. For further information, please feel free to read the following technical data. Our engineers and technicians will gladly advise you on the measuring device for formaldehyde concentration or any other product in terms of regulation and control, or scales and balances of PCE Instruments.
| Technical
data of Formaldehyde Air Quality Meter | |
| Measuring range | 0…10 ppm |
| Resolution | 0.01 ppm |
| Accuracy | < ± 2% |
| Reaction time | < 30 seconds |
| Data storage | Up to 500 datasets |
| Operation temperature | 5 ... 40°C / 41 ... 104°F |
| Power Supply | Li-ion
battery (3.7 V/1200-mAh) AC-adapter 100 ... 240V to 5 VDC / 1 A |
| Operation time | 6 hrs. with batteries |
| Dimensions | 80 x 36 x 150 mm / 3.1 x 1.4 x 5.9 in |
| Weight | Approx. 200g / 7.9 lb |
Formaldehyde | |
| Formaldehyde is a colourless, pungent-smelling substance, which is gaseous at room temperature.An improper use can result in allergies, skin and respiratory diseases or eye irritation. It is classified as carcinogenic. In areas of textiles, the voluntary measurement of limits for harmful substances is awarded a seal of approval (e.g. Toxproof or Öko-Tex 100) is by 20 mg/kg (20ppm). In addition, formaldehyde can especially be found in the following materials: wooden materials, furniture, chip boards and groundings. | |
| Interference
with measuring rate of formaldehyde | |
| Chemical | Formaldehyde equivalent |
| 100 ppm methanol | 1 ppm |
| 100 ppm ethanol | 1 ppm |
| 100 ppm isopropanol | 0.5 ppm |
| 100 ppm CO | 1 ppm |
| 25 ppm phenol | 0.05 ppm |
| 100 ppm acetaldehyde | 0.5 ppm |
| 100 ppm hydrogen | 3 ppm |
| 50 ppm hydrogen sulphide | 0.5 ppm |
| 50 ppm sulphur dioxide | 0.5 ppm |
