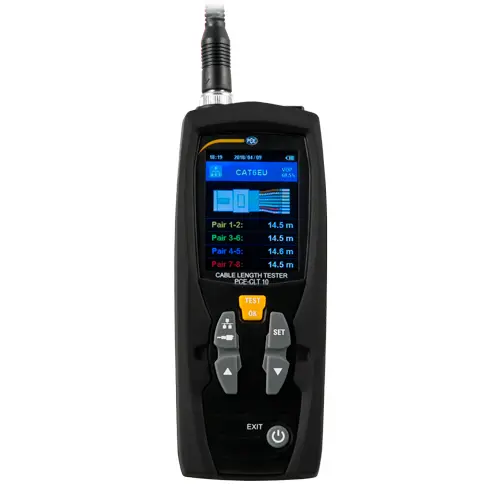

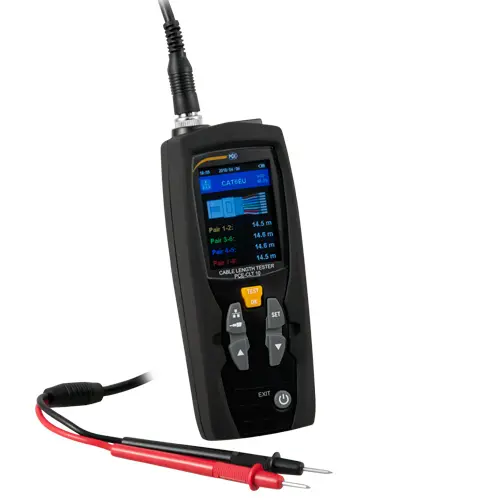

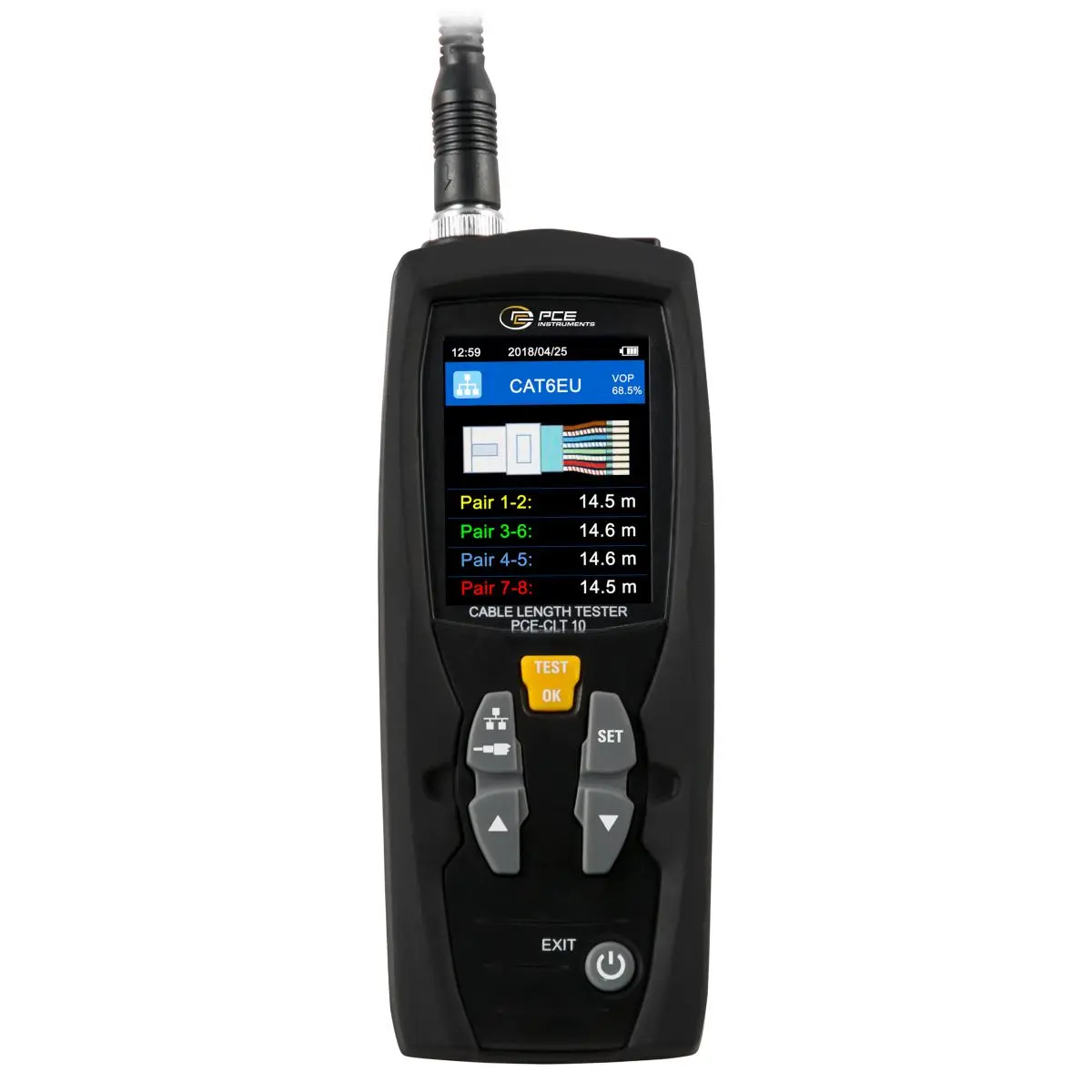

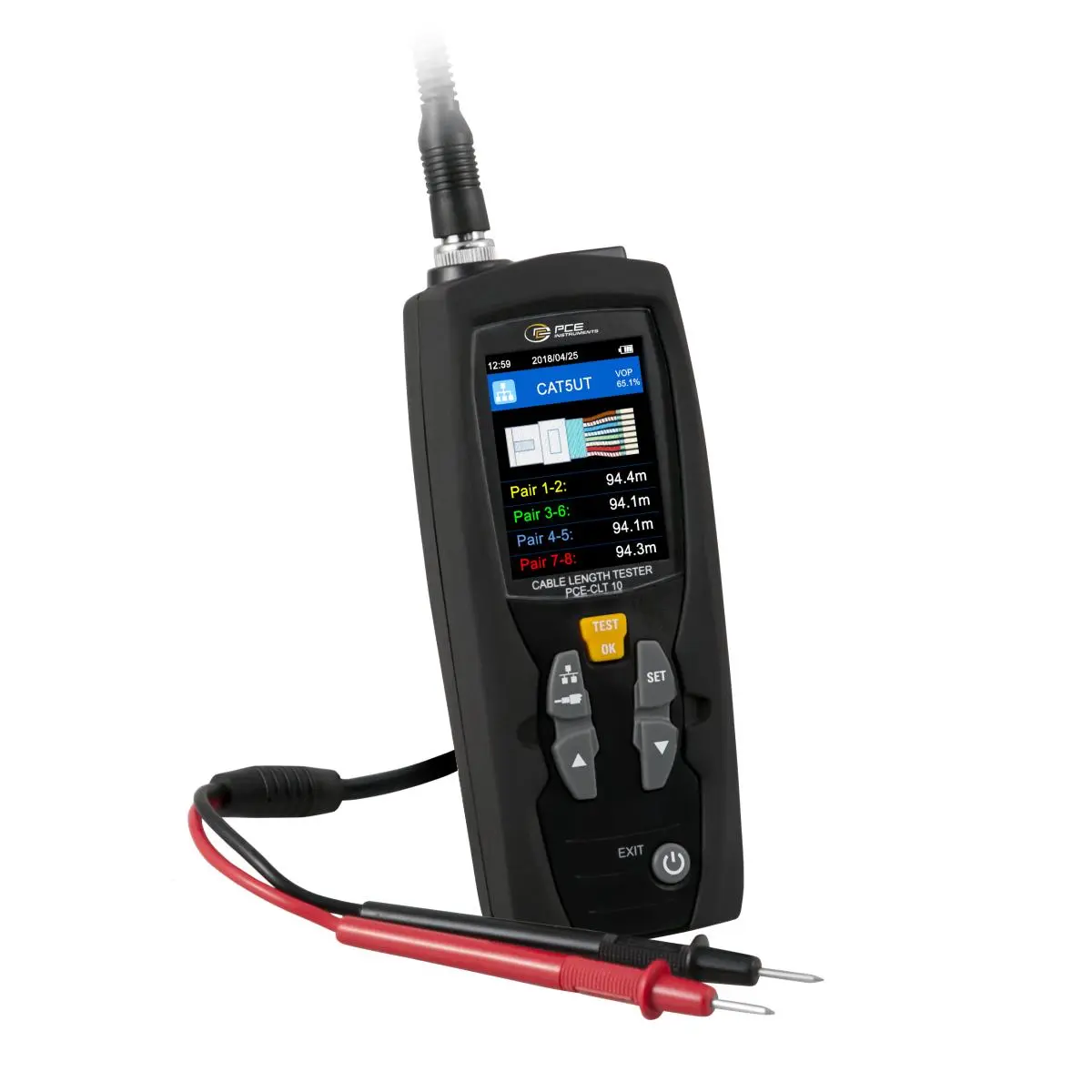

Cable Locator PCE-CLT 10
Cable length measuring device with high measuring accuracy and fast measuring results /
2.4" TFT display / Measuring range up to 3000 meters (9842.5 ft) / 20 preset cable types /
Compact design / additional storage option for up to 99 cable types

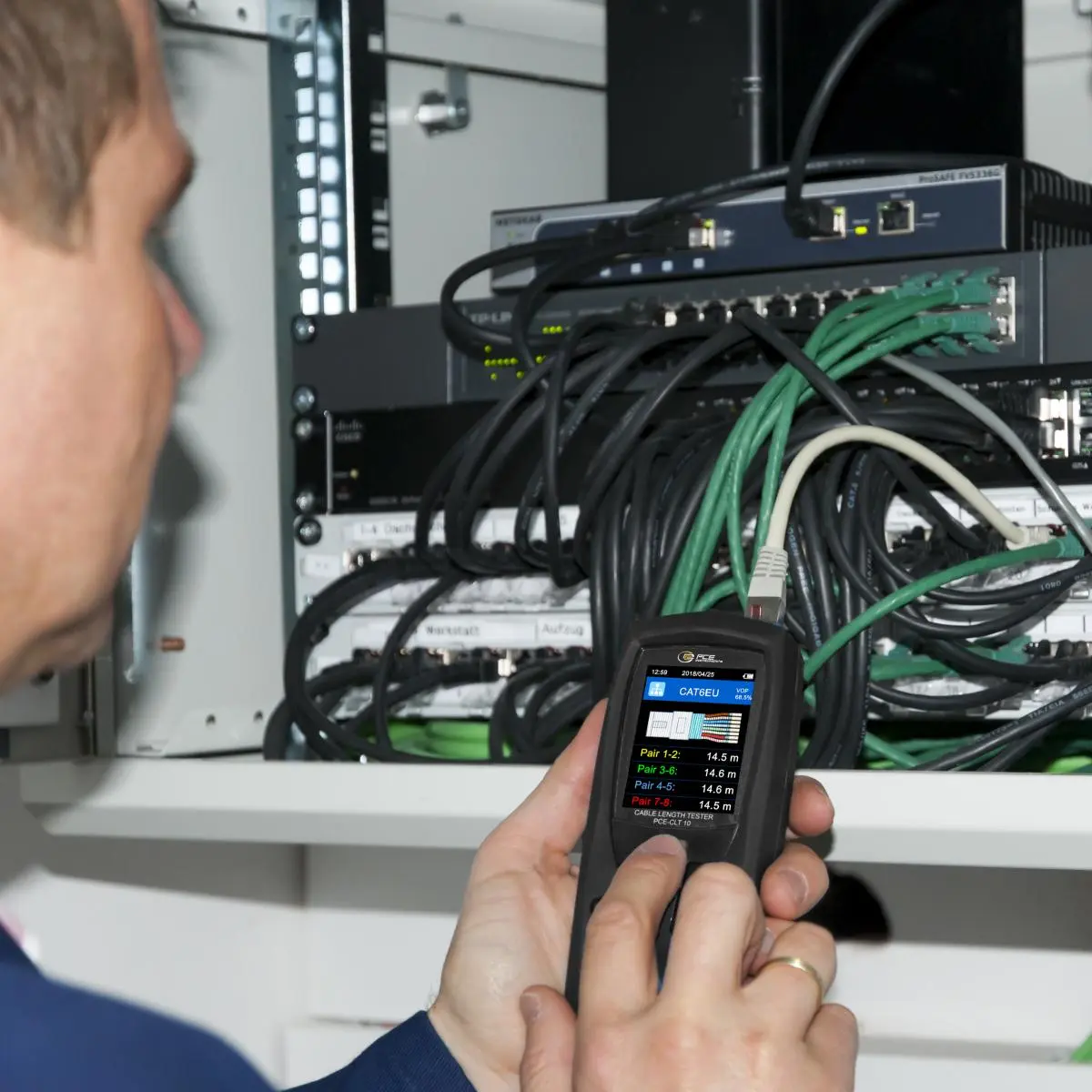

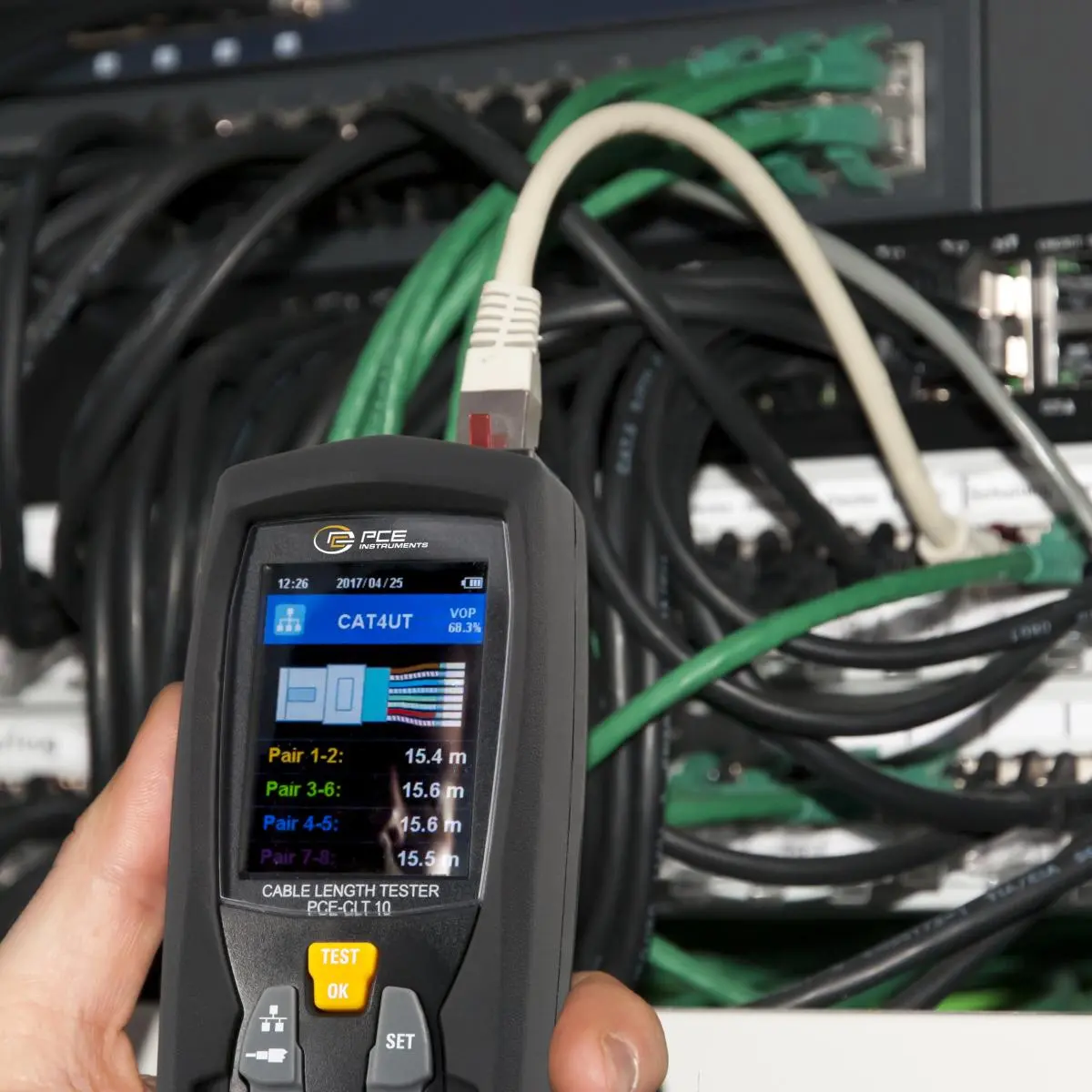

The cable length measuring device PCE-CLT 10 is a multifunctional device which enables high accuracy and fast measurement results. If used appropriately, the cable length meter can be used to measure cables that are installed or are ready to be installed. The cable length measuring device can be used to determine cable lengths of up to three kilometers or two miles by time domain reflectometry. The cable length tester has 20 standard types of cables that are pre-stored and user-defined storage of up to 99 cable types is also possible on the device itself. The stored data can be viewed directly on the device and can be used as required. Due to the built-in technology comparatively short cables can be tested.

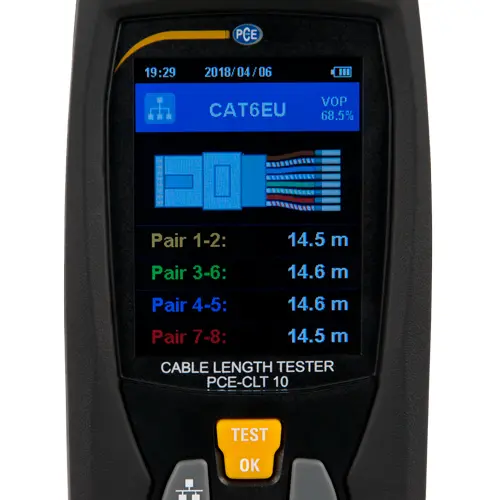

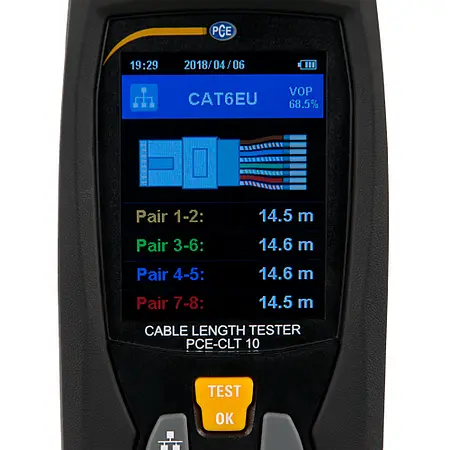

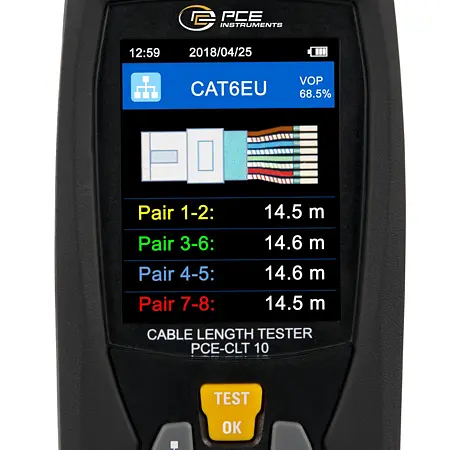

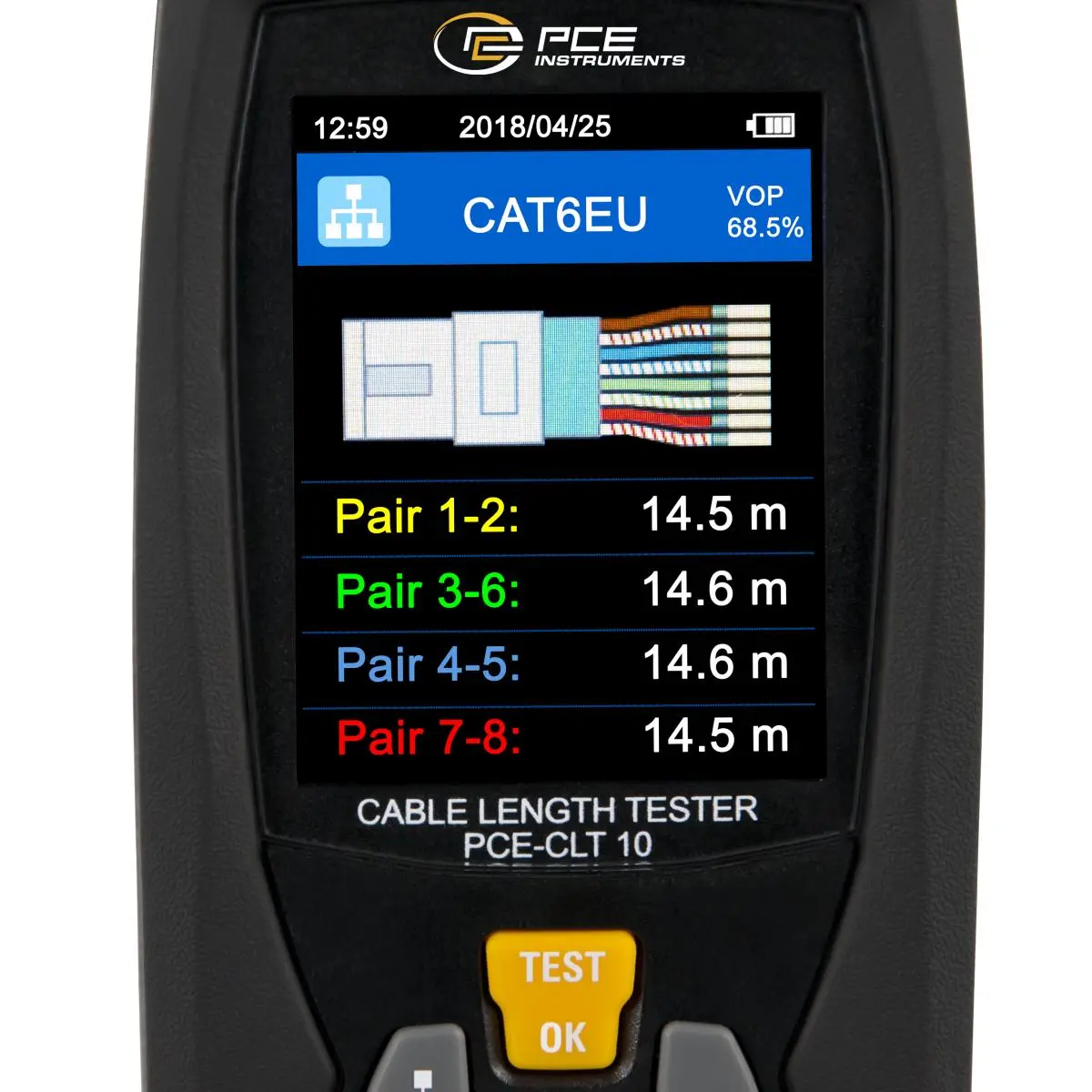

To increase battery life, the device automatically shuts off after 10 minutes of inactivity. This automatic shutdown can be set individually by the user at intervals of 10 minutes. In addition to the automatic shutdown, the device offers a bright TFT display, which makes a quick reading of the measurement results also possible due to its backlighting.
Measuring range cable length |
Depending on the propagation speed of the tested cables 5 ... 3000 m / 16.4 ... 9842.5 ft with shortening factor ≤99.9% 5 ... 2400 m / 16.4 ... 7874.0 ft with shortening factor ≤80.0% 5 ... 2000 m / 16.4 ... 6561.7 ft with shortening factor ≤66.0% 5 ... 1500 m / 16.4 ... 4921.3 ft with shortening factor ≤50.0% |
| Measurement units | m, ft |
| Resolution | 0.1 m |
| Measuring principle | Time domain reflectometer |
| Selection area | Automatic control range |
| Measurement accuracy | ± [2% of reading ± 0.2 m] <100 m ± [2% of reading ± 0.5 m] ≤100 m |
| Impedance selector | Automatic output of the impedance control |
| Shortening factor / propagation speed | Adjustable from 1.0 ... 99.9% |
| Cable types | 20 standard cables |
| Memory | 99 memory slots for individual cables |

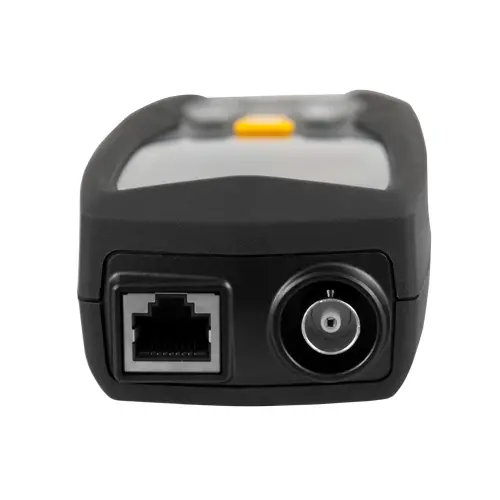

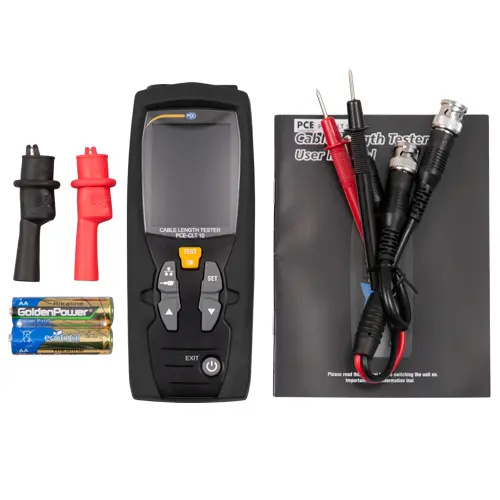

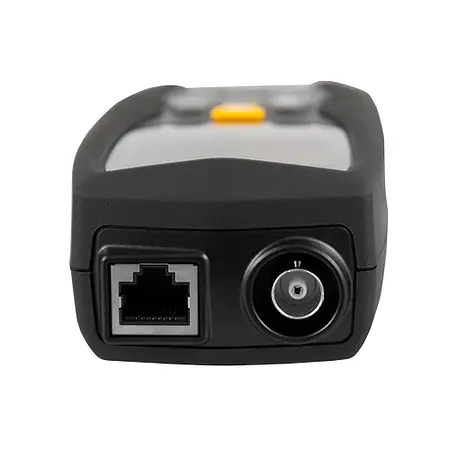

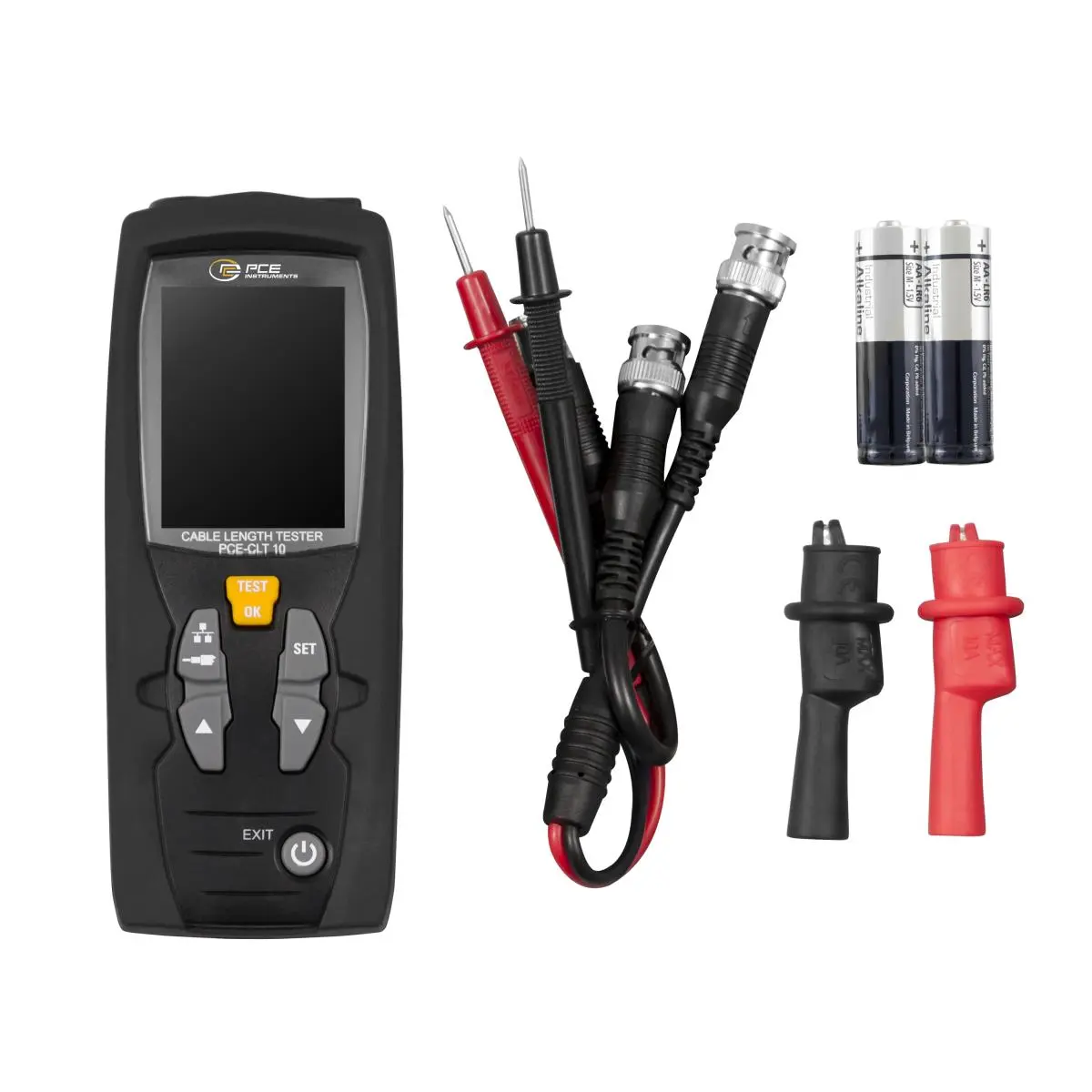

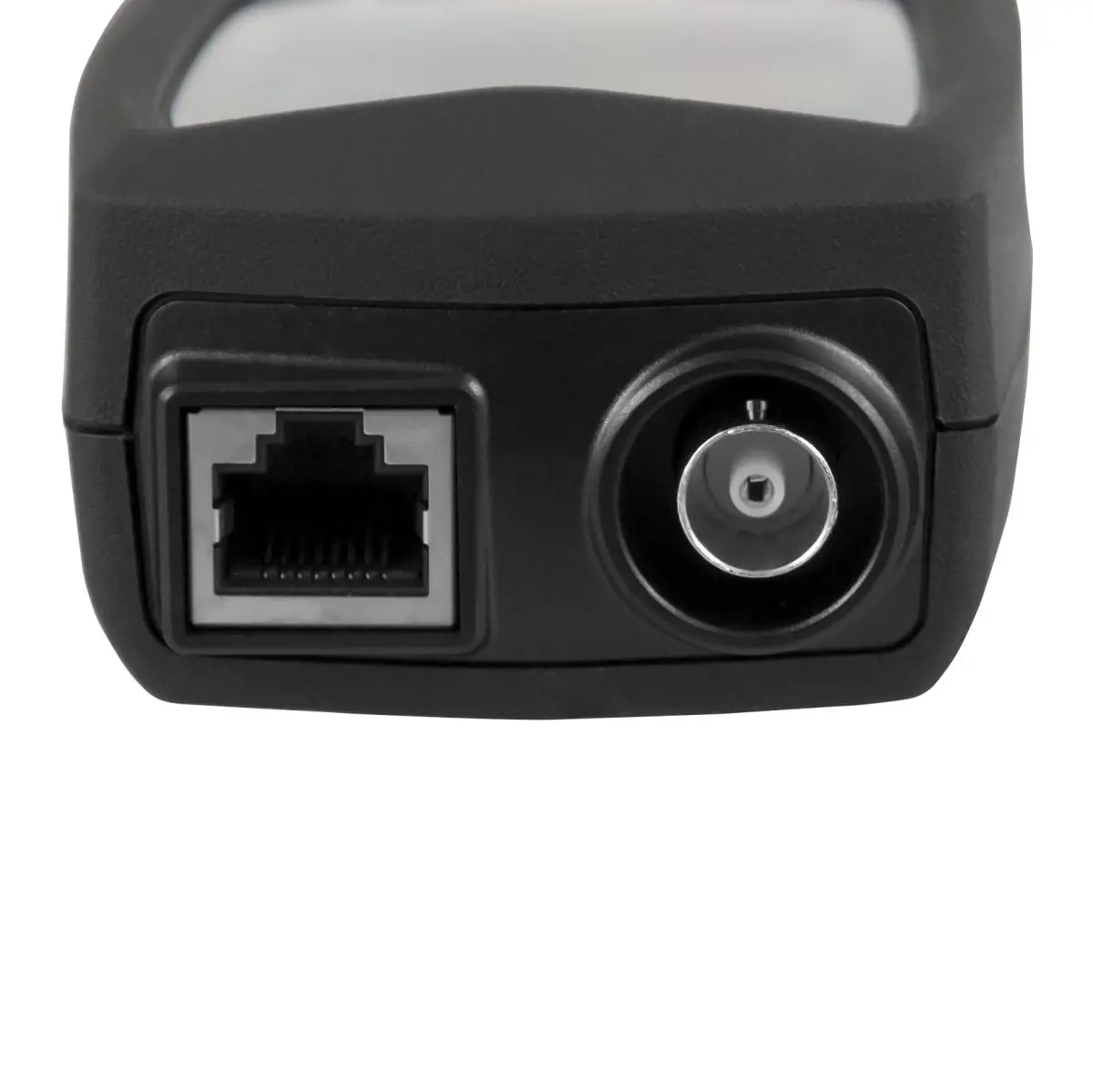

| Connector type | BNC, RJ45, and alligator clips |
| Power supply | 2 x 1.5V AA battery |
| Battery status indicator | Yes |
| Automatic shutdown | Adjustable between 10 and 60 minutes |
| Menu languages | German, English |
| Operating temperatur | 0 ... 40°C / 32 ... 104°F |
| Storage temperature | -10 ... 50°C / 14 ... 122°F |
| Relative humidity | 0 ... 80% rel. humidity |
