Car Measuring Device PCE-CT 27FN-ICA incl. ISO Calibration Certificate

Order no.: PCE-CT 27FN-ICA

GTIN (EAN): 4250348728036

Accessory

Re-Calibration for Coating Thickness Meter

₹15,734.00

Coating Thickness Gauge Spare Probe SE-CT 27FN

₹14,865.00

Description

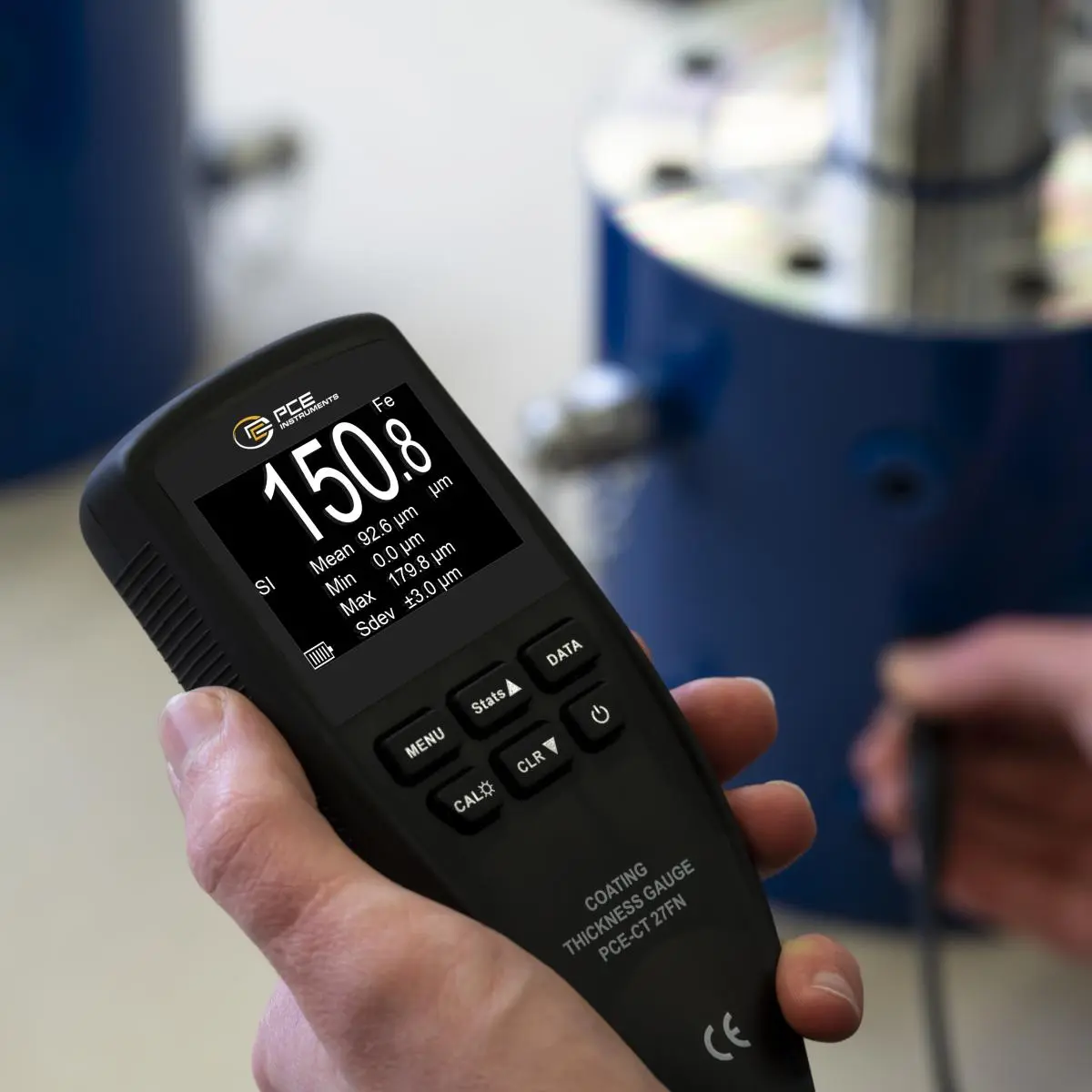

PCE-CT 27FN Car Measuring Device

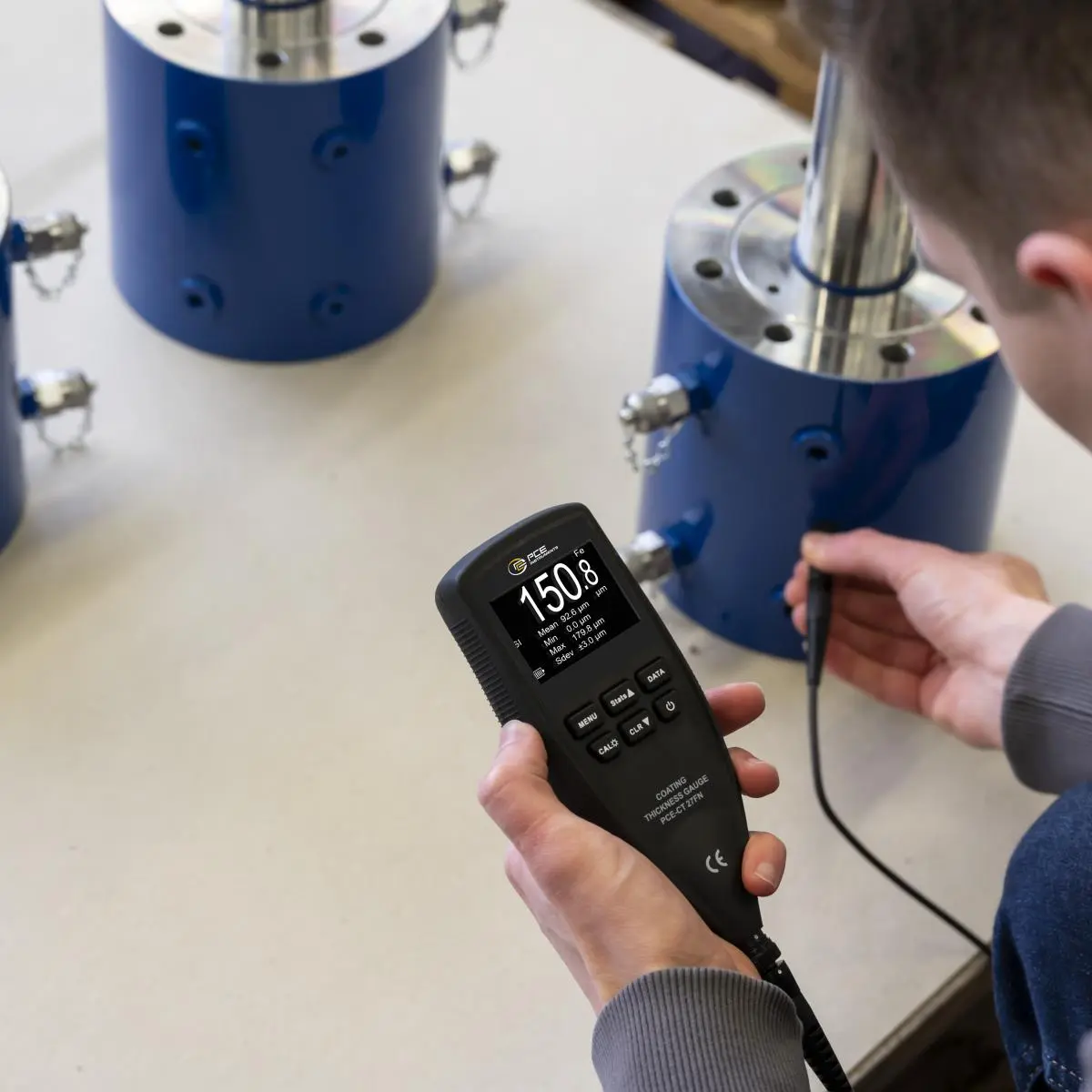

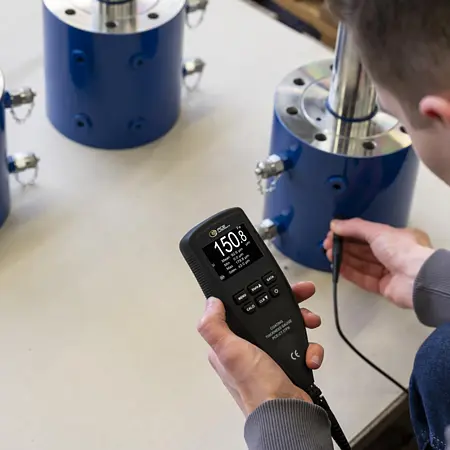

PCE-CT 27FN is a Car Measuring Device that takes non-destructive measurements of nonmagnetic coating, insulating layer and dry film thickness (DFT) on metal substrates such as steel and aluminum. Ideal for surface testing, automotive paint inspection, material testing and manufacturing quality control applications, this Car Measuring Device is designed to measure layers of paint, ink, plastic, chrome, copper, zinc, enamel, paper, glass, rubber and similar materials.

Highlights

- Features an external sensor with v-groove for reliable measurement on small cylindrical parts
- Includes a set of calibration standards for ferrous and non-ferrous metals
- Supplied with a set of plastic shims or foils

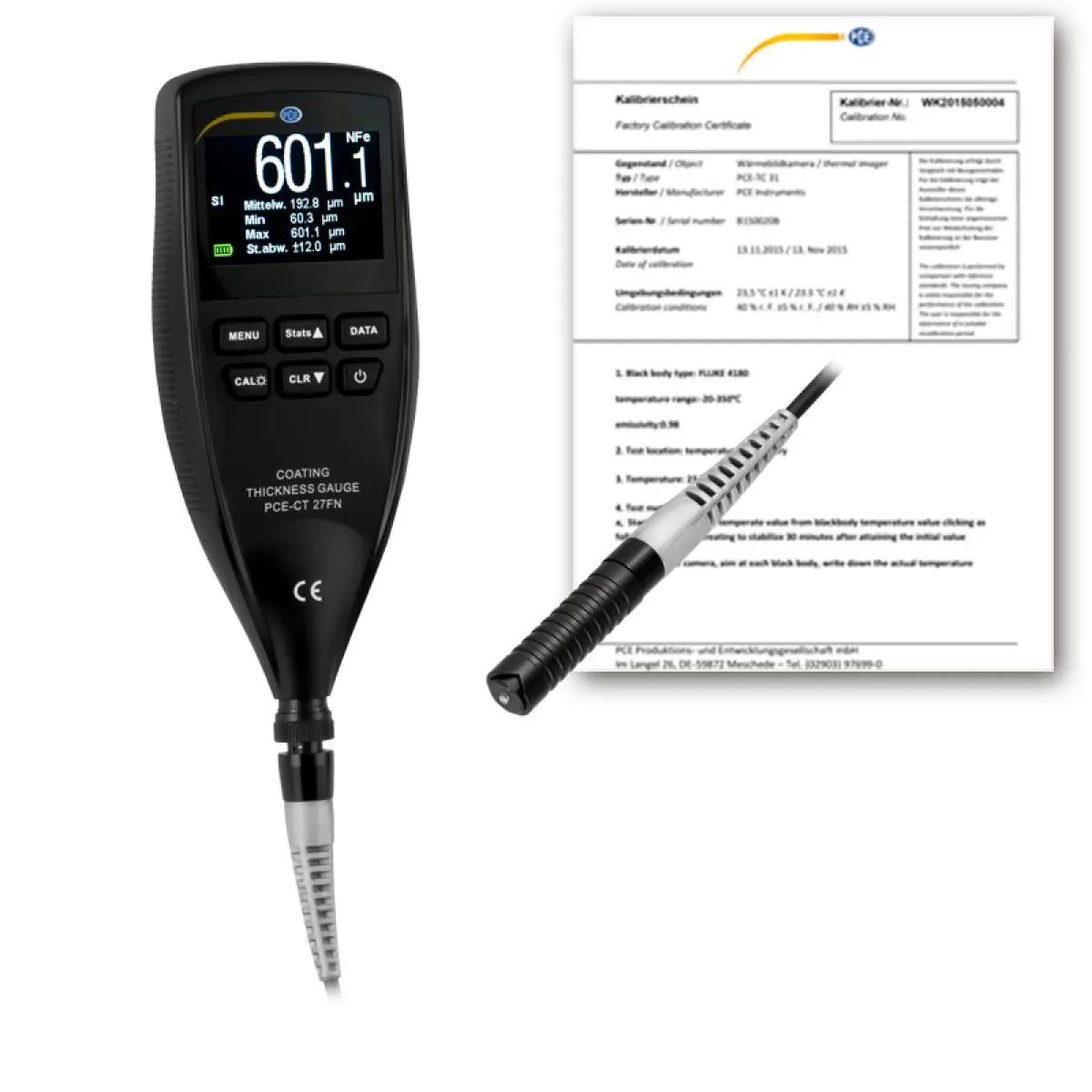

- Incl. ISO Calibration Certificate

Specification

Measuring range	0 ... 1250 µm / 0 ... 50 mils
Accuracy	± (2% + 2 µm) / ± (2% + 0.1 mils)
Resolution	0.1 µm / 0.1 mil
Operating temperatures	-10 ... 50°C / 14 ... 122°F
Power	2 x 1.5V batteries
Dimensions	166 mm x 68 mm x 30 mm 6.54 in x 2.68 in x 1.18 in
Weight	0.180 kg / < 1 lb

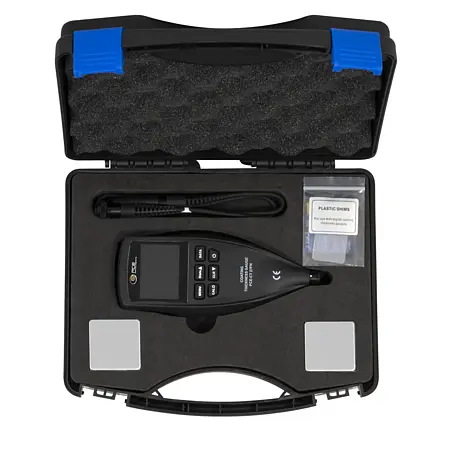

Delivery Scope

1 x PCE-CT 27FN Car Measuring Device
1 x Set of calibration standards
1 x Probe with 1 m / 3.28 ft long cable
1 x Set of plastic shims
1 x Carrying case
2 x 1.5V batteries
1 x User manual
1 x ISO calibration certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
