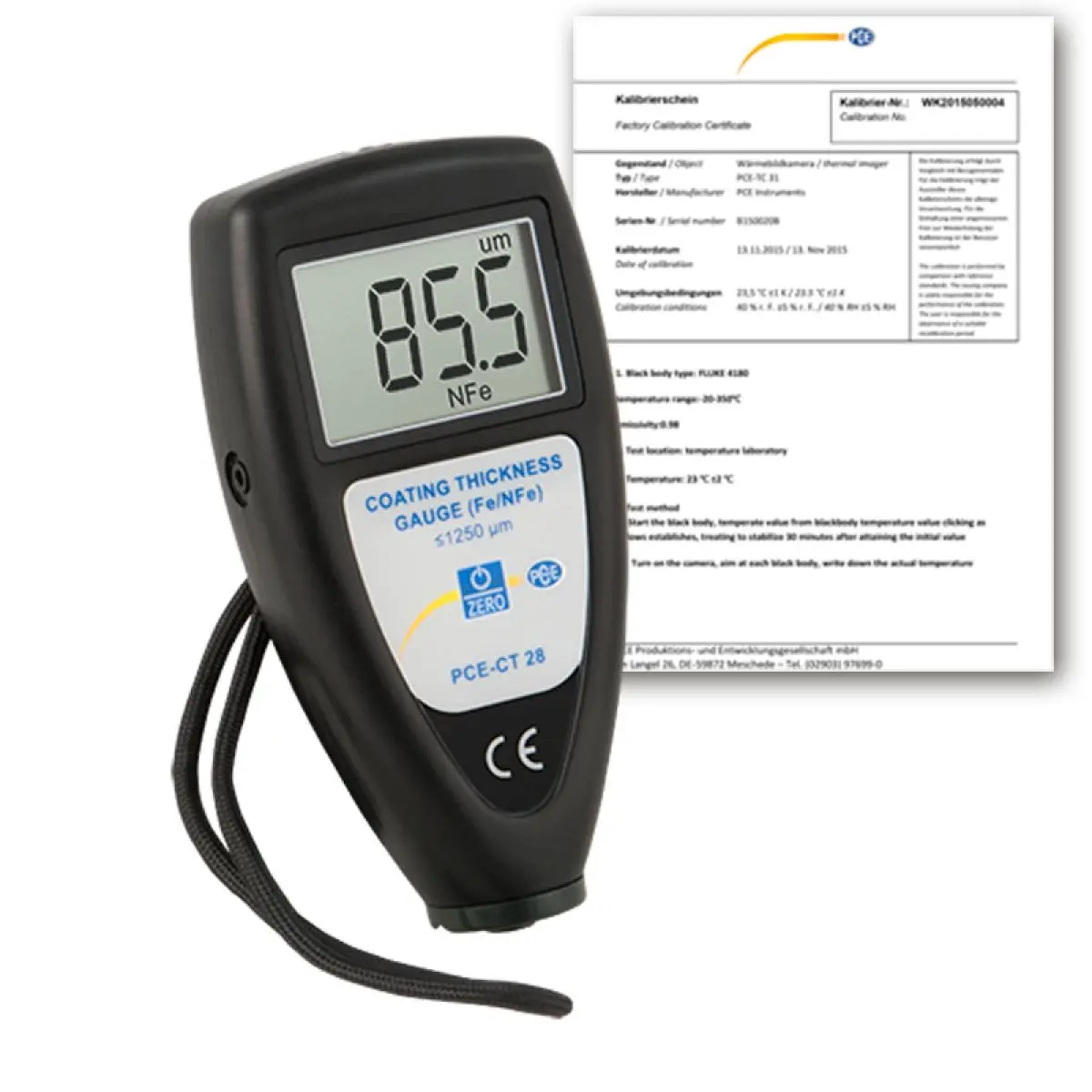

Car Measuring Device PCE-CT 28-ICA incl. ISO Calibration Certificate

Order no.: PCE-CT 28-ICA
GTIN (EAN): 4250348727732
₹95,217.00
₹112,356.06
ISO Calibration
price ex. (VAT / delivery)
:
4250348727732
PCE-CT 28-ICA
Delivery time: 10 - 14 days
Ferrous & Non-ferrous metals
Coating
1250 µm
No
No

Accessory

Re-Calibration for Coating Thickness Meter
Re-Calibration for Coating Thickness Meter
₹15,734.00

Description

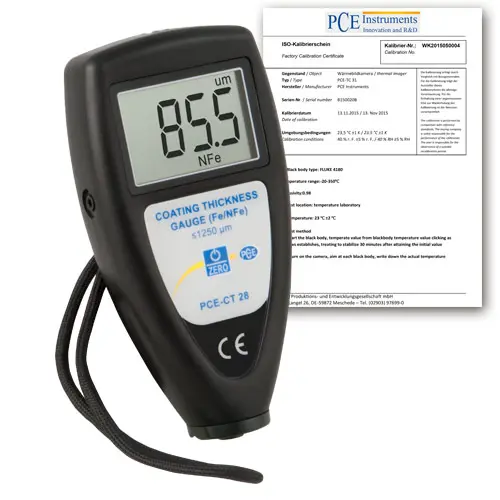

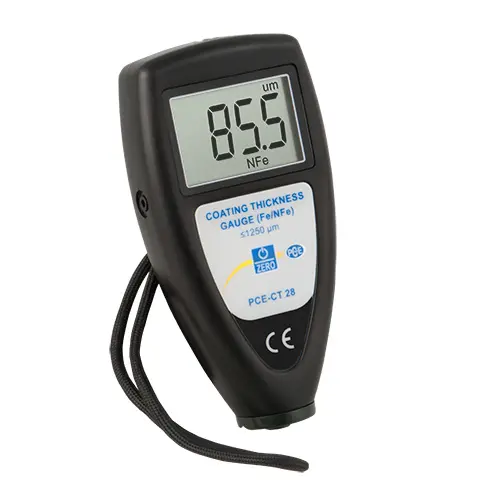

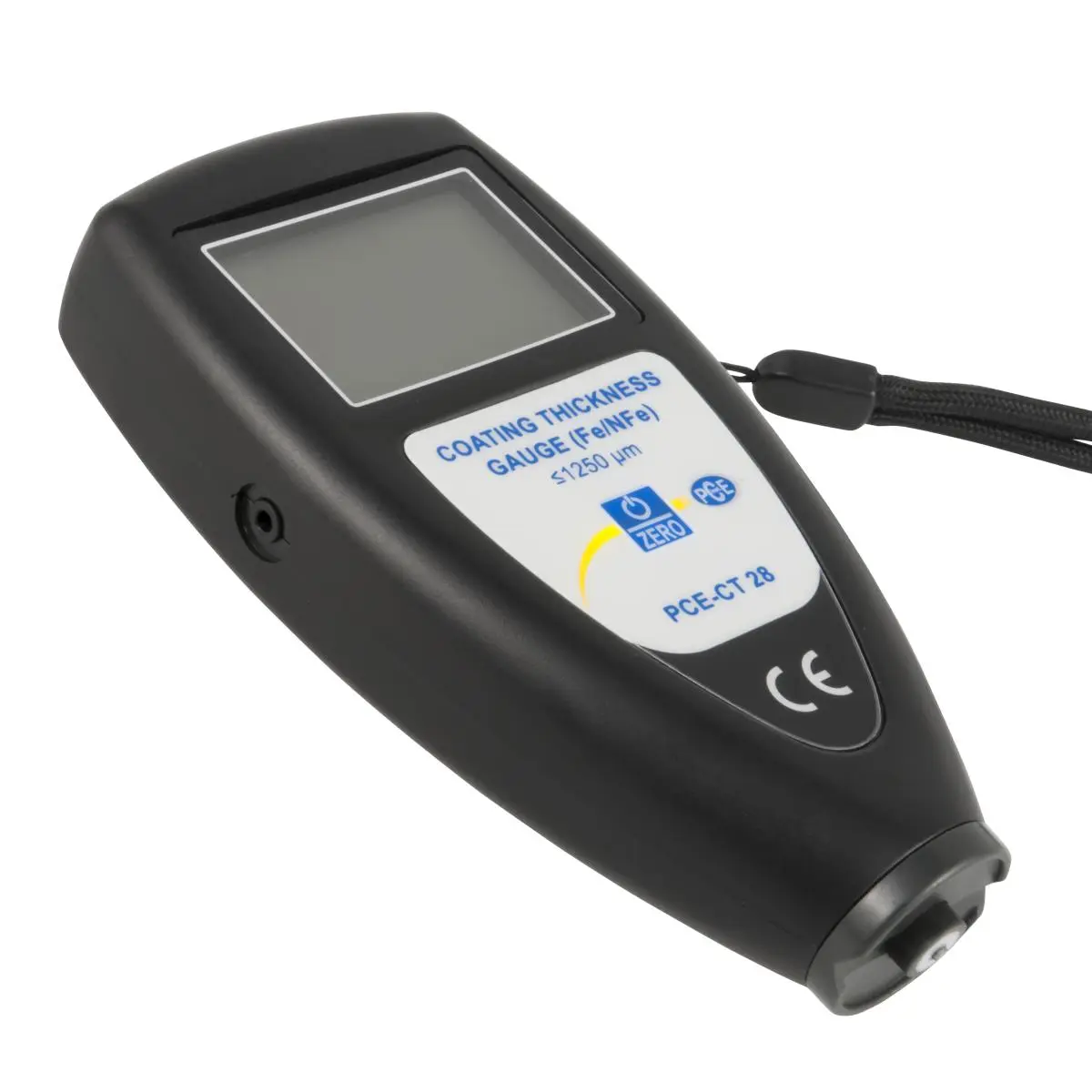

Car Measuring Device PCE-CT 28
Determines thickness of coating on steel or iron (F) / Non-ferrous metals (N) with high range of measurement

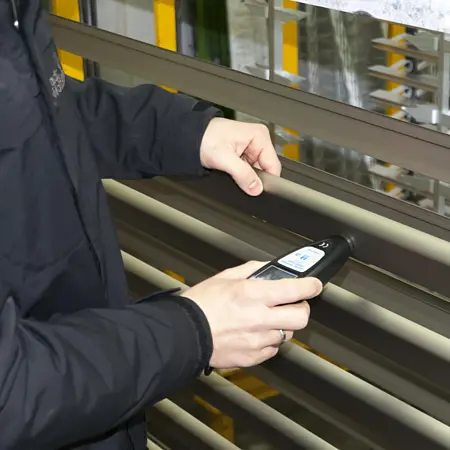

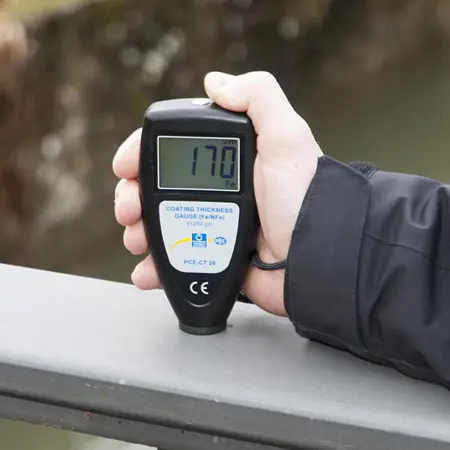

The car measuring device for cars is for measuring the thickness of paint and plastic on ferrous or non-ferrous materials without damaging the coating's surface. The  car measuring device stands out due to its high range of measurement. This car measuring device works excellently as a tool for technicians in areas of paint or lacquering such as in production, automotive body repair or quality control. The car measuring device is particularly useful in detecting damage to vehicles produced by an accident, for preventing possible damage or as a toll in auto body repair. Also, in the industrial sector, this device is essential for quality control in shipping and receiving and during production. It is ergonomic with an integrated sensor and it shows results of measurements quickly and accurately. The car measuring device was designed for non-magnetic coatings such as plastic, chrome, zinc, copper, etc. and insulation such as rubber, plastic, glass and paper over steel, iron, aluminium, brass and stainless steel. Thanks to its wide measurement range, the car measuring device is ideal for the naval and metal industries.


Highlights

- F / N: for materials including iron, steel, aluminium, copper, brass and stainless steel
- Instant results
- Large measurement range
- Vibrations do not influence readings

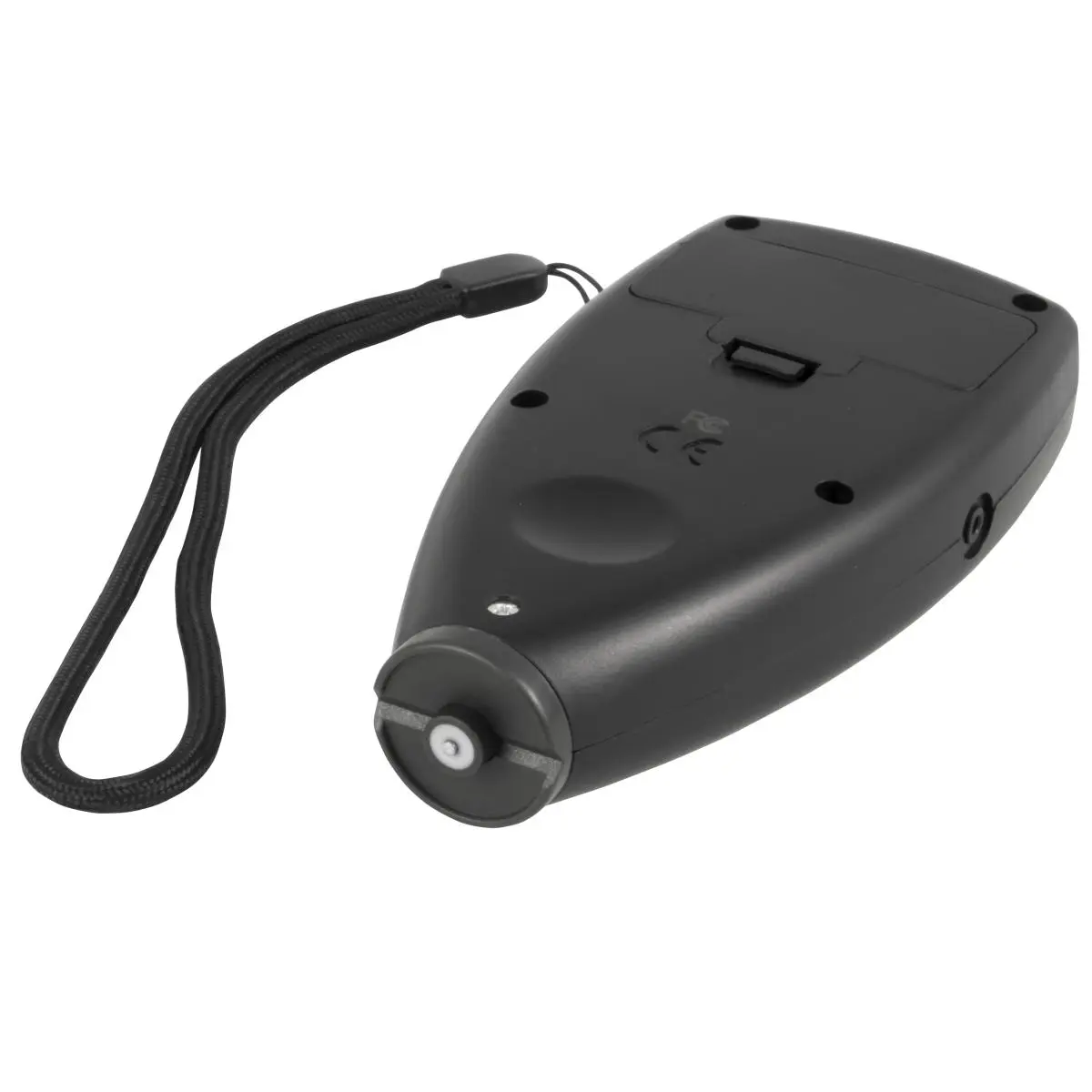

- Elastic lined measuring head to ensure accurate results and prevent wear

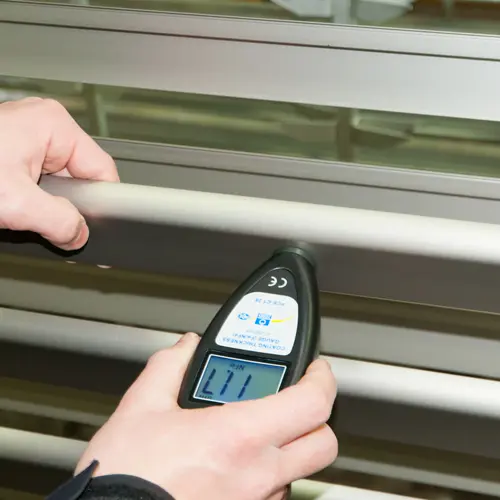

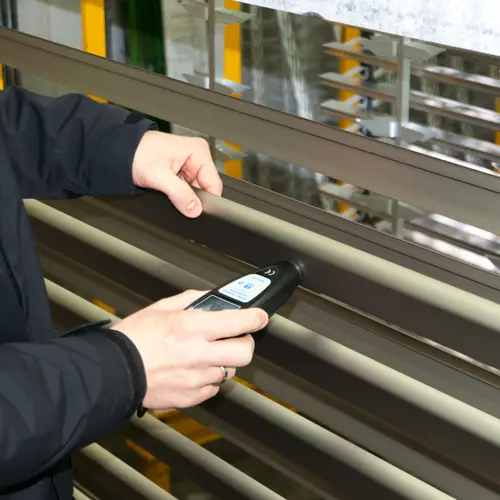

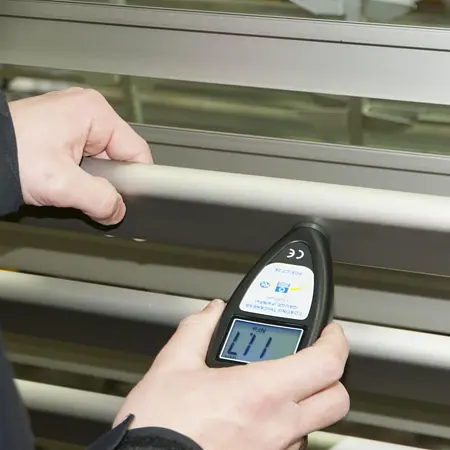

- The v-slot simplifies the measurement on round surfaces acting as a reference or axis point

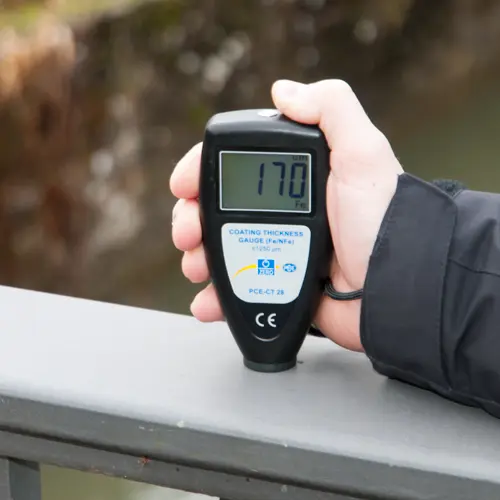

- Can be operated comfortably with only one hand thanks to its design and integrated sensor
- Incl. ISO Calibration Certificate
- Complete with battery, carrying case, calibration standards and user's manual

Specification

Measurement range 0 ... 1250 µm / 49.2 mils
Resolution 0.1 µm / 0.004 mils (in a range of 0.0 to 99.9 µm / 3.9 mils)
1 µm / 0.04 mils(above the range)
Accuracy ±2 % or 2.5 µm / 0.10 mils (highest reading is valid)
Minimum surface measurable 6 mm x 6 mm / 0.2 in x 0.2 in
Minimum radial curve convexed: 5 mm / 0.2 in
concaved: 60 mm / 2.4 in
Minimum thickness of material 0.3 mm / 0.01 in (for ferrous materials)
0.1 mm / 0.004 in (for non-ferrous materials)
Display LCD with 4 mm x 10 mm (0.2 in x 0.4 in) high digits
Operating temperature 0 ... 50°C / 32 ... 122°F
Power 4 batteries
Dimensions 126 x 65 x 27 mm /
5.0 x 2.6 x 1.1 in
Weight 120 g / 0.26 lbs with batteries

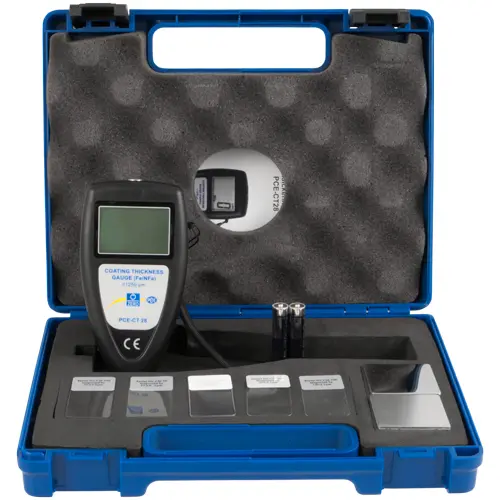

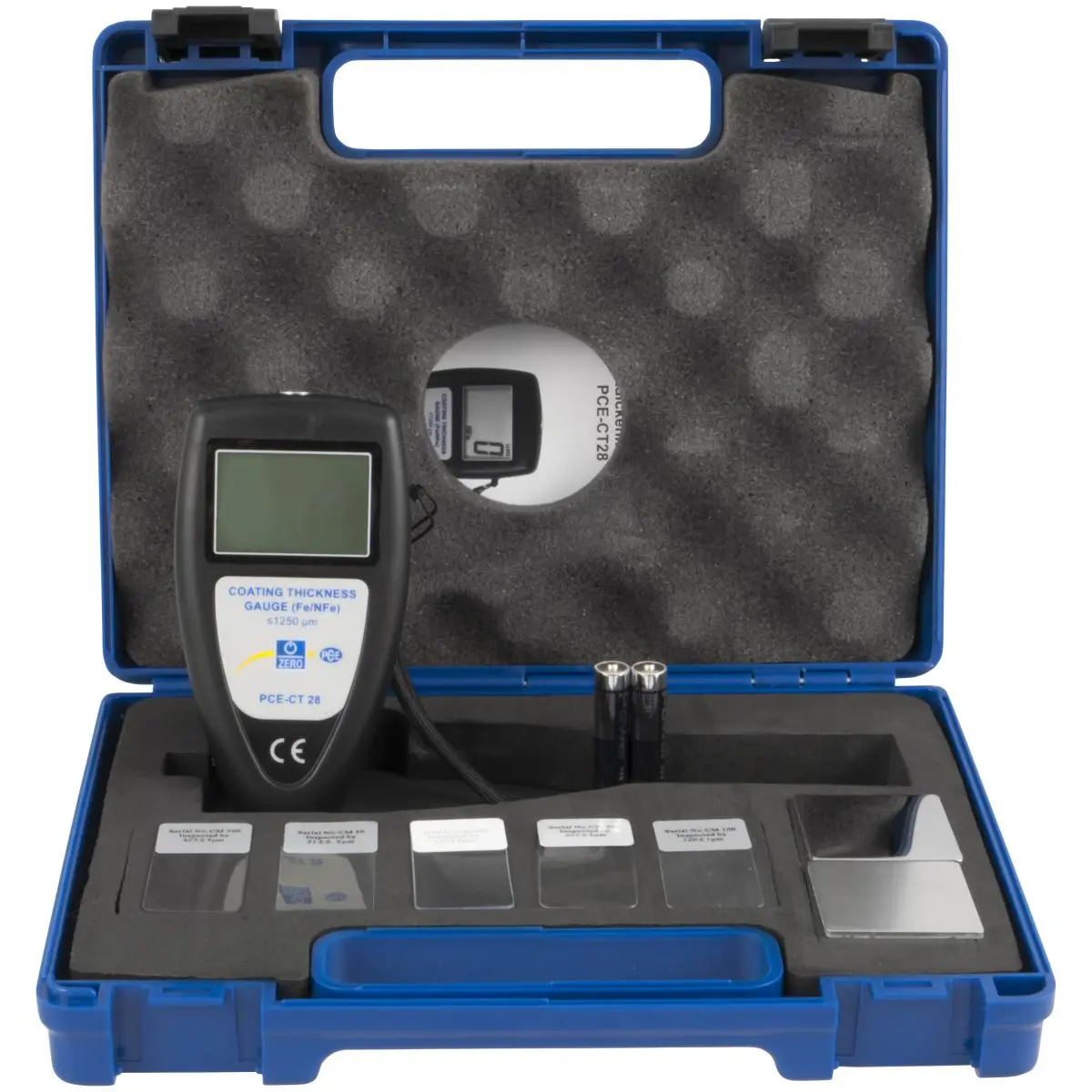

Delivery Scope

1 x Car Measuring Device PCE-CT 28
1 x Carrying case
4 x Batteries

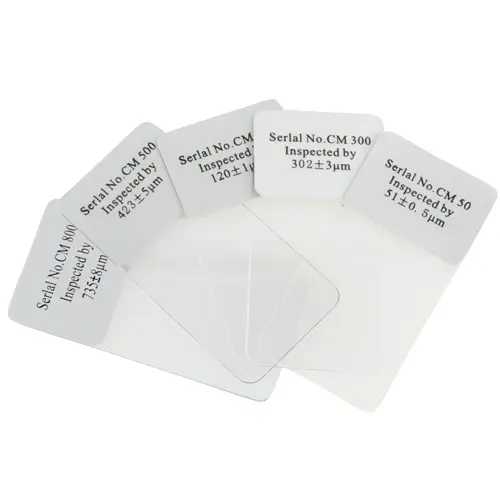

1 x Set of calibration standards
1 x User's manual
1 x ISO Calibration Certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
