₹22,603.00

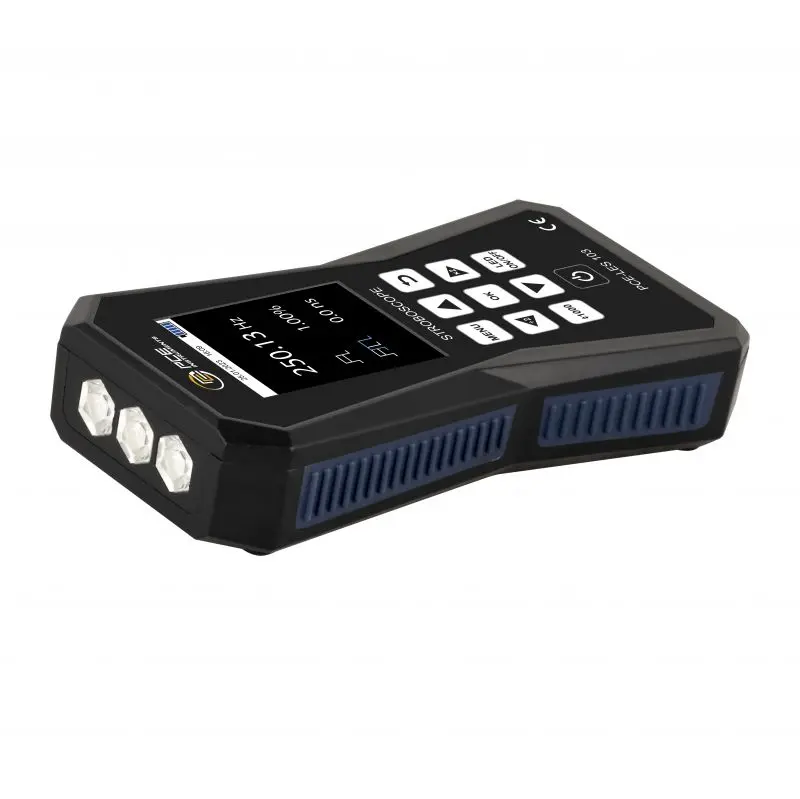

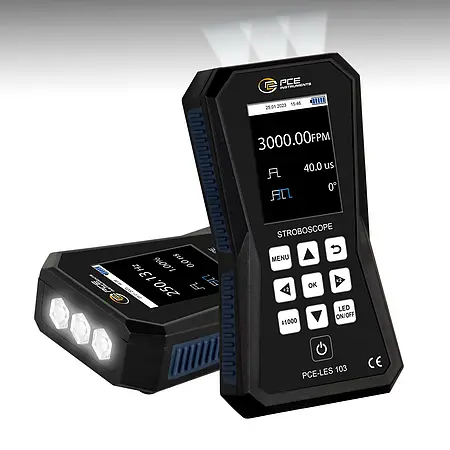

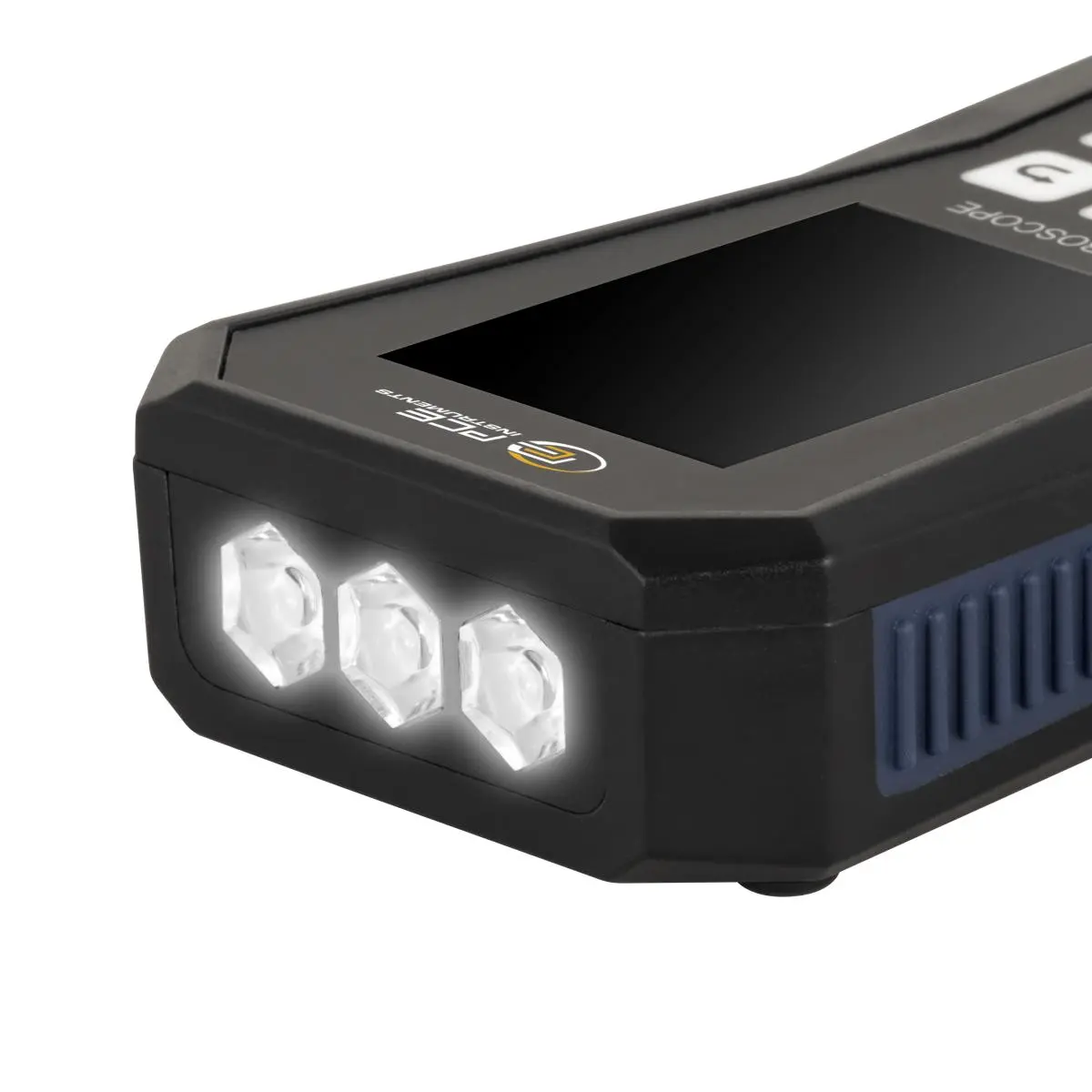

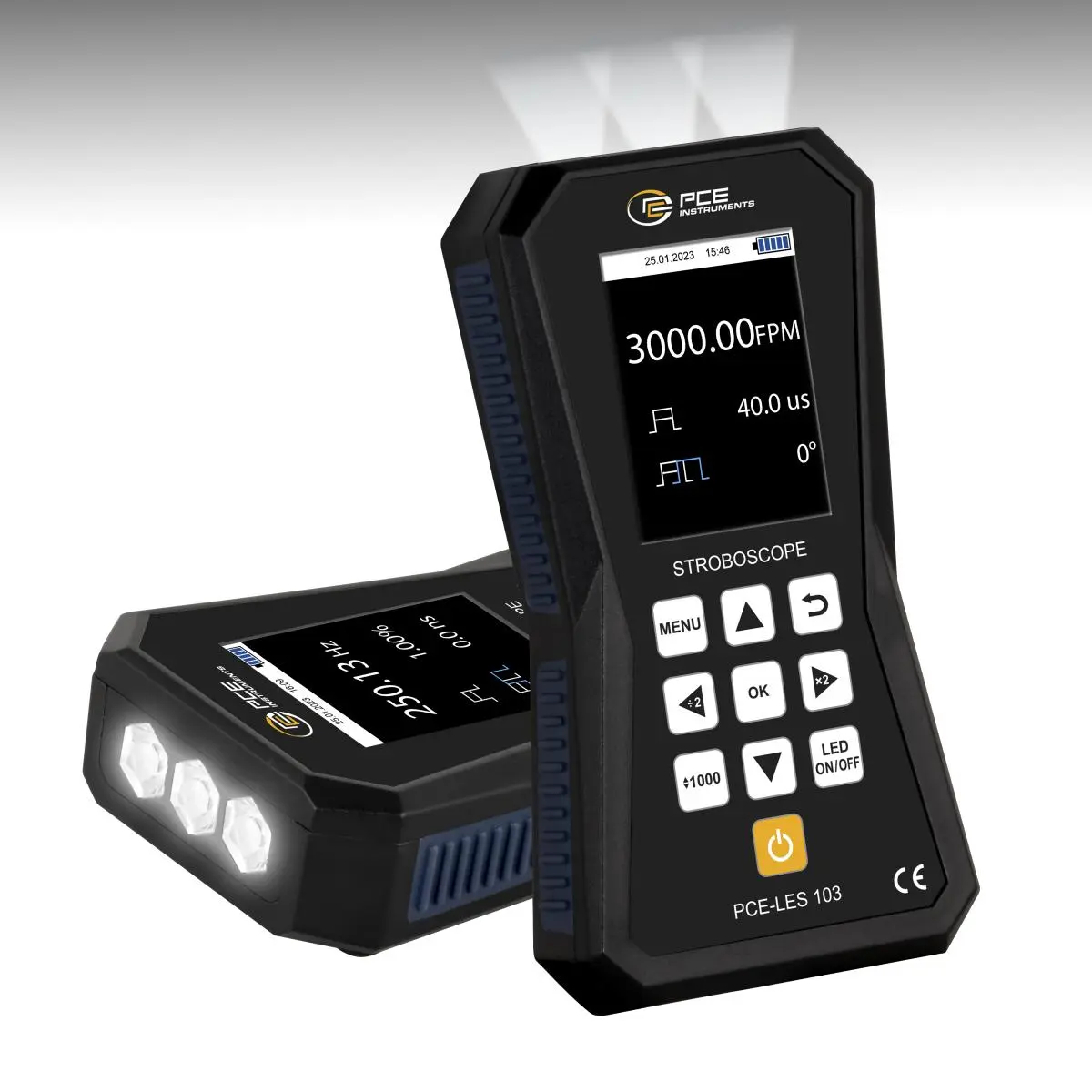

Motion analysis of rotating machines is quick and easy with our car measuring device. The car measuring device is equipped with 3 high-power LEDs, which together generate a light intensity of 11730 lux at 20 cm / 1000 Hz.
With the car measuring device, you can precisely set the flash frequency in both FPM and Hz. It is also small, handy and mains-independent thanks to the rechargeable battery.

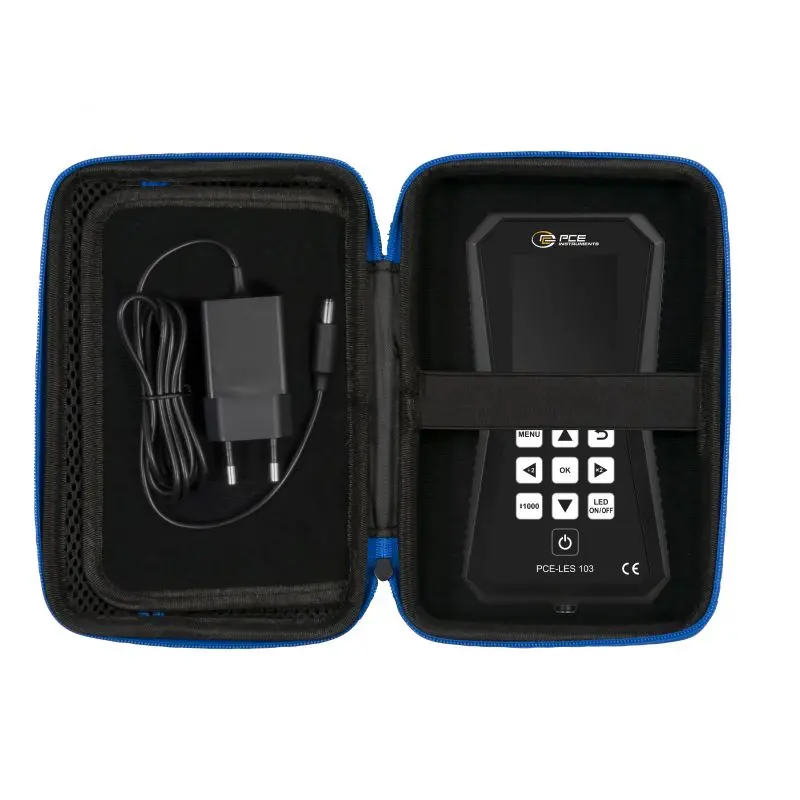

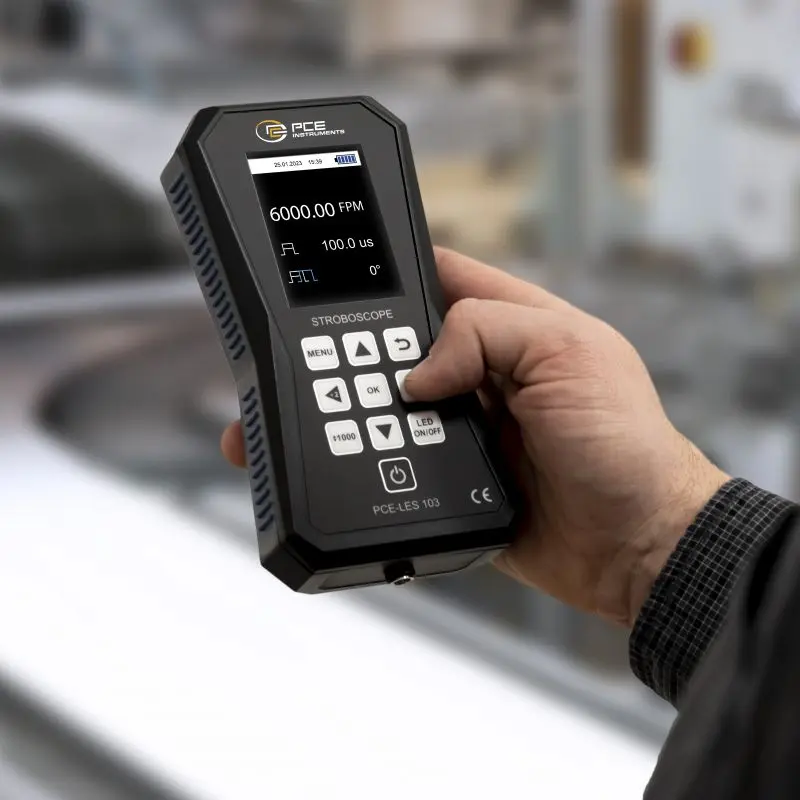

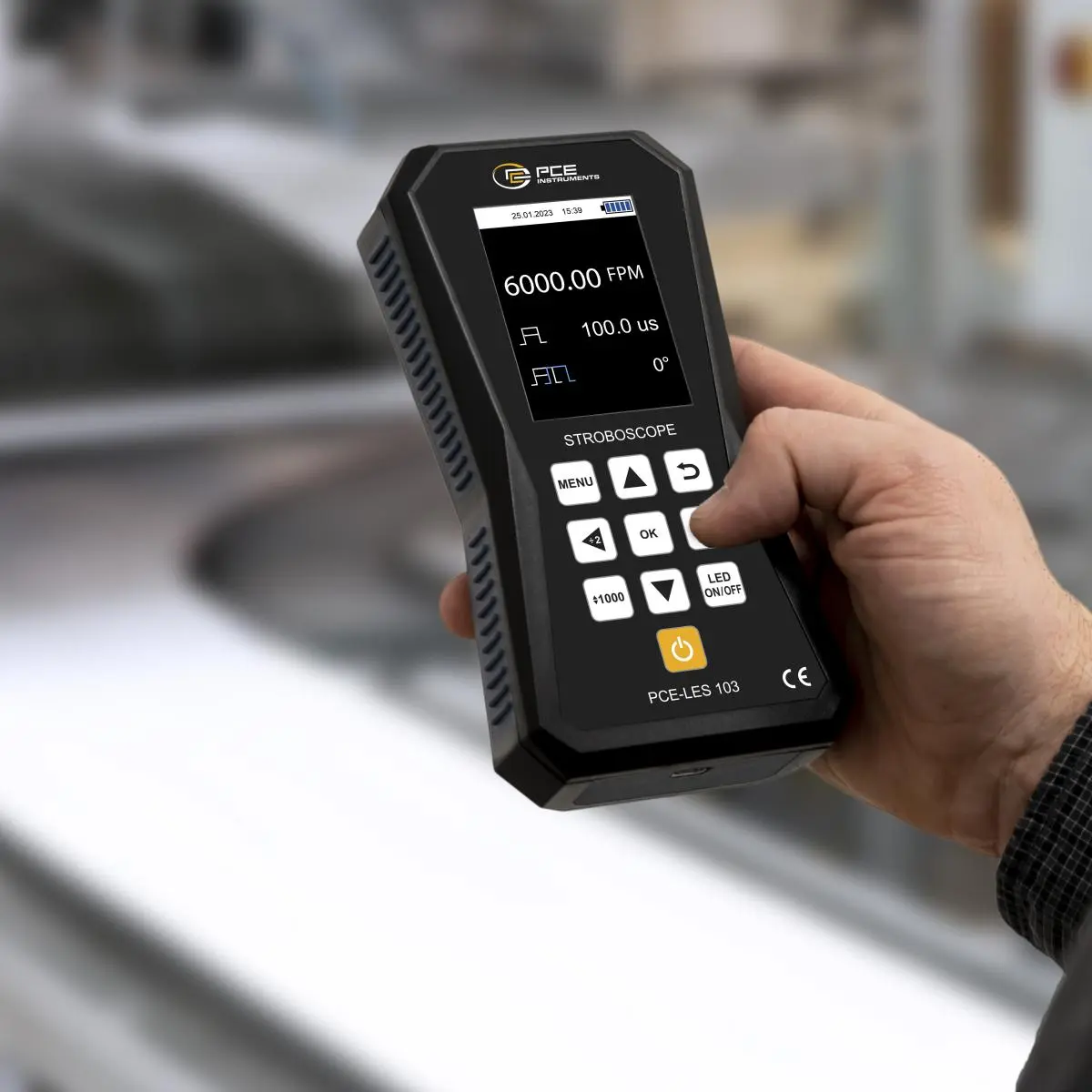

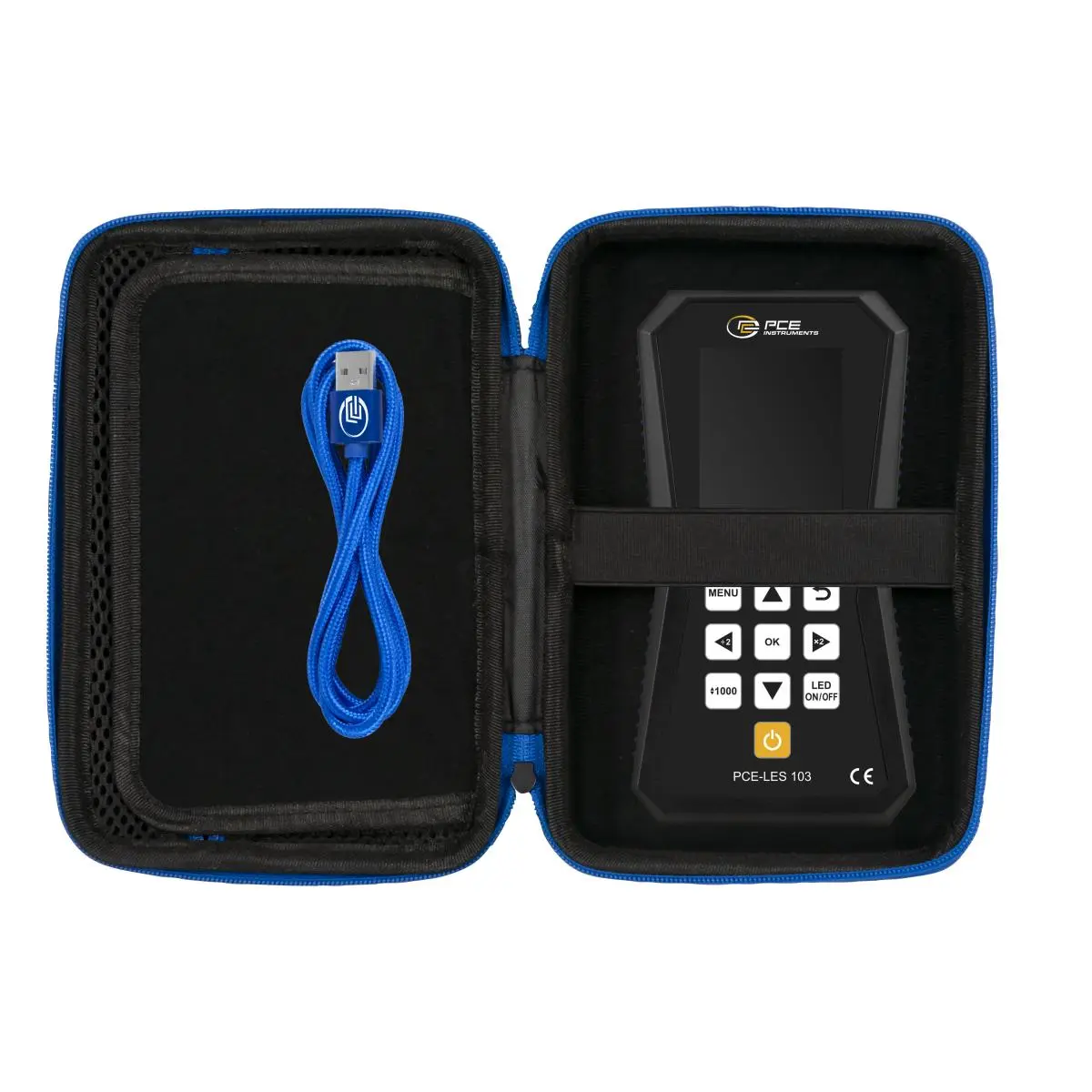

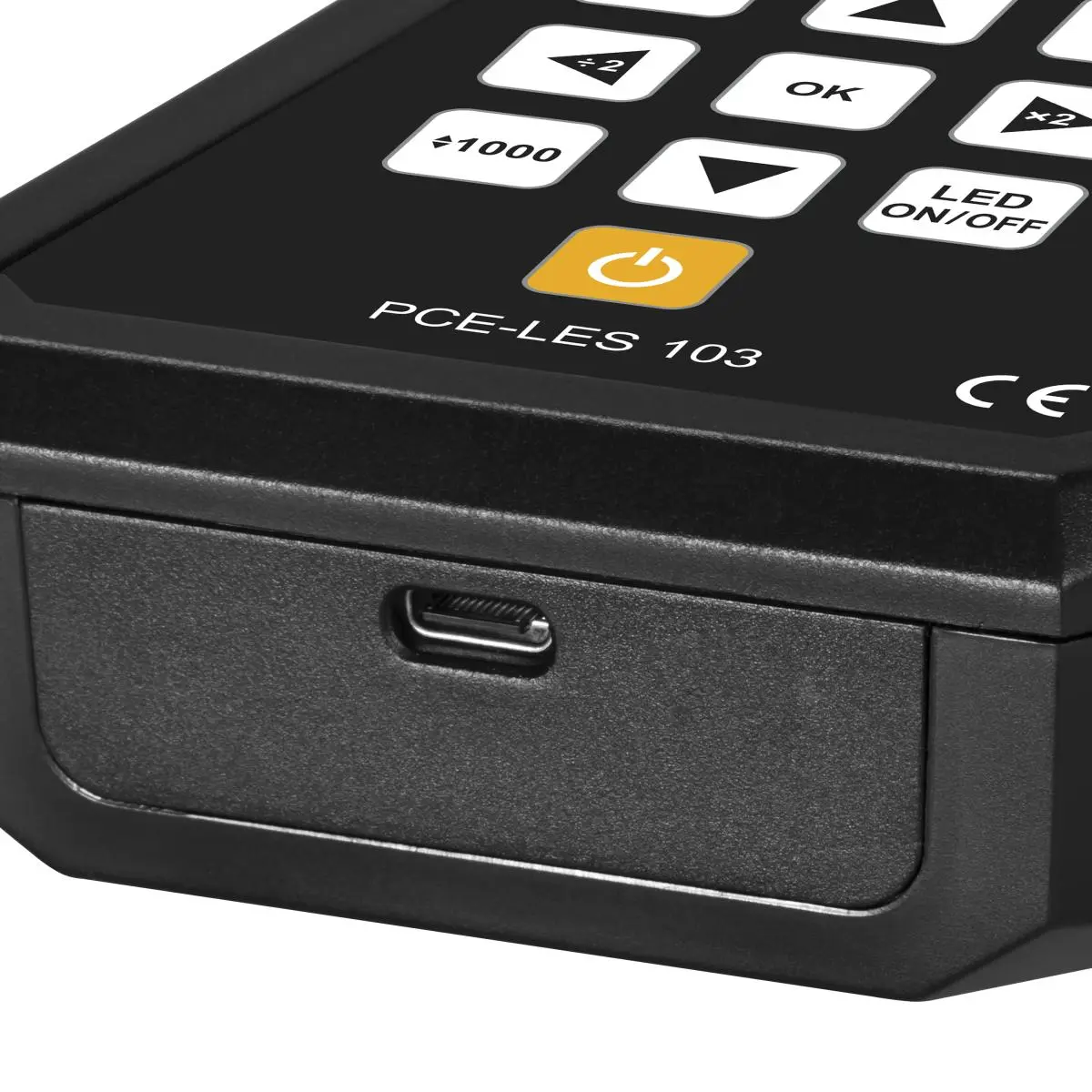

The car measuring device is operated intuitively using the 10 buttons, allowing quick adjustments to be made. The phase shift allows the observation point to be moved variably. The pulse width can be used to set the duration and therefore also the intensity of the flash frequency. The display brightness can be selected in the settings menu, as can switching off the display after a period of inactivity, which extends the battery life. The car measuring device is supplied with a USB-C charging cable in a service bag.

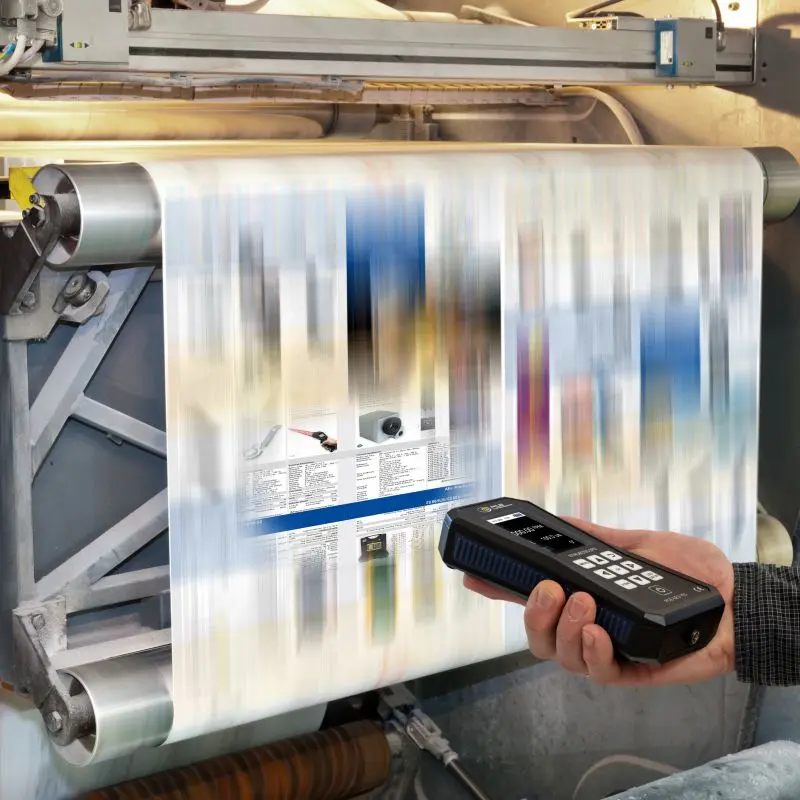

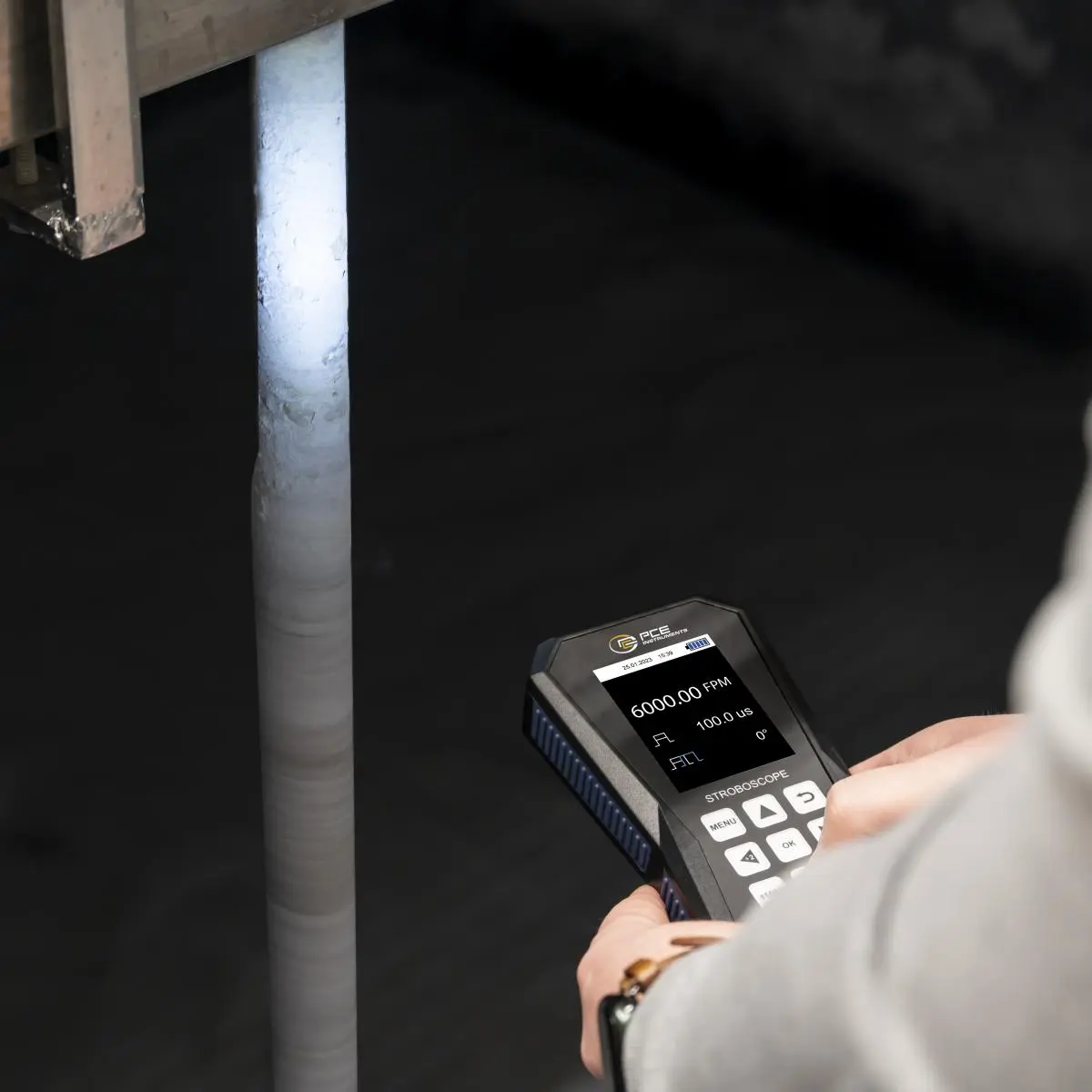

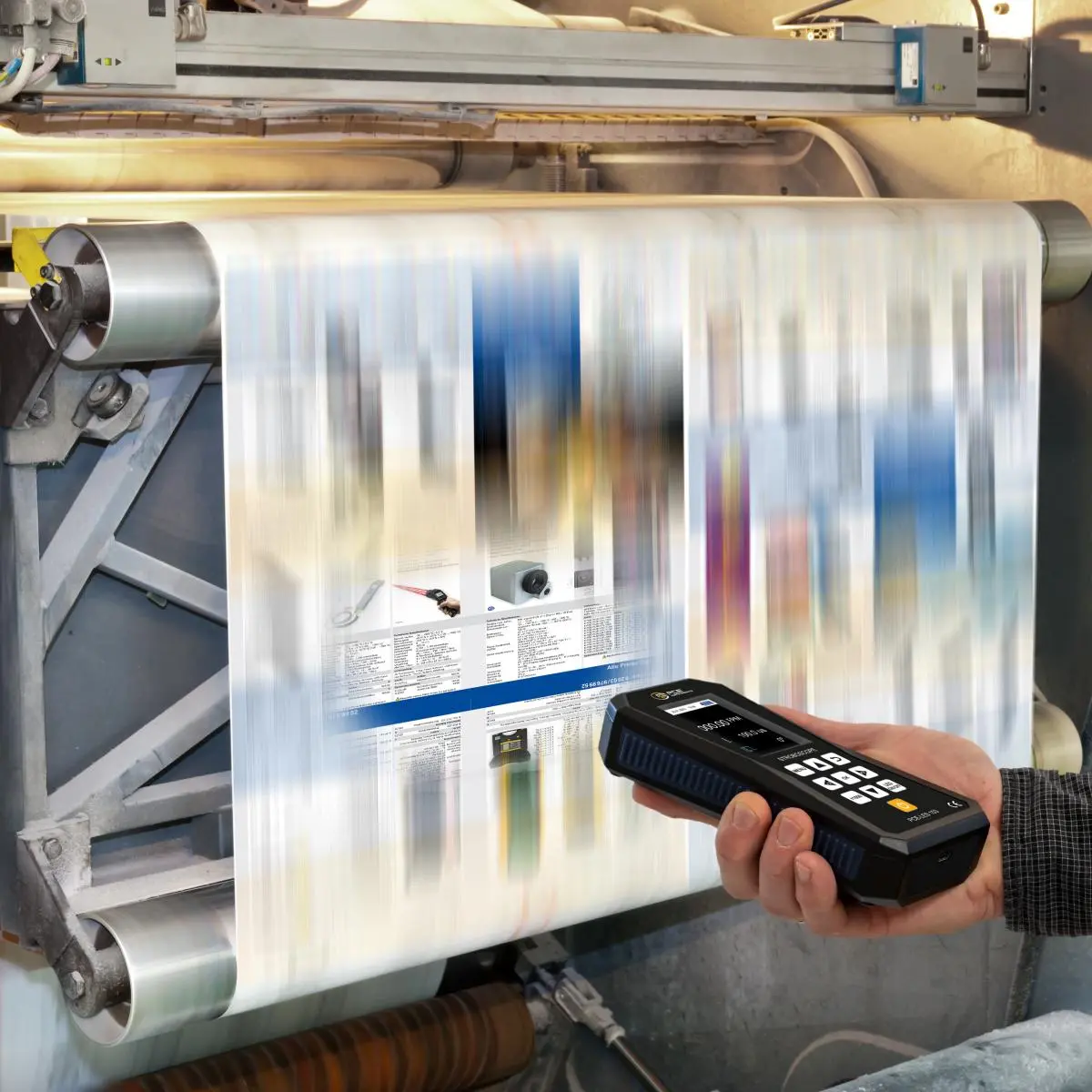

The car measuring device is an indispensable tool for monitoring and inspecting production facilities, e.g. in the printing and textile industries. But also for general maintenance and inspection tasks in all industrial sectors. The car measuring device also enables non-contact speed and vibration measurement: if the flash frequency of the car measuring device matches the frequency of movement, the measured object appears stationary.
| Frequency | |
| Measurement Range | +60 FPM ... +9999.99 FPM |
| Resolution | 0.01 FPM |
| Accuracy | 0.003 % of the setting or ± 1 LSD |
| Frequency | |
| Measurement Range | +10000 FPM ... +300000 FPM |
| Resolution | 0.1 FPM |
| Accuracy | 0.003 % of the setting or ± 1 LSD |
| Frequency | |
| Measurement Range | +1 Hz ... +5000 Hz |
| Resolution | 0.01 Hz |
| Accuracy | 0.003 % of the setting or ± 1 LSD |
| General Technical Data | |
| Display Type | TFT Color Display |
| Display Size | 2.8 inches |
| Operating Time | 4.5 hours |
| Operating Time Additional Information | at flash frequency 100 Hz, 1%, display brightness 70% |
| Adjustable Auto Shutdown | 2 ... 10 min. |
| Auto Shutdown Deactivatable | Yes |

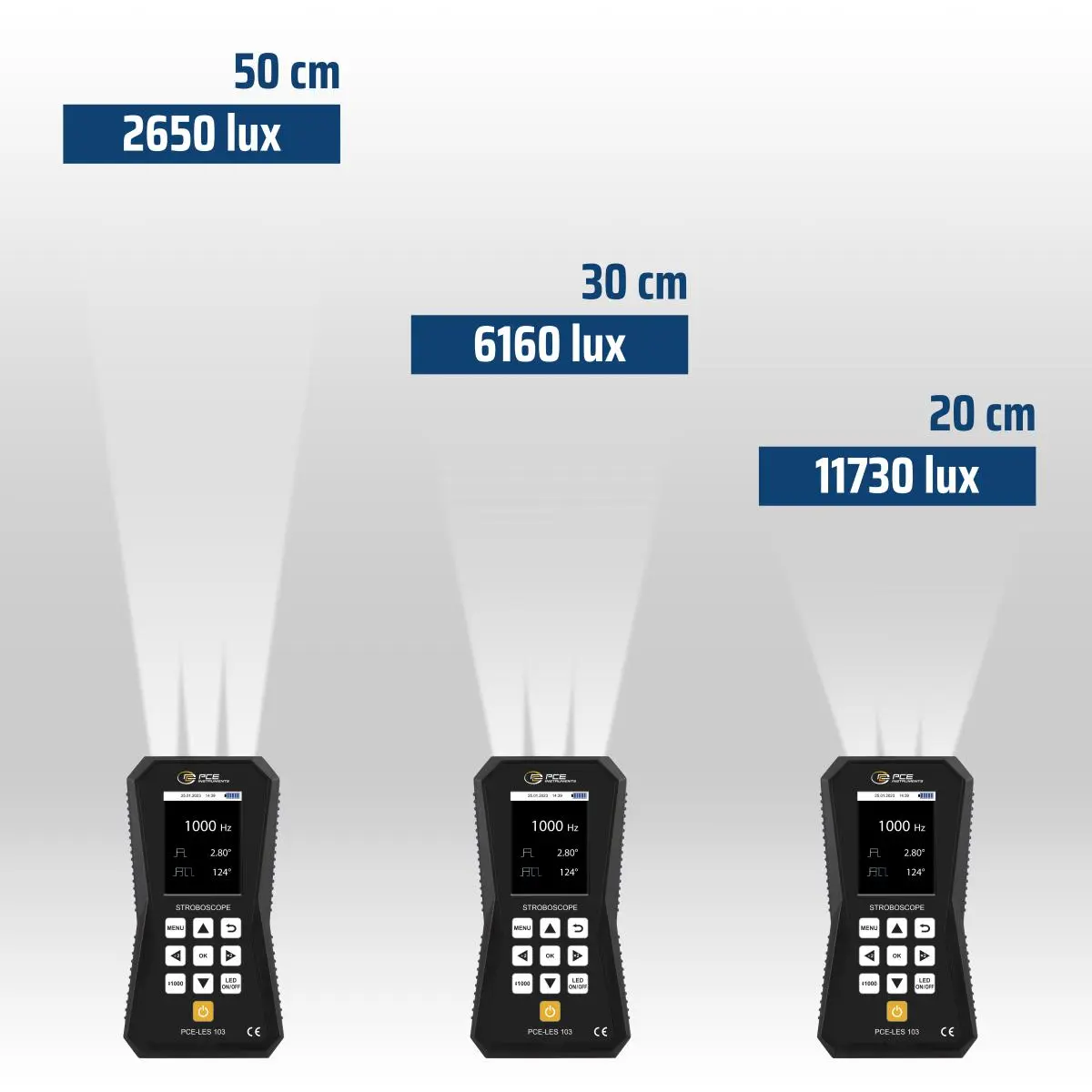

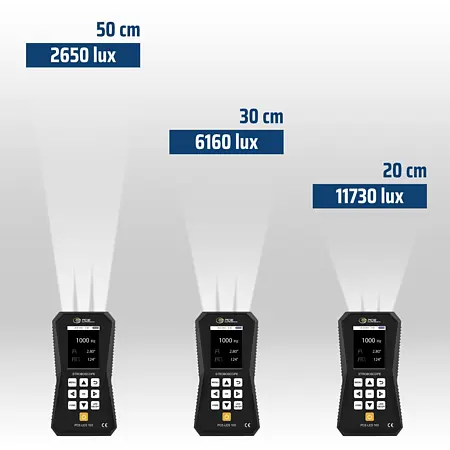

| Brightness | 11730 lux @ 20cm @ 1000Hz 1% 6160 lux @ 30cm @ 1000Hz 1% 2650 lux @ 50cm @ 1000Hz 1% |
| Light Color | 6500 K |
| Phase Shift | -360 ... 360 ° |
| Pulse Width | 0.01 … 1% of pulse duration Resolution: 0.01% 0.01 º … 3.60 º of 360 º Resolution: 0.01 º |
| Menu Language | German, English, Spanish, French, Italian, Dutch, Turkish, Polish, Russian, Chinese |
| Protection Class (Device) | IP52 |
| Power Supply | 5V DC, 2A |
| Weight | 284 g |
| Dimensions (L x W x H) | 165 x 90 x 35 mm / 6,4 x 3,5 x 1,3 in |
| Operating Conditions | -20 ... 60 °C, 35 ... 85% r.H |
| Storage Conditions | -20 ... 60 °C, 35 ... 85% r.H |
| Instruction Manual Languages | German, English |
| Batteries and Accumulators | |
| Type | Lithium-Ion Battery |
| Lithium Info | Lithium in the product (built-in or included) |
| Capacity | 2200 mAh |
| Voltage | 7.4 V |
| System | Secondary: Rechargeable Battery / Accumulator |
| Number | 1 |
