Clamp on Tester PCE-DC1-ICA Incl. ISO Calibration Certificate

Order no.: PCE-DC1-ICA
GTIN (EAN):
₹30,638.00
₹36,152.84
ISO Calibration
price ex. (VAT / delivery)
PCE-DC1-ICA
Delivery time: 10 - 14 days

Description

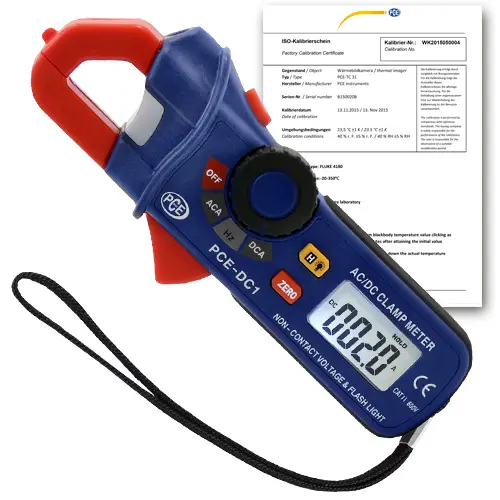

Clamp on Tester incl. ISO calibration certificate
 for AC Power, AC Voltage, DC Power and frequency (3 in 1) / Clamp opening max. 18 mm

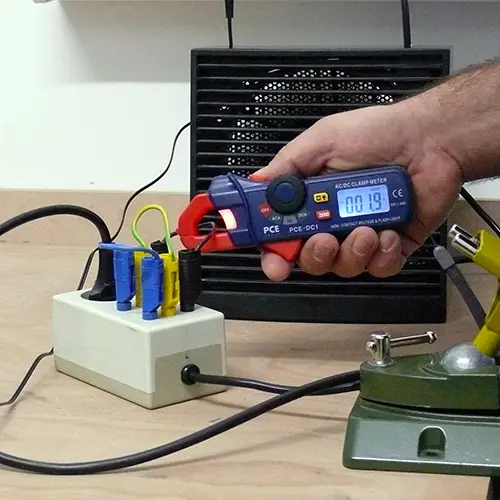

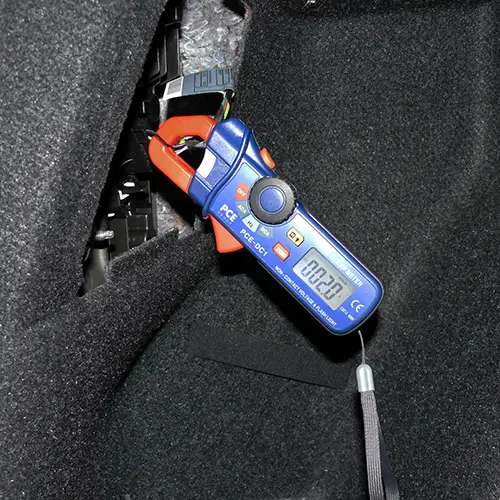

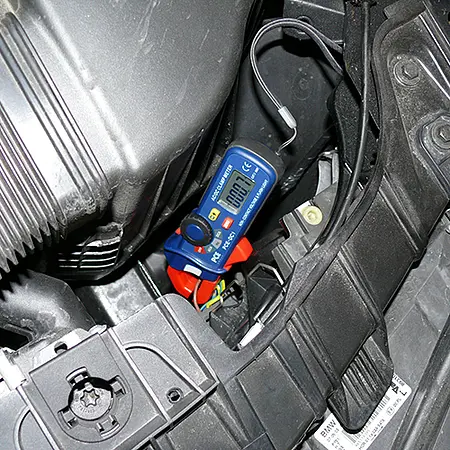

This Clamp on Tester was developed for the indirect detection of AC / DC currents as well as the frequency. A non-contact voltage tester function and a torch for illuminating the measuring point were also integrated in this Clamp on Tester. The small dimensions of this Clamp on Tester, allow use in hard to reach places.

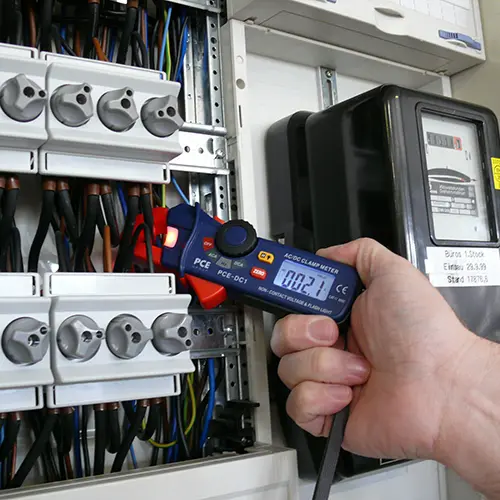

The large illuminated display of the Clamp on Tester ensures a very good readability even in dark places, such as in control cabinets and cable ducts. The non-contact voltage tester not only helps you identify dangerous potentials, but also provides you with an accurate tool for finding broken wire positions.

Highlights

- 3 2/3-digit LCD display, backlit, DC clamp
- AC / DC current, AC voltage and frequency measurement
- Measured value memory function, DCA zero point function, non-contact voltage tester
- Integrated measuring point illumination
- Automatic range selection
- Automatic switch-off
- Pliers opening: 18 mm
- Incl. ISO calibration certificate

Specification

AC current (50 / 60Hz)


Area 200 A
Resolution 100-mA
Accuracy ± 3.0% + 8dgt

DC power
Area 200 A
Resolution 100-mA
Accuracy ± 2.8% + 8dgt
AC voltage test
(contactless test)		 100V AC to 600V AC 50/60 Hz

Frequency
Area 40 ... 50 Hz
Resolution 0.01 Hz
Accuracy ± 1.2% + 5dgt
Area 51 ... 510 Hz
Resolution 0.1 Hz
Accuracy ± 1.2% + 3dgt
Area 0.51 ... 1 kHz
Resolution 0.001 kHz
Accuracy ± 1.2% + 3dgt

Measuring point illumination white LED
Conductor diameter 18 mm max.
Display 3 2/3 digit LCD display,
with white LED, backlit,
Care 2 x 1.5V AAA battery
Casing PVC
Dimensions 155 x 66 x 31 mm / 6.1 x 2.6 x 1.2 in
Weight 155 g / < 1 lb
Standardization EN61010-1; CAT II / 600V
EN61010-2-032; CAT III / 300V



Delivery Scope

1 x Clamp on Tester PCE-DC1

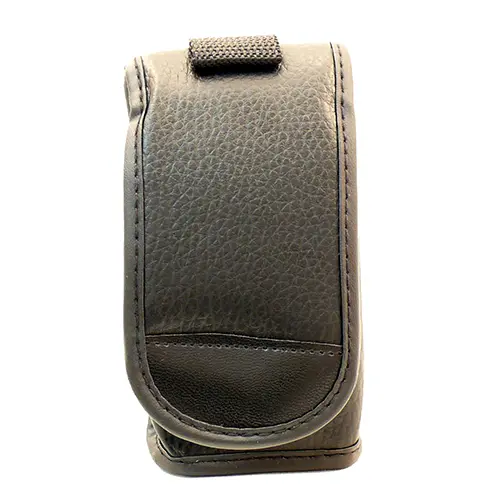

1 x Instrument bag
2 x Battery
1 x Instructions
1 x ISO calibration certificate



N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
