AC current
(50 / 60 Hz) |
Range / Resolution / Accuracy
2 A / 1-mA / ± 2.8% + 10 dgt 80 A / 100-mA / ± 3.0% + 8 dgt |
DC current | Range / Resolution / Accuracy
2 A / 1-mA / ± 3.0% + 10 dgt 80 A / 100-mA / ± 3.0% + 8 dgt |
AC overload protection
(Non-contact) |
100V AC up to 600V AC 50 / 60 Hz |

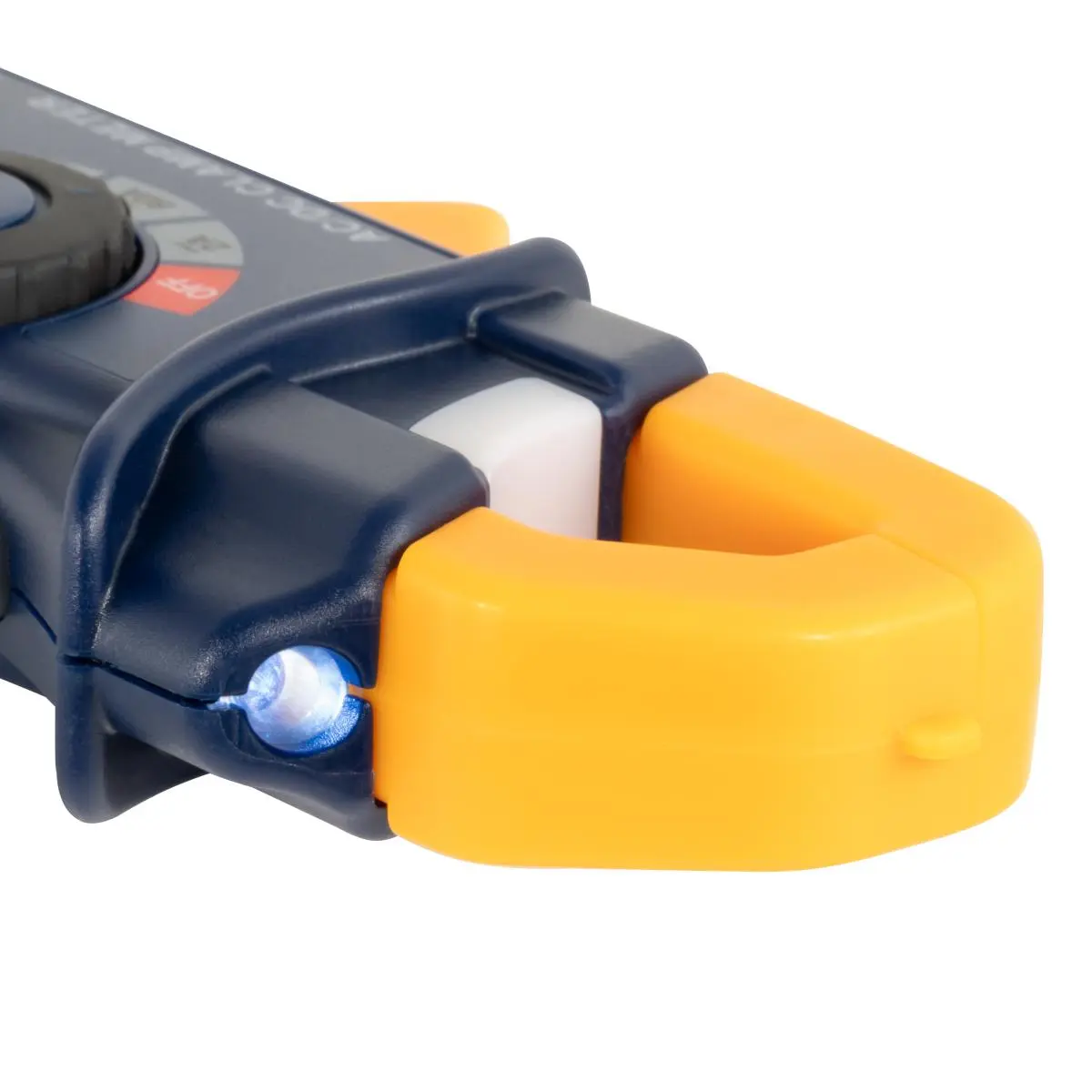

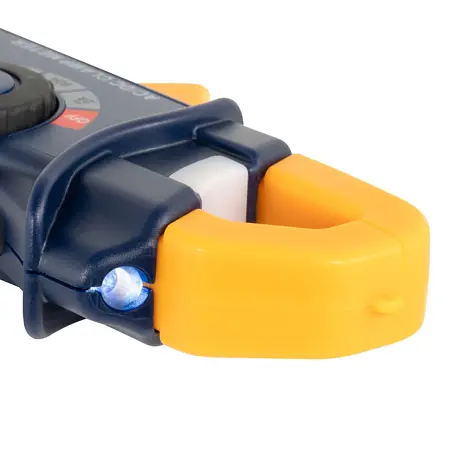

Flashlight illumination | White LED |

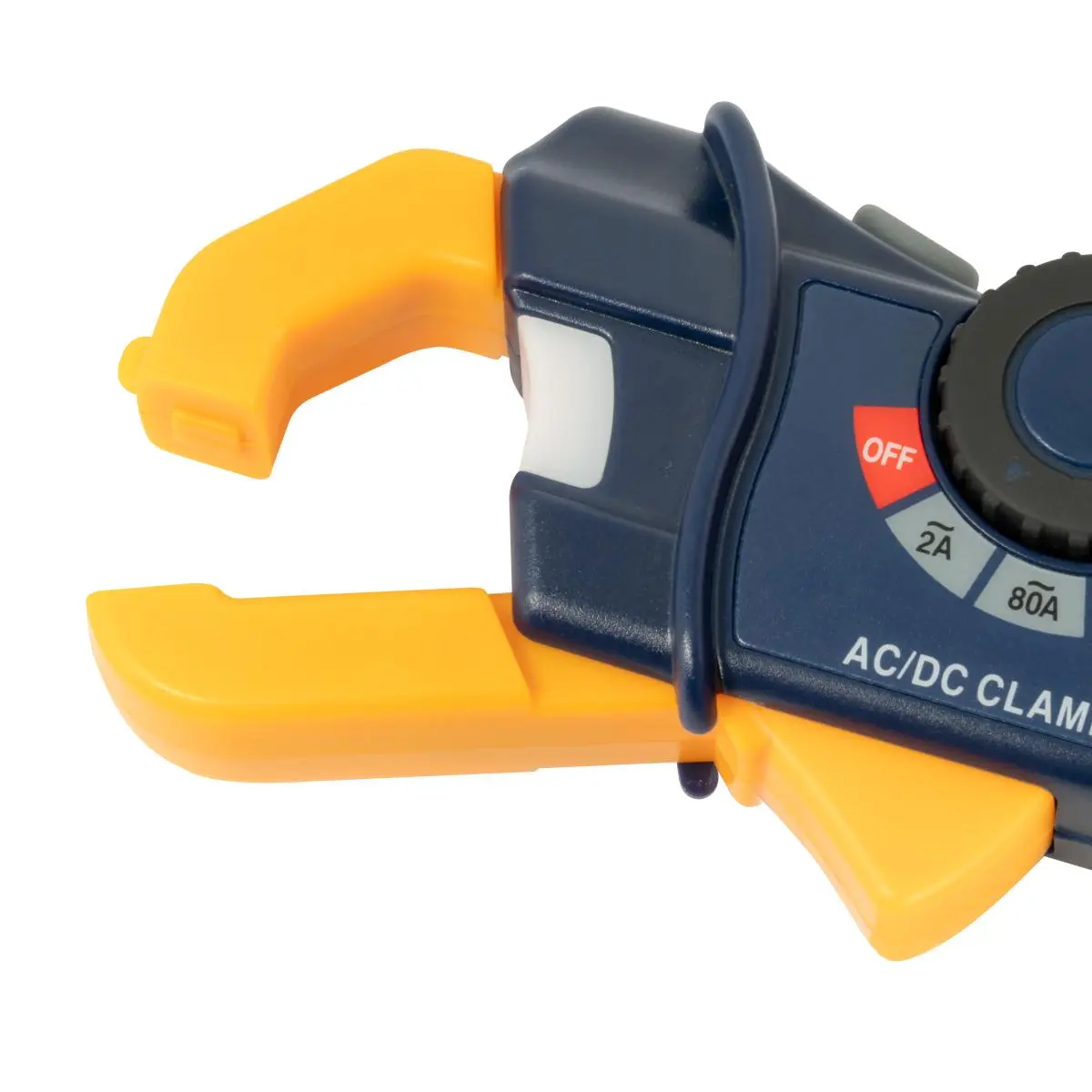

Conductor diameter | 18 mm / 0.7 in maximum |

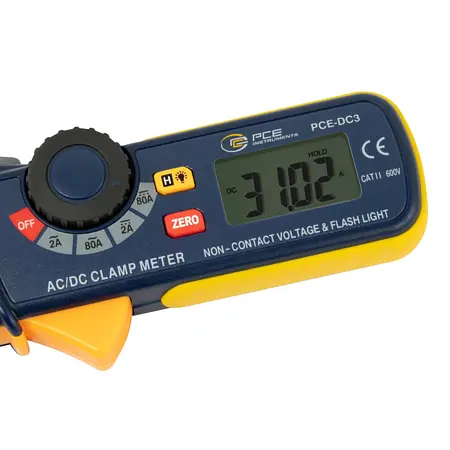

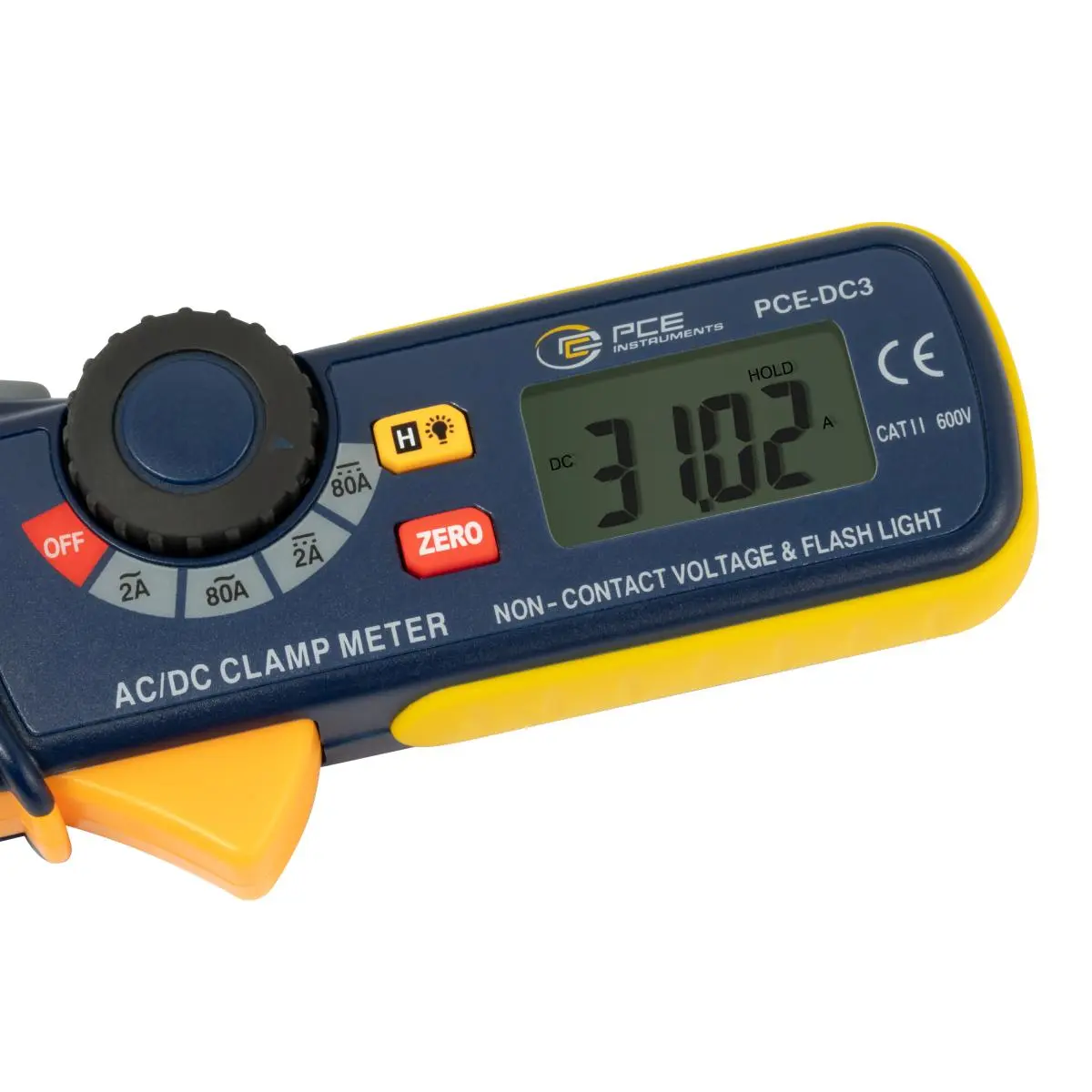

Display | 3 2/3 digit LCD display with backlighting |

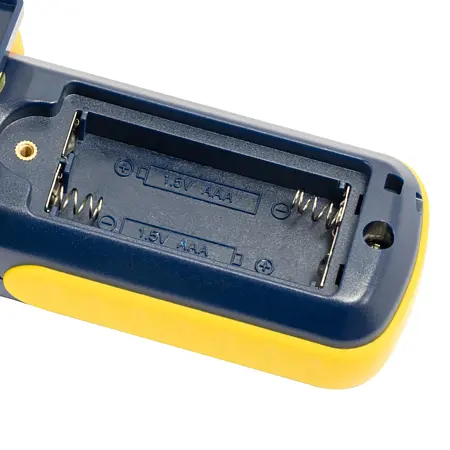

Power | 2 - 1.5V AAA batteries |
Casing | PVC |
Dimensions | 164 x 65 x 32 mm / 6.4 x 2.5 x 1.2 in |
Weight | 175 g / < 1 lb |
Standards | EN61010-1; CAT II / 600V
EN61010-2-032; CAT III / 300V |

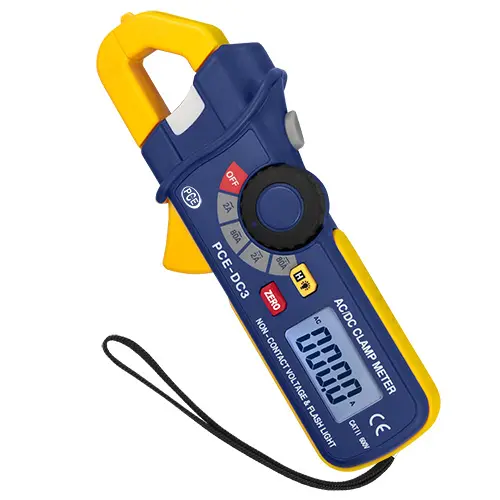

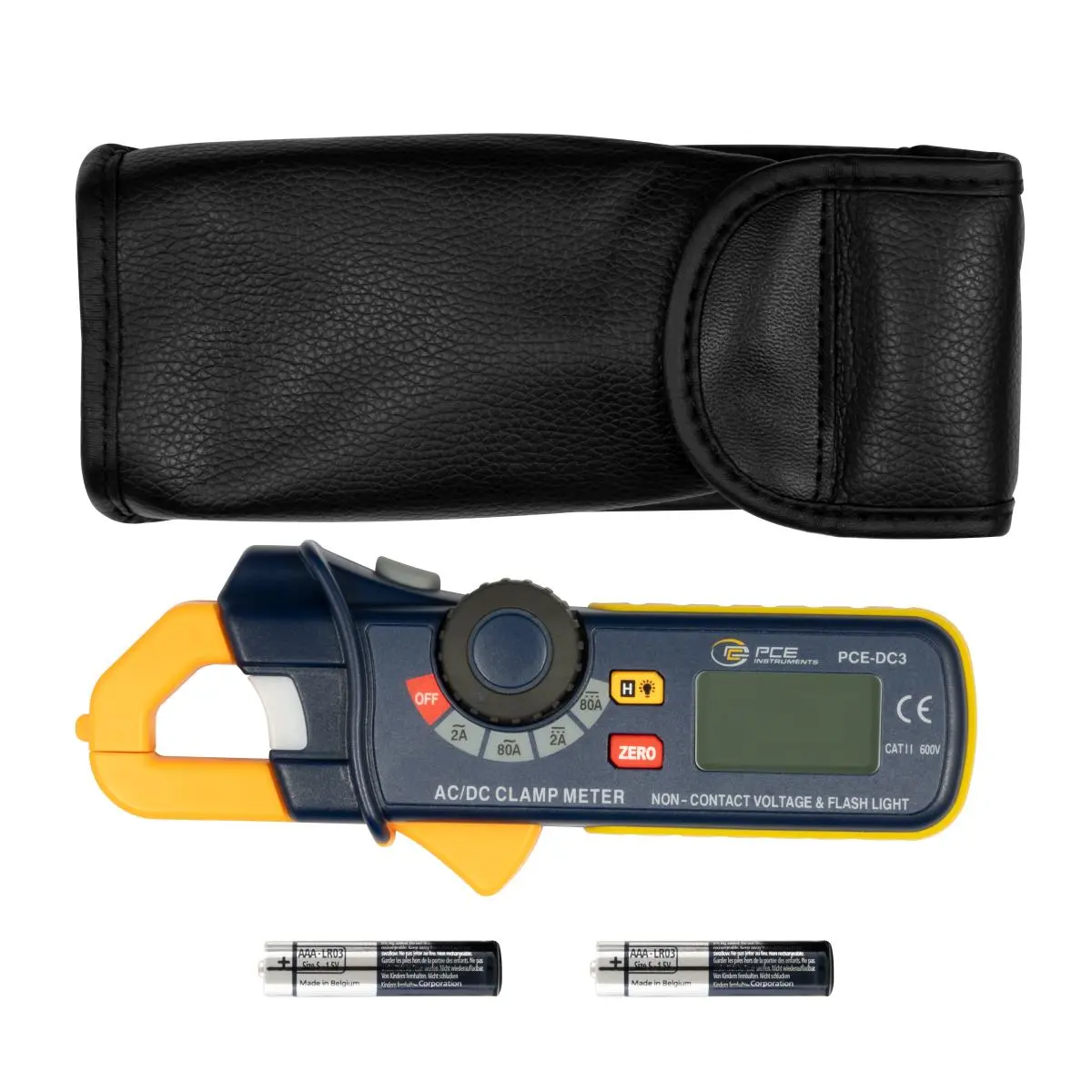

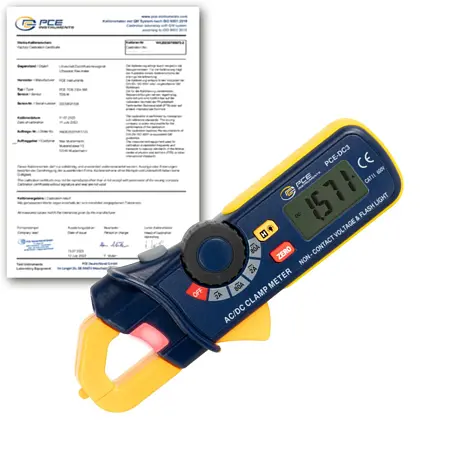

1 x Clamp on tester PCE-DC 3
1 x Case
2 x Batteries
1 x User's manual

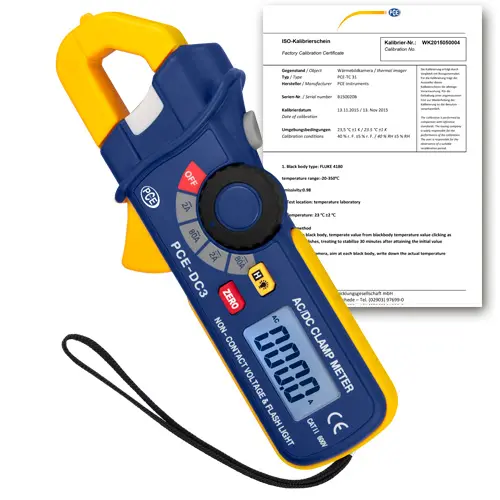

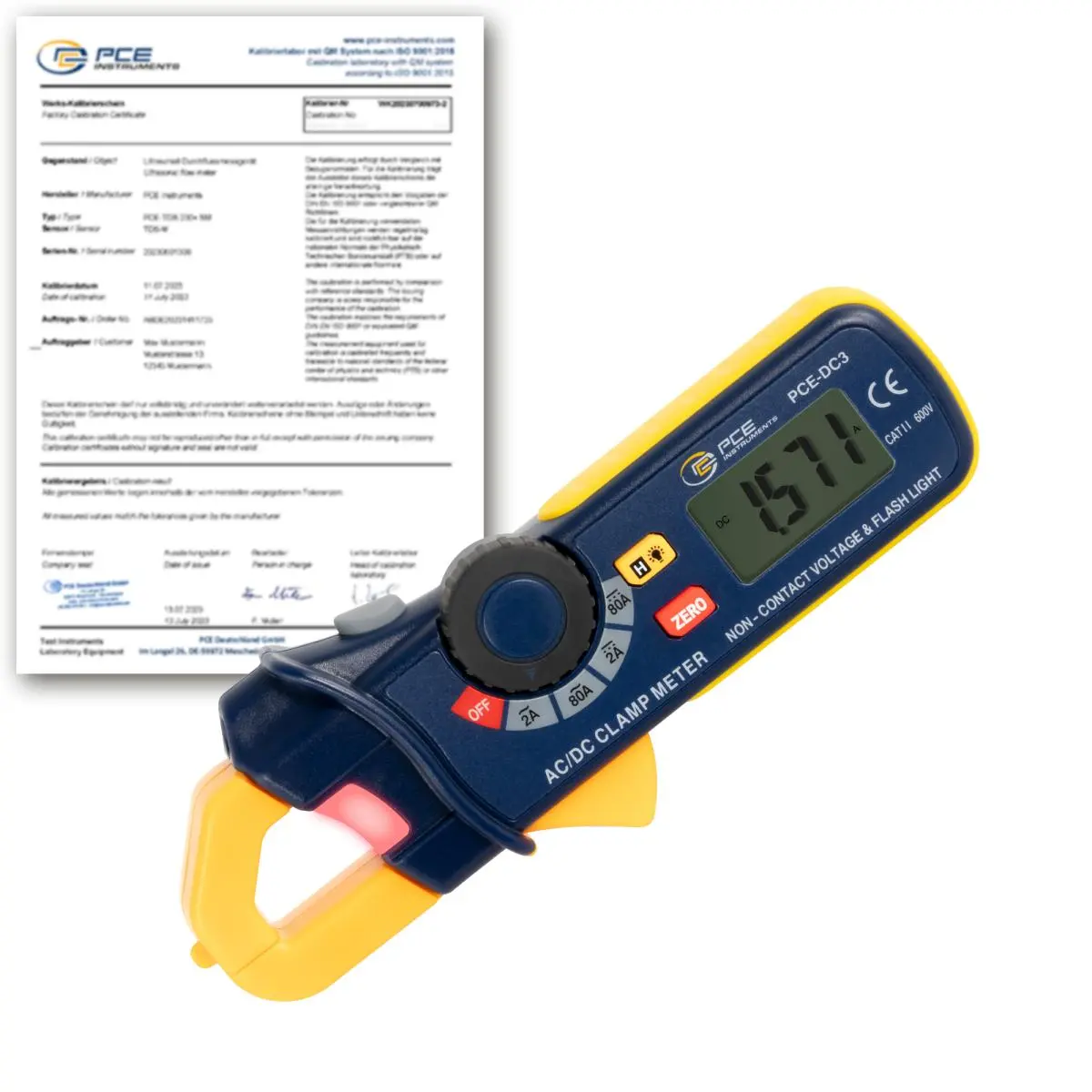

1 x ISO Calibration Certificate
N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
