Closing Force Measuring Device / Closing Force Transducer

Closing Force Measuring Device Original BIA Cl. 1 for Bus and Train Doors
₹526,157.00
Price excl. VAT &. delivery
2 year Warranty
ISO Calibration Topseller

The original BIA class 1 closing force measuring device is an electronic closing force measuring device for rail vehicle and bus doors and sliding steps. The elaborate design combines precision with practical robustness and ensures accurate measured values even after years of use in harsh environments.

  • Measuring range: 25 … 310 N
  • Stiffness: 10 N/mm
  • Accuracy: +/- 3N or 3% of reading
  • Memory for 100 measurements
  • Sensor and PC interface
  • Applicable standards: EN 14752:2005, VDV 111, VDV 157, 2001/85/EG
  • incl. evaluation software PinchPilot
  • incl. display unit SEB2
  • incl. ISO calibration certificate

Closing Force Transducer BIA-1 BT for Bus and Train Doors and Sliding Steps
₹498,480.00
Price excl. VAT &. delivery
2 year Warranty
ISO Calibration Topseller Wireless

The BIA-1 BT closing force transducer is a wireless, electronic closing force measuring device for rail vehicle and bus doors and sliding steps. The closing force transducer is a further development of the tried and tested closing force measuring device Original BIA Class 1.

  • Measuring range: 25 … 310 N
  • Stiffness: 10 N/mm
  • Accuracy: +/- 3N or 3% of reading
  • PC evaluation software PinchPilot
  • Force Meter App (downloadable from Google Play Store)
  • Wireless
Norms:
  • EN14752:2005
  • VDV 111
  • VDV 157
  • 2001/85/EC
  • § 35 E, paragraph 5 StVZO
  • ISO calibration certificate

Closing Force Transducer FM100 for Doors and Gates
₹236,146.00
Price excl. VAT &. delivery
2 year Warranty
ISO Calibration

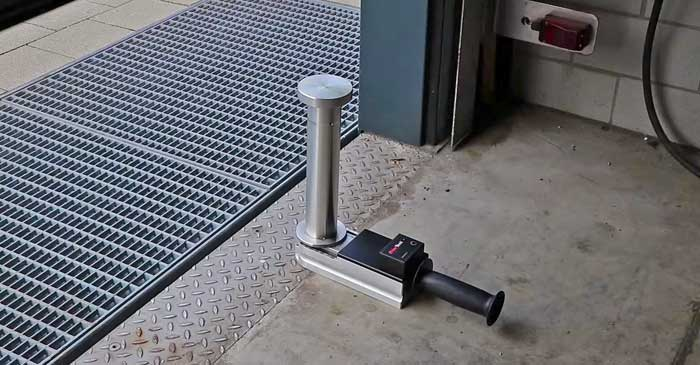

The closing force transducer is an electronic closing force measuring device for externally powered doors and gates. Typical use is the final inspection of new systems as well as regular inspections.

  • Measuring range: 0 … 2000 N
  • Stiffness: 500 N/mm
  • Accuracy: +/- 3N or 3% of reading
  • Data logger unit with LCD display
  • Professional, comprehensive PC software
  • Memory for 100 measurements
  • Standards – EN 12445/12453, EN 60335-2, DIN V 18650, ASR A1.7, etc.
  • Incl. ISO calibration certificate

Closing Force Measuring Device FM100-BT for Doors and Gates
₹186,000.00
Price excl. VAT &. delivery
2 year Warranty
ISO Calibration Wireless

The closing force measuring device is a wireless, electronic measuring device for externally powered doors and gates. Typical use is the final inspection of new systems as well as regular inspections.

  • Measuring range: 0 … 2000 N
  • Stiffness: 500 N/mm
  • Accuracy: +/- 3N or 3% of reading
  • Wireless
  • App Force Meter available for download
  • PC evaluation software PinchPilot
User guidance and evaluation according to:
  • ASR 1.7
  • DIN EN 12453:2017
  • DIN EN 16005:2012
  • DIN 18650-1:2010
  • DHF-TS-011:2018
  • 2006/42/EC Machinery Directive
  • incl. ISO calibration certificate

Closing Force Transducer FM200/10 for Sliding roofs, Window lifters, Tailgates
₹461,280.00
Price excl. VAT &. delivery
2 year Warranty
ISO Calibration

The force transducer is an electronic closing force measuring device for power-operated windows, sunroofs and tailgates in the motor vehicle sector. Typical areas of application are testing and production in the automotive industry.

  • Measuring range: up to 300 N
  • Stiffness: 10 N/mm
  • Accuracy: +/- 3N or 3% of reading
  • PC evaluation software PinchPilot
  • Memory for 100 measurements
  • Sensor and PC interface
  • incl. ISO calibration certificate

Closing Force Transducer FM200/20 for Sliding roofs, Window lifters, Tailgates
₹461,280.00
Price excl. VAT &. delivery
2 year Warranty
ISO Calibration

The force transducer is an electronic closing force measuring device for power-operated windows, sunroofs and tailgates in the motor vehicle sector. Typical areas of application are testing and production in the automotive industry.

  • Measuring range: up to 300 N
  • Stiffness: 20 N/mm
  • Accuracy: +/- 3N or 3% of reading
  • PC evaluation software PinchPilot
  • Memory for 100 measurements
  • Sensor and PC interface
  • Sensor cable lengths selectable in the accessories
  • Support of relevant standards – US Standard FMVSS 118
  • incl. ISO calibration certificate

Closing Force Transducer FM200/65 for Sliding roofs, Window lifters, Tailgates
₹461,280.00
Price excl. VAT &. delivery
2 year Warranty
ISO Calibration

The force transducer is an electronic closing force measuring device for power-operated windows, sunroofs and tailgates in the motor vehicle sector. Typical areas of application are testing and production in the automotive industry.

  • Measuring range: up to 300 N
  • Stiffness: 65 N/mm
  • Accuracy: +/- 3N or 3% of reading
  • PC evaluation software PinchPilot
  • Memory for 100 measurements
  • Sensor cable lengths selectable in the accessories
  • Support of relevant standards – US Standard FMVSS 118
  • incl. ISO calibration certificate

Closing Force Measuring Device FM202 sliding roofs,window lifters,doors,steps
₹718,109.00
Price excl. VAT &. delivery
2 year Warranty
ISO Calibration

The closing force measuring device is an electronic measuring device for power-operated windows, sliding roofs and doors in the automotive sector and for sliding steps in the rail vehicle sector.

  • Measuring range: 0 … 600 N
  • Accuracy: +/- 3N (0-100N) +/- 3% (>100N)
  • PC evaluation software PinchPilot
  • Memory for 100 measurements
  • Applicable standards – 2000/4/EC or user defined
  • incl. ISO calibration certificate

Closing Force Transducer FM205/2 for automatic window regulators
₹509,045.00
Price excl. VAT &. delivery
2 year Warranty
ISO Calibration

The closing force transducer is an electronic closing force measuring device for power-operated windows in the motor vehicle sector. Typical areas of application are testing and production in the automotive industry.

  • Measuring range: 0 … 50 N
  • Spring stiffness: 2 N/mm
  • Accuracy: +/- 3N (0-100N) or +/- 3% (>100N)
  • Memory for 100 measurements
  • Cable length: 1.5 m / 4.9 ft
  • Lithium polymer battery
  • incl. ISO calibration certificate

Closing Force Measuring Device FM205/5 for automatic window regulators
₹509,045.00
Price excl. VAT &. delivery
2 year Warranty
ISO Calibration

The closing force measuring device is an electronic force measuring device for power-operated windows in the motor vehicle sector. Typical areas of application are testing and production in the automotive industry.

  • Measuring range: 0 … 75 N
  • Spring stiffness: 5 N/mm
  • Accuracy: +/- 3N (0-100N) or +/- 3% (>100N)
  • Memory for 100 measurements
  • Cable length: 1.5 m / 4.9 ft
  • Lithium polymer battery
  • incl. ISO calibration certificate

Closing Force Transducer FM205/10 for automatic window regulators
₹509,045.00
Price excl. VAT &. delivery
2 year Warranty
ISO Calibration

The closing force transducer is an electronic closing force measuring device for power-operated windows in the motor vehicle sector. Typical areas of application are testing and production in the automotive industry.

  • Measuring range: 0 … 150 N
  • Spring stiffness: 10 N/mm
  • Accuracy: +/- 3N (0-100N) or +/- 3% (>100N)
  • Memory for 100 measurements
  • Cable length: 1.5 m / 4.9 ft
  • Lithium polymer battery
  • Support of relevant standards - 2000/4 EG
  • incl. ISO calibration certificate

Closing Force Measuring Device FM205/20 for automatic window regulators
₹509,045.00
Price excl. VAT &. delivery
2 year Warranty
ISO Calibration

The closing force measuring device is an electronic force measuring device for power-operated windows in the motor vehicle sector. Typical areas of application are testing and production in the automotive industry.

  • Measuring range: 0 … 200 N
  • Spring stiffness: 20 N/mm
  • Accuracy: +/- 3N (0-100N) or +/- 3% (>100N)
  • Memory for 100 measurements
  • Cable length: 1.5 m / 4.9 ft
  • Lithium polymer battery
  • Support of relevant standards – US Standard FMVSS 118
  • incl. ISO calibration certificate

Closing Force Measuring Device FM205/65 for automatic window regulators
₹509,045.00
Price excl. VAT &. delivery
2 year Warranty
ISO Calibration

The closing force measuring device is an electronic force measuring device for power-operated windows in the motor vehicle sector. Typical areas of application are testing and production in the automotive industry.

  • Measuring range: 0 … 260 N
  • Spring stiffness: 65 N/mm
  • Accuracy: +/- 3N (0-100N) or +/- 3% (>100N)
  • Memory for 100 measurements
  • Cable length: 1.5 m / 4.9 ft
  • Lithium polymer battery
  • Support of relevant standards – US Standard FMVSS 118
  • incl. ISO calibration certificate

Closing Force Measuring Device FM208 sliding roofs, automatic windows, tailgates
₹619,008.00
Price excl. VAT &. delivery
2 year Warranty
ISO Calibration

The closing force measuring device is an electronic measuring device for sliding roofs, automatic window regulators and tailgates in the automotive sector. Typical areas of application are manufacturing, development and production tests in the automotive industry.

  • Measuring range: 0 … 200 N
  • Spring stiffness: 2 N/mm, 10%
  • Accuracy: +/- 3 N (0-100 N) or +/- 3 % (> 100 N)
  • Memory for 100 measurements
  • Sensor and PC interface
  • Standards – 2000/4 EG, US Standard FMVSS 118, ECE-R 21
  • incl. ISO calibration certificate

Closing Force Measuring Device FM300 for elevator doors
₹236,443.00
Price excl. VAT &. delivery
2 year Warranty
ISO Calibration

The closing force measuring device is an electronic measuring device for elevator doors and protective devices on machines. Typical use is both the final acceptance of new systems and regular inspection.

  • Measuring range: 0 … 750 N
  • Stiffness: 25 N/mm
  • Accuracy: +/- 3N or 3% of reading
  • Memory for 100 measurements
  • Precise measurements
  • Robust design
  • Standards - EN 81-1, EN 81-2, EN 81-20:2014, EN 81-50:2015, EN 14120
  • incl. ISO calibration certificate

Closing Force Transducer FM300 BT for elevator doors, machine protection devices
₹236,443.00
Price excl. VAT &. delivery
2 year Warranty
ISO Calibration Wireless
The closing force transducer is a wireless, electronic closing force measuring device for automatic elevator doors and machine protection devices. The closing force transducer is a further development of the tried and tested FM 300 closing force measuring device.

  • Measuring range: 0 … 750 N
  • Stiffness: 25 N/mm
  • Accuracy: +/- 3N or 3% of reading
  • Memory for 100 measurements
  • App downloadable in Google Play Store
  • Bluetooth interface
  • Wireless
  • Standards - EN 81-1, EN 81-2, EN 81-20:2014, EN 81-50:2015, EN 14120
  • incl. ISO calibration certificate
Closing Force Measuring Device BIA Class 2 for bus doors
₹100,886.00
Price excl. VAT &. delivery
2 year Warranty
ISO Calibration

The original BIA class 2 is a mechanical closing force measuring device for bus doors. The elaborate design combines precision with practical robustness and ensures accurate measured values even after years of use in harsh environments.

  • Measuring range and sensor must be selected!
  • Stiffness: 10 N/mm or 25 N/mm depends on the sensor selection
  • Accuracy: +/- 10 N or 5% of reading
  • Measuring principle: slave pointer
  • Precise measurements
  • Easy to use
  • Standards and directives: 2001 85 EC
  • incl. ISO calibration certificate

Closing Force Measuring Device BIA 600 for rail vehicle doors
₹702,782.00
Price excl. VAT &. delivery
2 year Warranty
ISO Calibration

The closing force measuring device is an electronic measuring device for rail vehicle doors. The elaborate design combines precision with practical robustness and ensures accurate measured values even after years of use in harsh environments.

  • Measuring range: 0 … 700 N
  • Accuracy: +/- 3N (0-100N), +/- 3% (>100N)
  • Professional PC software PinchPilot
  • Precise measurements
  • Robust design
  • Applicable standards DIN EN 14752:2015, DIN EN 14752:2005 (optional)
  • LabView
  • incl. ISO calibration certificate
