₹66,201.00
etermination of reference values and samples / White and black calibration

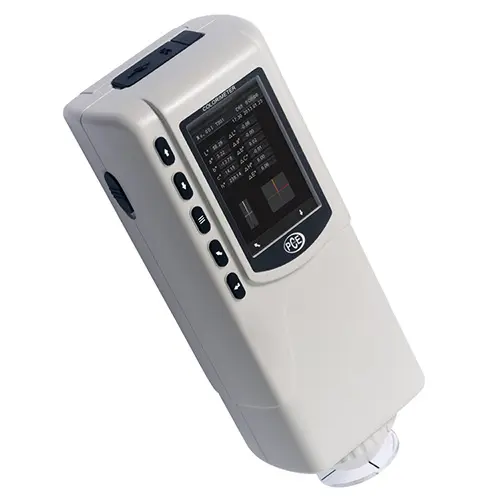

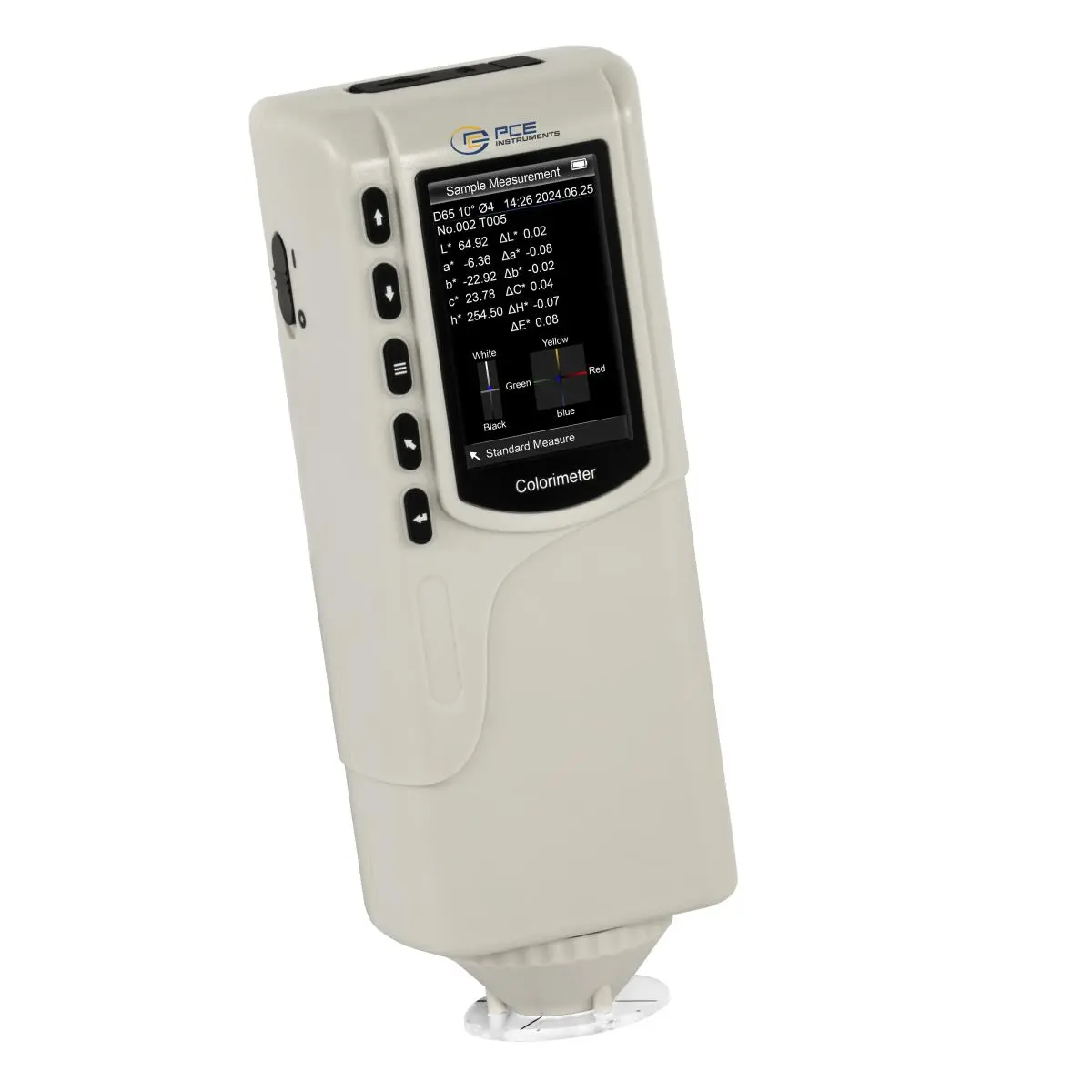

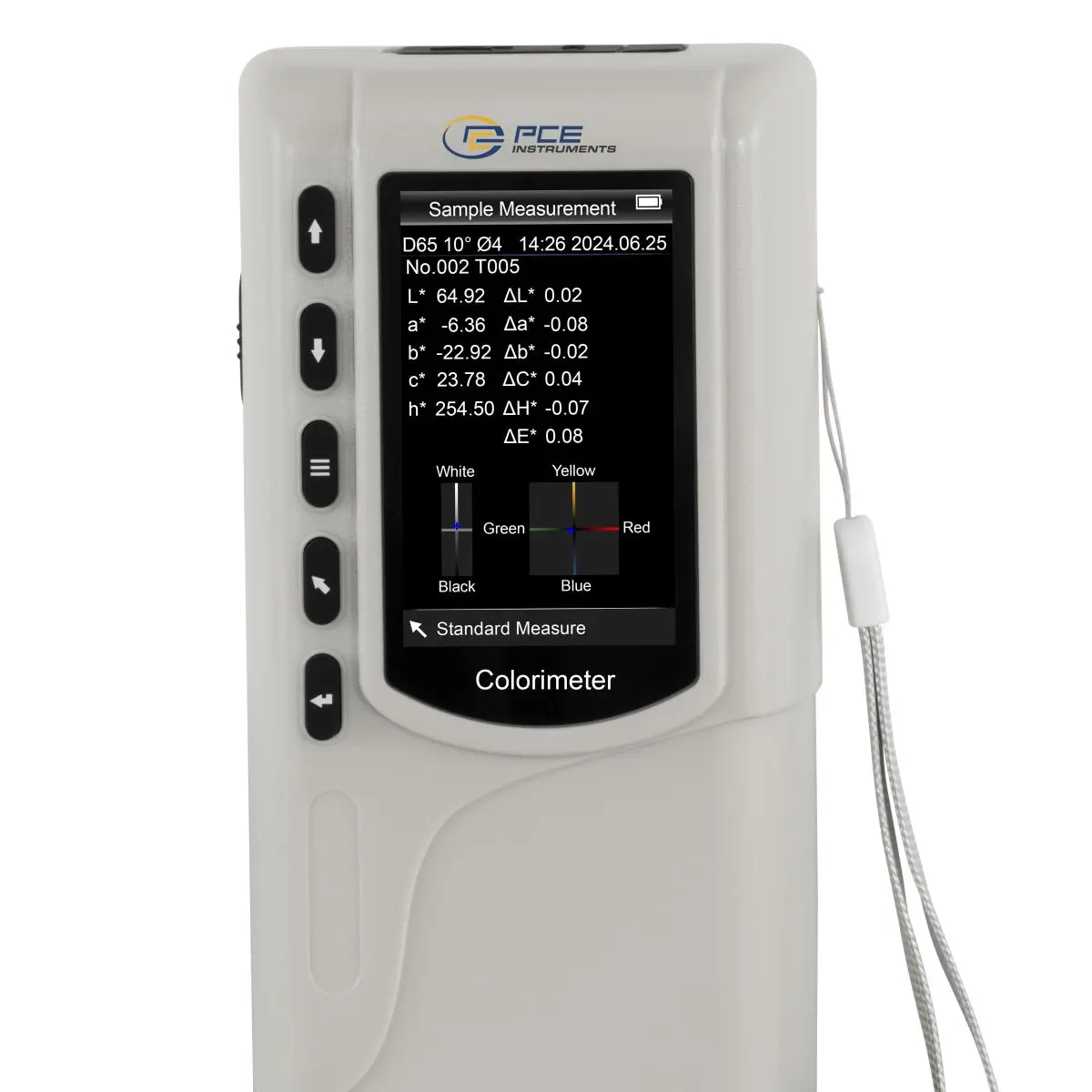

The color meter PCE-CSM 1 was developed for quality control and offers a very high accuracy. When using the color meter, you can choose between different color spaces (CIE L*a*b*C*h, CIE L*a*b* and CIE XYZ). After a measurement with the color meter, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.
|
|
|
| Geometry | 8°/d |

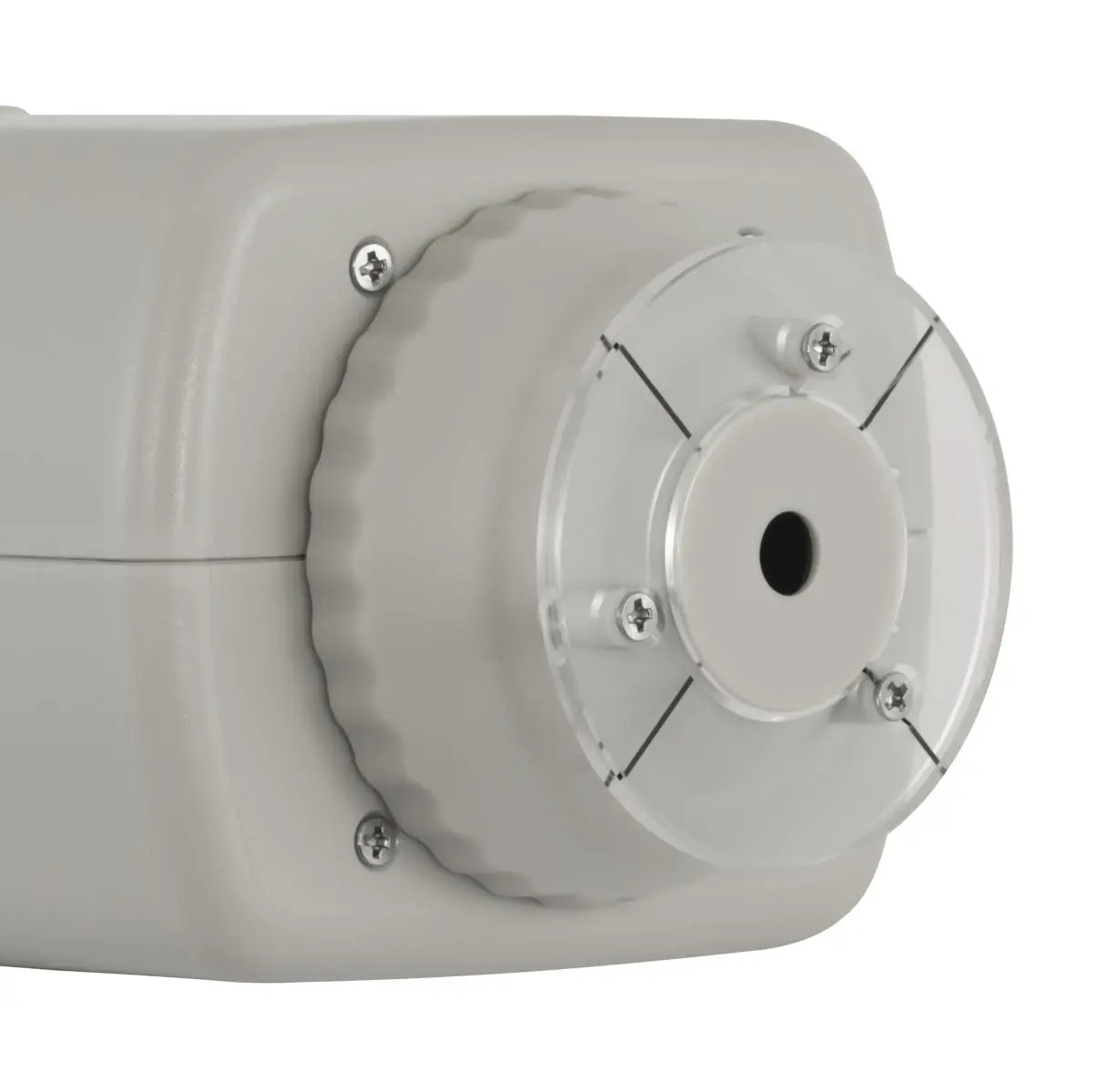

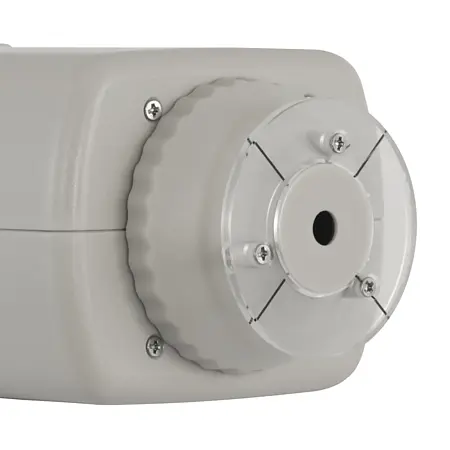

| Aperture | Ø 6 mm |
| Sensor | Silicon photoelectric diode |
| Color spaces | CIE L*a*b*C*h, CIE L*a*b, CIE XYZ |
| Color difference formula | ΔE*ab, ΔL*ab, ΔE*C*H |
Observation Angle Light source |
CIE 10° D65 |
| Light source device | LED blue light |
| Errors between each equipment | ≤0.80 ΔE*ab |
| Storage | 100 reference values, 20,000 samples |
| Repeatability | Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate |
| Power supply | Rechargeable lithium-ion battery 3.7 V @ 3200-mAh |
| Charging time | 8 hours |
| Battery life | Approx. 5,000 measurements |
| Lamp life | 5 years, more than 1.6 million measurements |
| Storage conditions | Air temperature: 0 ... 40°C / 32 ... 104°F Air humidity: 0 ... 85% RH, non-condensing |
| Dimensions | 205 x 67 x 80 mm / 8.07 x 2.63 x 3.14 in |
| Weight | 500 g / 17.6 oz |
