Description

Color meter PCE-CSM 8 for quality control

PC software included / Li-ion battery / different color spaces / black and white calibration
determination of reference values and samples / white calibration / 3.5" touch screen

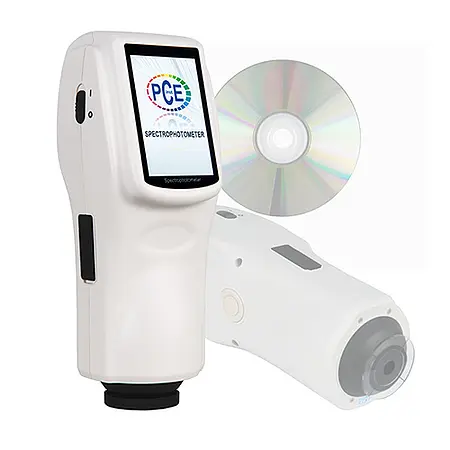

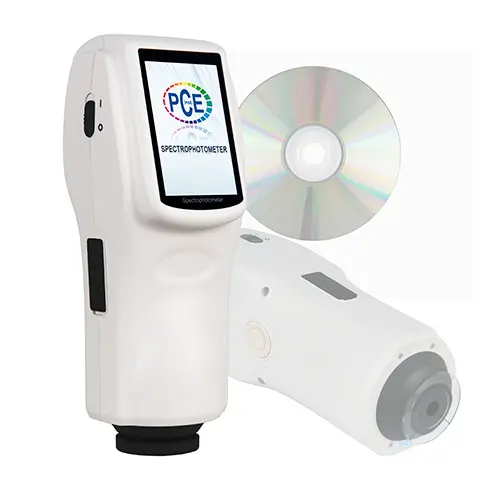

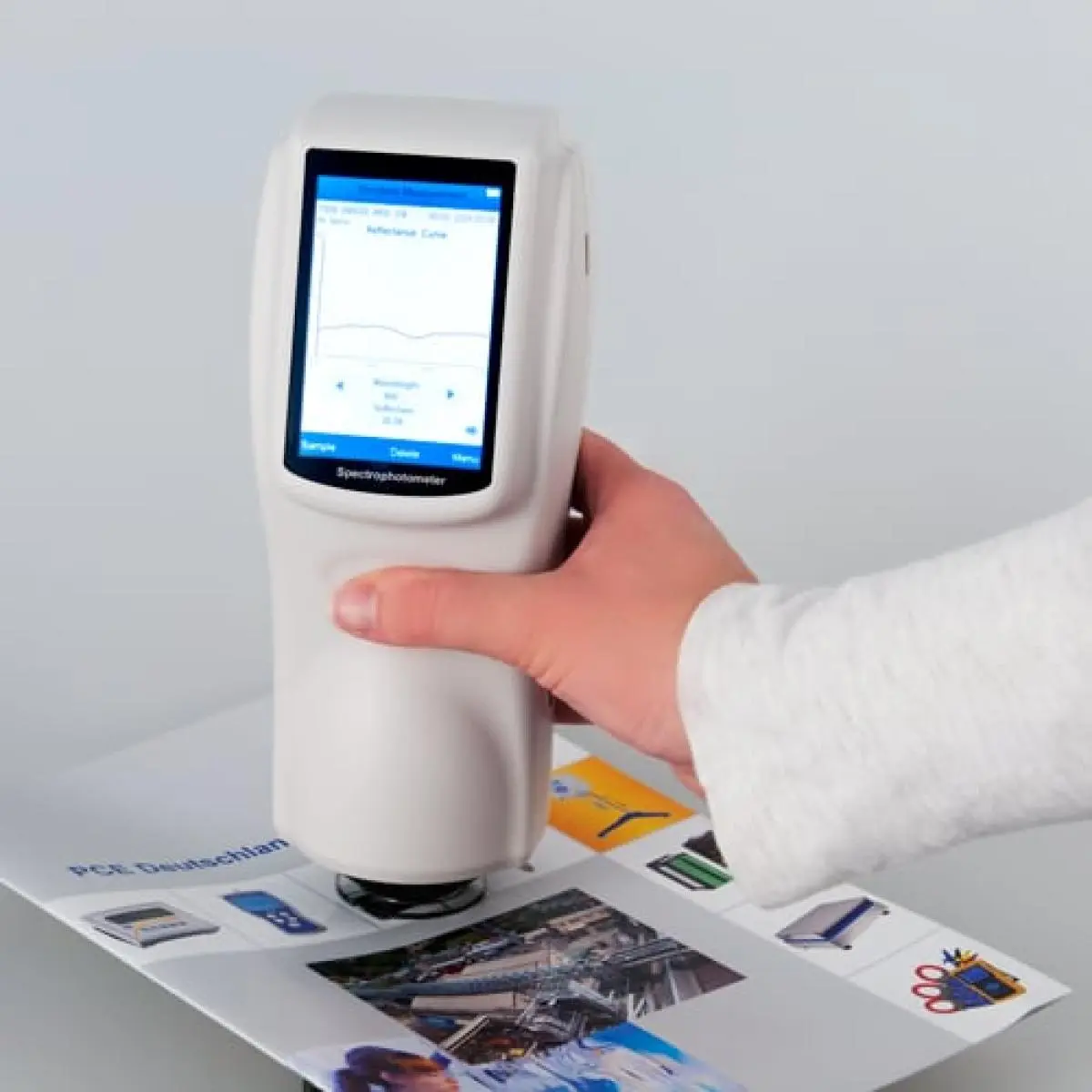

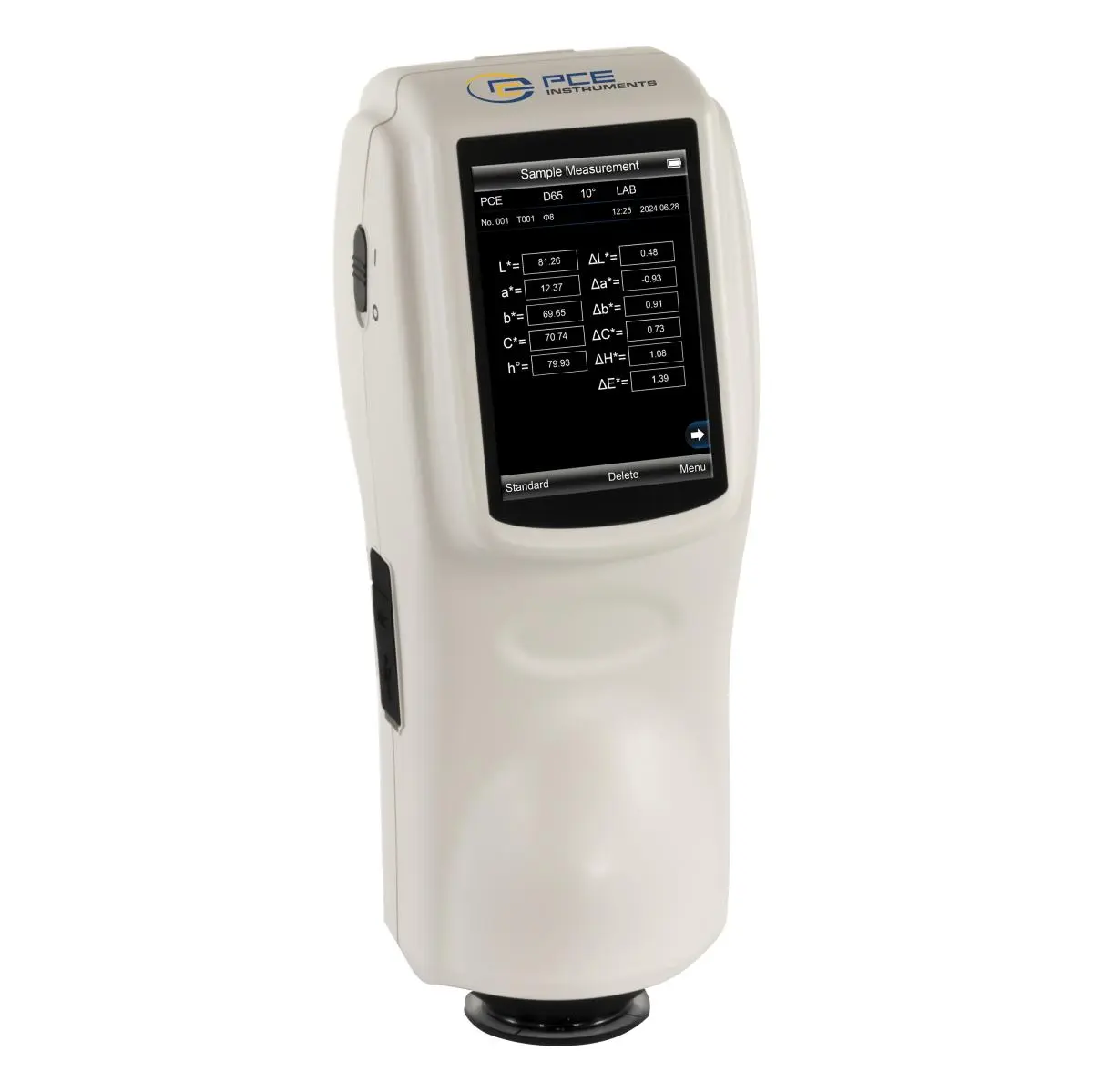

The color meter and spectrophotometer PCE-CSM 8 was developed for quality control, offers a high accuracy and comes with a 3.5" touch screen display. When using the color meter, you can choose between different color spaces (CIE LAB, XYZ, Yxy, LCh, and LUV) and 45/0 optics angle. After a measurement with the color meter, the reading can be used as a named reference value while other readings can be recorded as a sample and later be compared to the reference value easily for Pass/Fail determination.

In addition to the individual color space coordinates, the deviation between the reading (delta E) is also displayed. When using the color meter, it is possible to store up to 1000 reference values and up to 10,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.

Highlights

- CIE LAB, XYZ, Yxy, LCh, and LUV
- SCI and SCE (specular excluded)
- 3.5" touch screen display
- 13 light source options

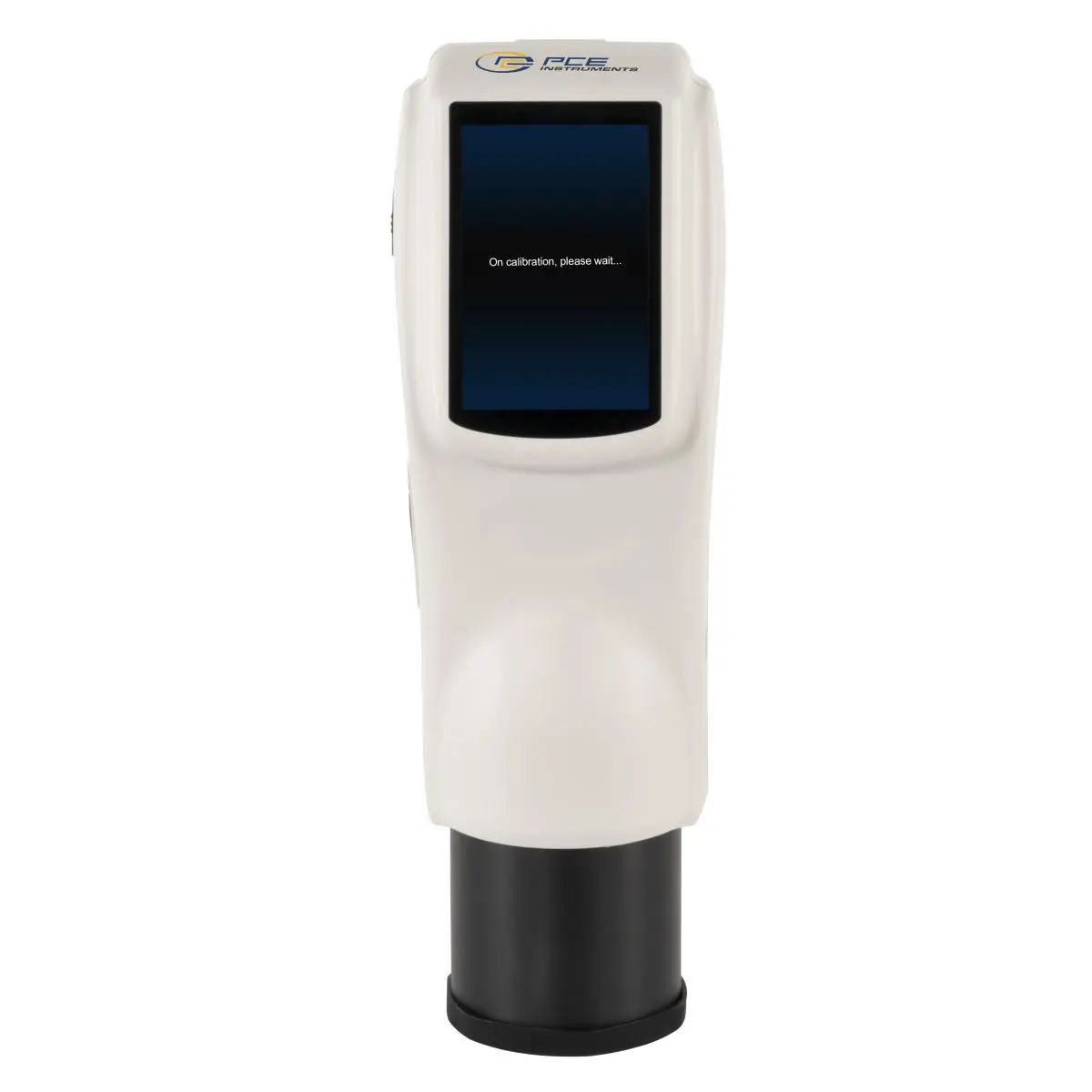

- white and black calibration
- 1000 alphanumeric reference values and up to 10,000 sample values memory
- WI, YI, TI, Mt, Color Stain, Color Fastness, SCI and SCE option (specular included and excluded)

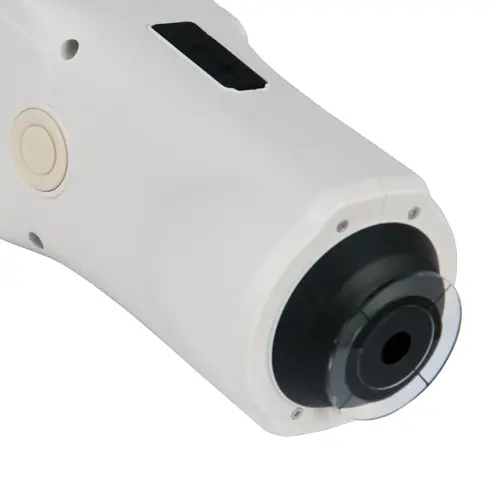

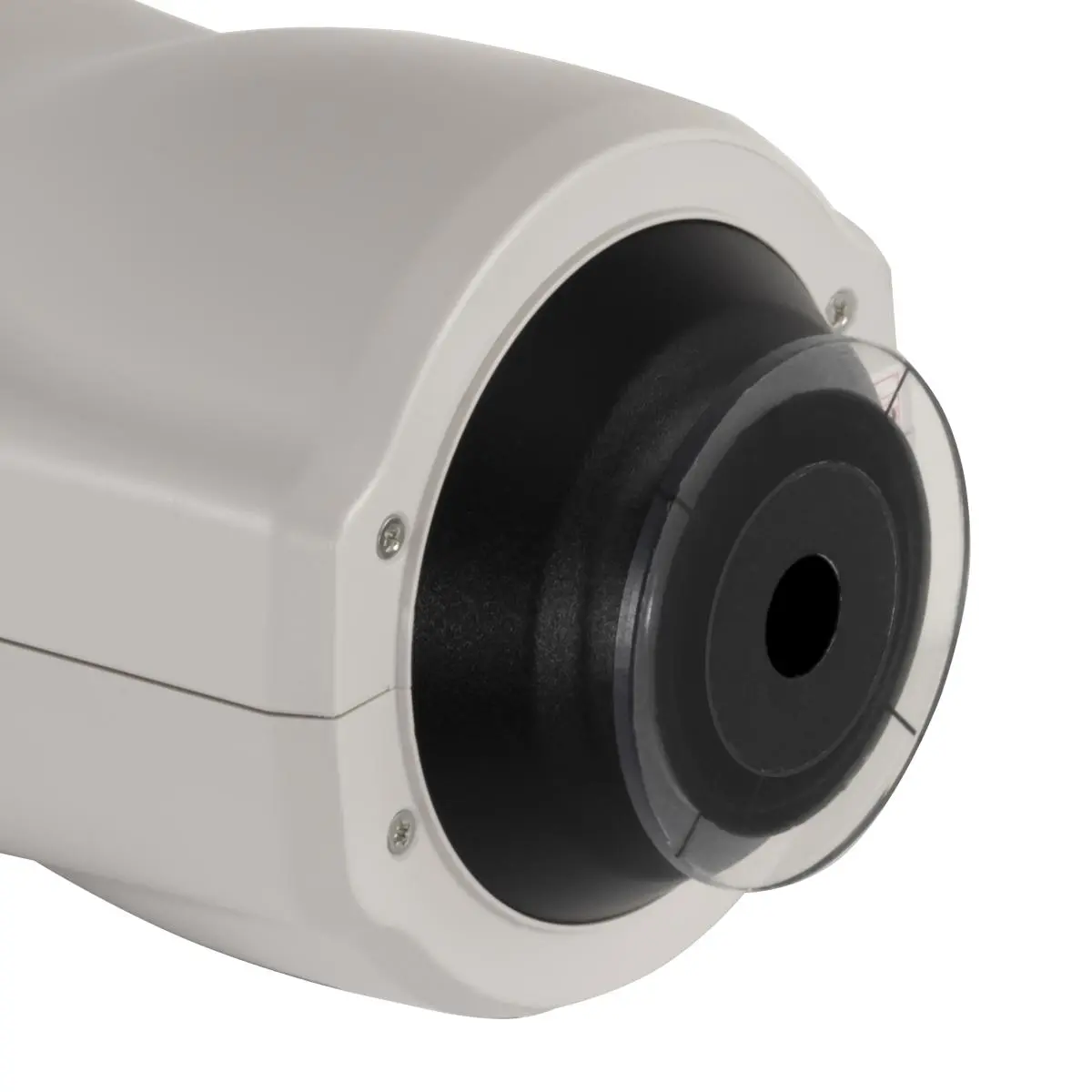

- Measuring aperture of 8 mm and 45°/0° illumination/viewing angle

- rechargeable lithium-ion battery
- high accuracy with Delta E*ab 0.04
- incl. PC software

Specification

Measuring geometry	45/0 according to CIE No. 15, GB/T3978
Integrating sphere	Ø 58 mm
Sensor	Silicon photoelectric diode
Wavelength range	400 ... 700 nm (10 nm pitch)
Measuring aperture	Ø 8 mm
Color spaces	CIE LAB, XYZ, Yxy, LCh, and LUV
Color index	ΔEab, ΔEuv, ΔE94, ΔEcmc(2:1), ΔEcmc(1:1), ΔE00, ΔE(h)
Chromacity data	WI (ASTM E313 CIE/ISO, AATCC, Hunter) YI (ASTM D1925, ASTM E313) TI (ASTM E313, CIE/ISO) Metamerism Index Mt color stain, color fastness
Observation angle	2° / 10°
Light source	D65, A, C, D50, D55, D75, F2, F6, F7, F8, F10, F11, F12
Light source device	combined LED
Life of light source	5 years, > 1.6 million measurements
Data on display	Spectral value/graph colorimetric value color difference (value/graph) PASS/FAIL result color offset color simulation
Min. time between 2 measurements	1.5 seconds
Repeatability	Standard deviation within ΔE*ab 0.04 Average of 30 measurements of standard white plate
Error between equipment	ΔE*ab 0.2
Display	3.5" TFT touch screen

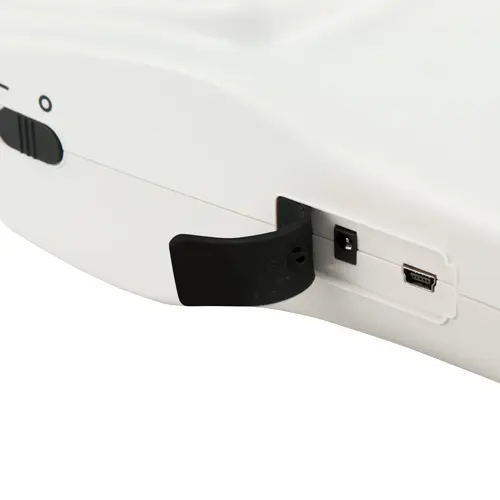

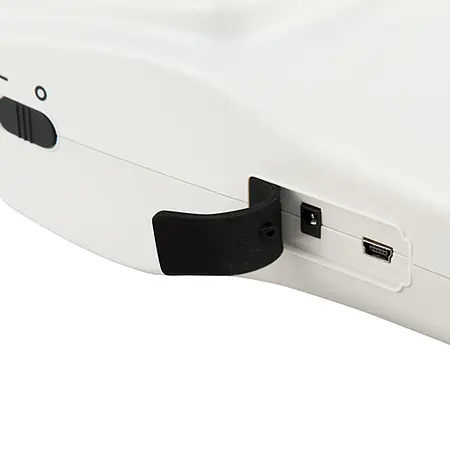

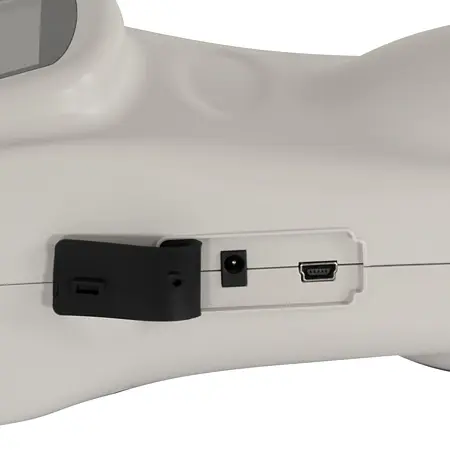

Interface	USB / RS232
Storage	1,000 alphanumeric reference values, 15,000 samples
Power supply	Rechargeable lithium-ion battery
Operating conditions	0 ... +40 °C / 32 ... 104°F 0 ... 85 % RH
Storage conditions	-20 ... +50 °C / -4 ... 122 °F
Dimensions	90 x 77 x 230 mm / 3.5 x 3.03 x 9.05 in
Weight	600 g / 21.1 oz

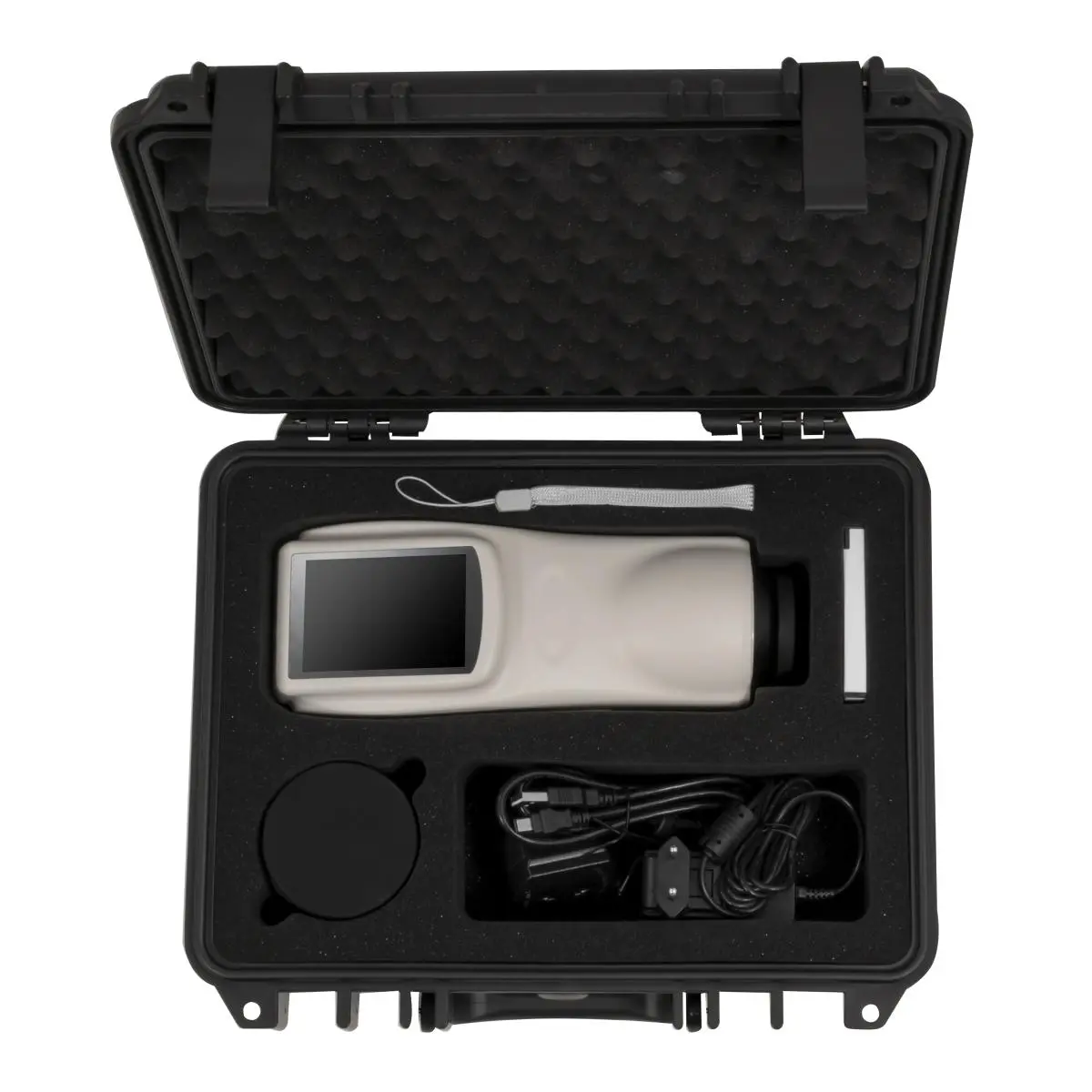

Delivery Scope

1 x Colorimeter PCE-CSM 8
1 x Aluminium carrying case
1 x AC adapter
1 x Lithium-ion battery

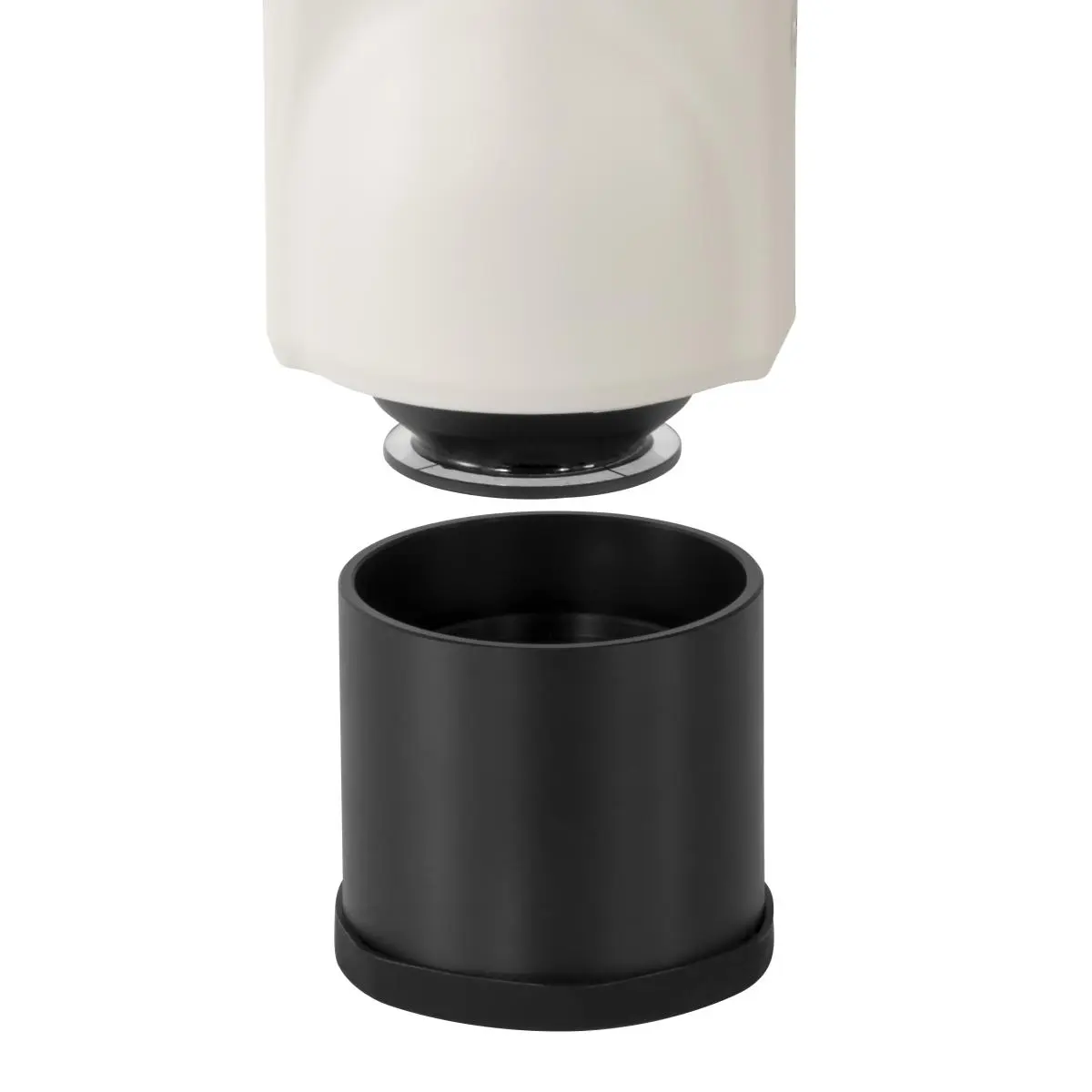

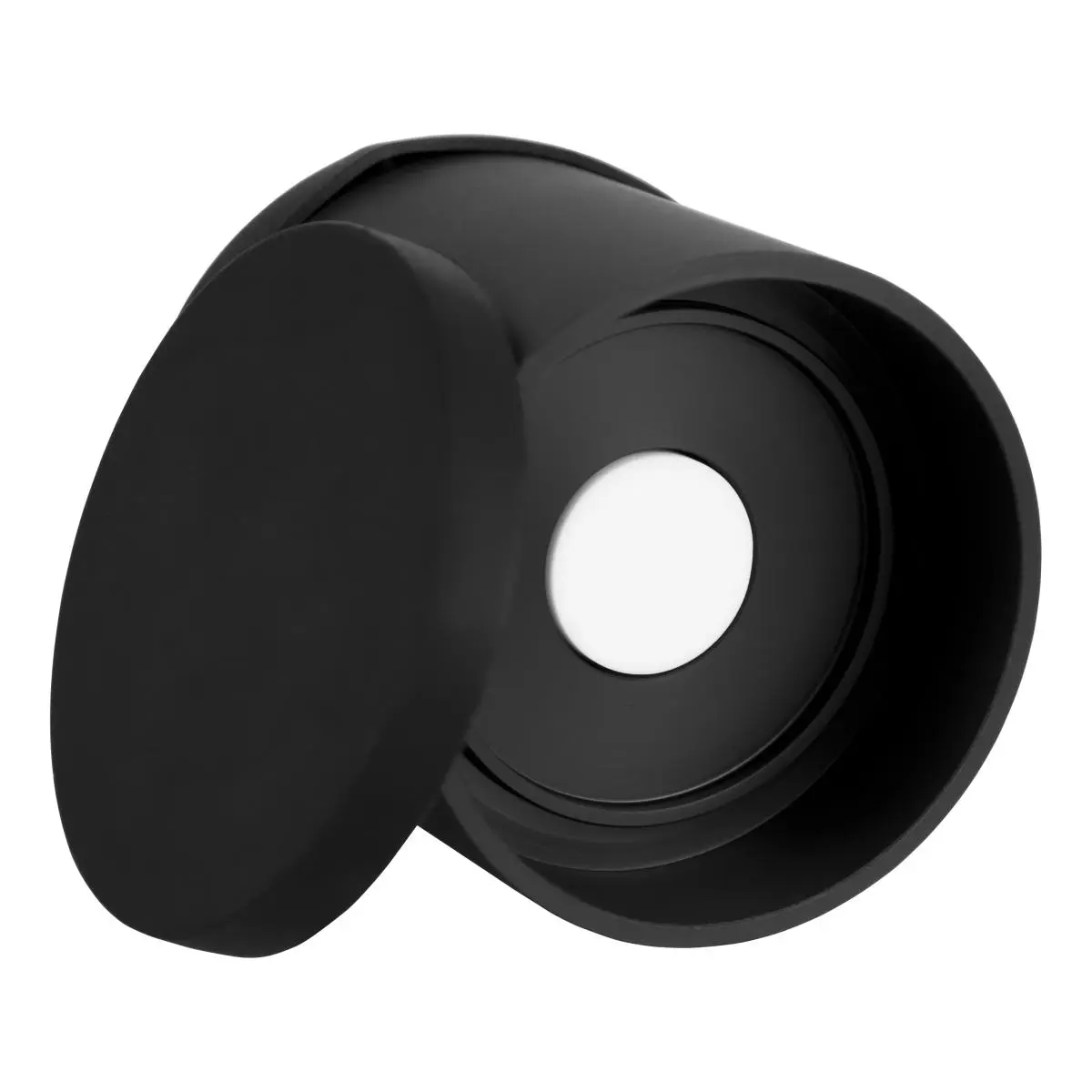

1 x Calibration plate (white)
1 x Calibration plate (black)
1 x Protective cover
1 x USB cable

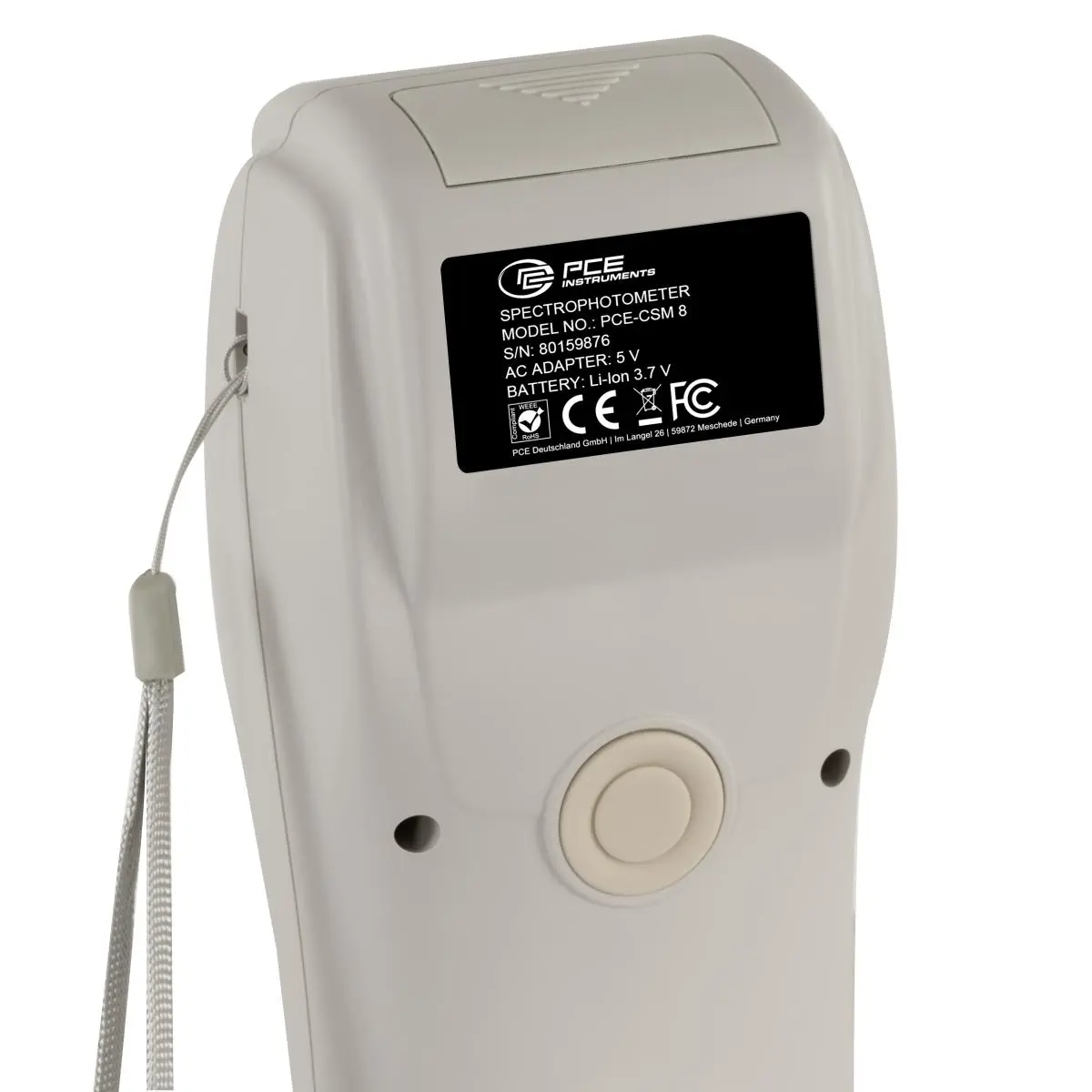

1 x Wrist band
1 x PC software
1 x Instruction manual
