Color Viewing Box PCE-CIC 11-LED

Order no.: PCE-CIC 11-LED
GTIN (EAN): 4250348733337
₹202,651.00
₹239,128.18
price ex. (VAT / delivery)
:
4250348733337
PCE-CIC 11-LED
Delivery time: 1-2 working days

Description

Color Viewing Box for comparing colours/ for use in quality control / hour counter / large viewing area / low-maintenance interior /  simulation of six illuminants

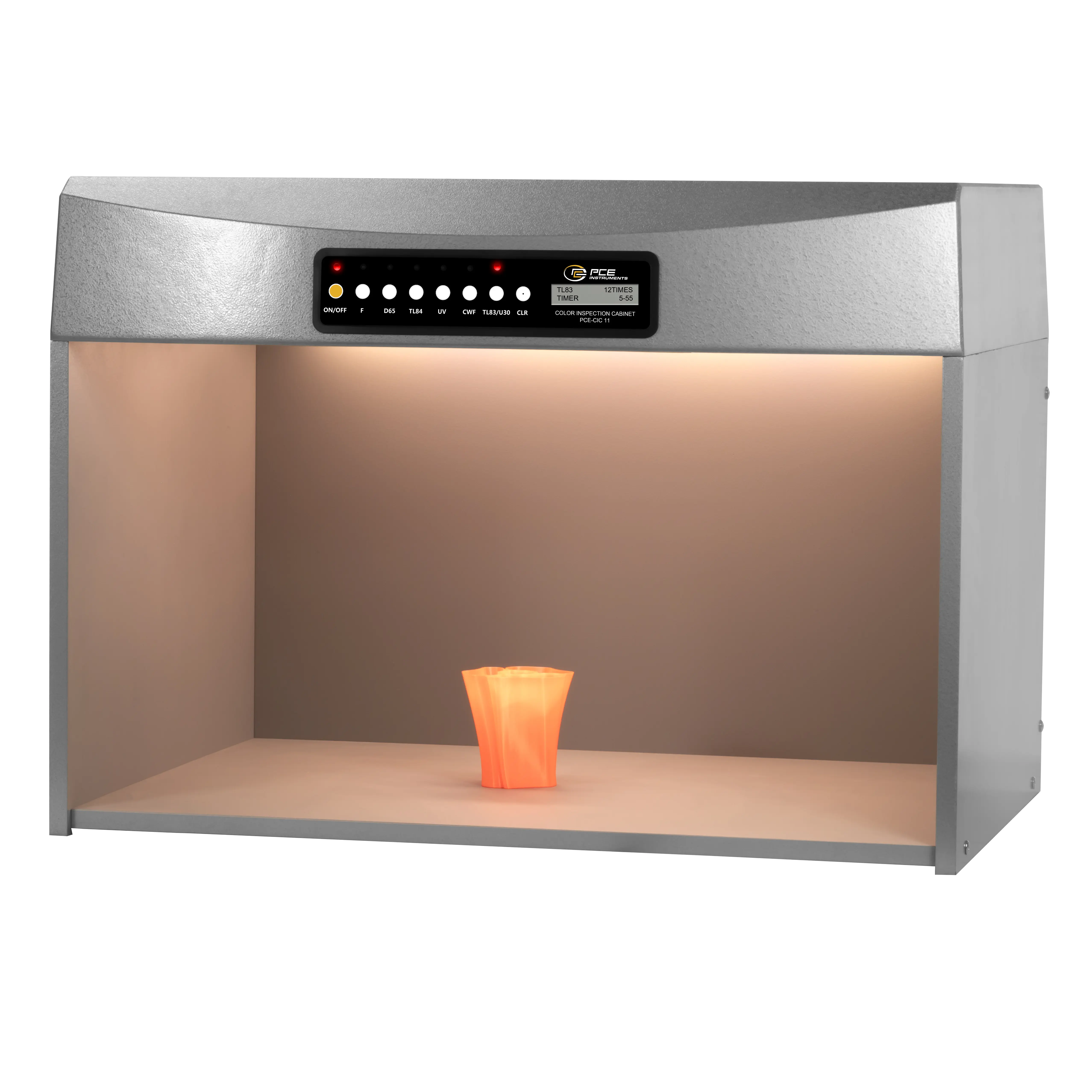

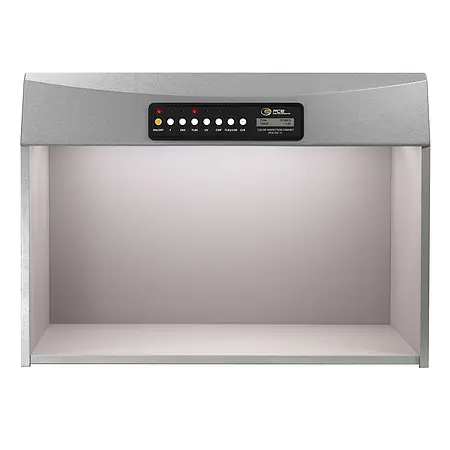

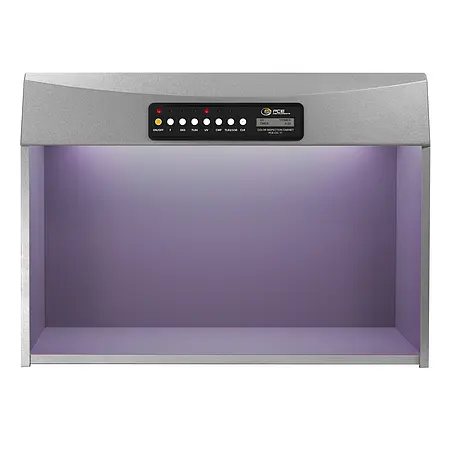

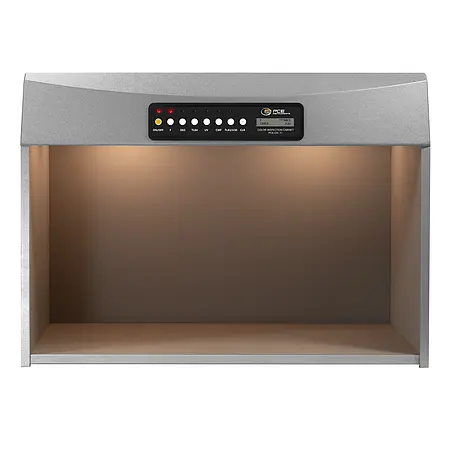

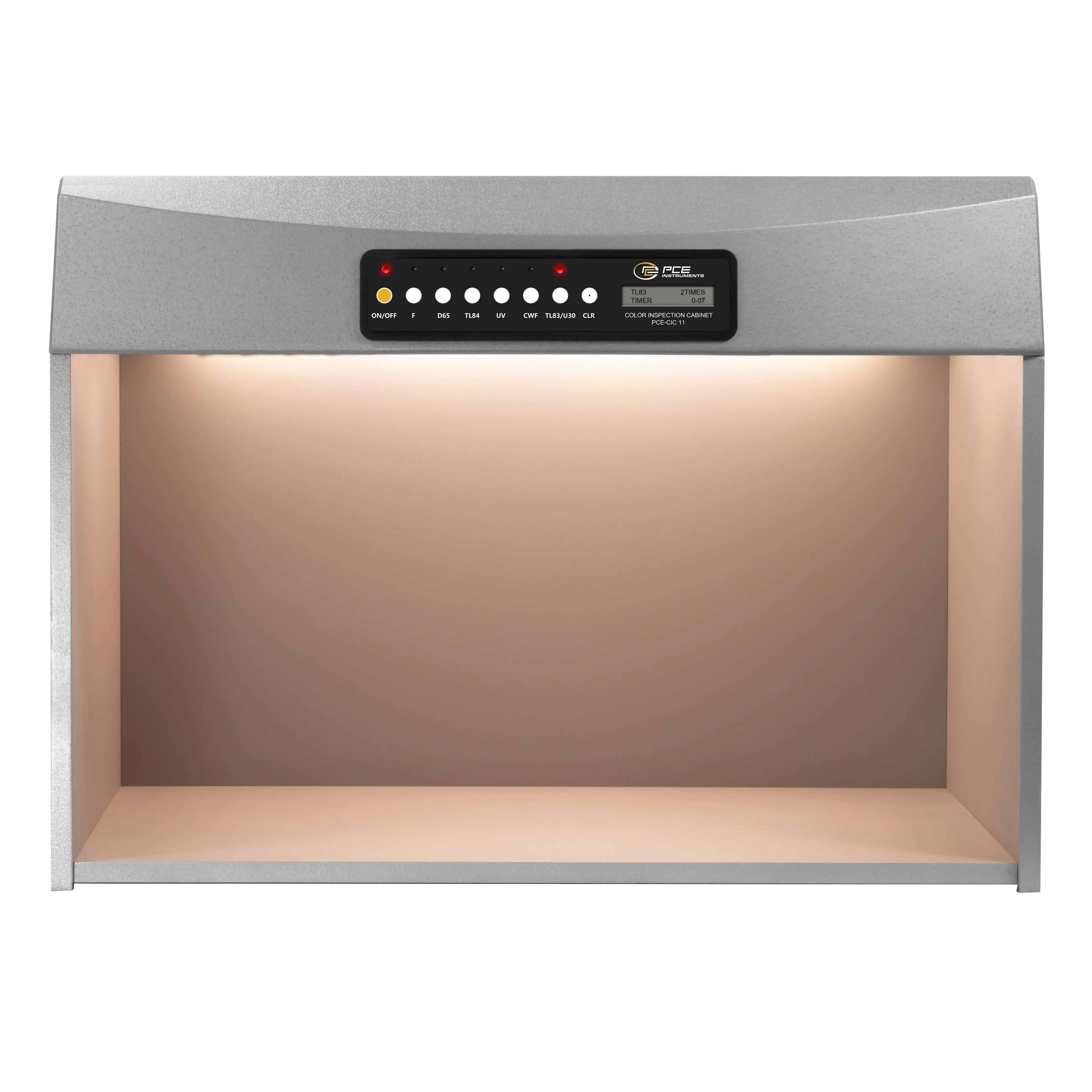

The Color Viewing Box is a simulation instrument which is mainly used in quality control. The Color Viewing Box accurately simulates illuminants and thus enables the direct comparison of products which must have special colour characteristics. The Color Viewing Box PCE-CIC 10-LED supports six possible illuminants. These illuminants are included as standard: "A/F", "D65", "TL84/F11", "UV", "CWF" and "TL83/U30".

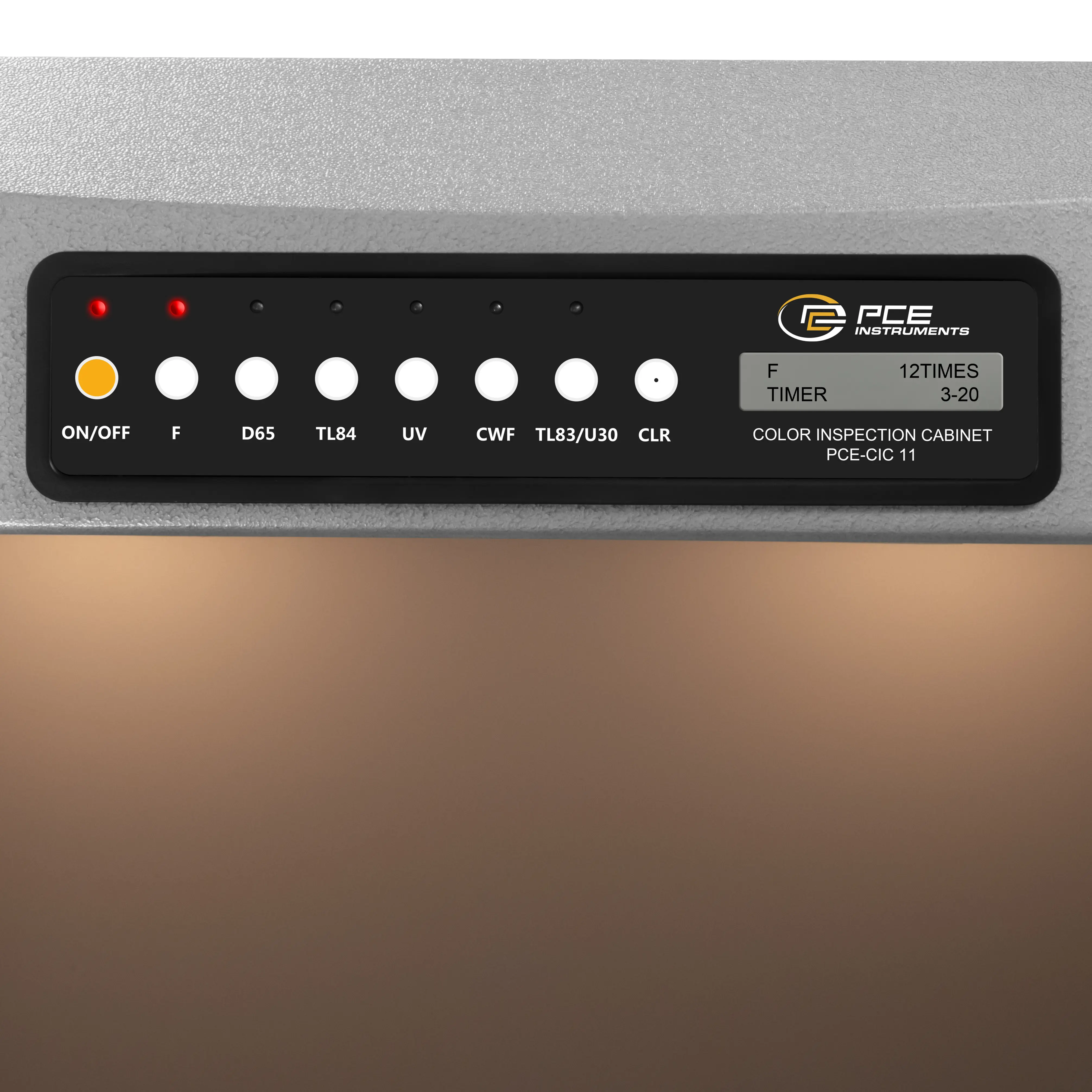

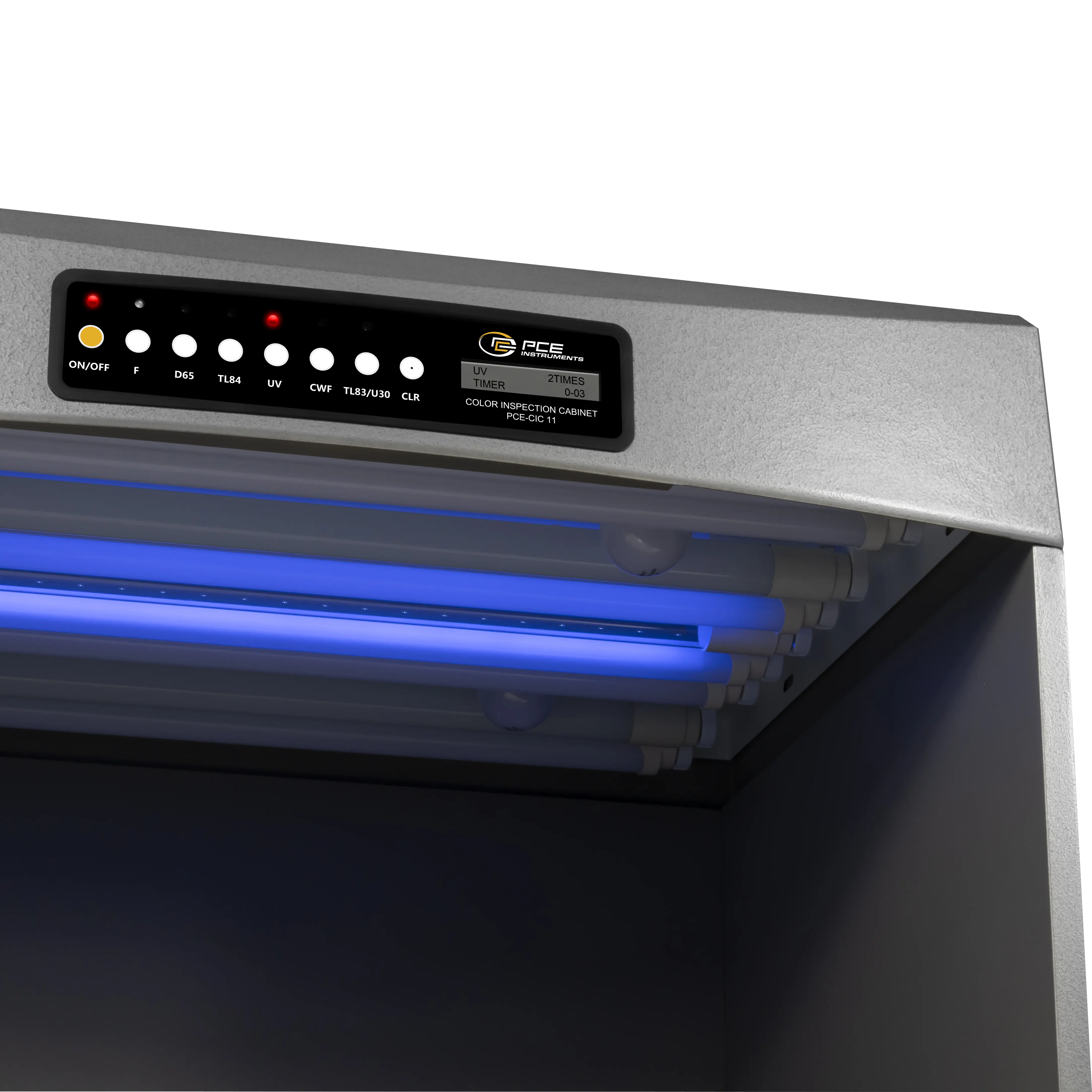

Metamerism can thus be avoided by using a Color Viewing Box. As a support during the measurement, the Color Viewing Box has an hour counter which makes it easier for the user to adhere to the recommended operating time of the lamps. The illuminant is selected by the user independently by the touch of a key. In addition to the individual light, it is also possible to switch to mixed light by pressing the required keys at the same time.


Highlights

- simulation of different illuminants
- hour counter for each illuminant
- short warm-up time
- meets ASTM D1729, ISO3664, DIN, ANSI, BSI
- low-maintenance housing
- ideal illumination of the box

Specification

General technical data
Standard(s)  ASTM D1729, ISO 3664, DIN, ANSI, BSI

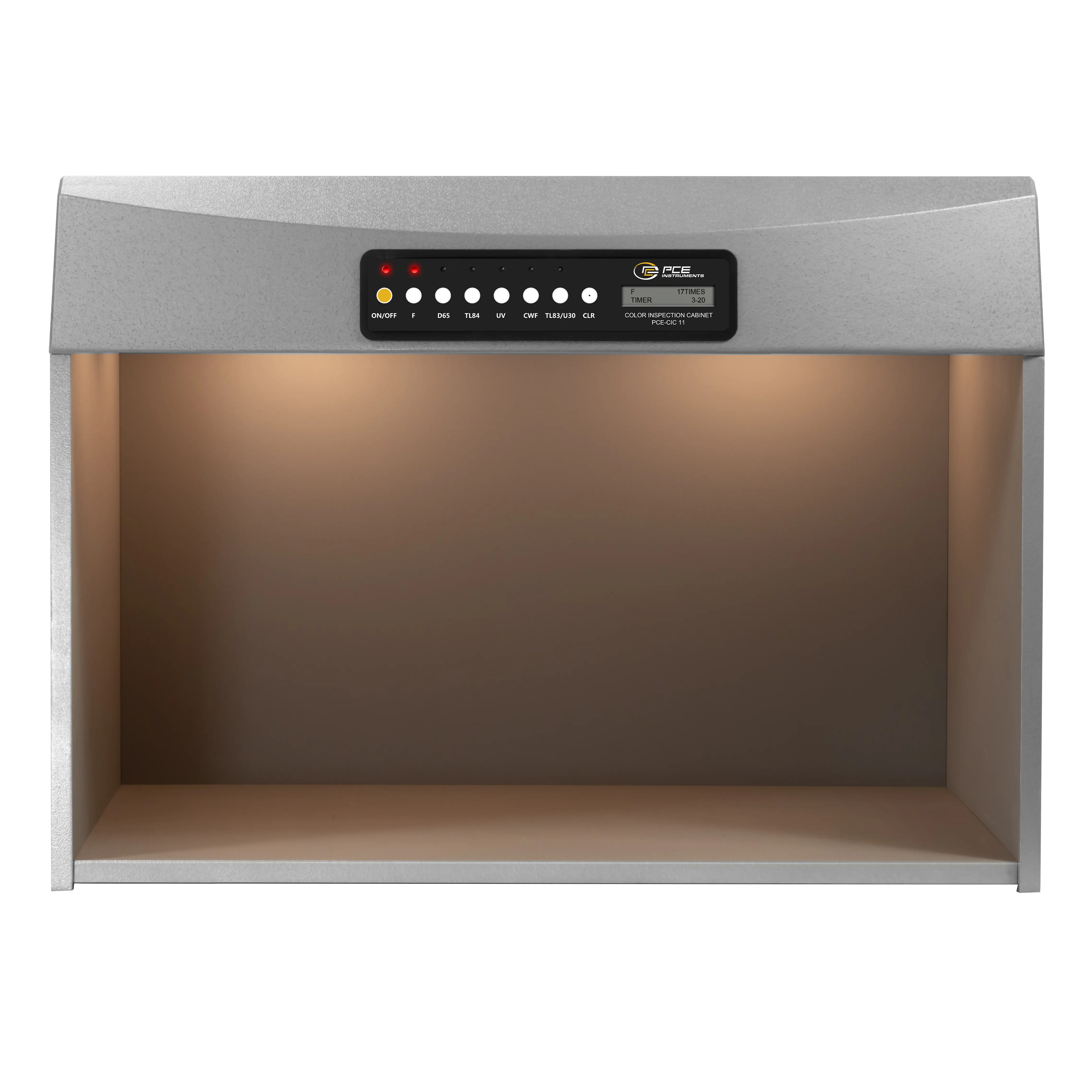

Light source  Domestic light: A / F

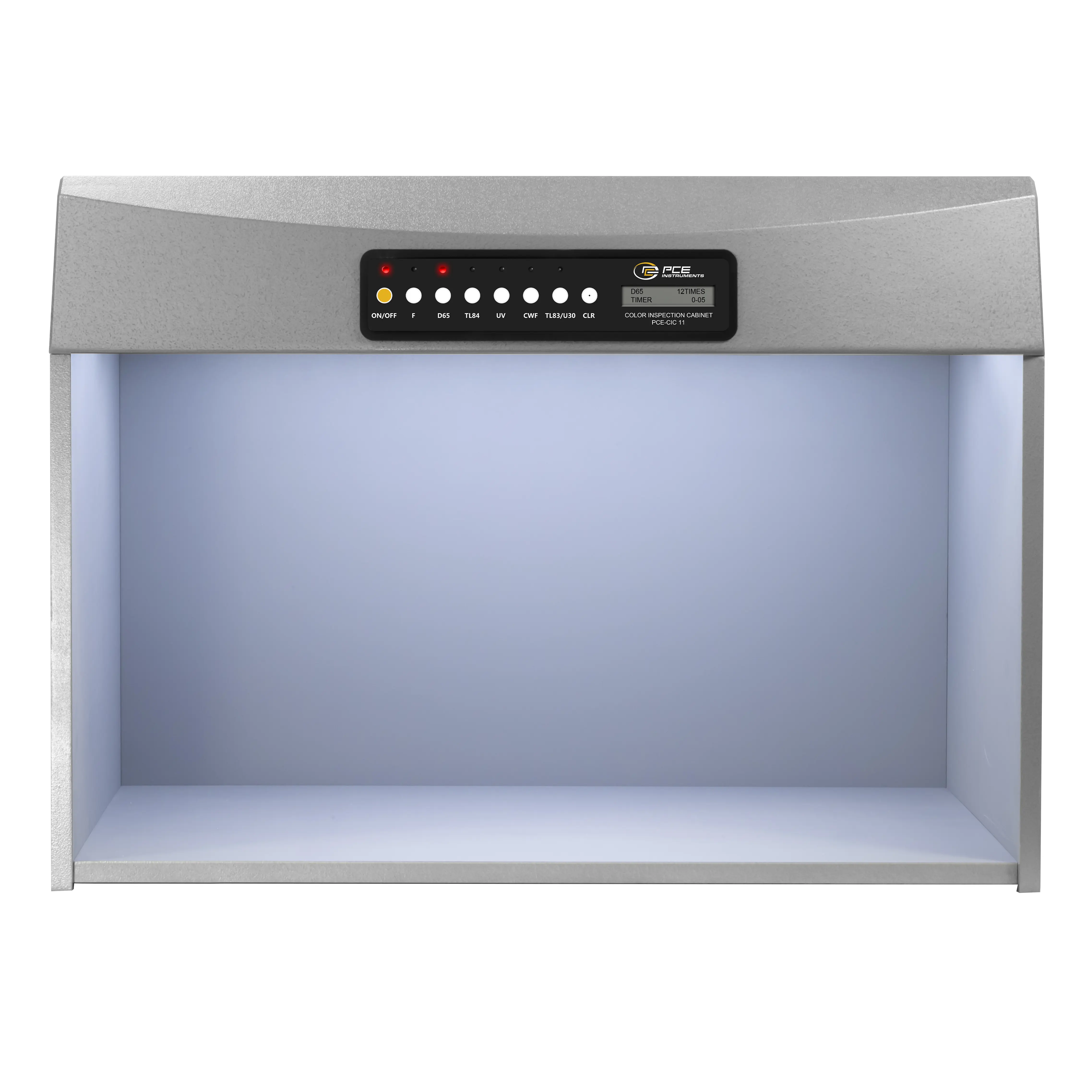

Artificial daylight: D65

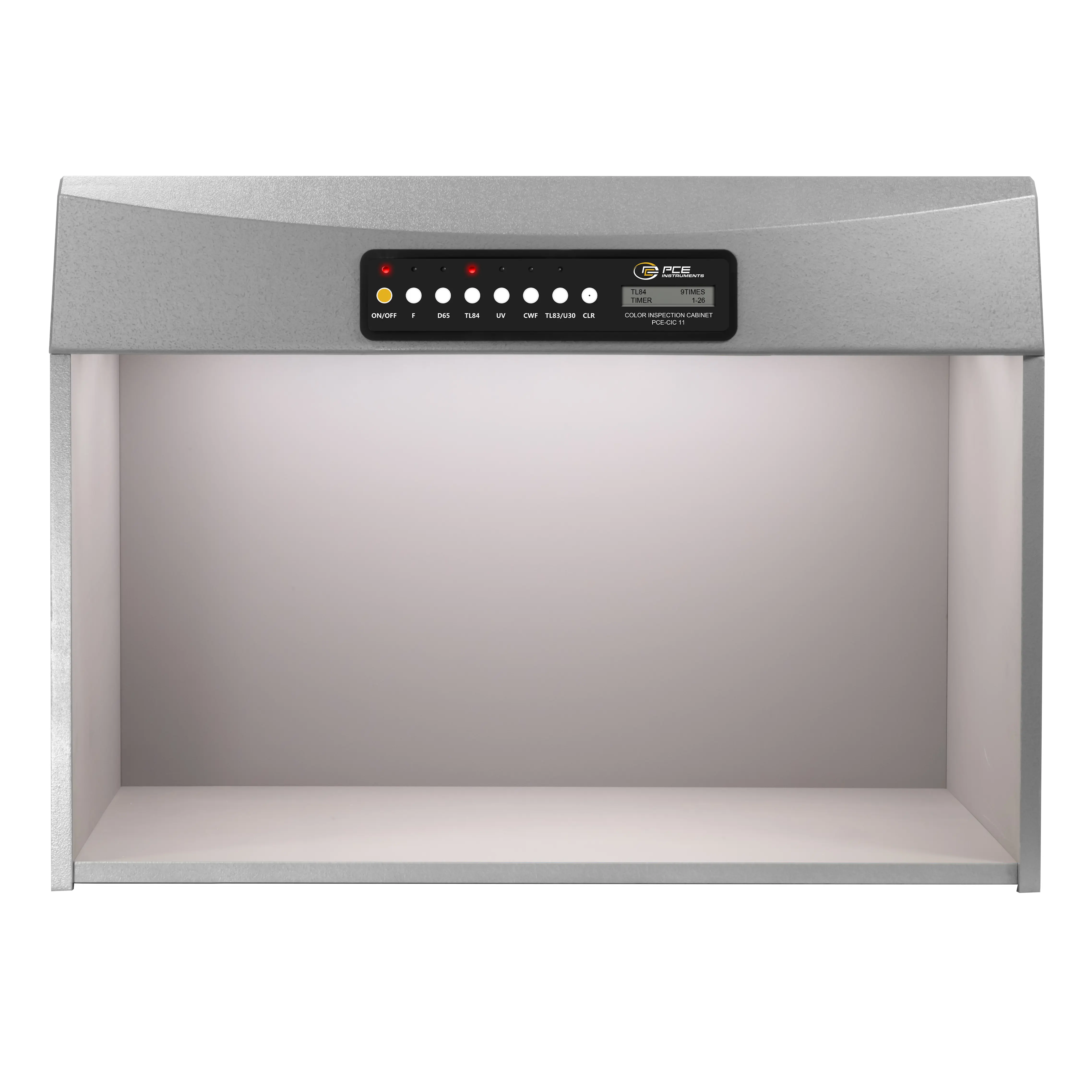

Store light: TL84 / F11

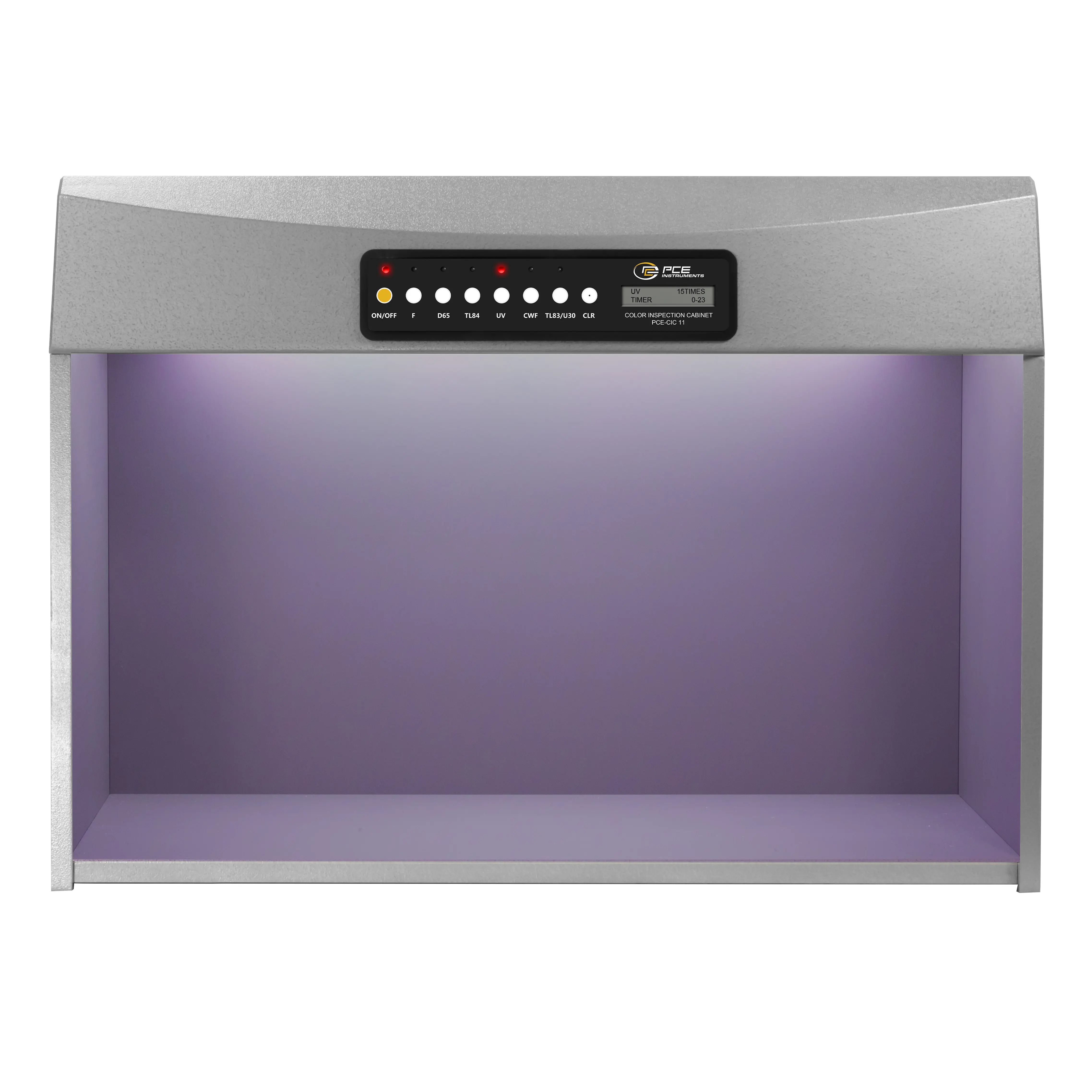

Ultraviolet: UV

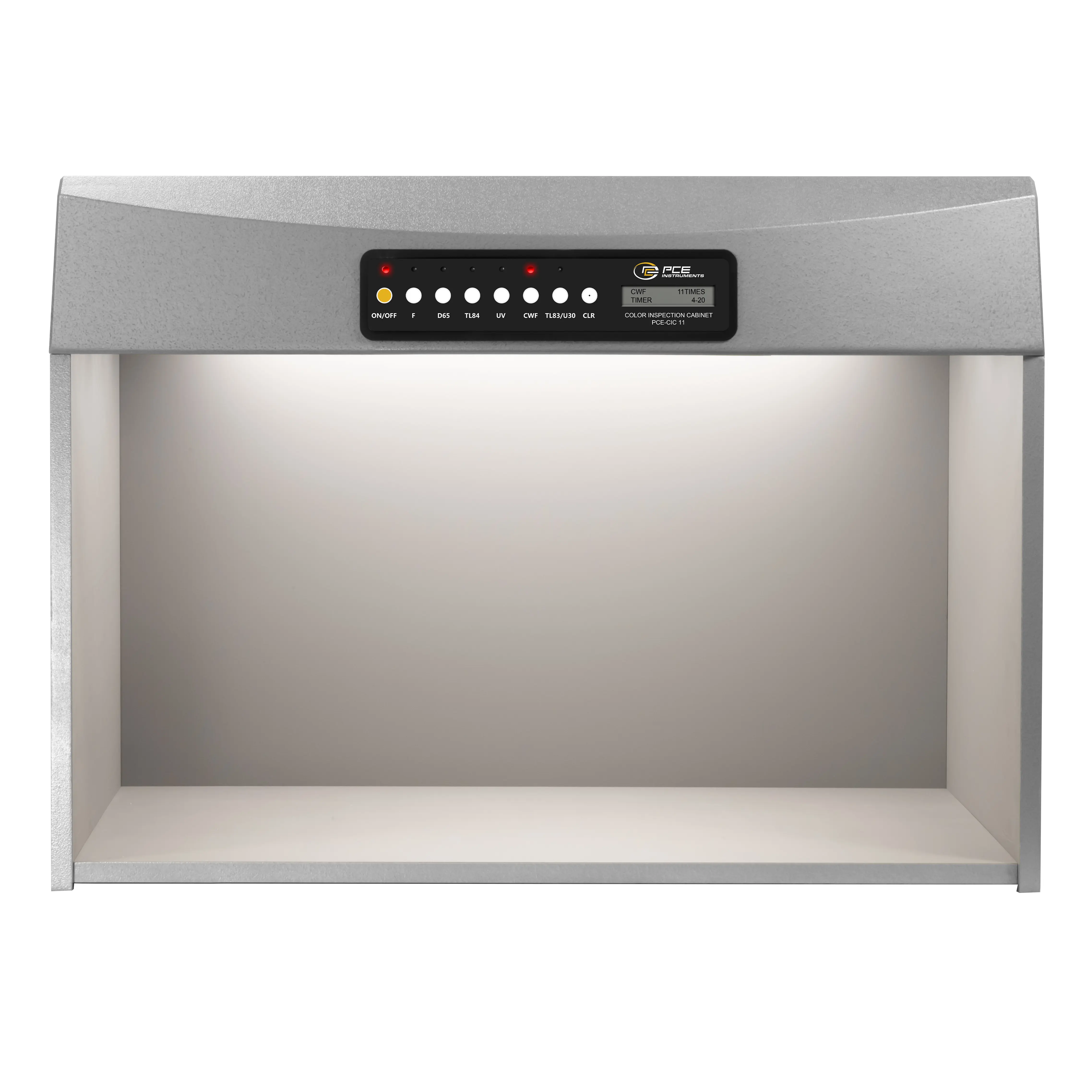

Office / commercial / warehouse light: CWF
Commercial / office light in the USA: TL83 / U30
Menu language  English (GB), English
Protection class (device)  IP20
Power supply  230 V AC / 50 Hz

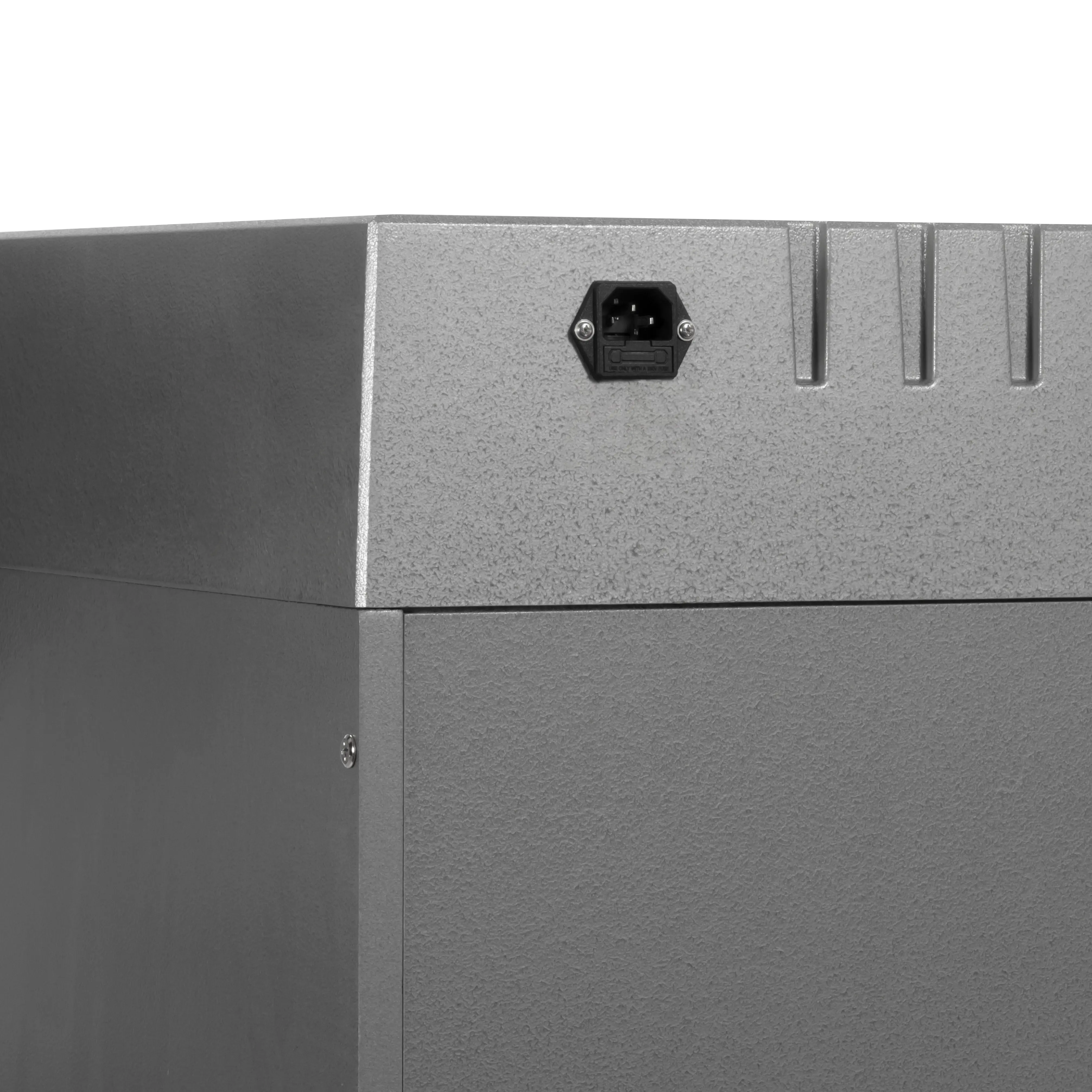

Connector type  Cold-device plug
Weight  20 kg
Operating conditions  10 ... 50 °C , 10 ... 90 % RH
Storage conditions  10 ... 50 °C , 10 ... 90 % RH
Dimensions ( L x W x H )  695 x 552 x 502 mm

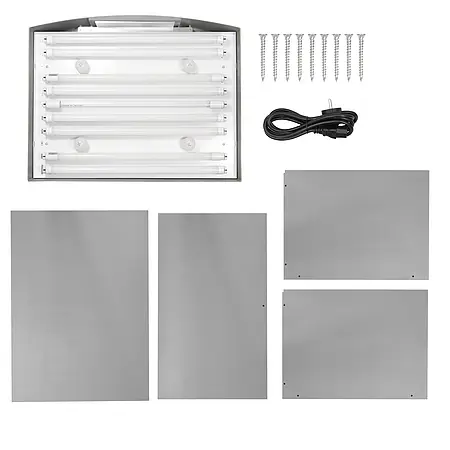

Delivery Scope

1 x Color Viewing Box PCE-CIC 11-LED
1 x user manual
