Colorimeter PCE-CSM 10

Order no.: PCE-CSM 10
GTIN (EAN):
₹938,318.00
₹1,107,215.24
price ex. (VAT / delivery)
PCE-CSM 10
Handheld
Internal
Yes
Solids
Yes

Accessory

Calibration certificate CAL-CSM
Calibration certificate CAL-CSM
₹66,201.00
Universal Test Set for PCE-CSM 7
Universal Test Set PCE-CSM-UTC
₹170,510.00
Powder Test Box PTB-PCE
Powder Test Box PTB-PCE
₹36,345.58
Replacement battery PCE-CSM-BAT
Replacement battery PCE-CSM-BAT
₹19,924.00
CAL-CSM D8 calibration certificate for repeatability
CAL-CSM D8 calibration certificate for repeatability
₹29,930.00

Description

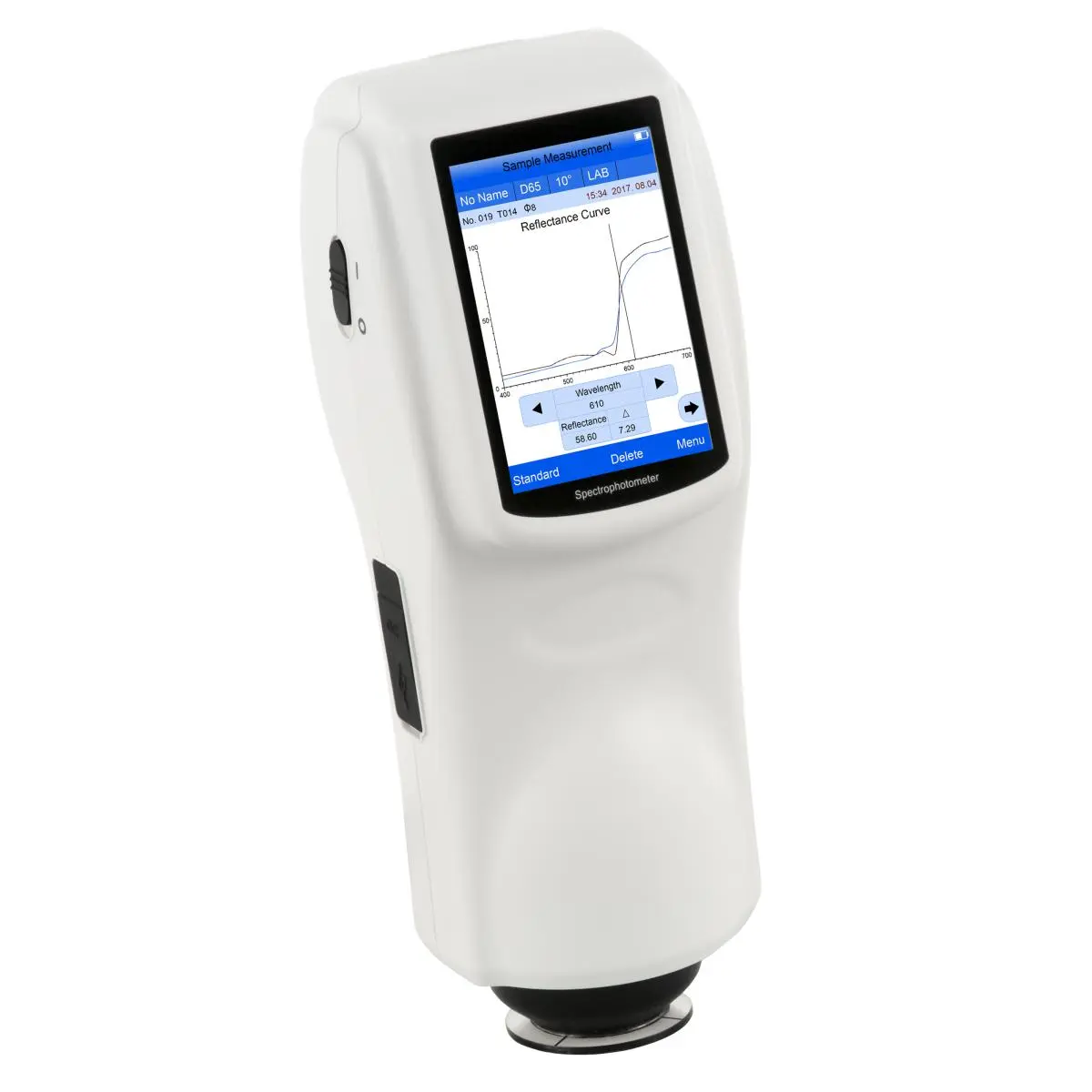

Colorimeter PCE-CSM 10 for quality control / PC software included / Li-ion battery / different color spaces / black and white calibration / determination of reference values and samples / white calibration / 3.5" touch screen

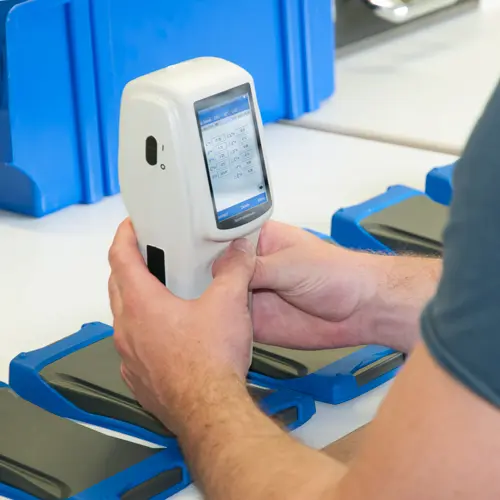

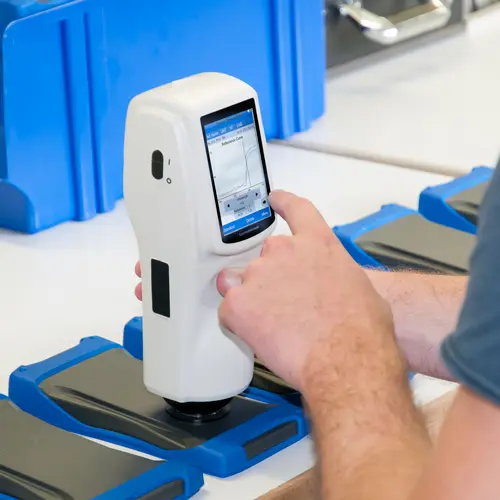

The colorimeter PCE-CSM 10 was developed for quality control, offers a high accuracy and comes with a 3.5" touch screen display. When using the colorimeter, you can choose between different color spaces (CIE L*A*B, XYZ, Yxy, LCh, CIE LUV, HunterLAB). After a measurement with the colorimeter, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.

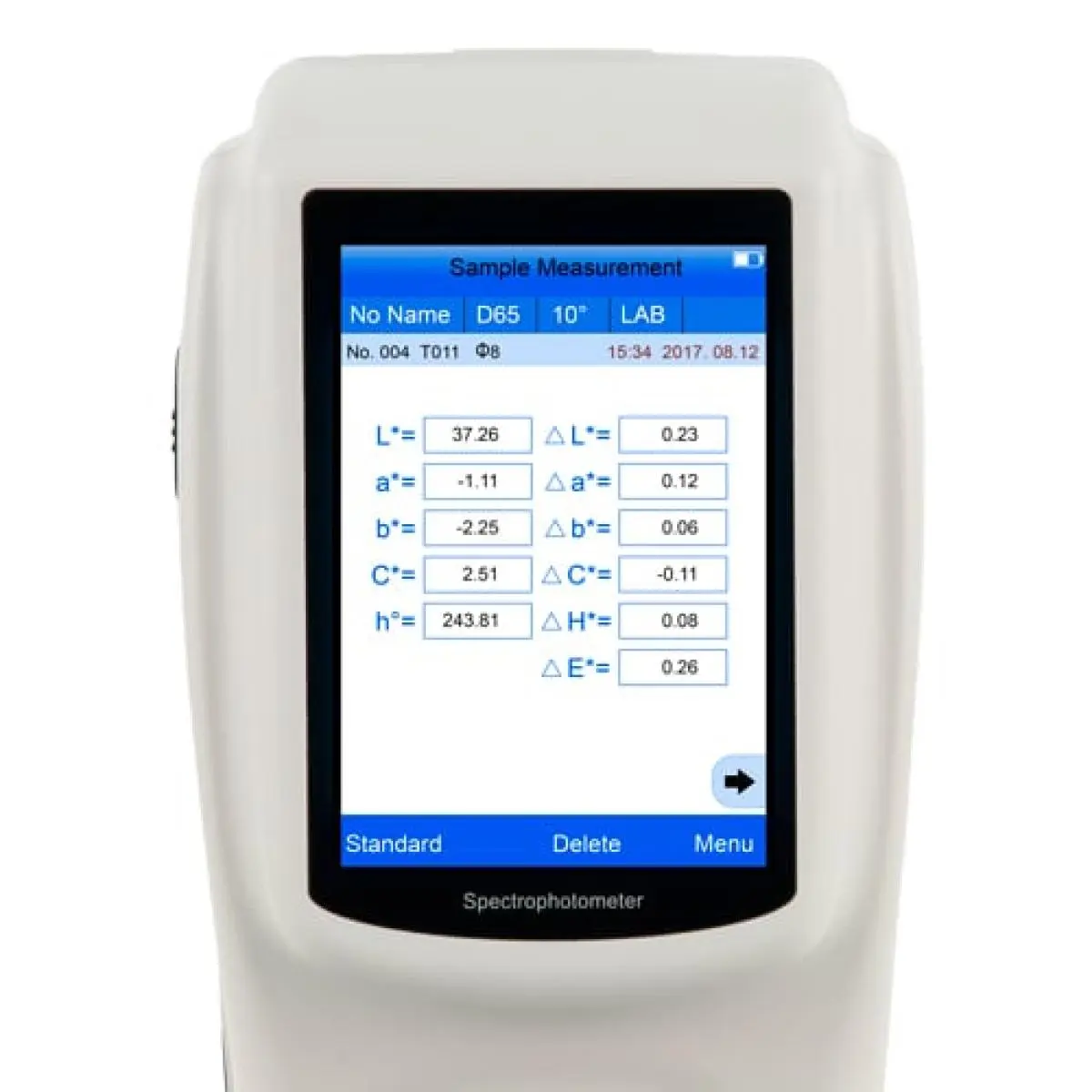

In addition to the individual colour space coordinates, the deviation between the reading is also displayed. When using the colorimeter, it is possible to store up to 1000 reference values and up to 15000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.

Highlights

- CIE L*A*B, XYZ, Yxy, LCh, CIE LUV, HunterLAB
- black and white calibration
- determination of reference values and samples
- 3.5" touch screen display
- rechargeable lithium-ion battery
- high accuracy
- easy to use
- incl. PC software
- 8 mm aperture

Specification

Measuring geometry8°/d

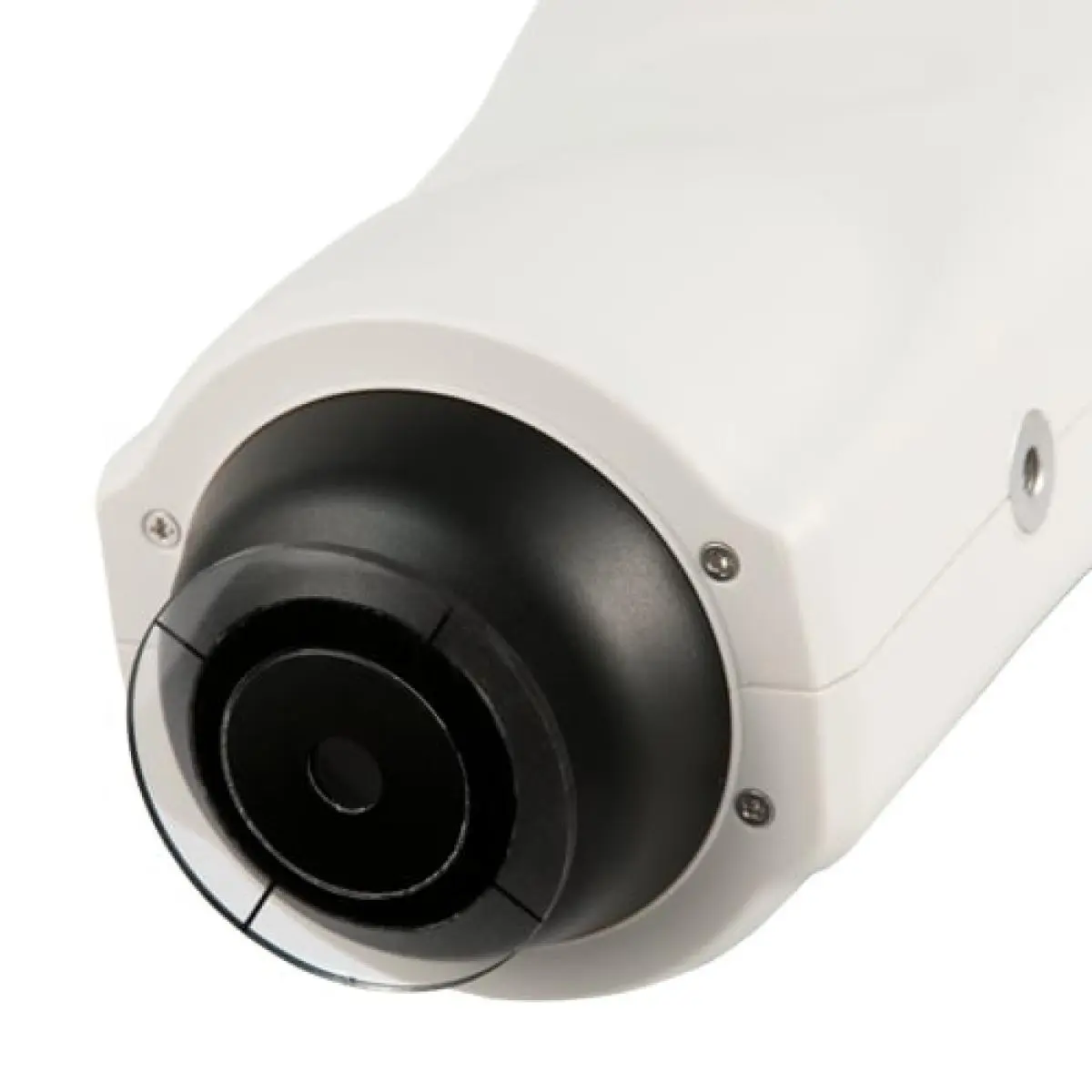

Measuring apertureDiameter 8 mm
Integrating sphereDiameter 58 mm
SensorSilicon photoelectric diode
Wavelength range400 ... 700 nm
Reflection factor range0 ... 200 %
Colour spacesCIE L*A*B, XYZ, Yxy, LCh, CIE LUV, HunterLAB
Colour indexΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*cmc(l:c), CIE2000, ΔE*00, ΔE(h)
Chromacity dataWI (ASTM E313, CIE/ISO, AATCC, Hunter)
YI (ASTM D1925, ASTM E313)
TI (ASTM E313, CIE/ISO)
Metamerism Index Mt
colour stain, colour fastness
Observation angle2° / 10°
Measuring time1.2 seconds
Light sourceD65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12(TL83/U30)
Light source devicecombined LED
Repeatability Standard deviation within ΔE*ab 0.04
Average of 30 measurements of standard white plate
Error between equipment ΔE*ab 0.2

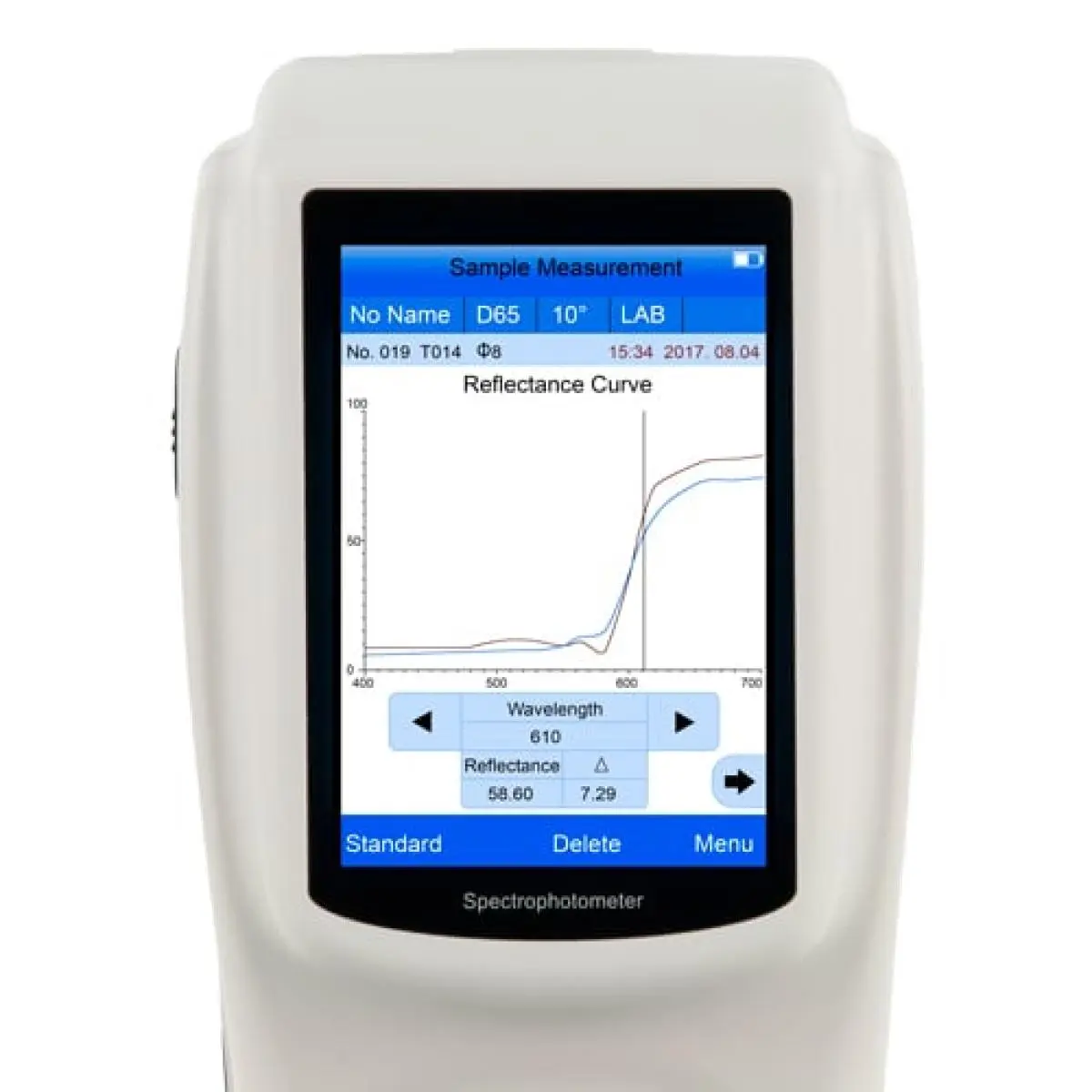

Display functionsSpectral value/graph, colorimetric value, colour difference (value/graph), PASS/FAIL result, colour offset, colour simulation, colour index settings (ΔE*94, ΔE*cmc, ΔE*2000), error limit settings, time settings, language settings, restore factory settings
Display3.5" TFT touch screen

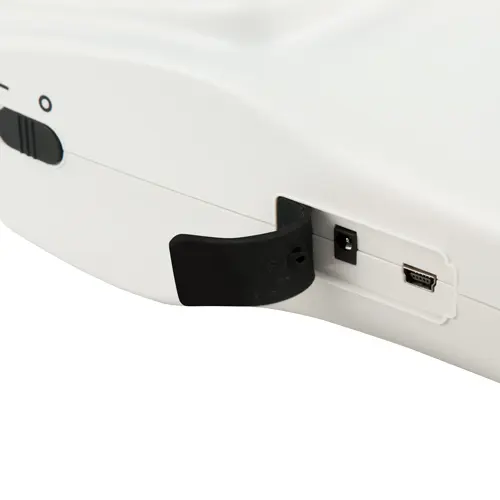

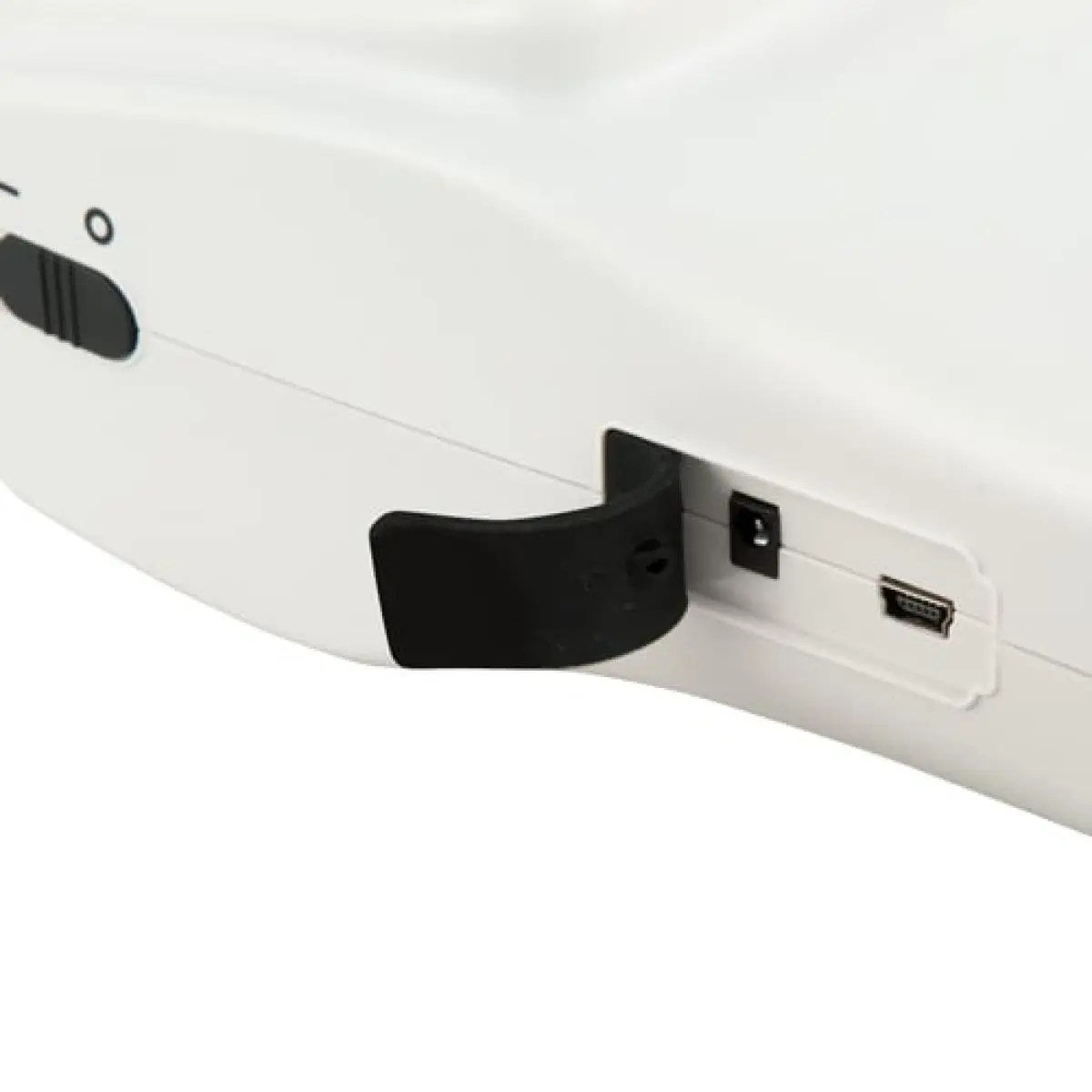

InterfaceUSB / RS-232
Storage1,000 reference values, 15,000 samples
Power supplyRechargeable lithium-ion battery
3.7 V at 3,200 mAh
Life of light source5 years, > 1.6 million measurements
Operating conditions0 ... +40 °C
Storage conditions-20 ... +50 °C
Dimensions90 x 77 x 230 mm
Weight600 g

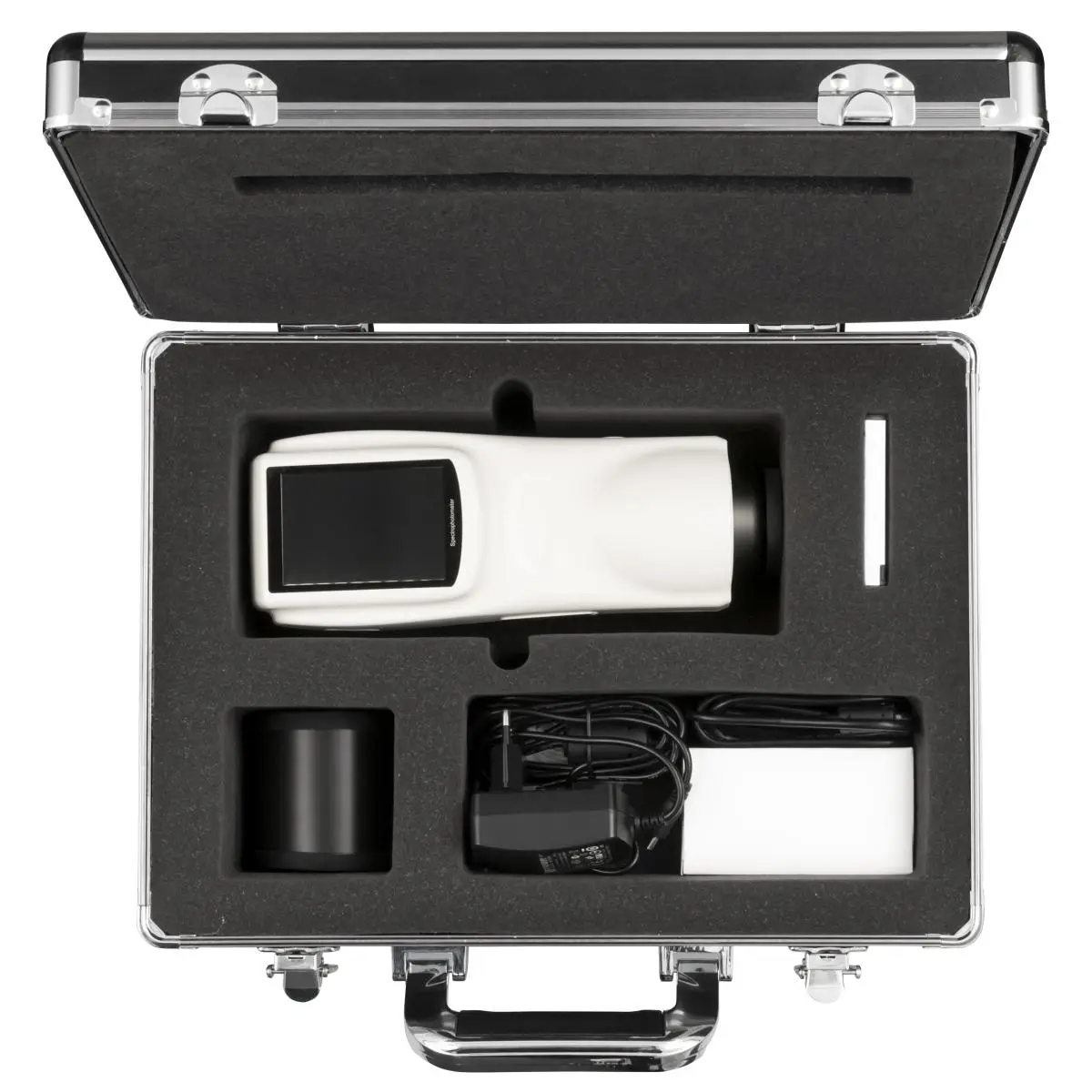

Delivery Scope

1 x Colorimeter PCE-CSM 10,
1 x Aluminium carrying case
1 x AC Mains adapter
1 x Lithium-ion battery
1 x Calibration plate (white)
1 x Calibration plate (black)
1 x Protective cover
1 x USB cable
1 x Wrist band
1 x PC software
1 x Instruction manual
