Concrete Moisture Meter PCE-MMK 1

Order no.: PCE-MMK 1
GTIN (EAN): 4250348710505
₹75,278.00
₹88,828.04
Topseller
price ex. (VAT / delivery)
:
4250348710505
PCE-MMK 1
Delivery time: 1-2 working days

Accessory

MMK-E-150 150-mm needles
MMK-E-150 150-mm needles
₹2,366.00
MMK-E-10 30-mm needles
MMK-E-10 30-mm needles
₹2,366.00
MMK-E-10 10-mm needles
MMK-E-10 10-mm needles
₹2,366.00

Description

Concrete Moisture Meter for relative and absolute moisture / with external and internal insertion probes for wood, construction material and paper / manual temperature compensation / with adaptable lengthening / different material characteristics selectable

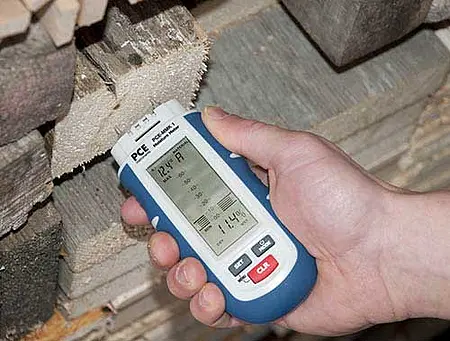

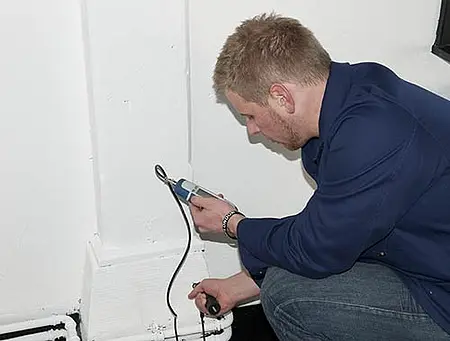

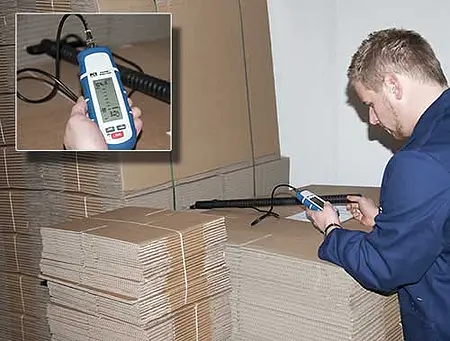

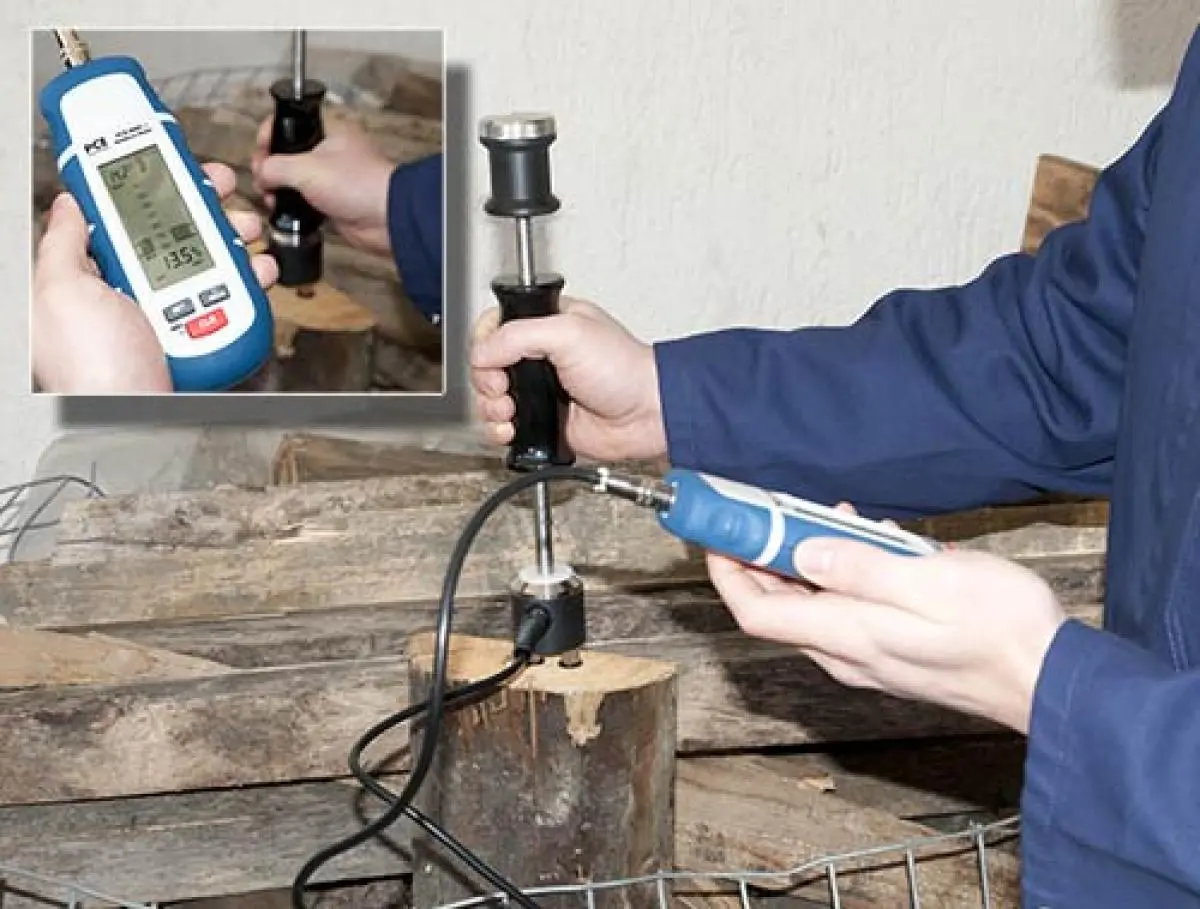

The concrete moisture meter is designed for mobile use by technicians and assemblers in order to quantify moisture or to control received goods. The Damp Meter not only measures the absolute moisture in construction materials or wood, but can also display data regarding the atmospheric environment (air humidity and temperature). The display of the universal concrete moisture meter immediately shows the reference value in %- values, thus no conversion is necessary. The delivery package of the concrete moisture meter includes three different insertion probes for woods, construction material and paper- and board- staples. In general, the universal concrete moisture meter is provided with four different measuring modes, which can be switched in accordance to the probe; 130 varying kinds of wood, 19 construction materials (cement, screed, mortar, concrete etc. …), a dry-wet-indicator for reference measurement and an index mode, with which absolute moisture can be measured.

By means of the self-testing function the concrete moisture meter can be tested for its correct work function. Furthermore, the concrete moisture meter includes a manual temperature compensation mode to achieve more accurate measuring data. For further information about concrete moisture meter, please read the following technical data. Our engineers and technicians will gladly advise you regarding the concrete moisture meter or any other  products in terms of regulation and control, or scales and balances of PCE Instruments.

Highlights

- Easy handling
- Self-test of universal moisture meter
- wood, board paper and construction material
- Battery display
- Wet-dry-indicator
- Temperature unit eligible between °C and °F
- Resistive Measuring
- Type of wood and building material adjustable
- 3 different electrodes included in delivery
- Short and long insertion needles adaptable
- Temperature and moisture measurable
- Max- and Min- value preserved
- Manual temperature compensation
- Internal and external electrode

Specification

Measuring rangesWood:             1 ... 75 %
Material:          0.1 ... 2.4 %
Temperature:   -40 °C ... +70 °C / -40 ... +158 °F
Humidity:         0 ... 100 %
Resolution0.1 %
AccuraciesWood:            1 ... 30 % / ±1 %
                     31 ... 60 % / ±2 %
                     61 ... 75 % / ±4 %
Materials:      ±0.5 %
Temperature: -40 ... -10 °C, +40 ...+70 °C / ±2 °C
                    -10 ... +40 °C / ±1 °C
Humidity:        0 ... 20 %, 80 ... 100 % / ±5 %
                     20 ... 80 % / ±3.5 %
Electrode length8 mm (internal), 30 mm und 150 mm (external)
Measuring principleelectrical resistance
Automatic turning-off functionafter about 3 minutes (without using)
Automatic turning-off function (Display) after about 10 seconds (without using)
EnclosurePlastic, impact resistant
Battery3 x CR 2032
Surrounding conditions0 ... +40 °C, 0 ... 85 % RH
Measures139 x 47 x 25 mm
Weight100g (without electrode)

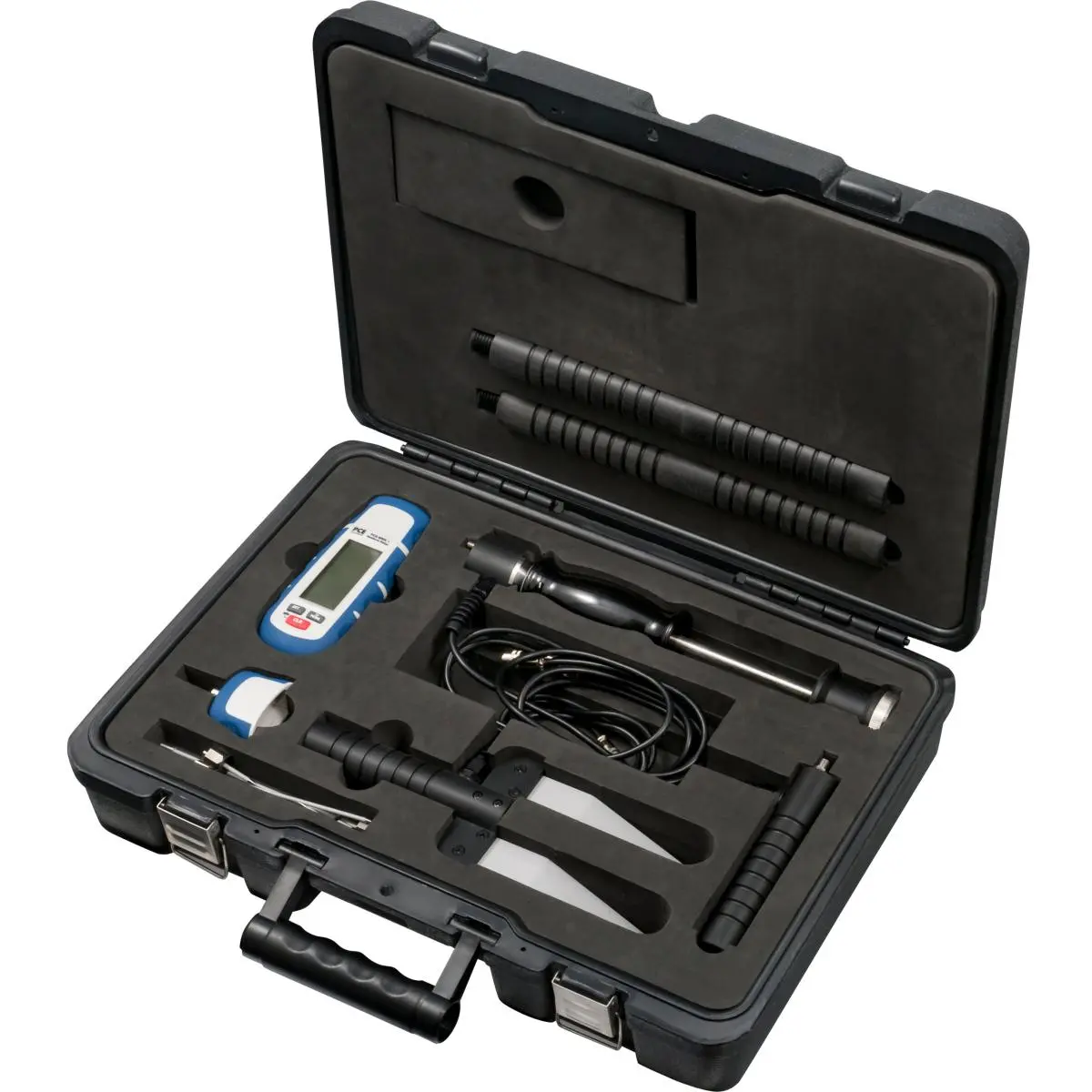

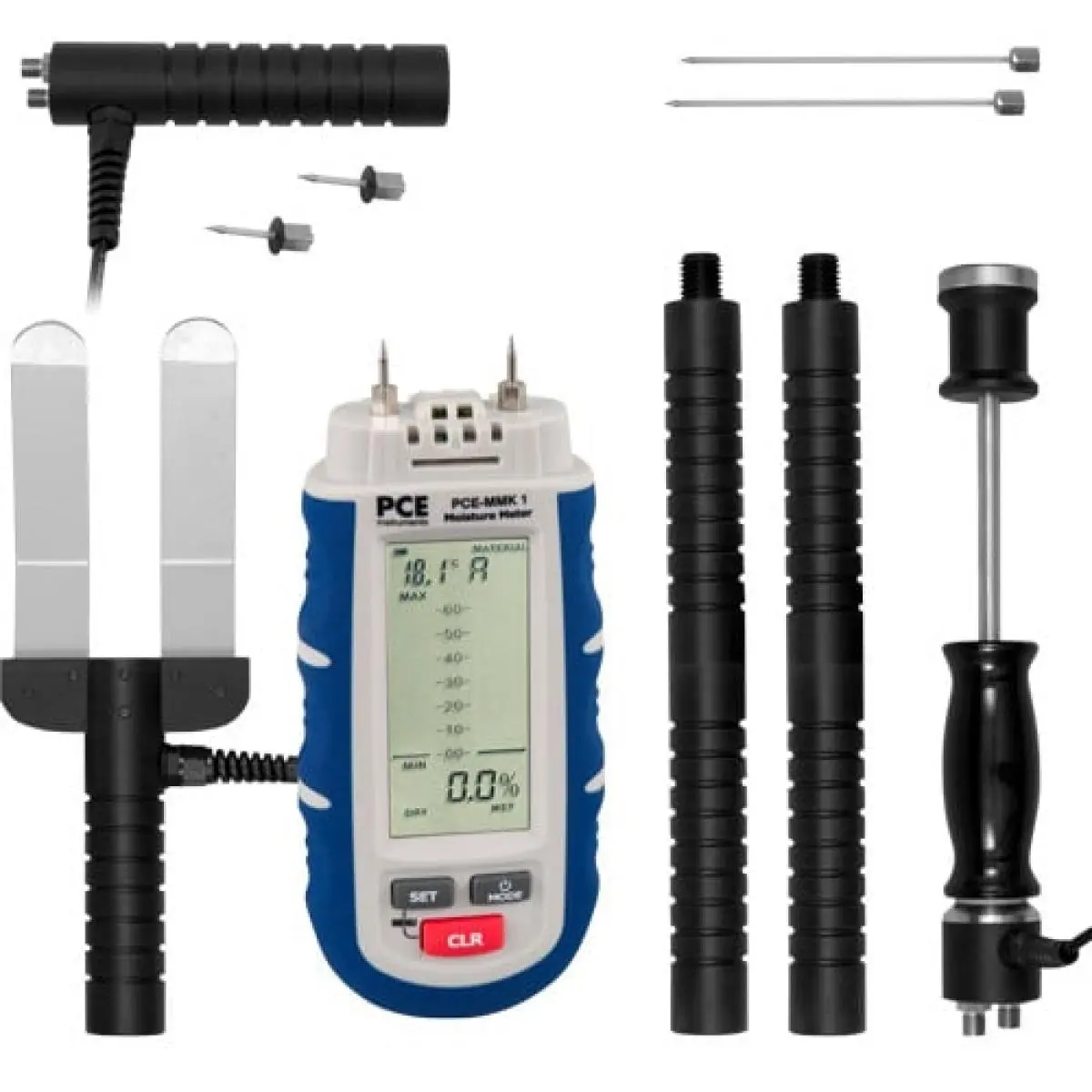

Delivery Scope

1 x Concrete Moisture Meter PCE-MMK 1
1 x measuring cap for self-test
1 x measuring cap for external electrode

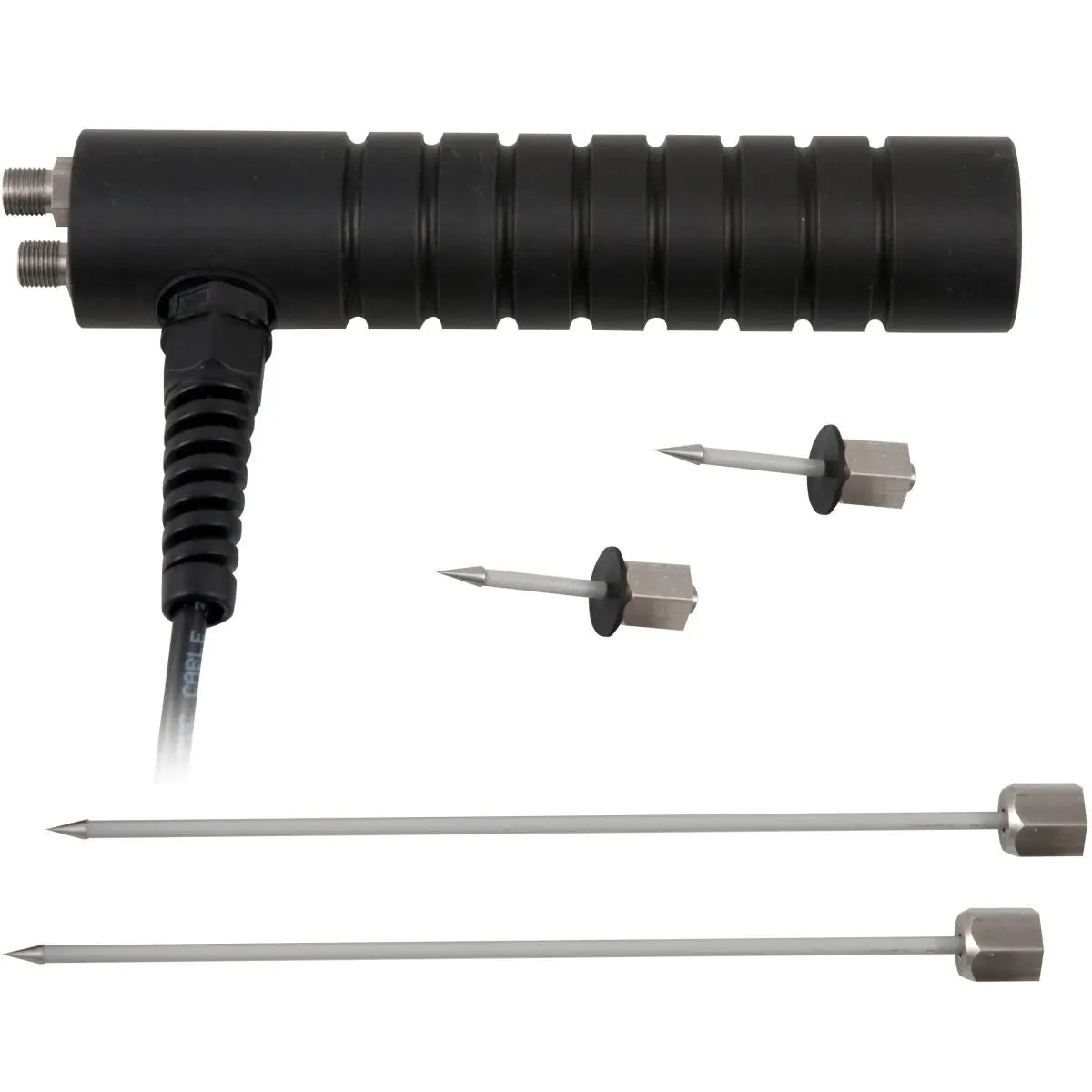

1 x ramming electrode
1 x penetration electrode
1 x piling electrode
2 x 30 mm needles
2 x 150 mm measuring tips
2 x 300 mm lengthening
1 x instruction manual
